Changing a BMW Fuel Pump? You Need This Lock Ring Tool

One E46 owner on E46Fanatics spent two hours knocking a single fuel pump lock ring loose. Another chipped the tabs off a rusted ring before it moved. An E90 owner on E90Post had the plastic collar under the ring break and learned BMW doesn't sell it separately.

This is our deep dive on the OneFastShop BMW fuel pump lock ring tool, part number OFSLOCK, at $21.99: what it fits, what it doesn't, how it compares with the Schwaben, CTA and OTC tools, and how to free a seized ring without cracking the flange under it.

Specs, price and fitment come from our product listing, competitor prices from each maker's site, and owner stories from E46Fanatics, E90Post, Bimmerfest and SpoolStreet, all checked in October 2026. We make this tool, so we judge it as hard as anyone else's.

Shop the OFSLOCK Lock Ring Tool

The Short Answer

If your car is an E chassis BMW built between 1992 and 2013, from the E36 3 Series to the E9x 335i and E70 X5, or a 2002 to 2008 MINI R50, R52 or R53, our $21.99 OFSLOCK tool fits and turns the ring with any 3/8 inch ratchet. If your car is an F or G chassis BMW or a Porsche, it does not fit.

At a Glance

What the OFSLOCK Tool Is, and What It Won't Fix

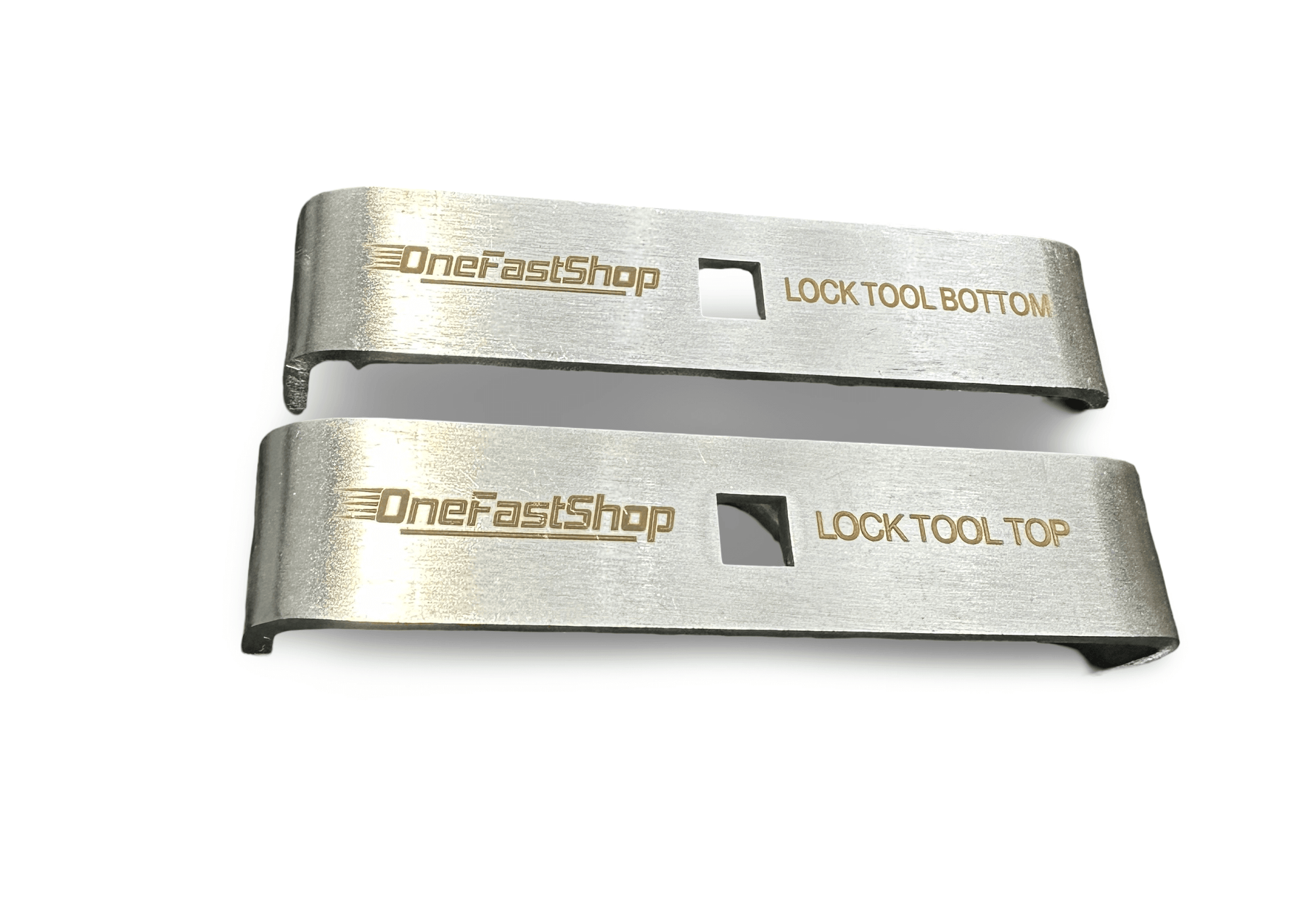

The OFSLOCK is a two piece lock ring wrench, CNC bent from 304 stainless steel, that removes and installs the rings holding the fuel pump module and fuel level sender in E chassis BMW and early MINI tanks. The bars are marked Top and Bottom and store flat in a drawer.

Here is what it won't do. It does not fit F or G chassis BMWs such as the F30, F10, F22, G20 or G30, which use a different ring design, and it does not fit any Porsche. It can't save a ring that has rusted through or a plastic collar that has already cracked.

How the Lock Ring Tool Grips the Ring

The lock ring tool hooks the ring at four evenly spaced points, so the turning force goes around the whole ring instead of into one tab. That matters because most of these rings are steel and the plastic pump flange under them gets brittle with age.

Lay the Bottom bar across the ring and the Top bar over it at a right angle, square holes lined up, and the ratchet goes through both. The bars sit loose, so hold the stack flat with one hand while the other pulls. A hammer and screwdriver, by contrast, hits one lug at a time and drives part of every blow into the flange.

BMW Fuel Pump Lock Ring Tool Fitment

Our BMW fuel pump lock ring tool fits the 15 E chassis BMW and early MINI platforms below, built from 1992 to 2013, as listed on our product page.

On most of these cars the covers sit under the rear seat bottom. The Z3's is behind the driver's seat under the carpet. The E85 and E86 Z4 pump is reached from under the car with the exhaust lowered, and you drain the tank completely first because the opening faces down.

Saddle tanks have two rings, one for the pump and one for the fuel level sender, joined by a crossover or siphon line.

Does not fit: any F or G chassis car. If you're shopping our N55 LPFP lineup for an F30 or F22, plan on a different tool. The 2011 to 2013 E82 135i and E9x 335i with the N55 are E chassis cars and do fit. Not sure? Email us your VIN and we'll confirm.

OFSLOCK vs Schwaben, CTA and a Hammer

The OFSLOCK is the least expensive dedicated E chassis lock ring tool we priced, and the trade is coverage: Schwaben and CTA also claim Porsche.

Prices are each maker's own as of October 2026 and vary by dealer. Schwaben is ECS Tuning's house brand; Schwaben and CTA both cross reference BMW factory tool 16 1 020.

Adjustable tools cover more cars but can slip off a stuck ring, and the OTC 6599 is built for trucks like the 2004 and newer F-150, with no BMW listed.

How to Remove a Seized Fuel Pump Lock Ring

A seized fuel pump lock ring comes off with a steady breaker bar pull through the tool's center, once fuel pressure is relieved and the area is vacuumed clean.

Before You Start

• Work somewhere ventilated, engine cool, with rags, gloves and a fire extinguisher close.
• Run the tank to a quarter or less, or drain it completely on the E85 and E86 Z4.
• Have a new pump seal in hand. Never reuse the old one.

Removal Steps

1. Relieve fuel pressure: pull the fuel pump fuse or relay, start the car, and let it stall. Then disconnect the battery.
2. Remove the rear seat bottom (or reach the Z3 or Z4 access point) and the access cover.
3. Vacuum around the ring so no dirt falls into the tank.
4. Unplug the connector, release the fuel line, and move the vent lines aside. A SpoolStreet N54 owner found they catch on the ring as it turns.
5. Stack the tool with all four jaws fully hooked, fit the ratchet through both holes, press down on the center, and turn counterclockwise in one slow pull.
6. Keep a hand on the module, since some are spring loaded, and lift it out tilted to spare the float arm. Unhook the crossover line on saddle tanks.

If the ring won't move, recheck the jaws and add a pipe over the ratchet. No impact gun, no heat. Owners report success with penetrating oil; use a little and wipe the area clean before the module comes out.

Reinstalling the Ring So It Seals

A reinstalled lock ring seals when a new gasket sits flat in the tank opening and the ring is tightened evenly until the seal is compressed all the way around.

1. Clean the sealing surface, seat the new seal in the tank opening first, then lower the module into it, the order owners on Bimmerfest and E46Fanatics both recommend.
2. Reconnect the crossover line, check the float swings freely, and line up any alignment marks.
3. Start the ring by hand. If you have to force it down to catch a thread, the seal is out of place.
4. Tighten clockwise with the tool until the ring sits evenly with no gaps.
5. Reconnect everything, cycle the ignition to prime, check for leaks, and start it.

A fuel smell afterward usually means a rolled seal or a ring that isn't fully seated.

What Owners Actually Say

Owner threads agree the ring is where an E chassis pump job goes wrong, usually starting with a hammer and screwdriver.

On E46Fanatics, a 2001 325i owner's ring wouldn't move under a mallet and screwdriver. Replies warned that someone had cracked a tank that way, and later in the thread another E46 owner's white plastic piece under the ring broke apart as it came off.

The plastic part BMW won't sell. An E90 owner on E90Post changed his fuel pump and the plastic ring on the neck of the tank broke. BMW told him it had no separate part number, so the clean fix was a new tank. Members pointed him to salvage yard tanks from pre LCI cars, skipping N51 cars because their tank differs.

Another E46Fanatics owner, at 190,000 miles, chipped tabs off a rusted ring before a hammer and nail punch turned it. In a separate E46 thread, an owner switched to a brass drift after a steel one threw sparks.

Adjustable tools aren't immune: an E9x owner on E90Post, finishing a fuel pump upgrade after a turbo install, said his universal spanner kept slipping and his flathead was chewing up the tabs.

The happier stories come down to leverage. A SpoolStreet N54 owner fitting a Stage 2 LPFP rated the removal 5 out of 10 and put a pipe over his 3/8 inch ratchet to break a rusted ring loose. On Bimmerfest, an owner who had flattened most of his ring's notches got it off with penetrating oil, and it still sealed.

Mistakes We See

Most lock ring damage we hear about traces back to five avoidable mistakes.

• Ordering it for an F30. Every F and G chassis car uses a different ring; decode your VIN first.
• Steel on steel over an open tank. A steel screwdriver or drift can spark on a steel ring, and owners have seen it.
• Reusing the old seal. Years of compression leave it flat and hard.
• One jaw riding high. Most slips start with one bar not fully hooked, so look at all four jaws before you pull.
• Forgetting the lines. Vent lines snag a turning ring, and a loose crossover line strands you with fuel left.

Who This Is For (and Who Should Skip It)

This tool is for E chassis BMW and R50, R52 or R53 MINI owners opening the tank for an LPFP upgrade, a dead pump or a sender.

Skip it if your car is an F or G chassis BMW or a Porsche, or if a shop is doing the job. If you own an E and an F chassis car, an adjustable tool that claims both is the better single buy, slip risk and all.

If It Were Our Car

Our pick depends on the chassis, so here is one call per car.

• E82 135i or E9x 335i, N54 LPFP upgrade: the OFSLOCK, a breaker bar and a new seal, with our N54 LPFP kit guide to pick the pump.
• High mileage E46 on its original pump: the OFSLOCK, a brass drift as backup, and a look at the plastic collar first.
• MINI R53 Cooper S: the OFSLOCK and a new seal.
• E85 or E86 Z4: the OFSLOCK; the real work is getting under the car.
• F30 335i, F22 M235i or any G chassis: not our tool; buy one whose maker lists your chassis.

What It Pairs With

The lock ring tool pairs with a new pump seal every time and, on N54 and N55 cars, often an upgraded pump. If a low fuel pressure code sent you here, read our 29F2 and 29DC diagnosis guide first so the right pump goes in.

We are an authorized dealer for every brand we carry, and in stock hardware ships fast.

Get the OFSLOCK Lock Ring Tool

The Bottom Line

On an E chassis BMW or early MINI, the lock ring is the step that turns a two hour pump swap into a hunt for a salvage yard tank. The OFSLOCK hooks the ring at four points and lets a breaker bar do the work slowly. At $21.99 it costs a fraction of the Schwaben or CTA tools and covers fewer cars than either. If your car is on the fitment list, it is the cheapest insurance in the job; if it's an F or G chassis or a Porsche, buy a tool that lists it.

Frequently Asked Questions

Does the OneFastShop lock ring tool fit F chassis or G chassis BMWs?

No. F chassis cars such as the F30, F10, F20, F22 and F32, and G chassis cars such as the G20 and G30, use a different lock ring design. The tool is made for E chassis BMWs and the MINI R50, R52 and R53.

Does this lock ring tool fit Porsche?

No. It is not made for any Porsche model. Porsche owners need a tool whose maker lists their car, such as the Schwaben tool, which lists 911, Boxster and Cayman models.

Which way does a BMW fuel pump lock ring turn?

Counterclockwise to loosen and clockwise to tighten, as seen from above.

What size ratchet does the tool take?

Any 3/8 inch drive ratchet, breaker bar or torque wrench. Use a breaker bar on a badly seized ring.

Can I reuse the old fuel pump seal?

No. The old seal has been squashed flat and has usually hardened. Always fit a new seal, or you risk a fuel smell or a leak.

Can I use a hammer and screwdriver instead?

Owners do, but it is how tabs get chewed up and plastic collars crack, and a steel screwdriver can spark on a steel ring over an open tank. Without a tool, use a brass drift and tap evenly around the ring.
