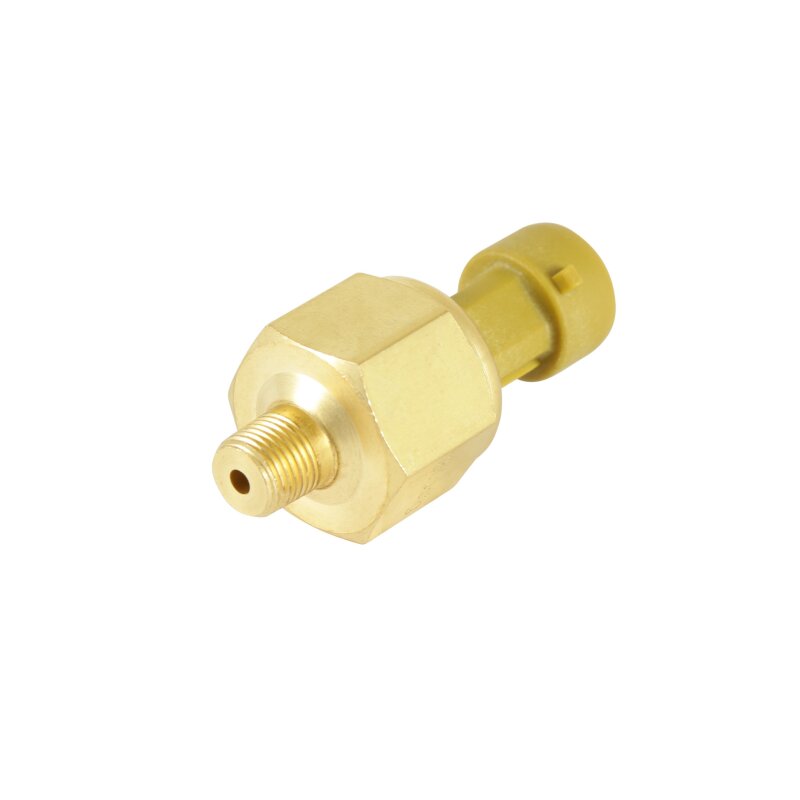

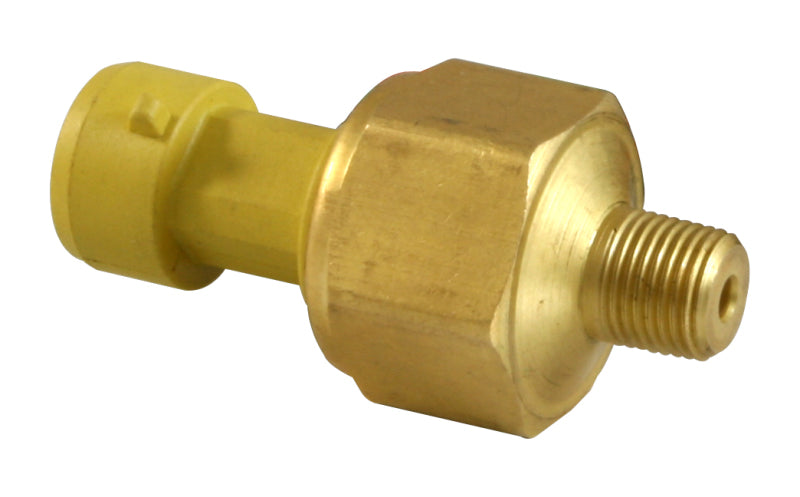

AEM brass PSIa sensors are offered in three configurations—30(2BAR), 50 (3.5BAR), and 75 (5BAR)—designed for accurate manifold pressure measurement. PSIa refers to absolute zero, the pressure value when atmospheric pressure is removed, and is commonly used for reading manifold pressure or vacuum. A PSIa sensor reads approximately 14.7 PSI at sea level when exposed to atmospheric pressure and can be recalibrated to read zero at atmospheric pressure or a negative reading below atmospheric pressure. This sensor kit features a brass body with high-quality sealing to resist fluids and includes a weather-resistant connector and pins for reliable signal integrity.
WarrantyInstallation Instructions
Features:
- Brass body with high-quality sealing impervious to fluids
- Weather resistant connector and pins included
- Accurate with 3% margin for error

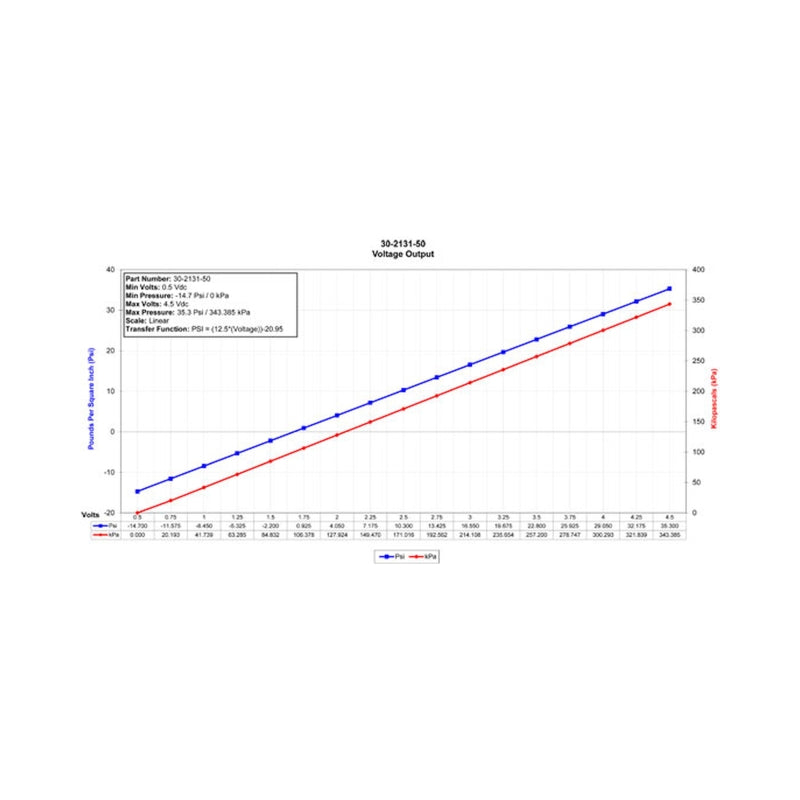

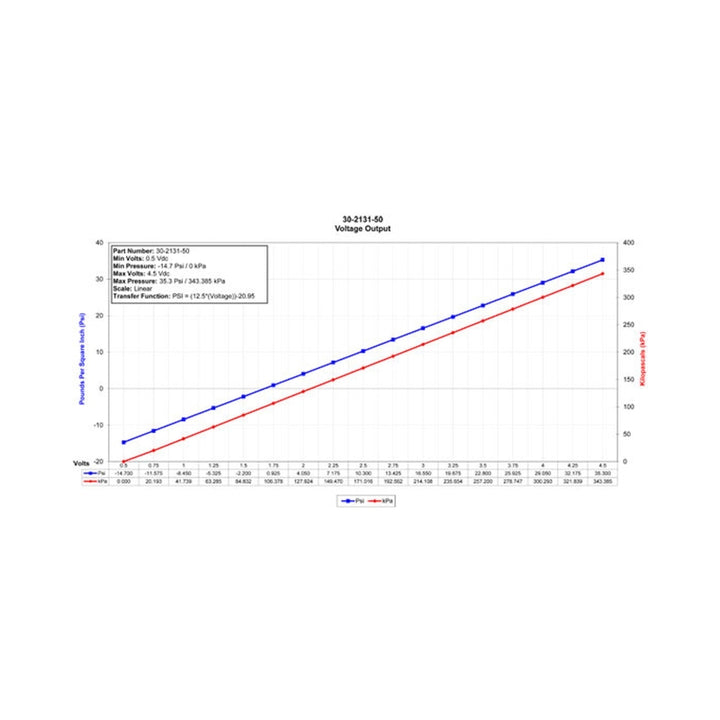

- Analog data scaled in charts
Technical Specs:
- PSIa sensors available in 30(2BAR), 50(3.5BAR), and 75(5BAR) configurations
- PSIa is referenced to absolute zero
- Absolute zero is the pressure measurement when atmospheric pressure is removed
- Common use is reading manifold pressure
- PSIa sensors are used to measure vacuum
- A PSIa sensor reads about 14.7 PSI at sea level atmospheric pressure and can be recalibrated to read zero at atmospheric pressure or negative values below atmospheric pressure
