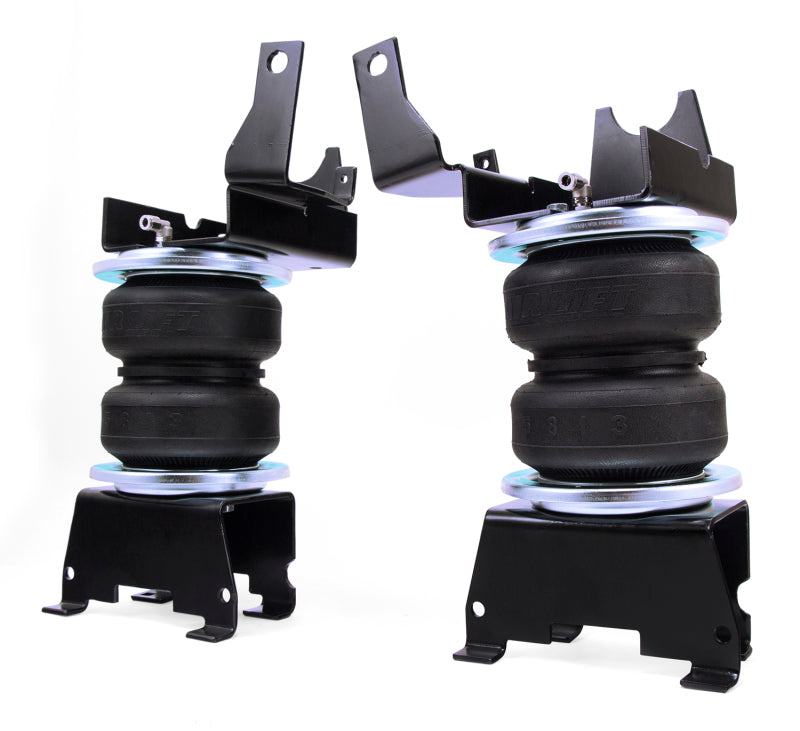

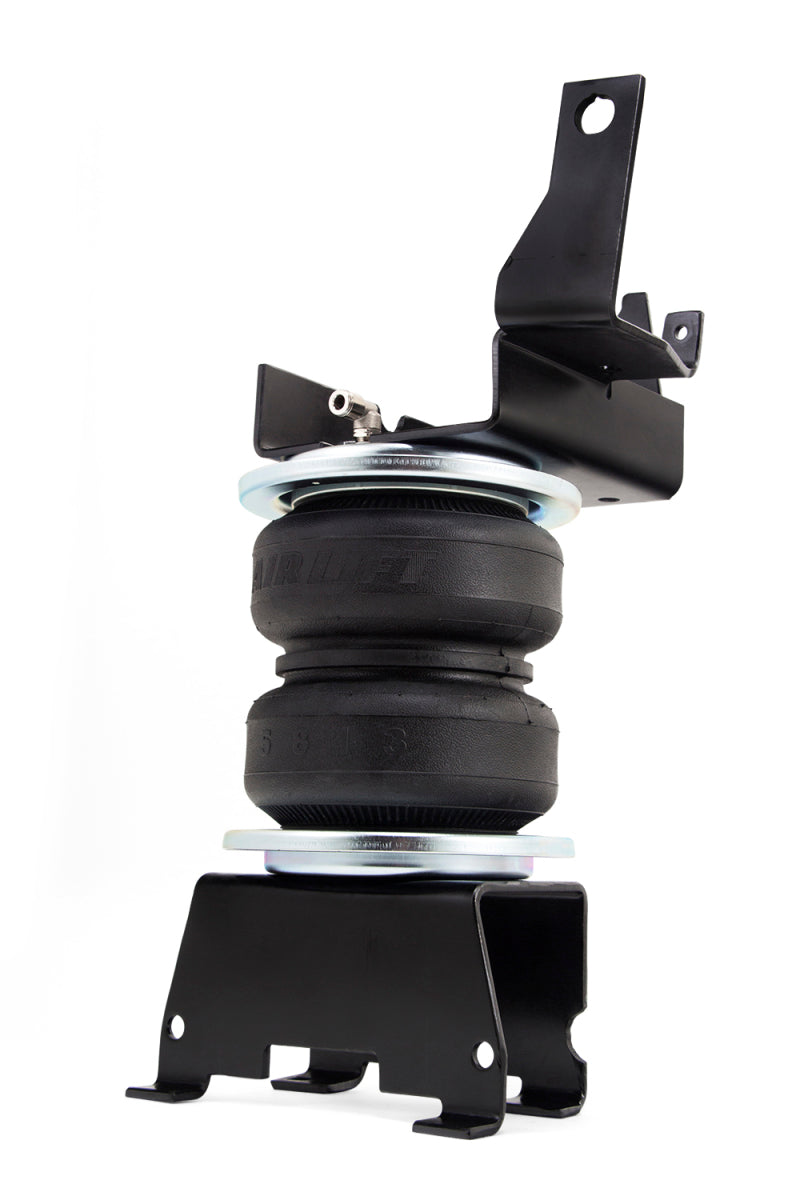

The Air Lift LoadLifter 5000 is a rear load-leveling air spring kit for the Nissan Titan XD / Ford Transit-250 2016-2023. Rated up to 5000 lbs of load-leveling capacity and adjustable from 5 to 100 PSI - the air springs mount between the frame and existing suspension to eliminate squat - sag - trailer sway - and bottoming out when towing or hauling. The 2-ply fabric-reinforced air springs and high-strength nylon-composite end caps install with common hand tools and no frame drilling - and are backed by a limited lifetime warranty.
| Type | Rear load-leveling air spring kit |
| Capacity | Up to 5000 lbs of load-leveling capacity |
| Air Pressure | 5 to 100 PSI adjustable |
| Air Spring | 2-ply fabric-reinforced bellows |
| Mounting | Between frame and existing suspension - no drilling |

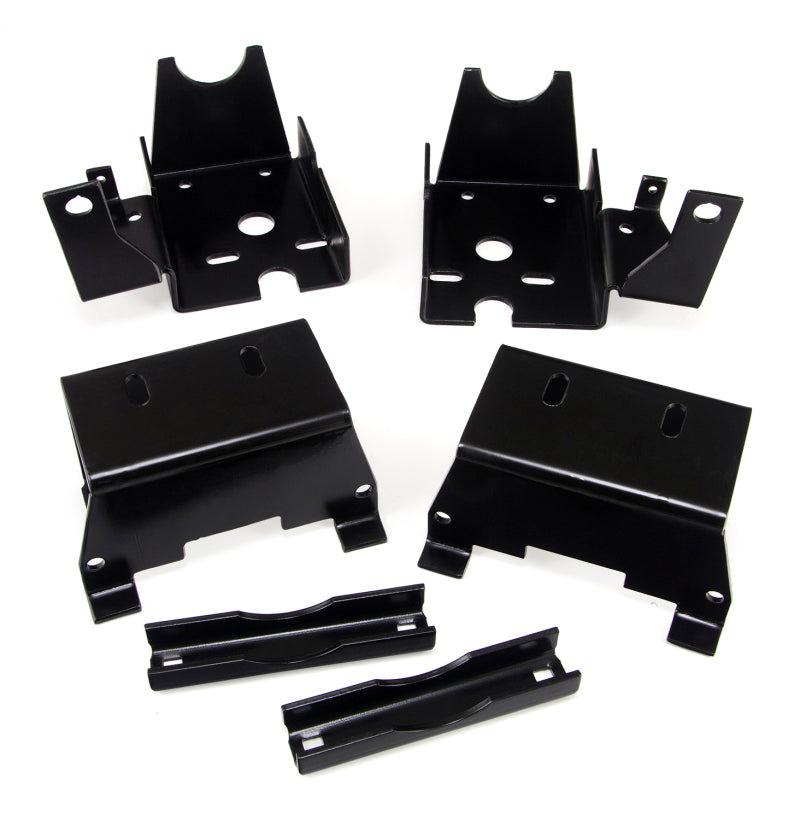

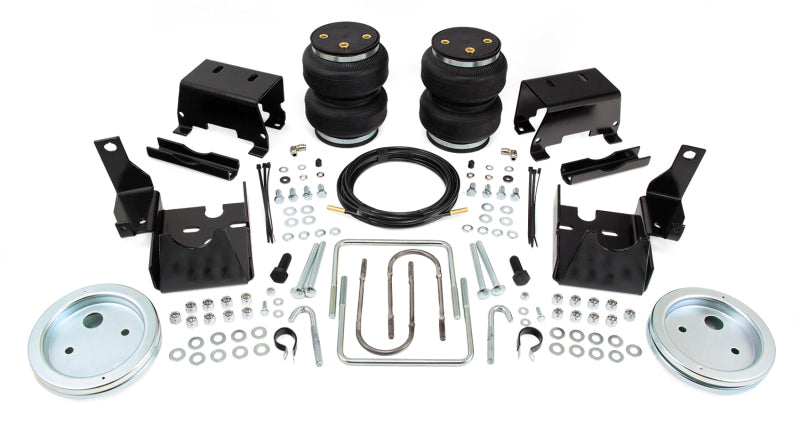

| Includes | Air springs - mounting hardware - air line - inflation valves |
| Warranty | Limited lifetime |
| Fitment | Nissan Titan XD / Ford Transit-250 2016-2023 - see chart below |
Documents: Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023 | Ford | Transit-250 | Base |
| 2023 | Ford | Transit-250 | PTV |
| 2016-2023 | Nissan | TITAN XD | Platinum Reserve |
| 2016-2023 | Nissan | TITAN XD | PRO-4X |
| 2016-2023 | Nissan | TITAN XD | S |
| 2016-2021 | Nissan | TITAN XD | SL |
| 2016-2023 | Nissan | TITAN XD | SV |
