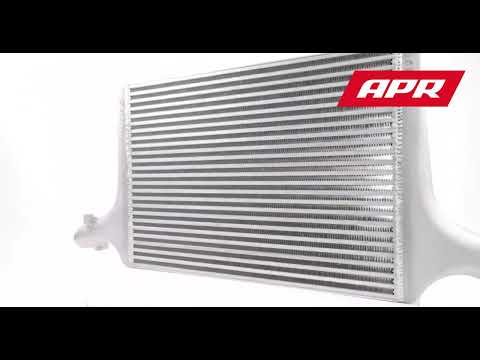

APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025 video: APR Intercoolers Add HP to Your Turbocharged Audi or VW Engine!
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025 video: APR C8 RS6/RS7 Exhaust System
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 2
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 3
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 4
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 5
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 6
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 7
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 8
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 9
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 10
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 11
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 12
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 13
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025, view 14
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025 video: APR Intercoolers Add HP to Your Turbocharged Audi or VW Engine!
APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025 video: APR C8 RS6/RS7 Exhaust System

APR Front Mount Intercooler Kit - Audi S4 / S5 (B9) 3.0T 2018-2025

APR SKU: APRIC100023
Price
20% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

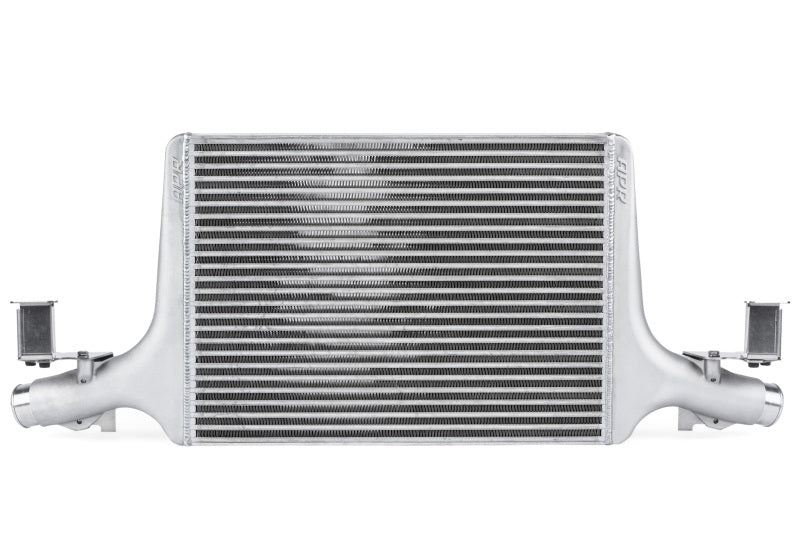

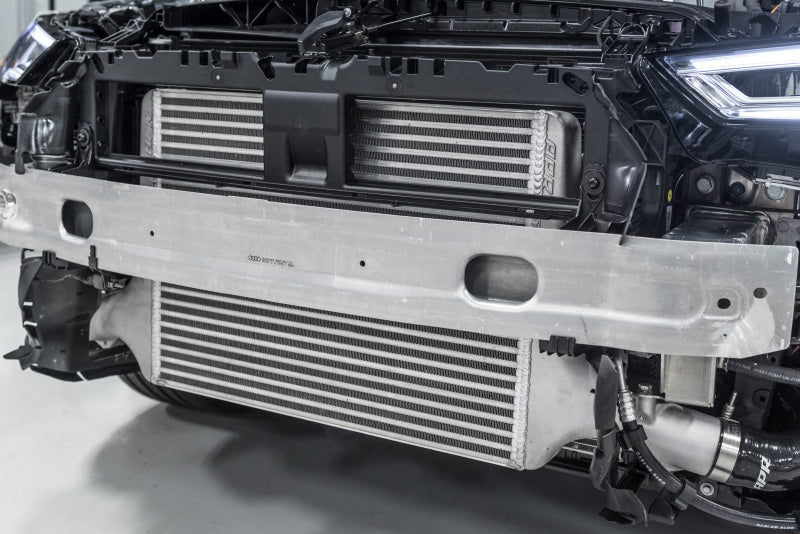

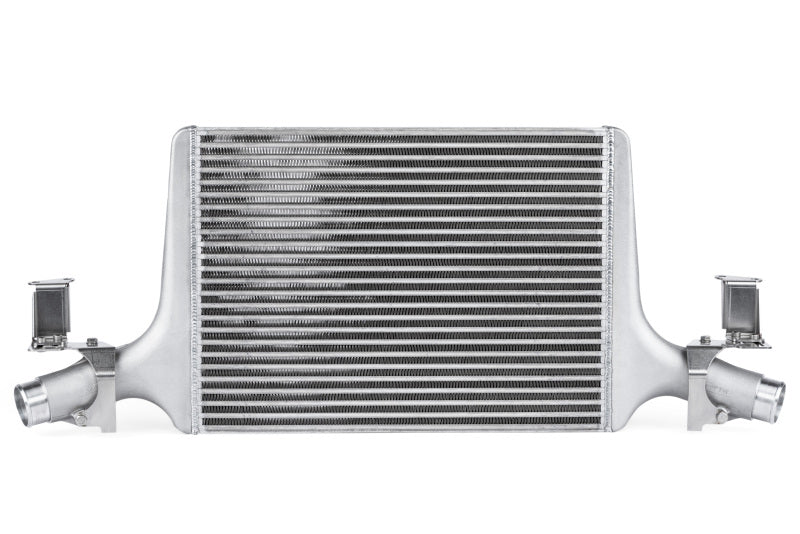

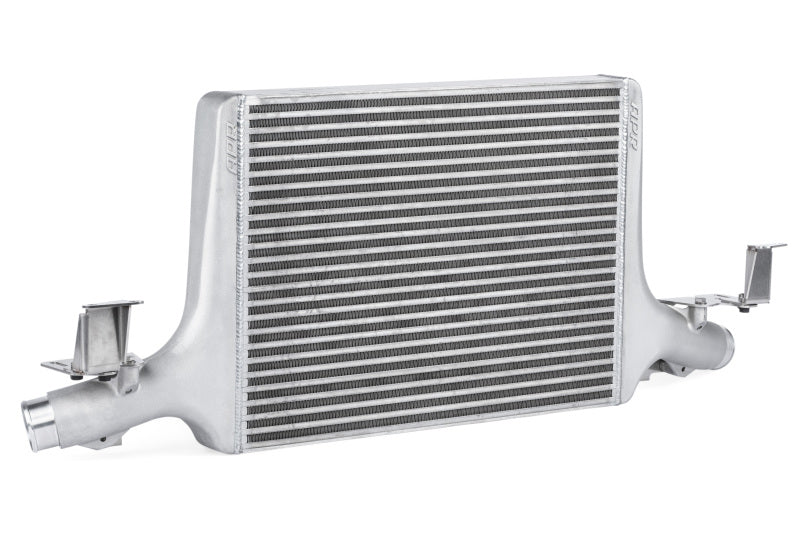

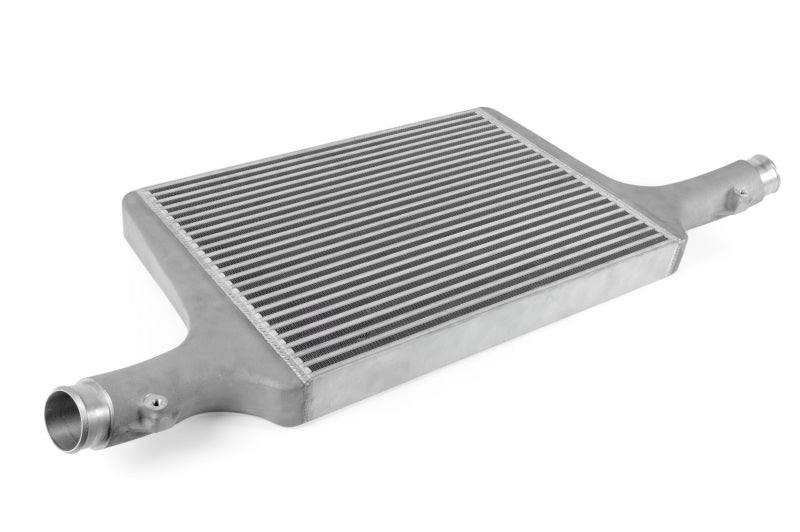

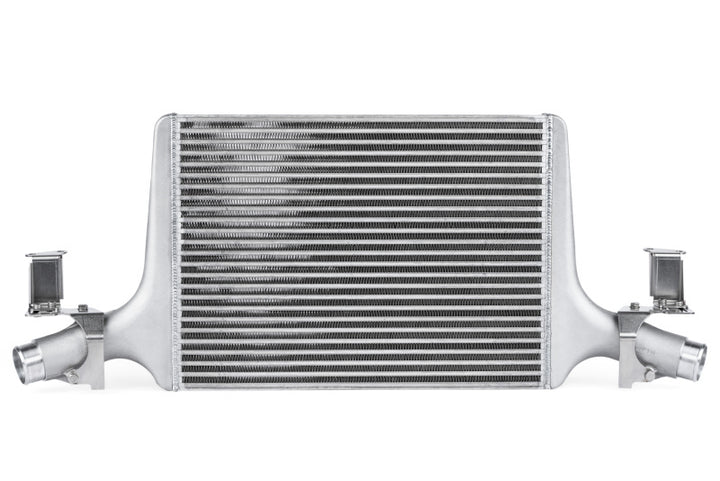

The B9 3.0T runs high intake air temperatures even on the stock ECU, so APR replaces the factory unit with a much larger front mounted core. The bar-and-plate core carries staggered and louvered fins and measures 2.25 in x 16.2 in x 22.00 in for 357.5 sq in of frontal area and 804.38 cu in of volume, against 162.4 sq in and 507.62 cu in for the OEM cooler. Cast aluminum end tanks are shaped for low turbulence and the assembly is TIG welded and pressure tested to keep boost leaks out. APR recorded 17 additional wheel horsepower and 23 wheel ft-lbs on a Stage 1 car, and the kit bolts on with the supplied silicone hoses and T-bolt clamps with no trimming or drilling.

Specifications

Type Front mount intercooler system (B9 3.0T)
Core Material Bar-and-plate with staggered and louvered fins
Core Size 2.25 in x 16.2 in x 22.00 in
Frontal Area 357.5 sq in (OEM 162.4 sq in)
Core Volume 804.38 cu in (OEM 507.62 cu in)

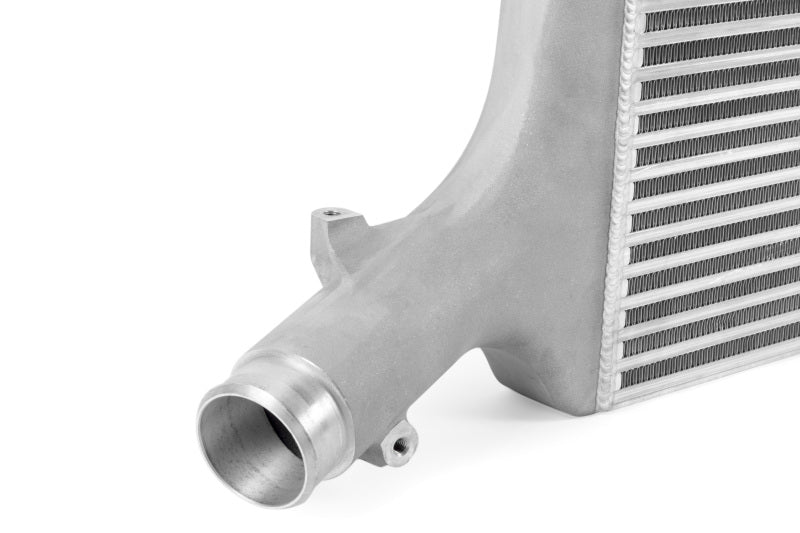

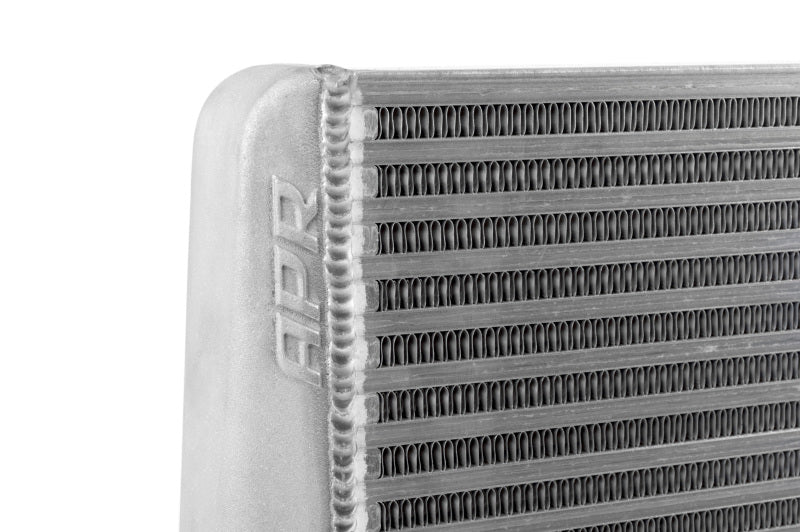

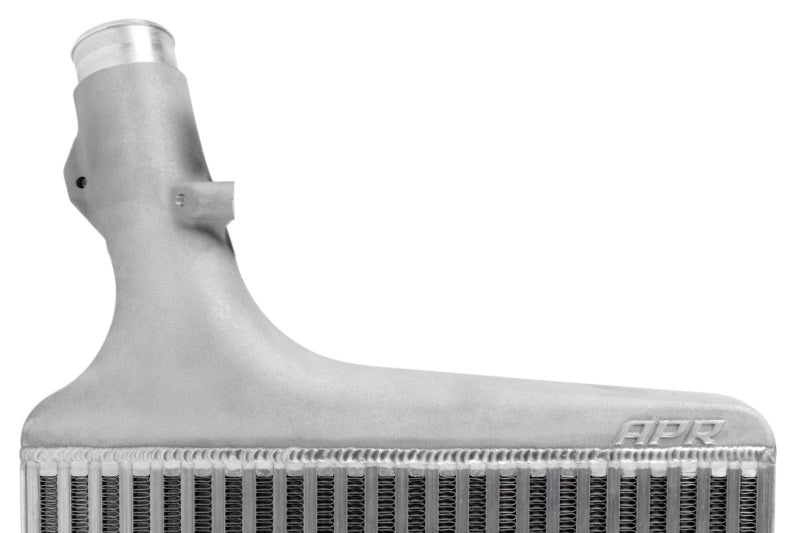

End Tanks Cast aluminum, TIG welded and pressure tested

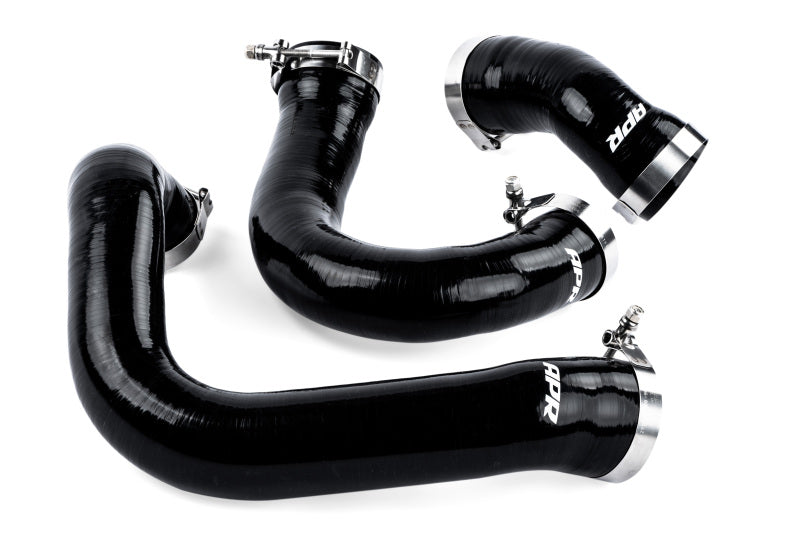

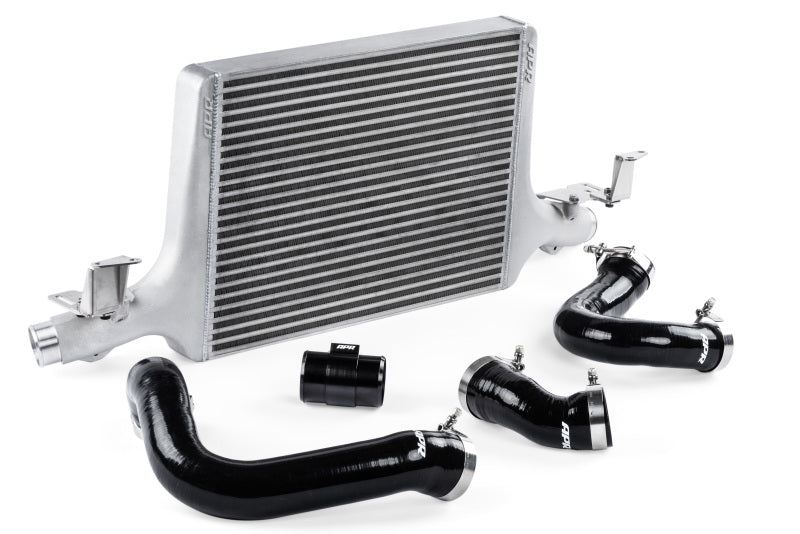

Kit Contents Intercooler, silicone hoses, T-bolt clamps
Power Gain +17 wheel horsepower and +23 wheel ft-lbs on APR's Stage 1 test vehicle
Part Number IC100023

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2019-2025 Audi S4 Premium
2018-2025 Audi S4 Premium Plus
2018-2025 Audi S4 Prestige
2019-2024 Audi S5 Premium
2018-2024 Audi S5 Premium Plus
2018-2024 Audi S5 Prestige
2020-2025 Audi S5 Sportback Premium
2018-2025 Audi S5 Sportback Premium Plus
2018-2025 Audi S5 Sportback Prestige
