Bilstein SKU: BIL48-347747
Price
32% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

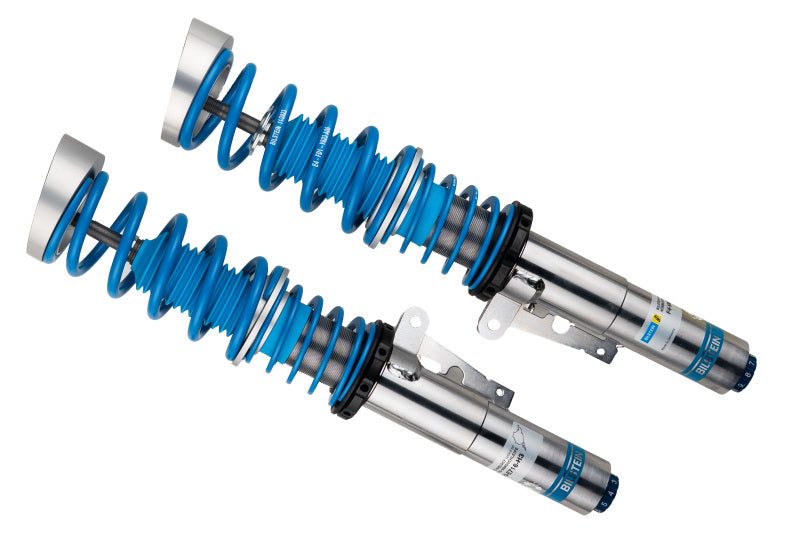

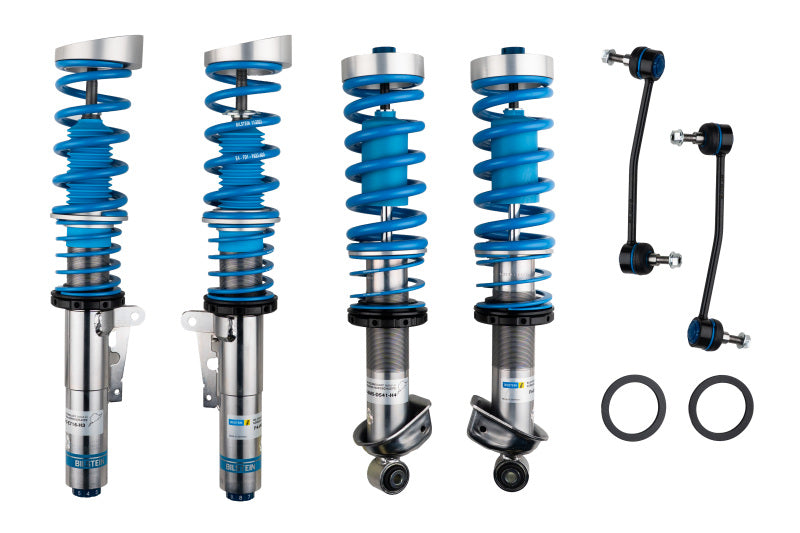

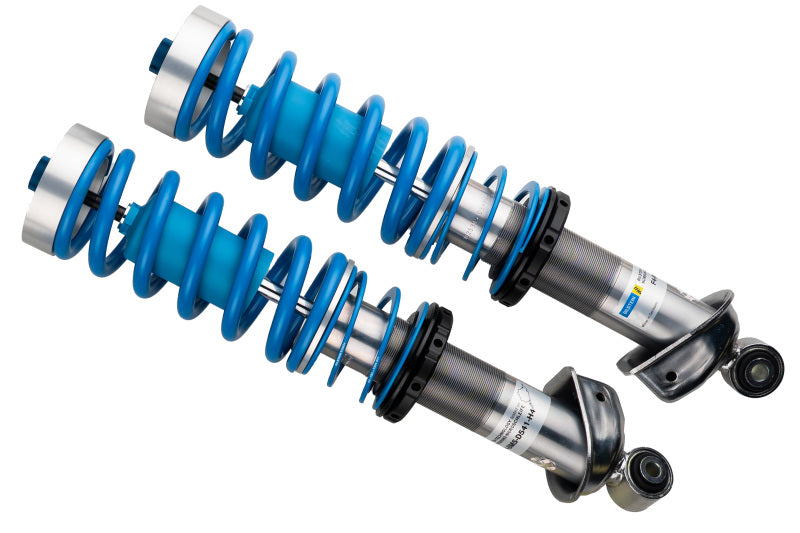

Bilstein 48-347747 is a B16 (PSS10) complete coilover suspension kit for the 2001-2005 Porsche 911 (996) Turbo and Turbo S. B16 is the top of Bilstein's street range and, unlike the B4, B6 and B8 damper lines, it is a full kit rather than a single damper: the monotube dampers and their matched linear main and tender springs are all supplied together, front and rear. Nothing else needs to be bought to change the car's spring and damper package.

Each damper carries a 10-stage click adjuster that moves rebound and compression together, so the whole car can be softened for road use or firmed up for track work without removing anything. The zinc-coated threaded bodies set ride height independently of the damping setting, allowing roughly 30 mm to 50 mm of lowering. Springs are linear rather than progressive: 257 lbs/in. main with a 114 lbs/in. tender at the front, 514 lbs/in. main with a 79 lbs/in. tender at the rear. The kit is made in Germany and covers one complete vehicle. Springs INCLUDED: front and rear main springs plus tender springs, matched to the application. 10-stage manual damping adjustment, each click moves rebound and compression together. Threaded body allows lowering of approximately 30 mm to 50 mm, set independently of damping. Monotube dampers, zinc-plated bodies, blue springs. Bilstein Limited 5-Year Warranty; made in Germany.

Specifications

Line/Series B16 (PSS10)
Type Complete coilover suspension kit, front and rear
Damper Design Monotube, gas pressure
Adjustable Yes - 10-stage manual, rebound and compression together
Adjustment Range Lowering approximately 30 mm to 50 mm via threaded body
Spring Included Yes - front and rear main springs plus tender springs
Front Main Spring Rate 257 lbs/in., linear
Front Tender Spring Rate 114 lbs/in.
Rear Main Spring Rate 514 lbs/in., linear
Rear Tender Spring Rate 79 lbs/in.
Sold As One complete kit per vehicle
Finish Zinc-plated dampers / blue springs
Spanner Wrench Set E4-XS1-Z001A00
Country of Origin Germany
Warranty Bilstein Limited 5-Year Warranty
Part Number 48-347747

Documents: Installation Instructions (PDF)  |  Material Safety Data Sheet (PDF)

This part fits:

Year Make Model Submodel
2001-2005 Porsche 911 Turbo
2005 Porsche 911 Turbo S
