Brembo OE SKU: BREP85070N
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

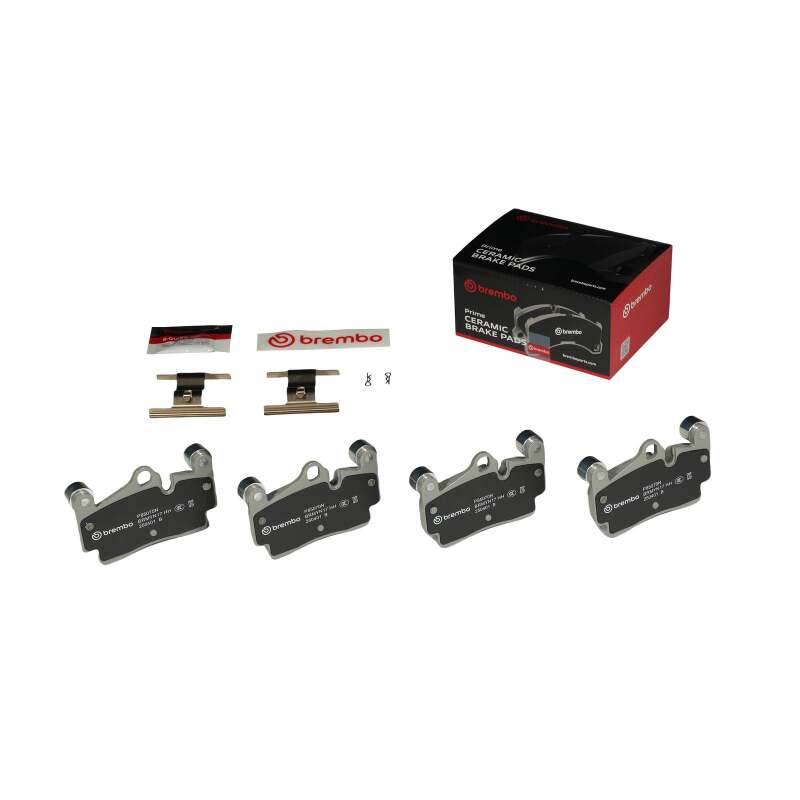

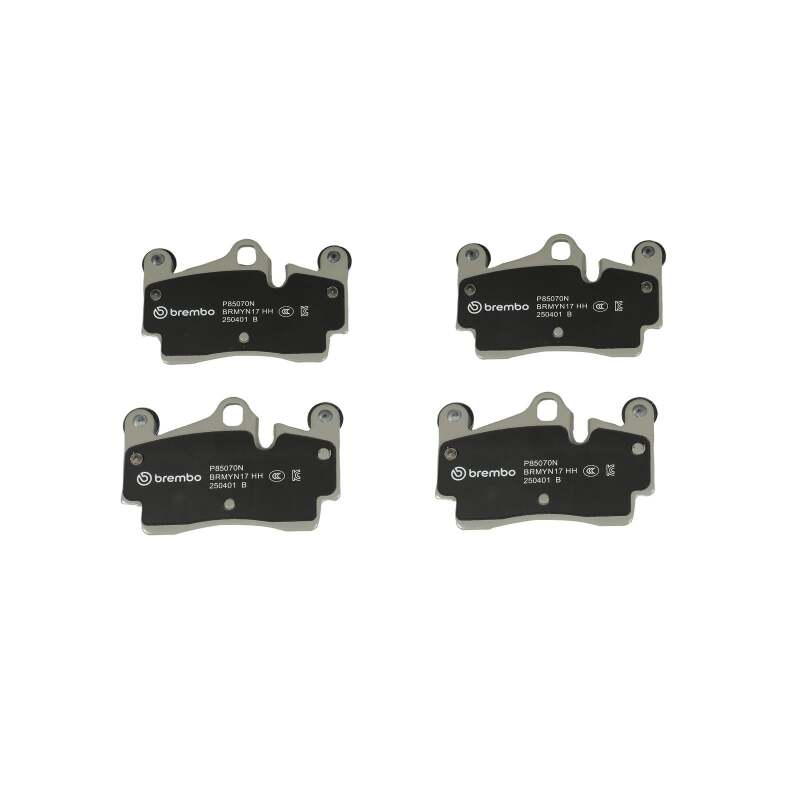

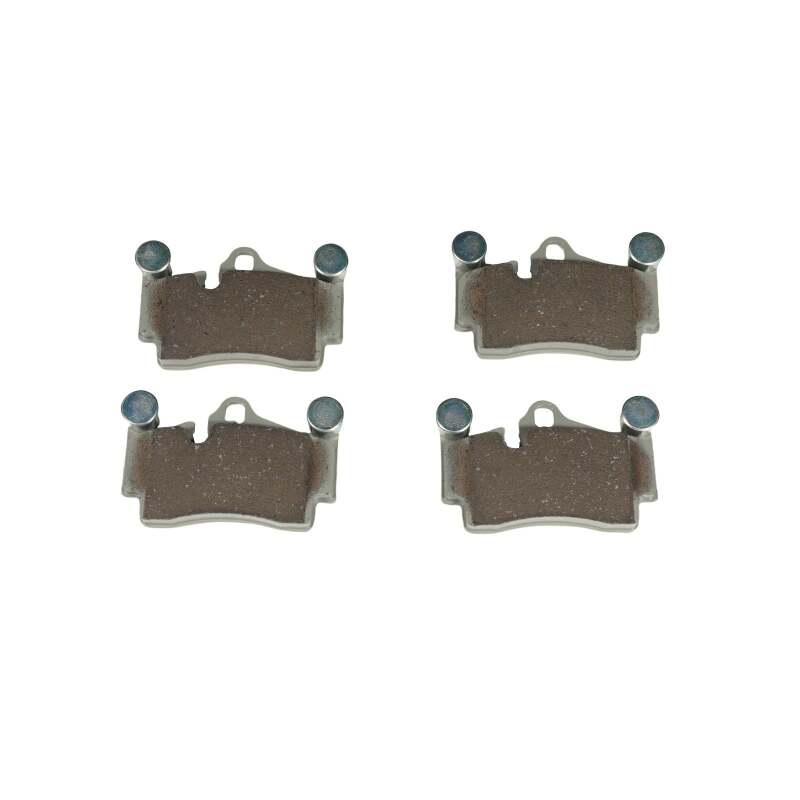

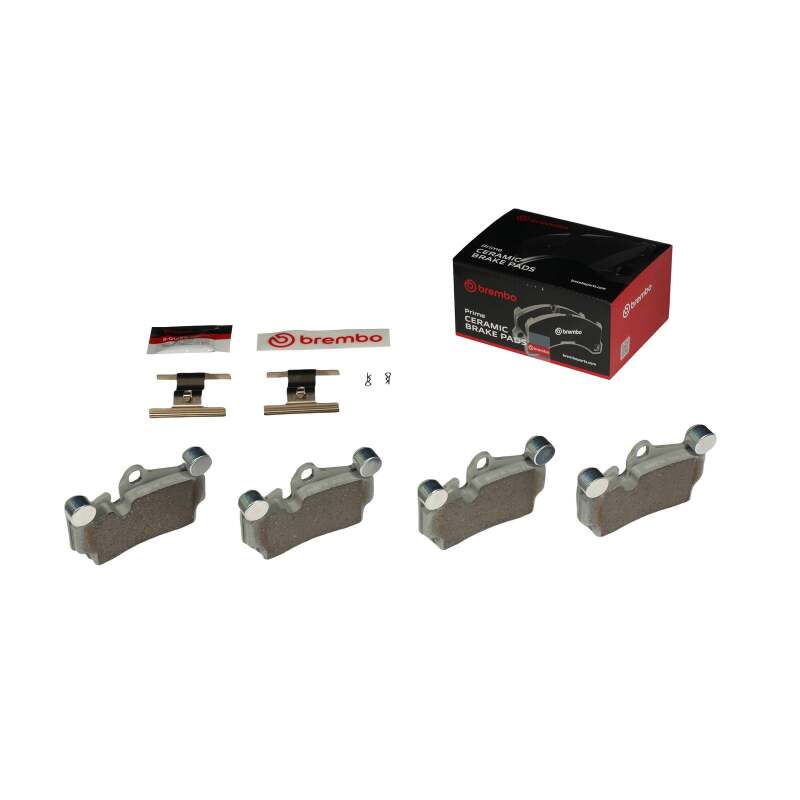

P85070N is Brembo’s PRIME Ceramic rear pad set for the shared PL71 platform, the 955/957 Porsche Cayenne, the first-generation Volkswagen Touareg and the first-generation Audi Q7, running in the Brembo rear caliper. Four pads are supplied, servicing one complete rear axle, with counterweights, an anti-squeal shim and fitting accessories.

This is the early Cayenne-family rear pad, 112 x 17 x 73 mm. It does not cover the current E3 Cayenne, which uses the larger 130 x 17 x 80 mm rear pad P65050N, and it is unrelated to the 210 x 17 x 94 mm Macan/Panamera front pad P65047N. It also does not extend to the second-generation Audi Q7 (2017 onward). The “N” suffix is Brembo’s designation for the ceramic friction compound. Distinct from P65050N (130 x 17 x 80 mm, E3 Cayenne rear) and P65047N (210 x 17 x 94 mm, Macan/Panamera front), generation, axle and pad size must all match.

Specifications

Position Rear axle
Set Quantity 4 pads (one full axle)
Friction Material Ceramic
Brembo Line PRIME Ceramic
Pad Dimensions (W x T x H) 112 x 17 x 73 mm
Brake System Brembo caliper
FMSI D978 7879
WVA 23694
Wear Indicator Prepared for wear indicator
Included Accessories Anti-squeal shim, counterweights, fitting accessories
EAN 8020584090008
Part Number P85070N

This part fits:

Year Make Model Submodel
2008-2010 Audi Q7 Base
2009-2010 Audi Q7 TDI
2005-2006,2008-2010 Porsche Cayenne Base
2008-2010 Porsche Cayenne GTS
2005-2006,2008-2010 Porsche Cayenne S
2010 Porsche Cayenne S Transsyberia
2005-2006 Porsche Cayenne Turbo
2006-2008 Volkswagen Touareg Base
2004,2006-2008 Volkswagen Touareg TDI
2004 Volkswagen Touareg V8
