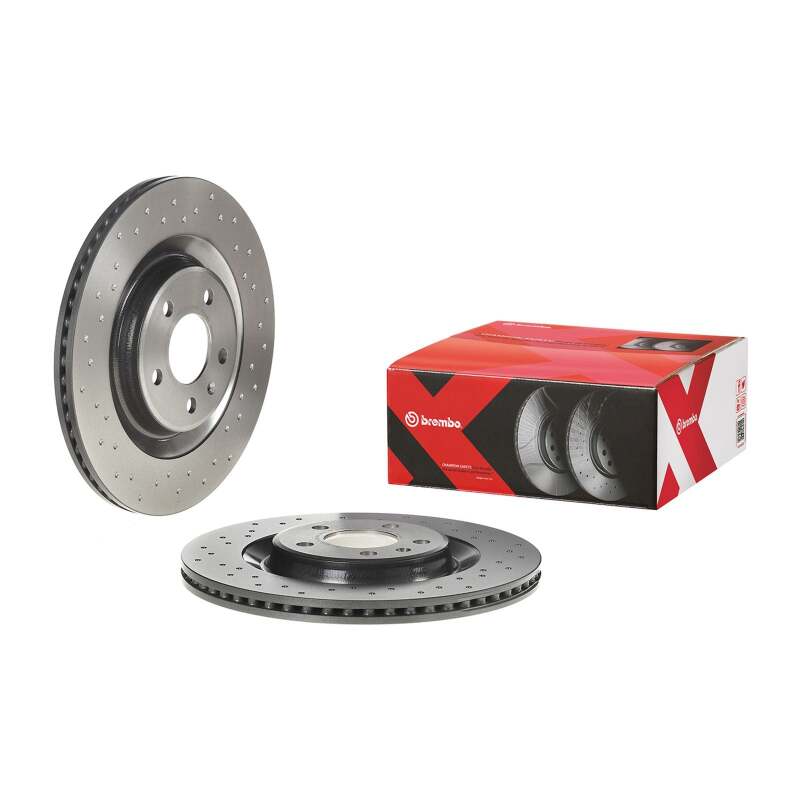

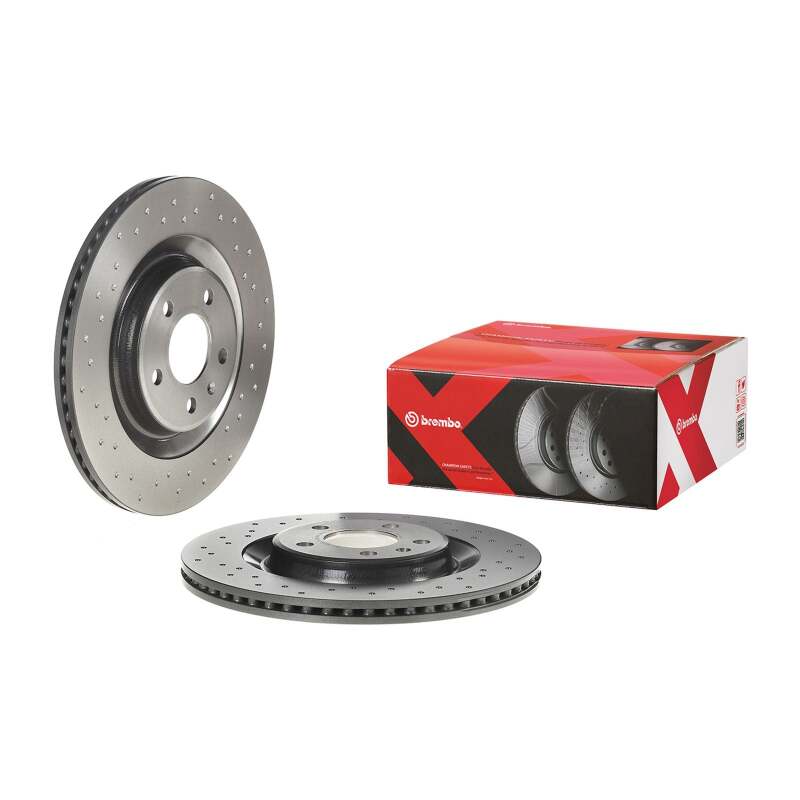

Brembo Xtra Cross-Drilled Rear Brake Disc 330x22mm Audi A4-A8 Q5 Q7 Macan - High Carbon

The 09.B969.1X is a Brembo Xtra rear disc, 330 mm across and 22 mm thick, ventilated, cross-drilled and UV painted. Two things separate it from the plain Prime disc of the same size. The first is the drilling: holes through both friction faces vent the gas and dust that would otherwise glaze the pad interface at the start of a stop, and add edge area for cooling. The second is the casting itself — Brembo lists this part as high-carbon iron, an alloy with a higher damping coefficient than standard grey iron, which reduces the vibration that becomes brake squeal and moves heat out of the friction surface faster.

It also uses Pillar Venting Technology, in which pillars rather than straight radial vanes separate the two friction rings, and it is supplied with the fastening screws that locate it on the hub. Minimum thickness is 20.5 mm from a 22 mm new dimension — only 1.5 mm of wear per disc, so measure rather than eyeball a used one. The whole Brembo Xtra disc range carries UNECE R90 homologation.

• Brembo Xtra line — cross-drilled sporting road disc, ECE R90 type-approved
• 330 mm diameter x 22 mm thick, ventilated; 20.5 mm minimum thickness
• High-carbon cast iron for higher damping and faster heat transfer
• Cross-drilled braking faces; UV painted corrosion coating
• Pillar Venting Technology (PVT) internal cooling geometry
• Supplied with hub fastening screws
• 5 bolt holes; 68 mm hub centering bore; 36 mm overall height

Specifications

This part fits:
