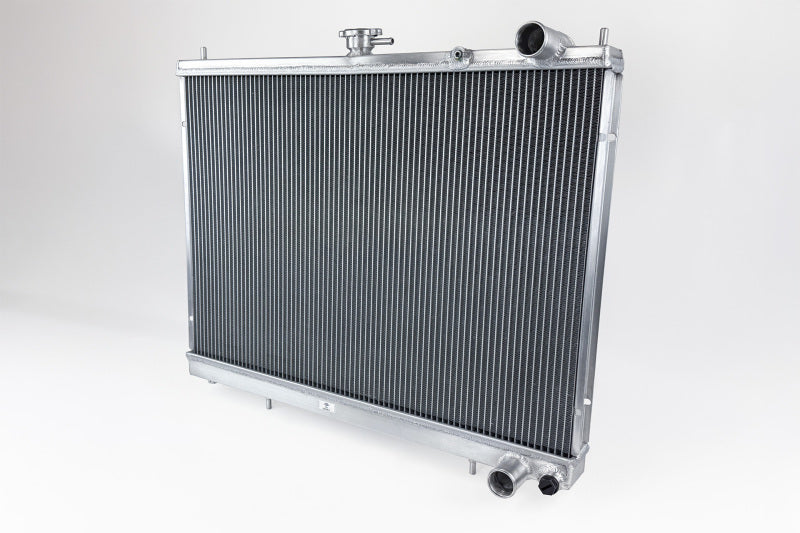

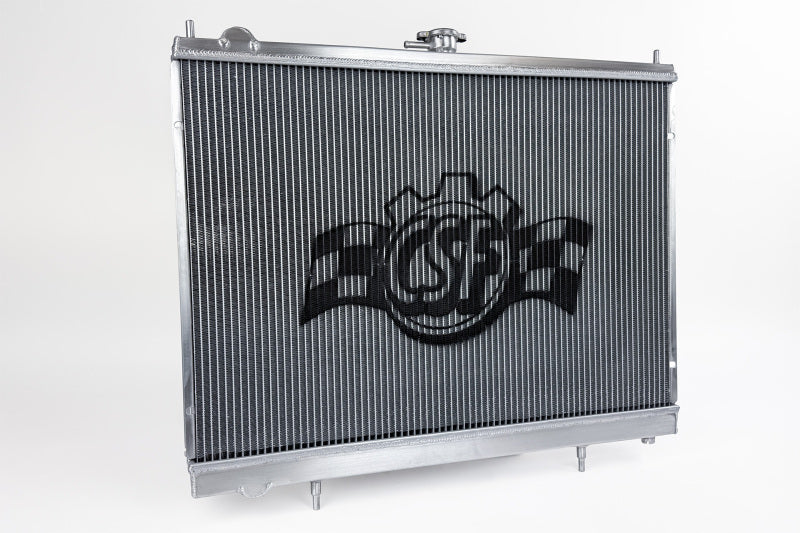

Built for sustained track and street performance, this CSF high-performance all-aluminum radiator upgrades cooling capacity and heat rejection for the Nissan GT-R R34 platform. The two-row 42mm core and 75-tube layout increase coolant surface area while CSF's B-Tube Technology boosts heat transfer, and multi-louvered 6.5mm fins maximize airflow through the core. Designed as a true plug-and-play drop-in fit, the radiator uses CNC-machined mounting pins, OE-style inlet/outlet locations, and dual temperature sensor ports for an easy direct-fit installation without modifications.
Features:
- 2-row 42mm ultra-high-performance core
- 75 cooling tubes with B-Tube Technology
- Increases heat transfer approximately 15%
- 6.5mm tall multi-louvered fins

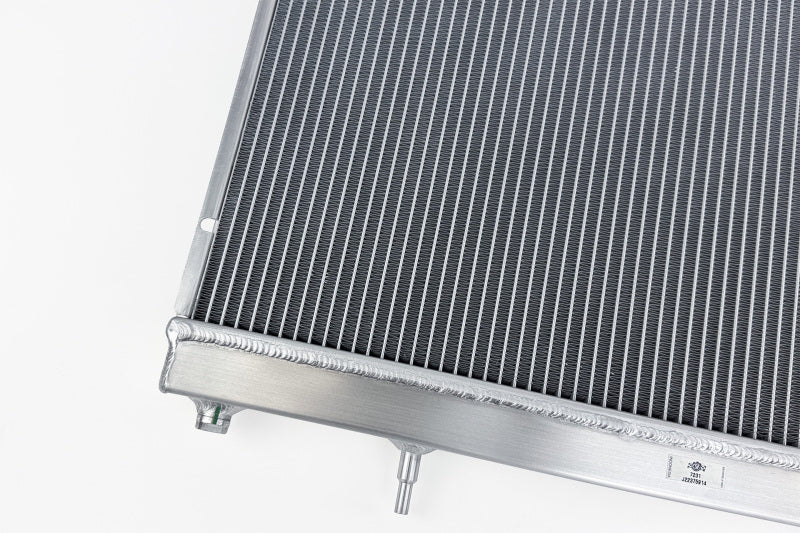

- 100% all aluminum TIG-welded construction
- CNC machined mounting pins
- OE style inlet/outlet locations
- True plug-and-play drop-in fit

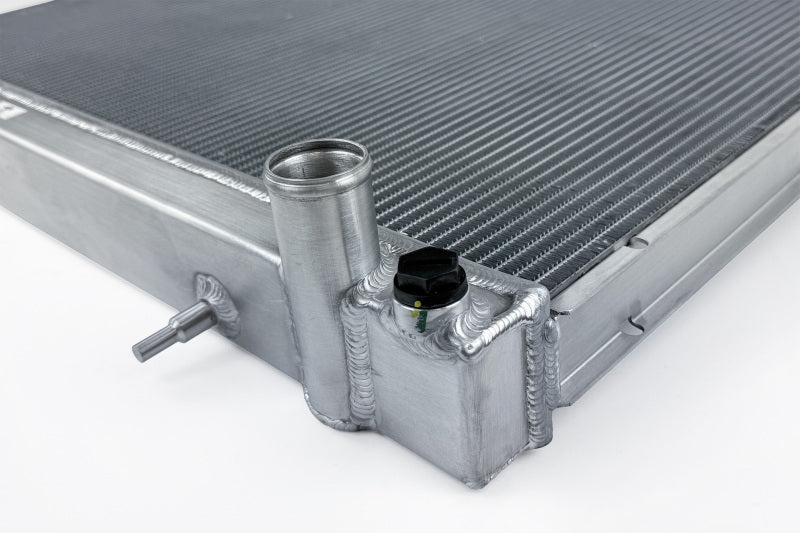

- M16 x 1.5P temperature sensor port
- 1/8th NPT temp sensor port on top

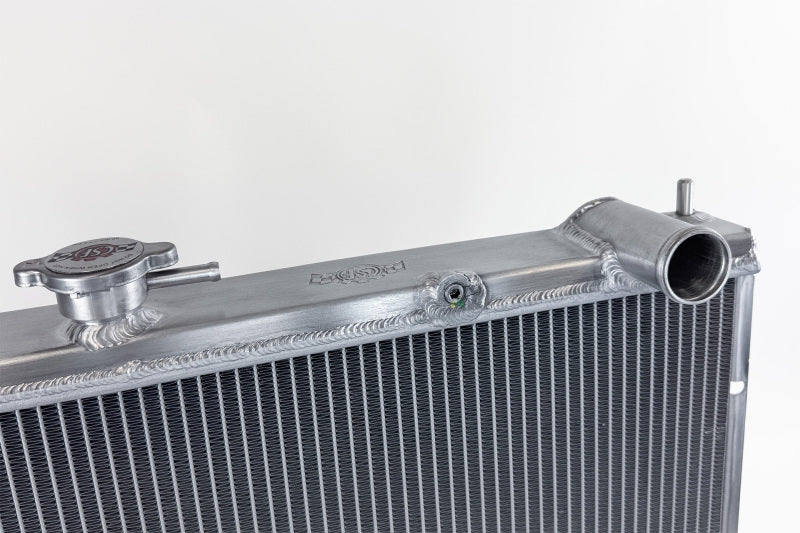

- 1.4 Bar high pressure radiator cap
- OE location fan shroud mounting points
- Individually leak and pressure tested
- Hand brushed satin finish
