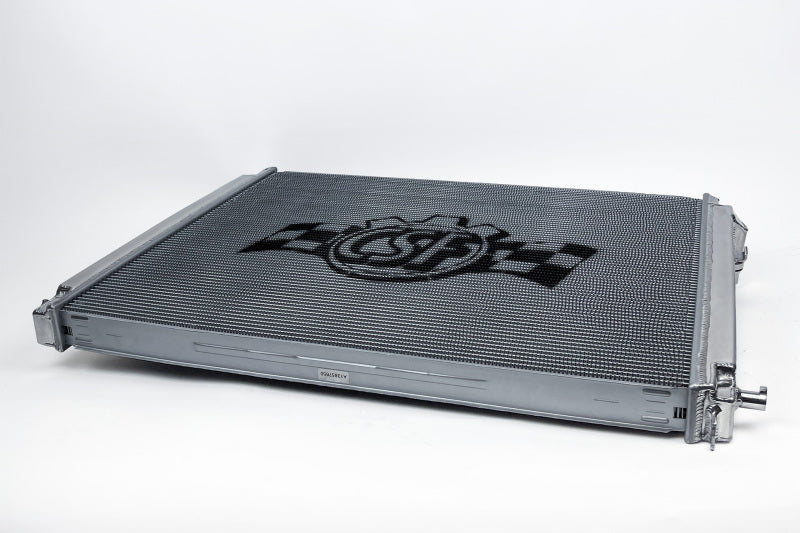

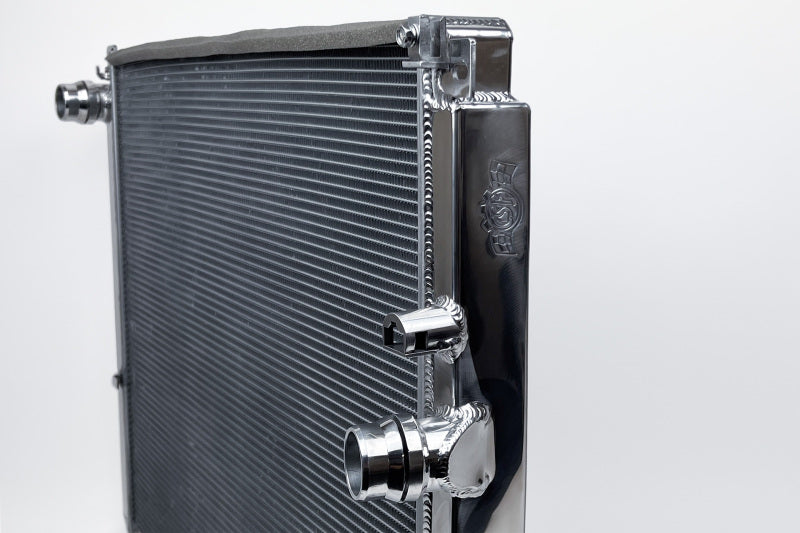

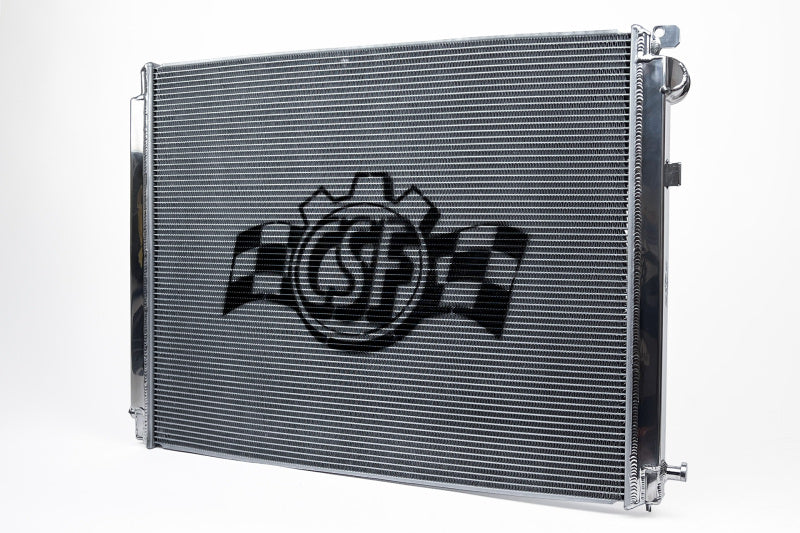

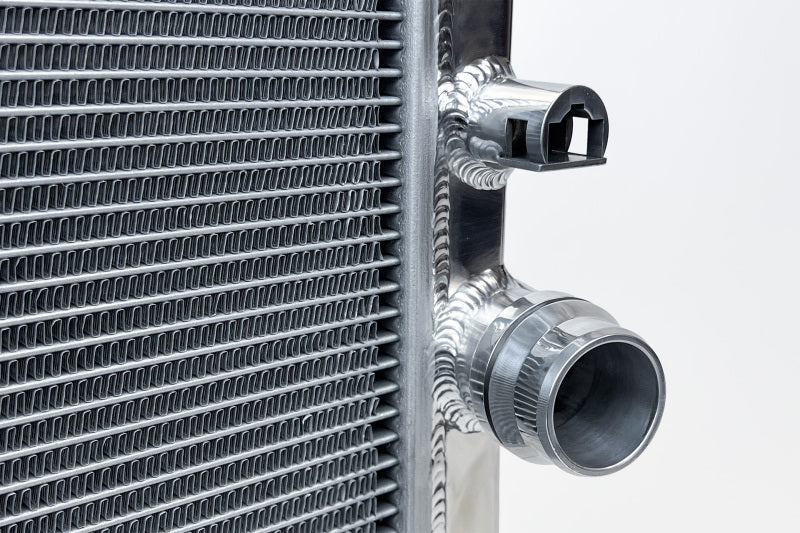

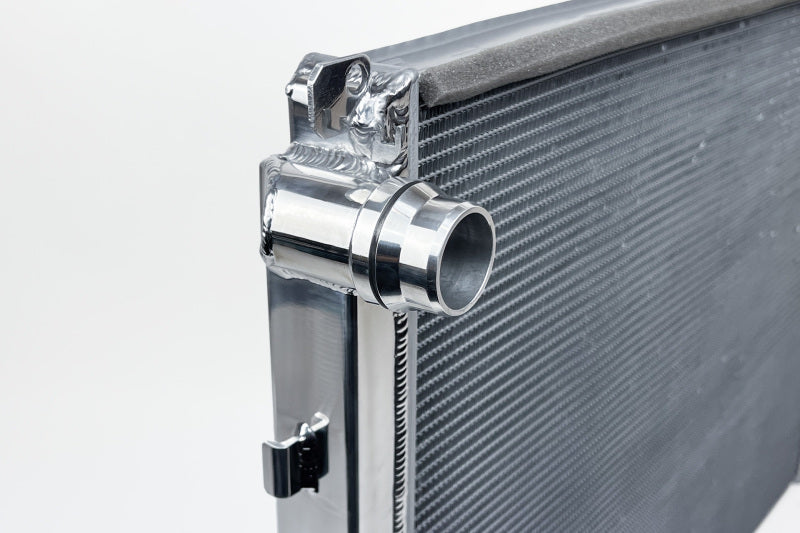

High-performance direct-replacement radiator for the A90/A91 GR Supra, BMW G29 Z4, and G20 3-Series. The 2-row 42mm aluminum core runs CSF's new 5mm multi-louvered fins and exclusive B-Tube technology, which raises heat transfer roughly 15% over conventional oval welded tubes for better cooling and faster recovery. It is fully TIG-welded all-aluminum with CNC-machined mounting brackets and OEM-style inlet/outlet, mounting in the factory location for a true plug-and-play install with no modifications. Each unit is individually leak and pressure tested and hand-polished to a mirror finish.
| Type | All-aluminum high-performance radiator |
| Core | 2-row, 42mm |
| Fins | 5mm multi-louvered, B-Tube technology |
| Material | 100% aluminum, TIG-welded |
| Finish | Mirror-finish hand polish |
| Fit | Plug-and-play, OEM location, no modifications |
| Warranty | 2-year limited warranty |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2021 | BMW | 330i | Base |
| 2019-2021 | BMW | 330i xDrive | Base |
| 2022-2026 | BMW | Z4 | M40i |
| 2020 | BMW | Z4 | M40i First Edition |
| 2020-2021 | BMW | Z4 | sDrive M40i |
| 2019-2026 | BMW | Z4 | sDrive30i |
| 2024 | Toyota | GR Supra | 45th Anniversary Edition |
| 2021-2022 | Toyota | GR Supra | A91 Edition |
| 2023 | Toyota | GR Supra | A91-MT Edition |
| 2020-2026 | Toyota | GR Supra | Base |
| 2020 | Toyota | GR Supra | Launch Edition |
| 2026 | Toyota | GR Supra | MkV Final Edition |
| 2020-2026 | Toyota | GR Supra | Premium |
