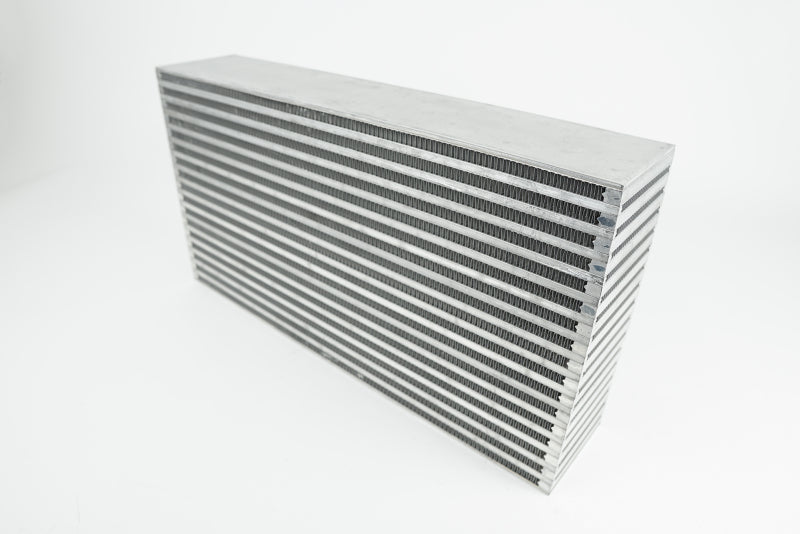

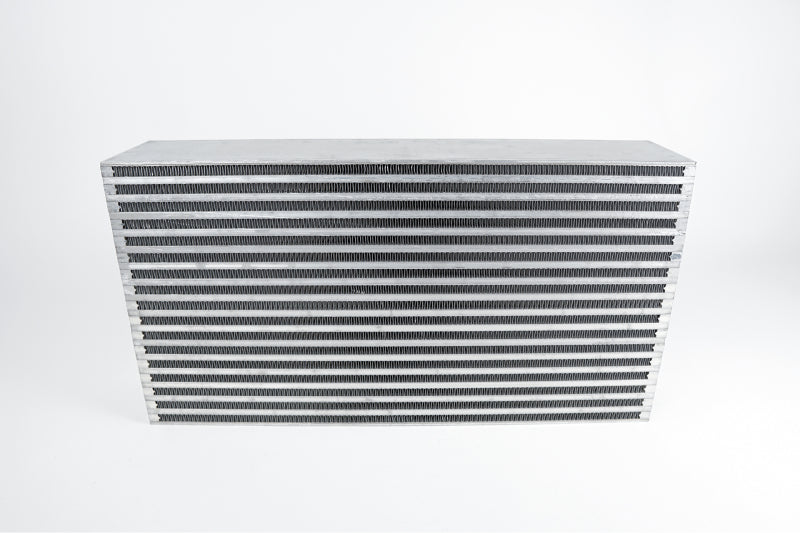

CSF Bar & Plate Intercooler Core - Cross-Flow - 22in L x 12in H x 4.5in W - 1000 WHP

CSF SKU: CSF8173
Price
OFF
/
Currently on Backorder – Contact Us for Availability
Shipping calculated at checkout.

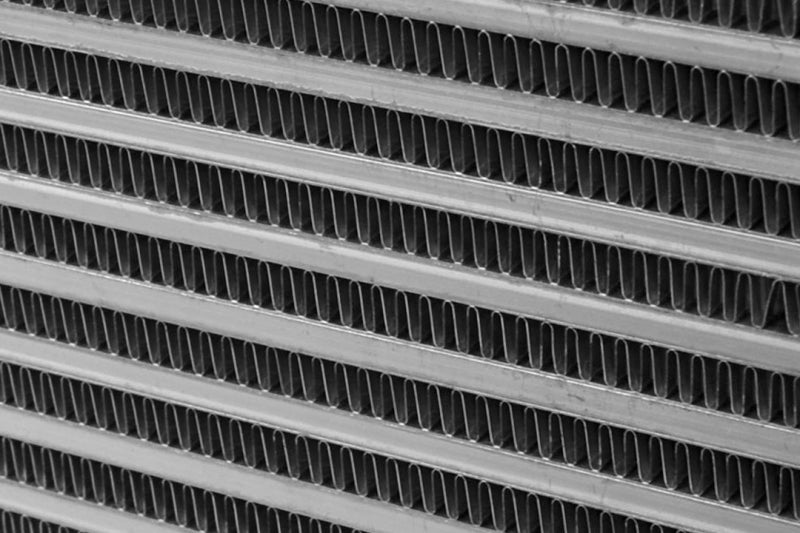

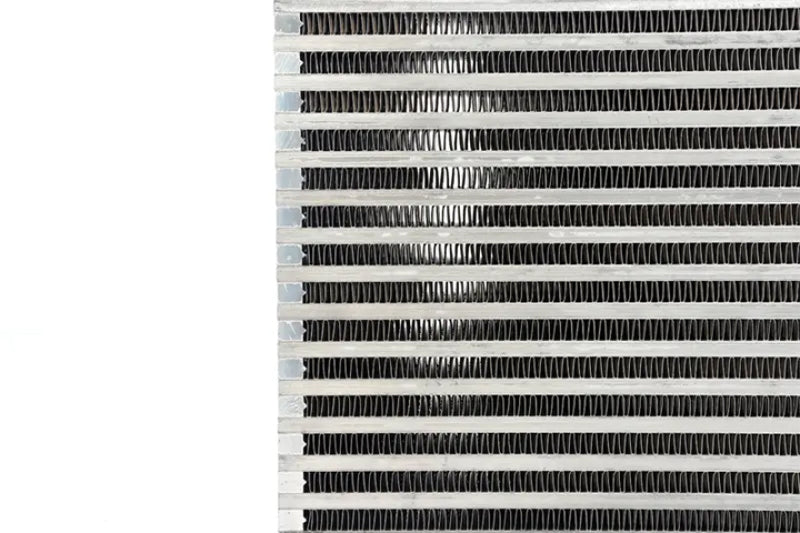

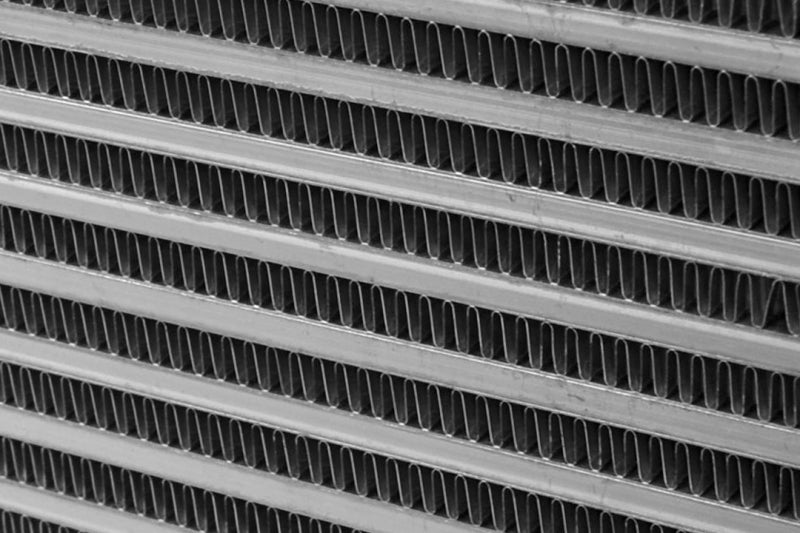

CSF heavy-duty bar & plate intercooler core in a 22in x 12in x 4.5in (560mm x 300mm x 115mm) cross-flow (horizontal-flow) configuration, rated to 1000 WHP for custom high-performance intercooler builds. Hand-built in CSF's clean room using jigs and fixtures for a perfectly straight core ready for welding, and pressure tested at 120psi for reliability under extreme boost. A multi-louvered high-precision staggered fin design on both ambient and pressure sides delivers maximum heat transfer.

Specifications

Type Bar & plate intercooler core (cross-flow / horizontal-flow)
Core/Material Heavy-duty aluminum bar & plate
Dimensions 22in L x 12in H x 4.5in W (560mm x 300mm x 115mm)
HP Rating 1000 WHP
Fin Design Multi-louvered high-precision staggered fin (ambient and pressure sides)
Pressure Tested 120psi
Fitment Universal (custom application)
