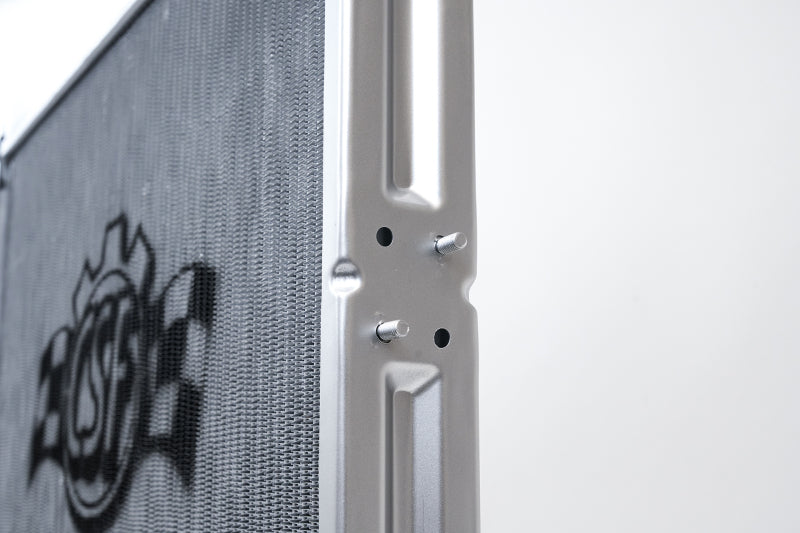

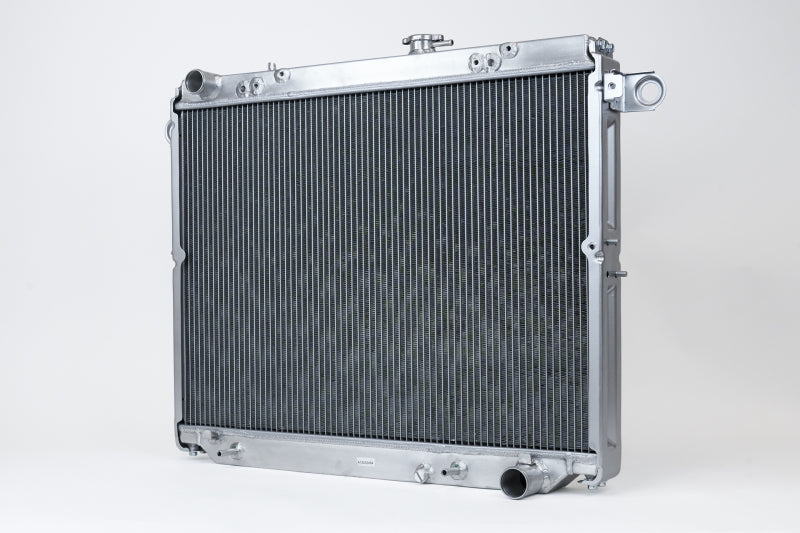

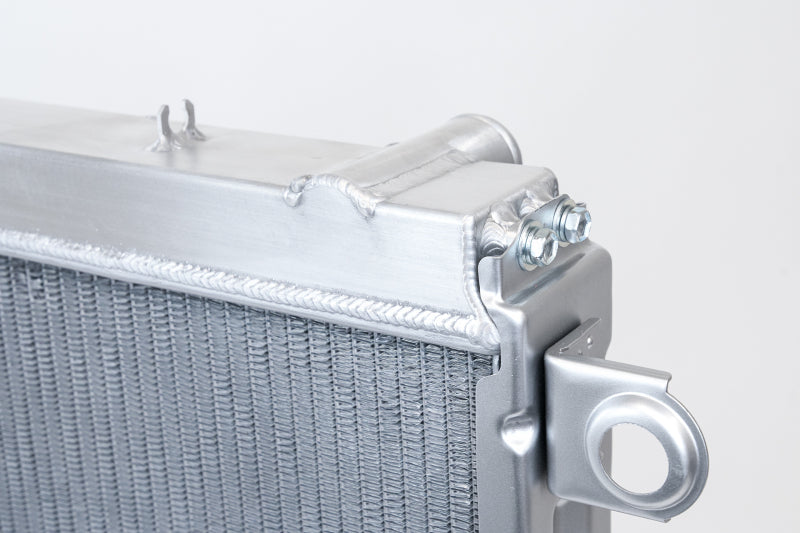

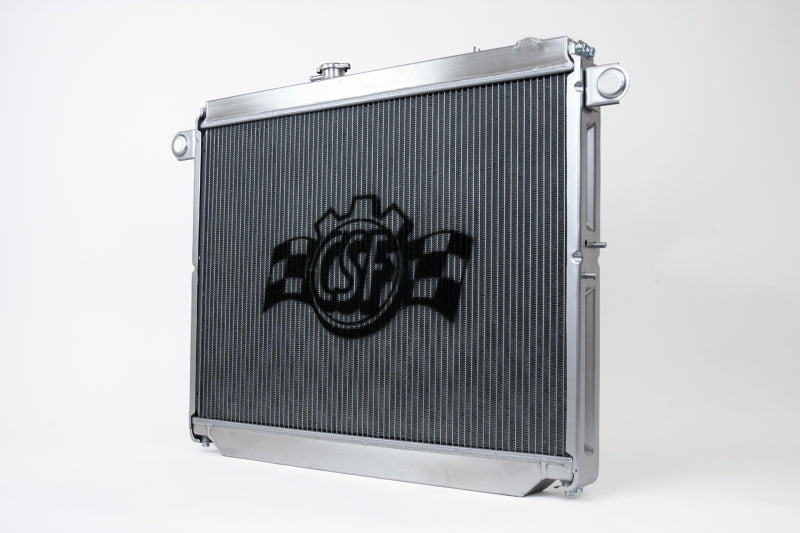

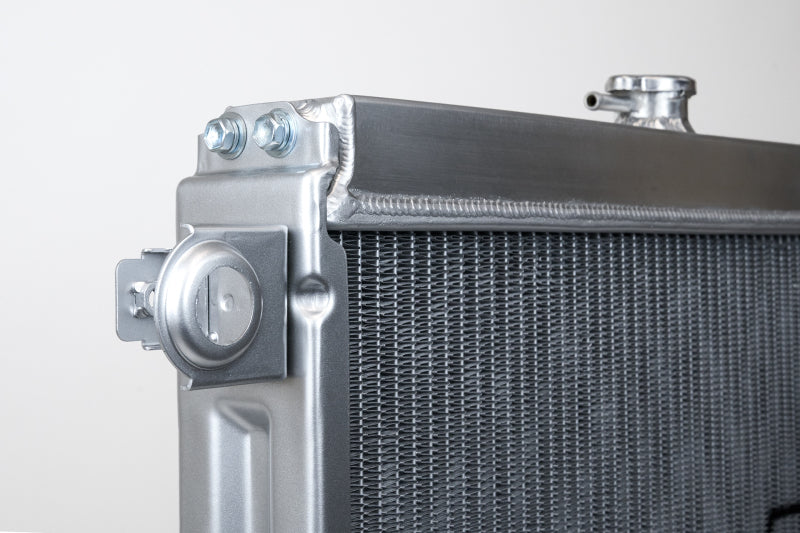

Heavy-duty all-aluminum performance radiator for the J100 Toyota Land Cruiser and Lexus LX470. The 2-row 52mm core uses CSF's exclusive B-Tube technology, which increases tube heat-transfer surface area roughly 15% over conventional oval tubes, paired with 6.5mm ultra-efficient multi-louvered fins for maximum airflow. It is built from 100% TIG-welded aluminum with stamped mounting brackets and OEM-style inlet/outlet, and drops in with no modifications.
| Type | Heavy-duty all-aluminum performance radiator |
| Core | 2-row, 52mm, dual-pass, B-Tube technology |
| Fins | 6.5mm tall multi-louvered, ultra-efficient |
| Material | 100% TIG-welded aluminum |
| Inlet / Outlet | OEM-style |
| Finish | Smooth satin |
| Fit | Plug-and-play drop-in, no modifications |
| Included | Stamped aluminum mounting brackets |
| Warranty | 2-year limited warranty |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998-2007 | Lexus | LX470 | Base |
| 1998-2007 | Toyota | Land Cruiser | Base |
