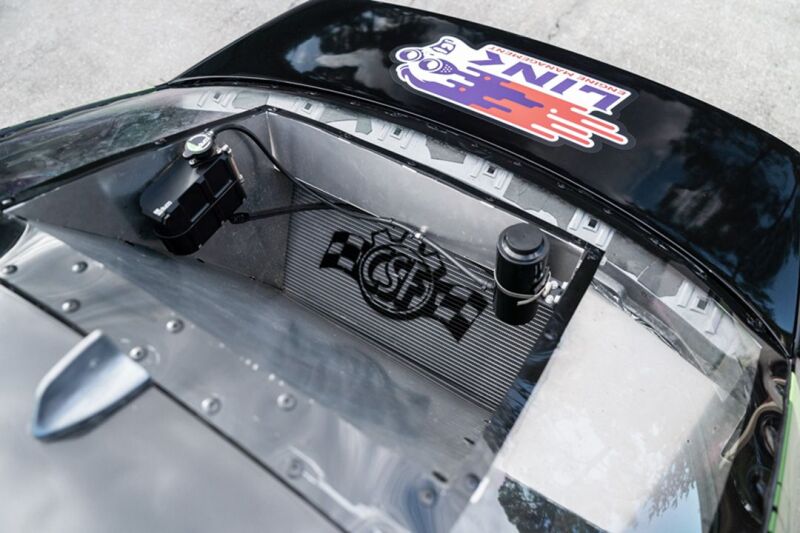

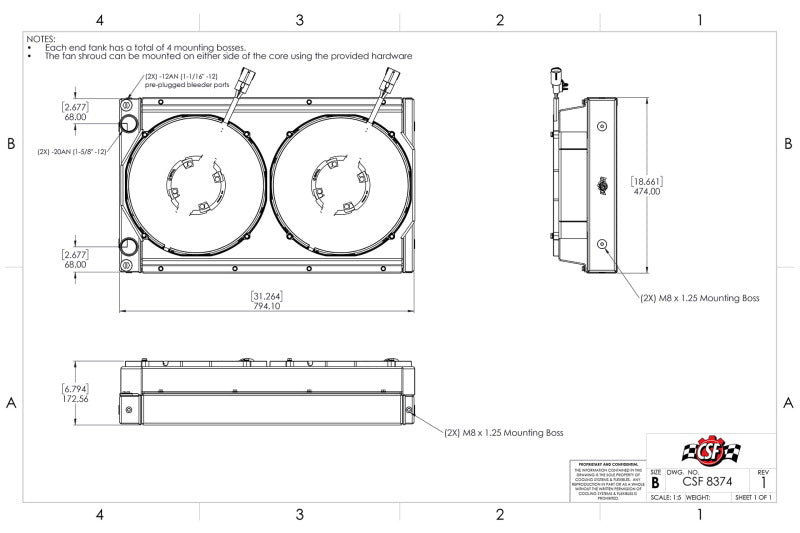

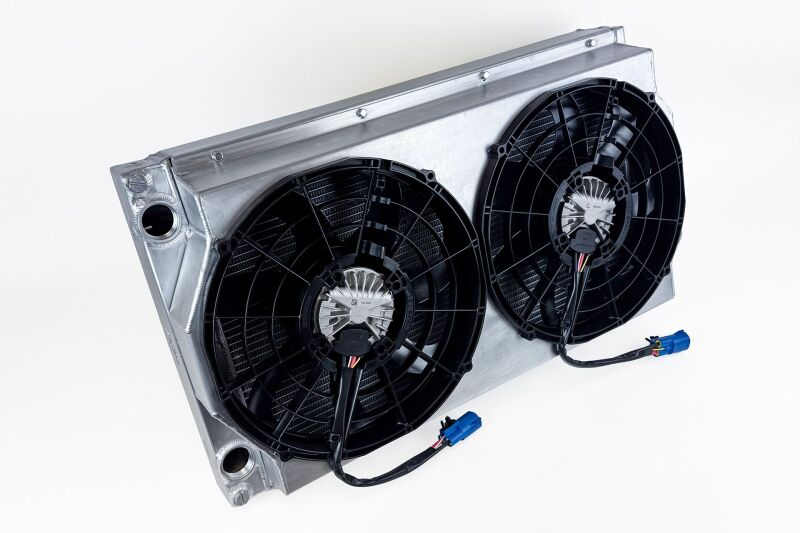

The CSF Motorsport drift radiator module as a complete cooling unit with a removable shroud and dual 14in SPAL brushless fans. The universal 2-row 68mm dual-pass core (705mm L x 448mm H) carries 45 rows of 8mm multi-louvered fins and 44 rows of B-Tube cooling tubes, and the dual 500W SPAL fans move a combined 4790 CFM. The shroud can mount on either side of the core, making the module ideal for rear-mounted race and drift setups.
| Type | Universal dual-pass competition radiator module with fan shroud |
| Material | 100% aluminum, TIG-welded |
| Core | 2-row, 68mm dual-pass (705mm L x 448mm H) |
| Fins | 45 rows of 8mm multi-louvered; 44 rows of B-Tube cooling tubes |
| Inlet / Outlet | -20AN (1 5/8"-12) female ORB bosses (fittings not included) |
| Finish | Hand-brushed satin |
| Included | Removable shroud, 2x 14in 500W SPAL brushless fans (4790 CFM total), 2x SPAL jumper harnesses, mounting hardware, 2x -12AN ORB port plugs |
| Warranty | 2-year limited warranty |
