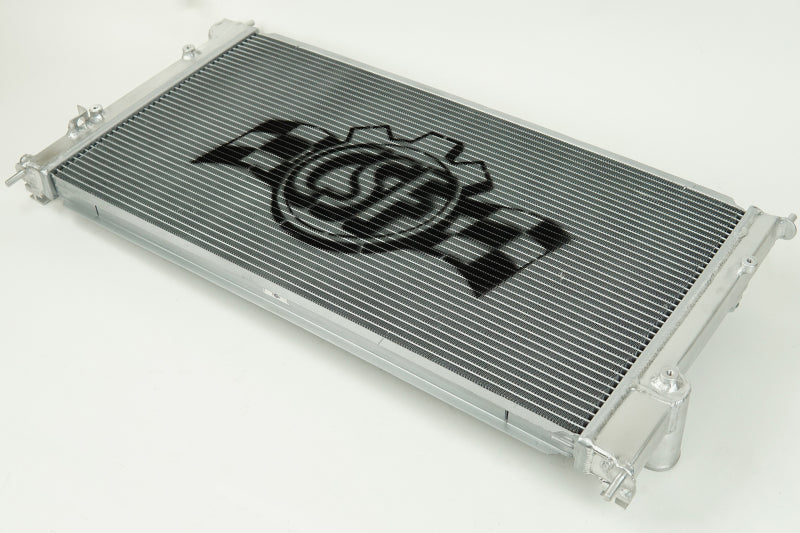

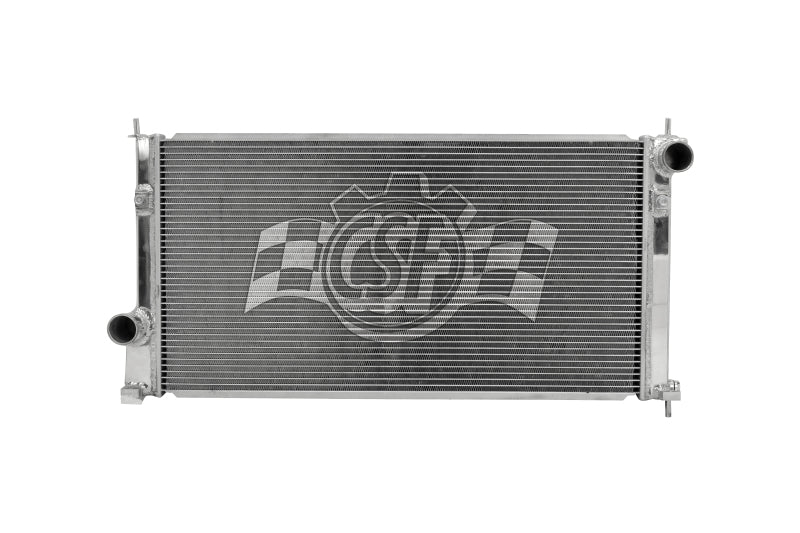

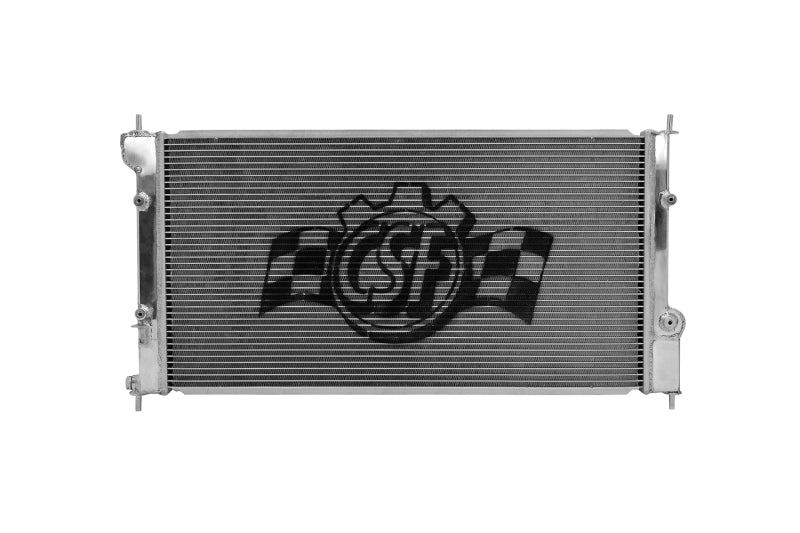

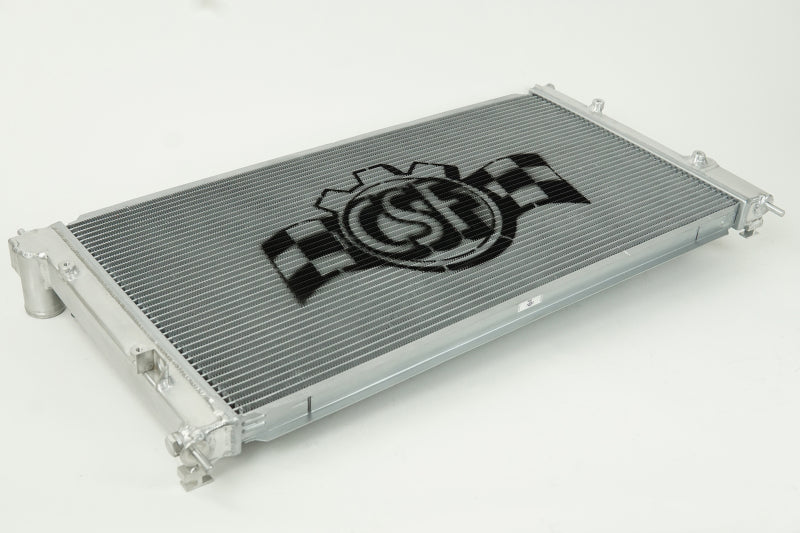

CSF's high-performance all-aluminum radiator is a direct drop-in upgrade for the Scion FR-S, Toyota 86/GR86, and Subaru BRZ, built for street and track use on higher-horsepower and race builds. It runs a 2-row 42mm dual core using CSF's B-Tube technology, which seam-brazes a B-shaped tube to raise heat-transfer surface area by roughly 15% over conventional round tubes. Ultra-efficient 6.5mm multi-louvered fins maximize airflow, and the radiator accepts all OEM components including the quick-connect hoses, AC condenser, mounting brackets, and fan shroud with no modifications.
| Type | High-performance all-aluminum radiator (CSF B-Tube) |
| Core | 2-row 42mm dual core |

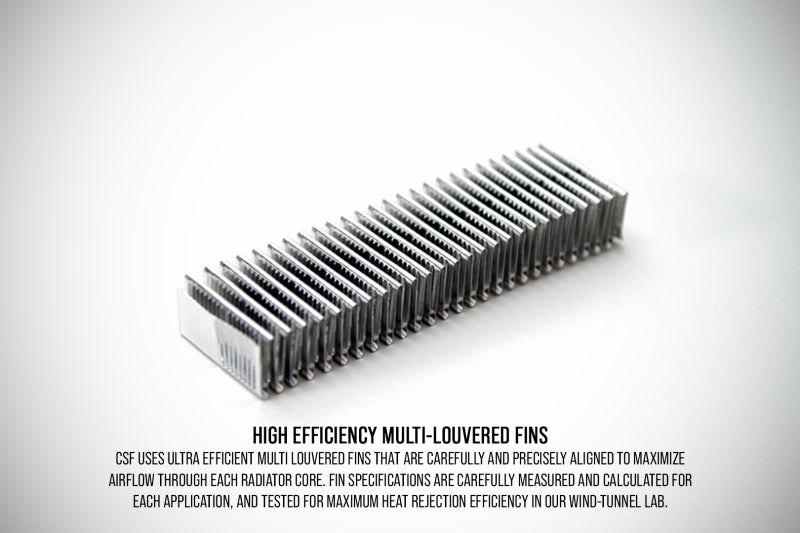

| Fins | 6.5mm multi-louvered |

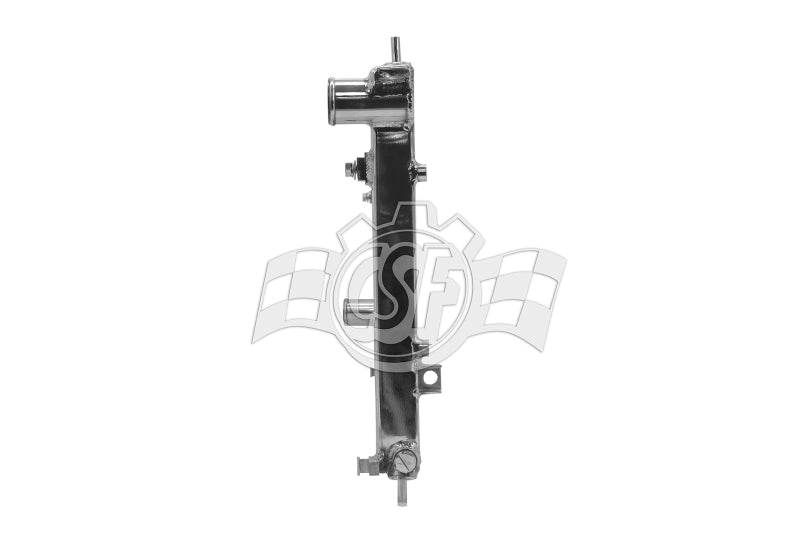

| Included | CNC-machined quick-connect inlet/outlet, all-aluminum race-style drain plug |
| Finish | Smooth satin |
| Fit | Drop-in; accepts OEM hoses, AC condenser, brackets and fan shroud |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2016 | Scion | FR-S | Base |
| 2013-2020,2022-2025 | Subaru | BRZ | Limited |
| 2013-2019,2022-2025 | Subaru | BRZ | Premium |
| 2015 | Subaru | BRZ | Series.Blue |
| 2019 | Subaru | BRZ | Series.Gray |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2018,2020,2024-2025 | Subaru | BRZ | TS |
| 2017-2020 | Toyota | 86 | Base |
| 2018-2020 | Toyota | 86 | GT |
| 2020 | Toyota | 86 | Hakone Edition |
| 2017 | Toyota | 86 | Special Edition |
| 2019 | Toyota | 86 | TRD Special Edition |
| 2023 | Toyota | GR86 | 10th Anniversary Special Edition |
| 2022-2026 | Toyota | GR86 | Base |
| 2025 | Toyota | GR86 | Hakone Edition |
| 2022-2026 | Toyota | GR86 | Premium |
| 2024 | Toyota | GR86 | TRUENO Edition |
| 2026 | Toyota | GR86 | Yuzu Edition |
