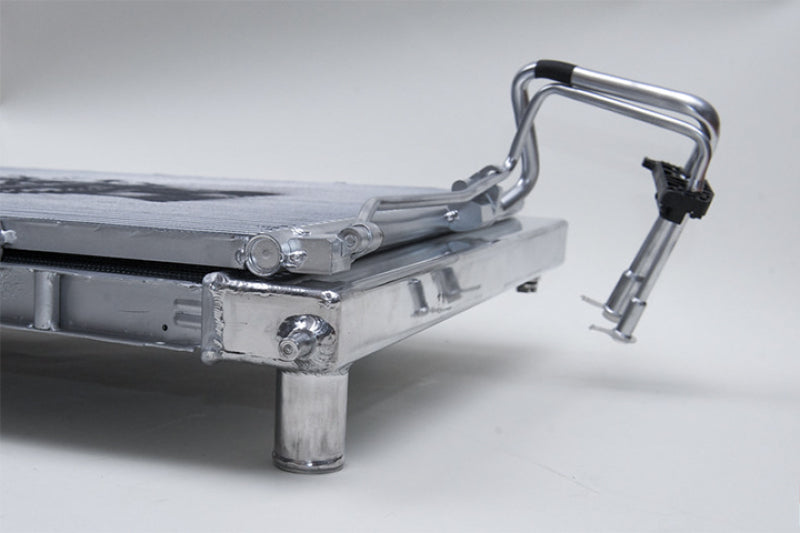

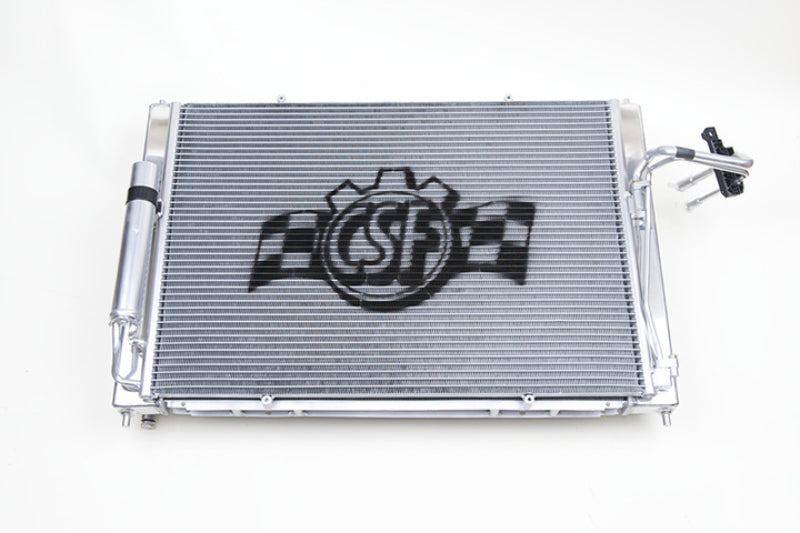

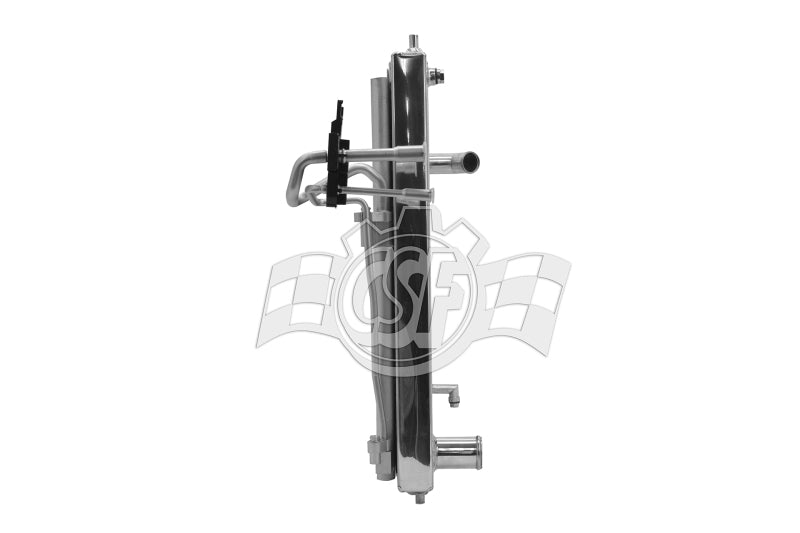

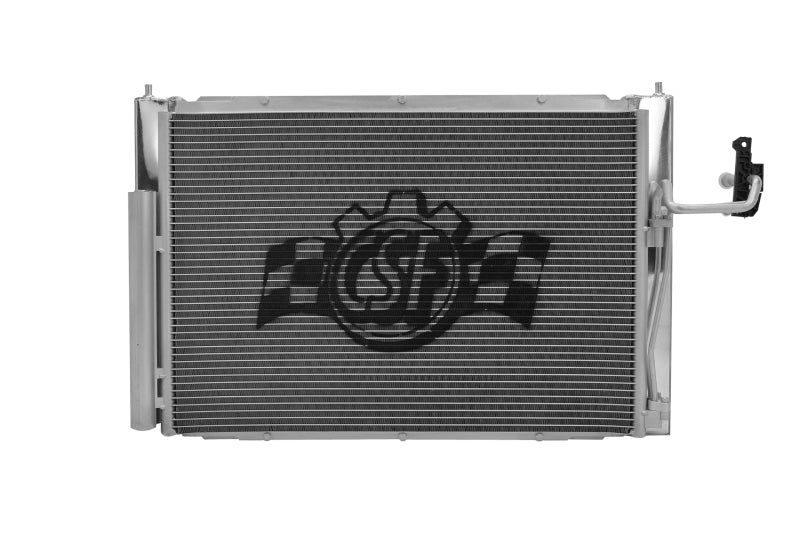

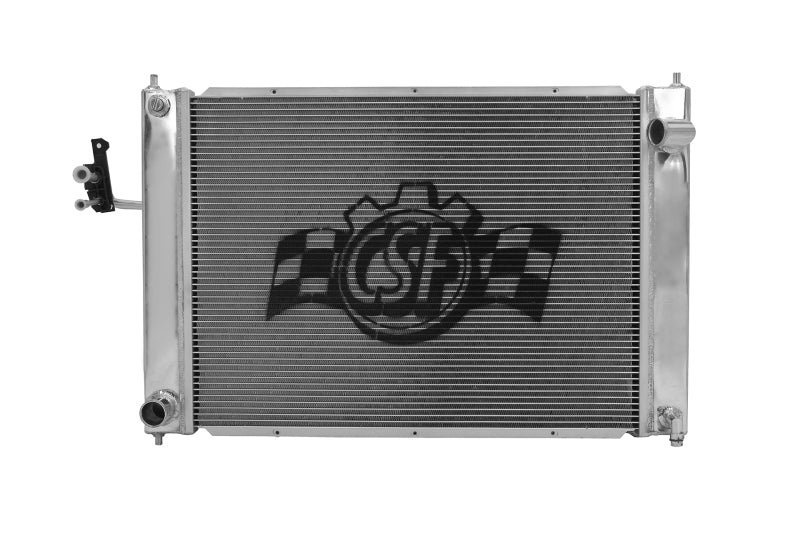

CSF's all-aluminum triple-pass radiator is a direct drop-in for the manual-transmission Nissan 370Z and Infiniti G37/Q60, built to add cooling capacity for high-horsepower street and track builds. Its triple-pass flow structure routes coolant across the core three times before exiting for the lowest possible outlet temperatures, and the 2-row 42mm core uses CSF's B-tube technology to raise heat-transfer surface area roughly 15% over standard oval tubes. Multi-louvered fins with a 6.5mm fin height maximize airflow, and the kit includes both the radiator and AC condenser, accepting all factory quick-connect hoses, brackets and fan shroud with no modifications. CNC-machined fittings, an all-aluminum race-style drain plug and a satin finish complete it.
| Type | All-aluminum triple-pass performance radiator (CSF B-Tube) |
| Material | Aluminum |
| Core | 2-Row 42mm dual core (B-Tube technology), triple-pass |
| Fins | Multi-louvered, 6.5mm fin height |
| Finish | Satin |
| Fit | Manual transmission; direct drop-in, accepts factory hoses, brackets and fan shroud |
| Included | Radiator and AC condenser; all-aluminum race-style drain plug |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007-2008 | INFINITI | G35 | Sport |
| 2011-2013 | INFINITI | G37 | IPL |
| 2008-2013 | INFINITI | G37 | Sport |
| 2014 | INFINITI | Q60 | IPL |
| 2014-2015 | INFINITI | Q60 | S |
| 2015 | INFINITI | Q60 | S Limited |
| 2010 | Nissan | 370Z | 40th Anniversary Edition |
| 2009-2020 | Nissan | 370Z | Base |
| 2018-2019 | Nissan | 370Z | Heritage Edition |
| 2009-2017,2019-2020 | Nissan | 370Z | Nismo |
| 2015-2018 | Nissan | 370Z | Nismo Tech |
| 2015-2020 | Nissan | 370Z | Sport |
| 2015-2018 | Nissan | 370Z | Sport Tech |
| 2019 | Nissan | 370Z | Sport Touring |
| 2009-2019 | Nissan | 370Z | Touring |
| 2015-2018 | Nissan | 370Z | Touring Sport |
