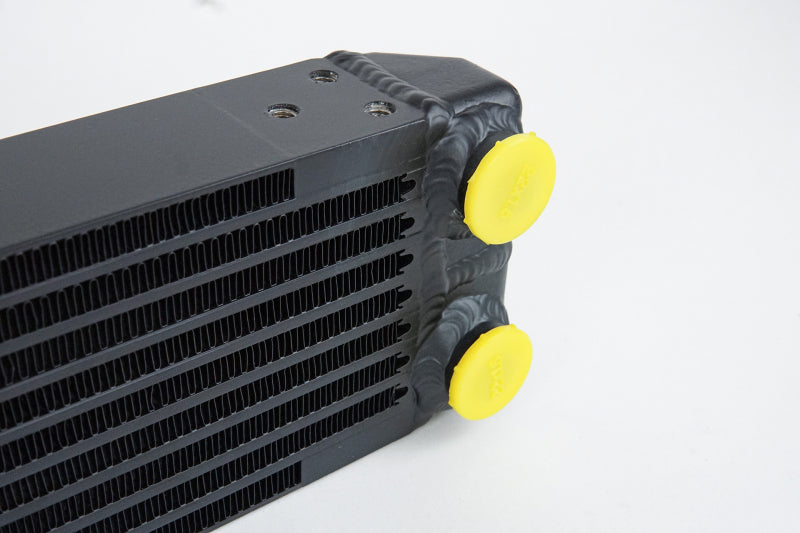

CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 4

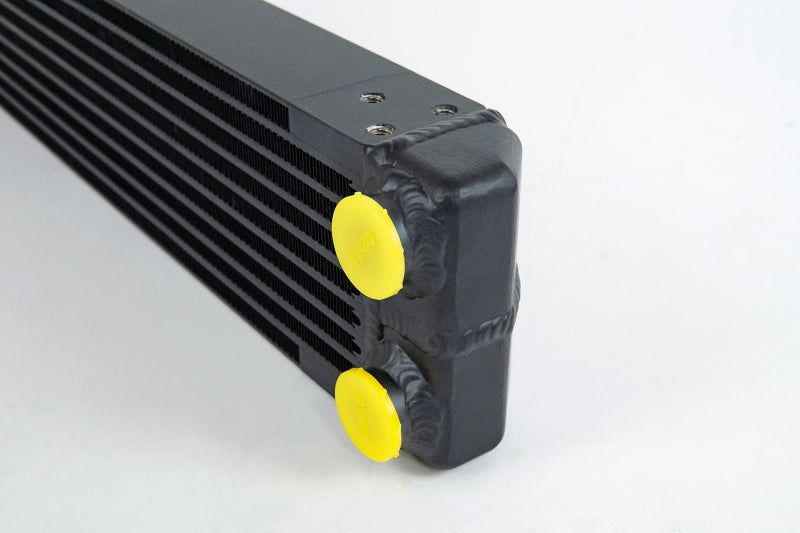

CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 5

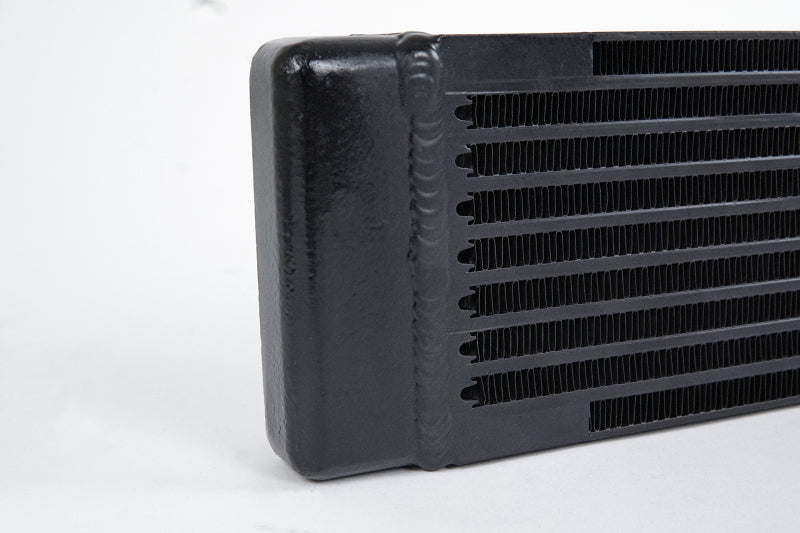

CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 6

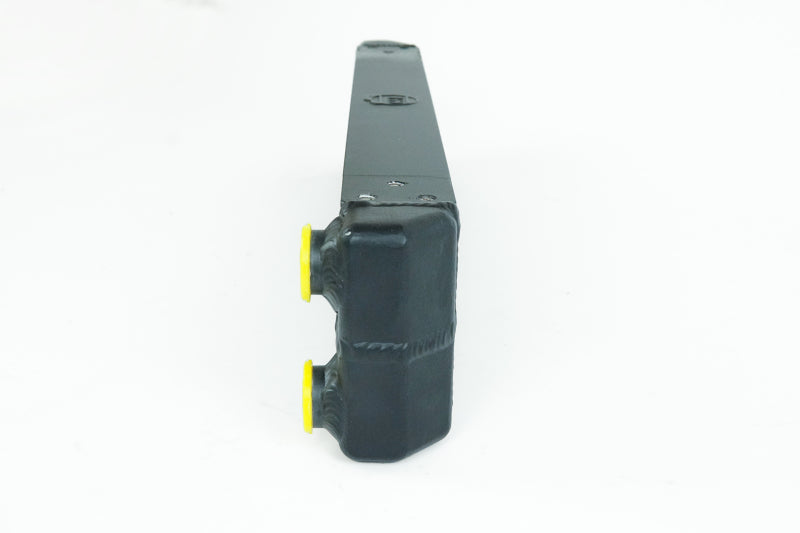

CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 7

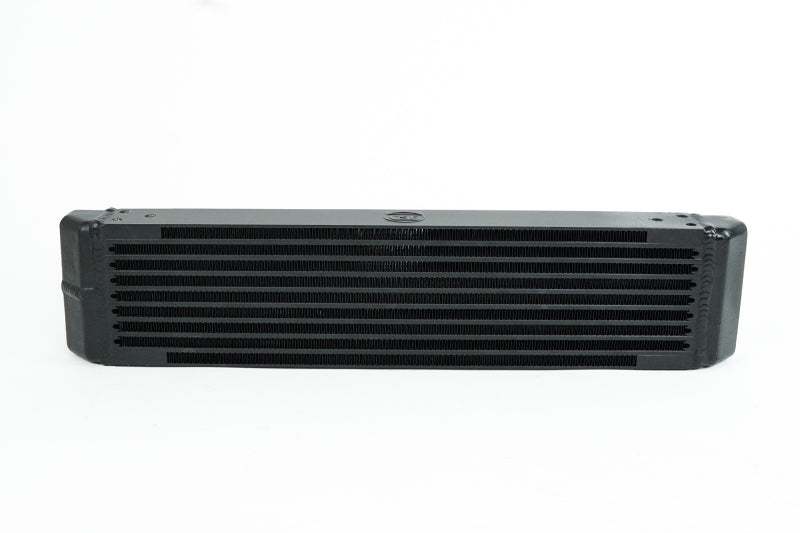

CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 8
CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in
CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 2
CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 3
CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 4
CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 5
CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 6
CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 7
CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in, view 8

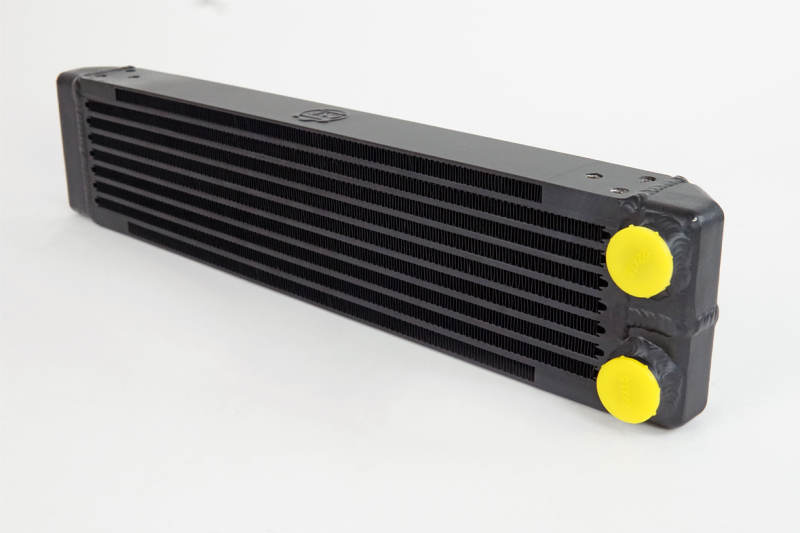

CSF Universal Dual-Pass Oil Cooler Satin Black - M22 x 1.5 - 22in

CSF SKU: CSF8201
Price
Only 1 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

The CSF Universal Dual-Pass Oil Cooler uses a long rectangular bar-and-plate Aero-Flow design that fits tighter spaces than conventional stacked-plate coolers and simplifies oil-line routing. The robust core withstands high burst pressure, vibration, and debris, making it suitable for front fascia, side vent, or diff-cooler mounting. It is direct-fit for the Porsche 73 RS style front bumper, features M22 x 1.5 inlet/outlet connections that also accept AN-16, and carries a satin black corrosion-resistant finish.

Specifications

Type Universal dual-pass oil cooler
Core Bar-and-plate Aero-Flow design
Dimensions Overall 22in L x 4.75in H x 2.25in W; core 18.9in L x 4.72in H x 2.25in W
Connections M22 x 1.5 inlet/outlet (also accepts AN-16)

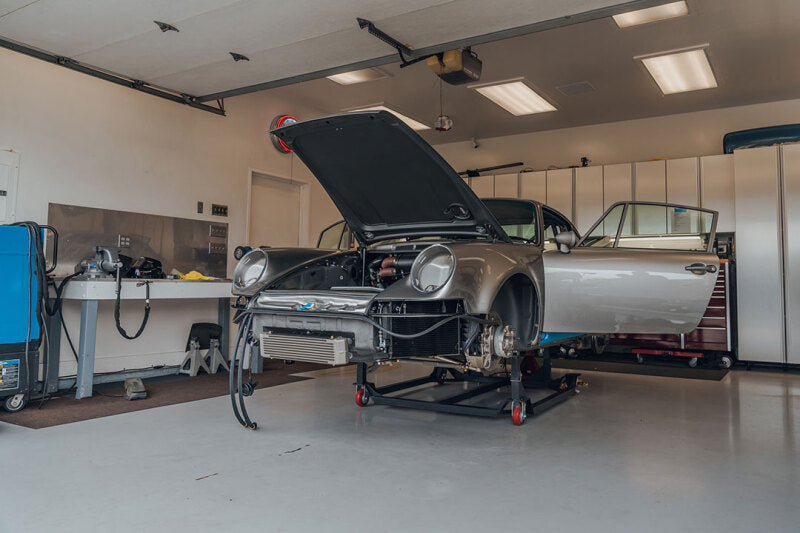

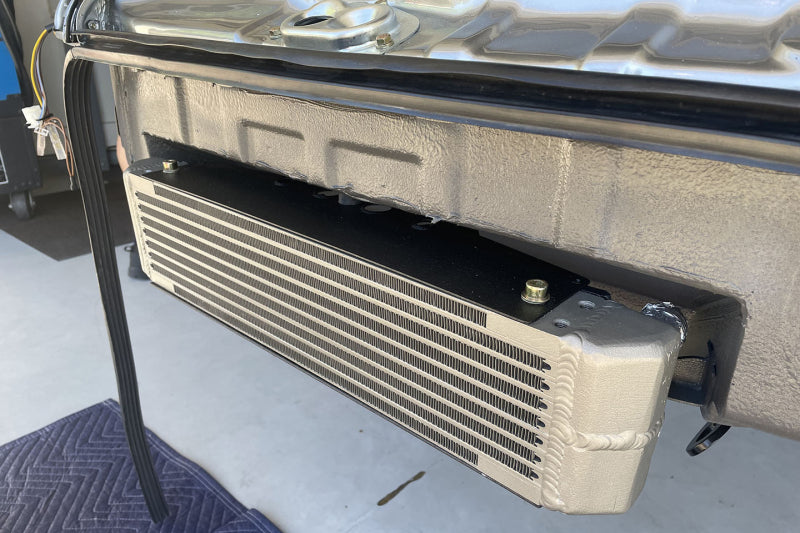

Mounting Triangular flush holes (M8 x 1.25); direct-fit Porsche 73 RS bumper
Fluid Capacity 0.72L (0.76 qt)
Pressure Tested 120 psi
Finish Satin Black
Part Number 8201
