DBA SKU: DBADBA2716S
Price
35% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

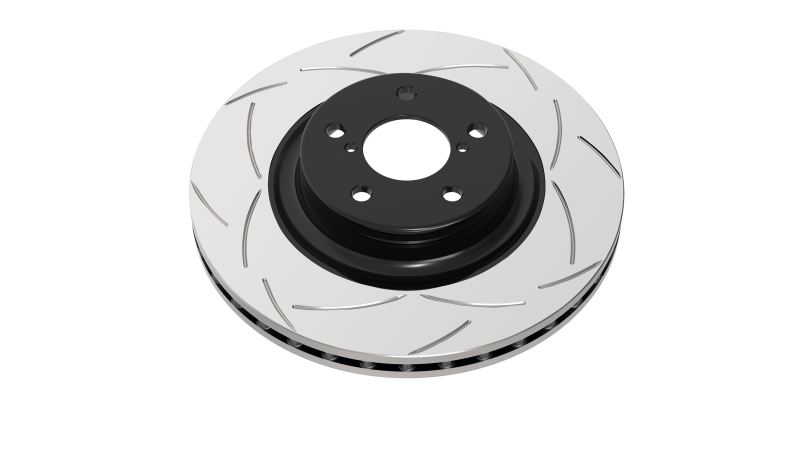

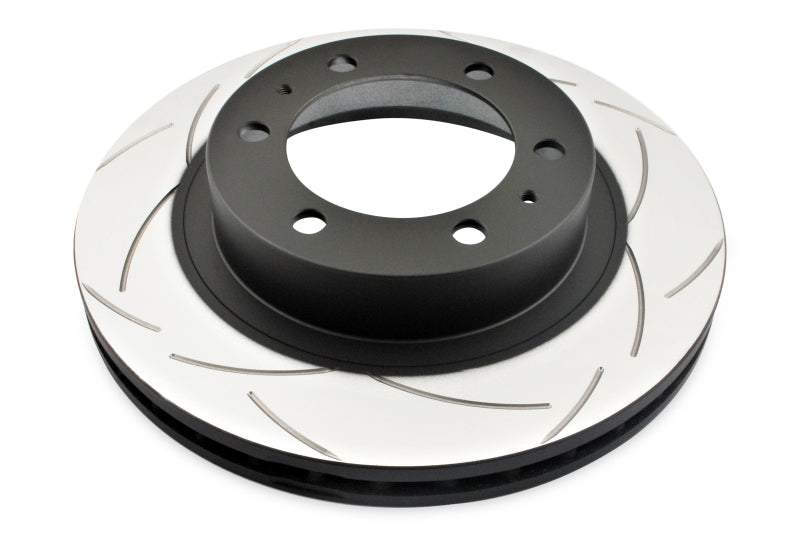

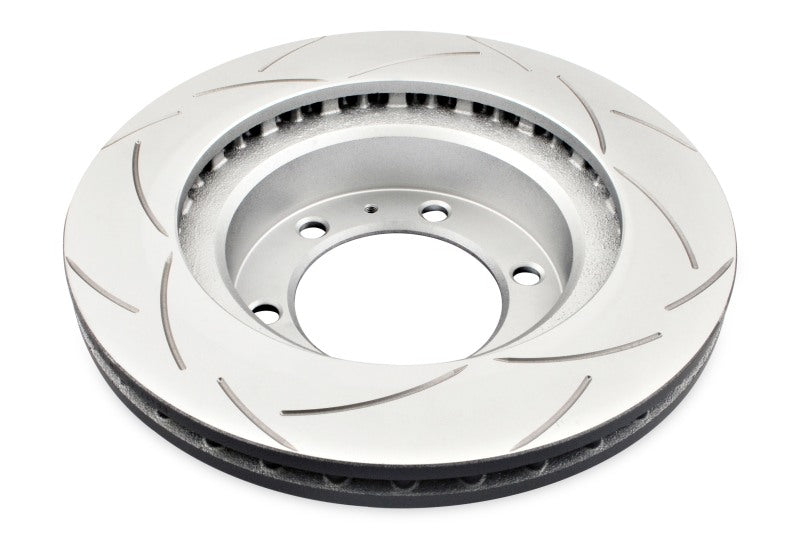

DBA2716S is DBA's Street Series rotor on the 2716 casting, cut with DBA's patented T2 slot. The T2 pattern is a bi-symmetrical CNC-machined slot that adds exit points for friction dust and gas, which is what keeps the pad bite consistent and the pedal responsive rather than glazed. DBA recommends Street Series for daily drivers, light commercial vehicles and SUVs that want an OE-level replacement built to a higher standard, not a track rotor.

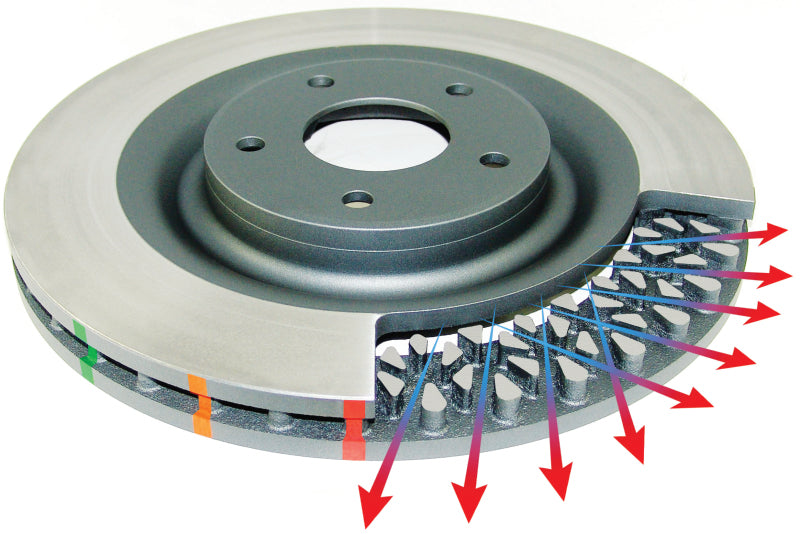

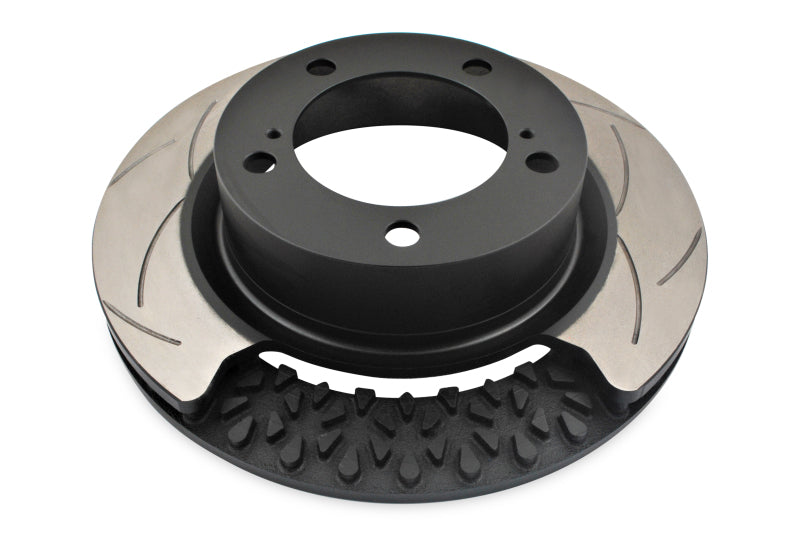

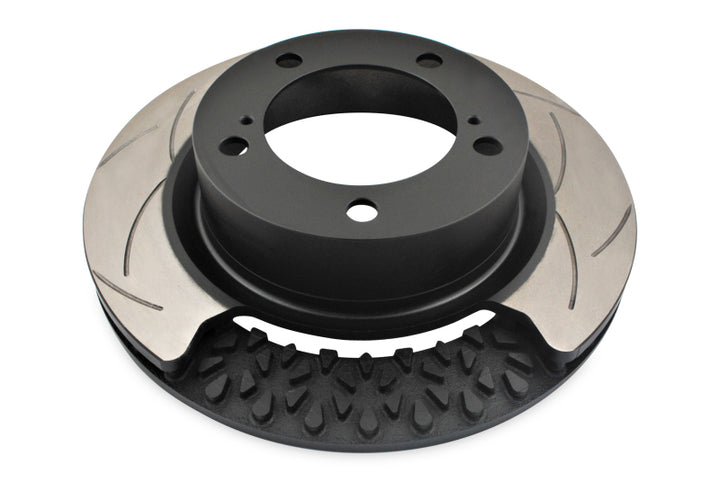

This is the entry point of the two 2716 rotors we stock. DBA42716S is the same 319mm casting in DBA's 4000 Series with the T3 slot: 4000 Series adds high carbon alloyed iron, Thermal Stability Profiling heat treatment and thermographic temperature paint, and the T3 slot adds a third set of slots on top of the T2 pattern. If the truck tows, wheels heavy loads down long grades or sees hard off-road work, the 4000 Series is the one to buy; for street and light duty, this one is the right rotor. Series: DBA Street Series, DBA's direct OE-replacement tier. Slot design: T2, bi-symmetrical. The (S) suffix in a Street Series part number denotes T2. Sold individually, this is one rotor. Two are required to do the front axle. Kangaroo Paw ventilation: 144 diamond and teardrop pillars in place of straight vanes, for up to 30% more internal surface area and up to 20% better cooling. Bi-directional slotting, one part number serves both the left and right side, so there is no handed pair to get wrong. CBN (cubic boron nitride) turned friction faces to minimise disc thickness variation and pad knock. Centre-split core casting for heat transfer. DBA warranty: 12 months / 12,000 miles.

Specifications

Series DBA Street Series
Axle Front
Rotor Diameter 319 mm
Rotor Thickness 28 mm
Minimum Thickness 26 mm
Height 67.5 mm
Centering Diameter 108 mm
Bolt Holes 6
Bolt Circle 139.7 mm
Vented Yes - Kangaroo Paw vanes
Slotted Yes
Sold As Each (two required per axle)
Position Front
Warranty 12 months / 12,000 miles
Part Number DBA2716S

Documents: DBA Rotor Install Guide (PDF)

This part fits:

Year Make Model Submodel
2006-2009 Lexus GX470 Base
2003-2010 Toyota 4Runner Limited
2003-2009 Toyota 4Runner Sport
2003-2010 Toyota 4Runner SR5
2010 Toyota 4Runner Trail
2007-2014 Toyota FJ Cruiser Base
2008 Toyota FJ Cruiser Trail Teams Special Edition
2007 Toyota FJ Cruiser TRD Special Edition
2005-2014 Toyota Tacoma Base
2017-2018 Toyota Tacoma Limited
2005-2014 Toyota Tacoma Pre Runner
2017-2018 Toyota Tacoma SR
2017-2018 Toyota Tacoma SR5
2017-2018 Toyota Tacoma TRD Off-Road
2017-2018 Toyota Tacoma TRD Pro
2017-2018 Toyota Tacoma TRD Sport
2005-2013 Toyota Tacoma X-Runner
