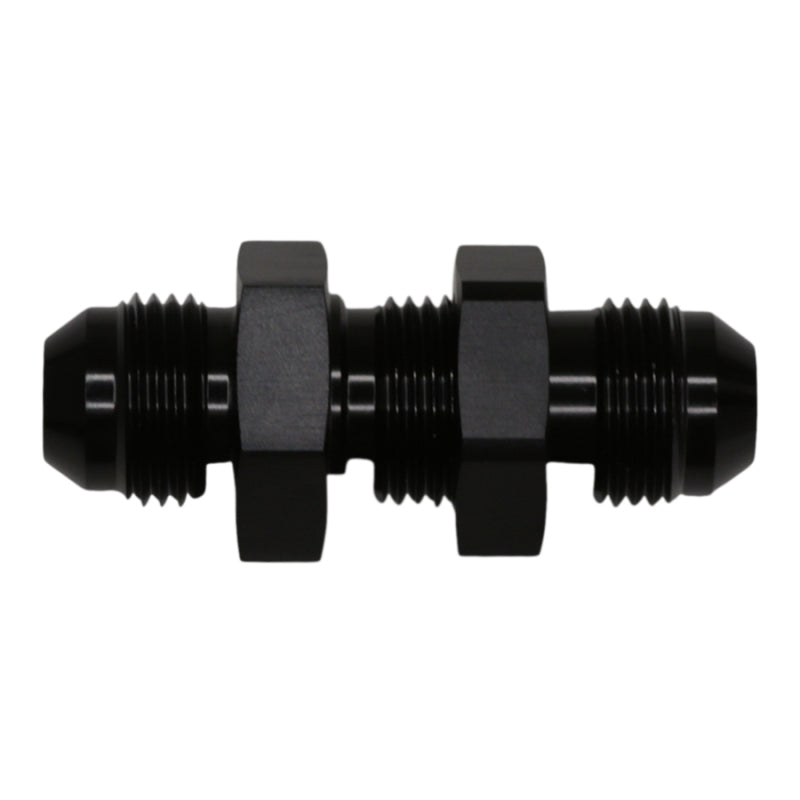

This DeatschWerks bulkhead fitting passes an 8AN fuel line through a tank wall, firewall or panel with an 8AN male flare on both sides, and it ships with the bulkhead nut that clamps it to the panel. It is machined from heat-treated T6061 aluminum, anodized matte black, and ethanol compatible for pump gas, E85 and race fuel. DeatschWerks specifies 26 ft-lb (35 Nm) of torque on an 8AN flare joint.
| Type | Straight bulkhead fuel fitting adapter |
| Fitting Angle | Straight |
| Side 1 | 8AN Male Flare |
| Side 2 | 8AN Male Flare |
| Size | 8AN |
| Material | T6061 aluminum |
| Finish | Anodized matte black |
| Includes | Bulkhead nut |
| Torque Spec | 26 ft-lb (35 Nm) on an 8AN flare joint |
| Fuel Compatibility | Ethanol compatible (gasoline, E85, race fuel) |
| Quantity | 1 |
| Part Number | 6-02-0709-B |
| Warranty | DeatschWerks Limited Lifetime Warranty |
Documents: Fuel Fittings & Accessories Tech Data Sheet (PDF)
