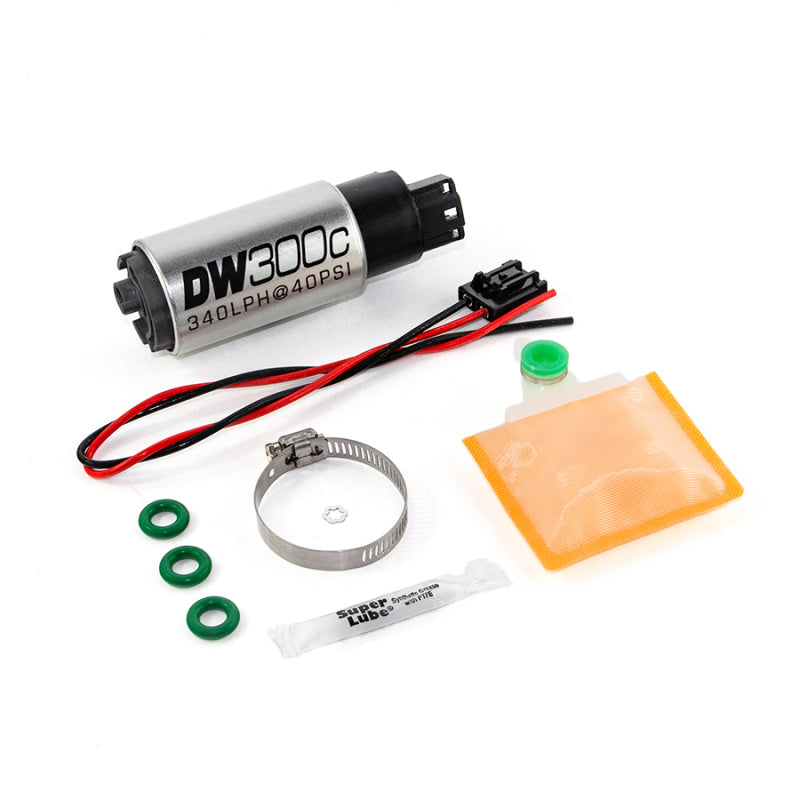

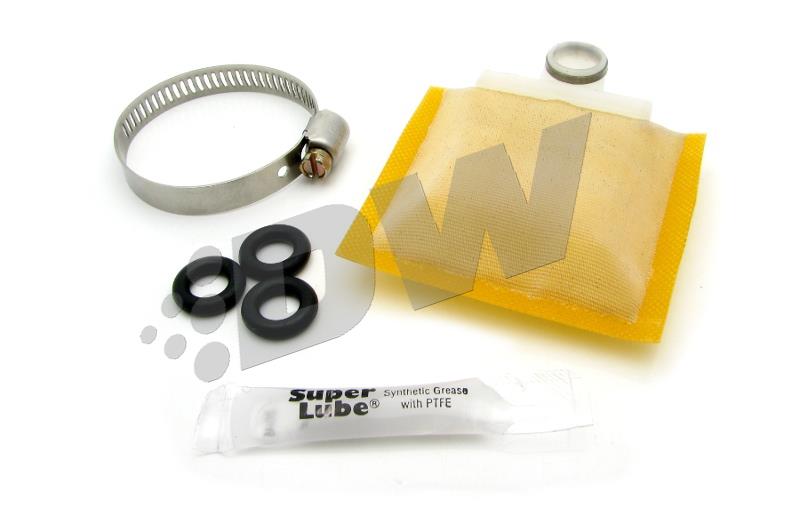

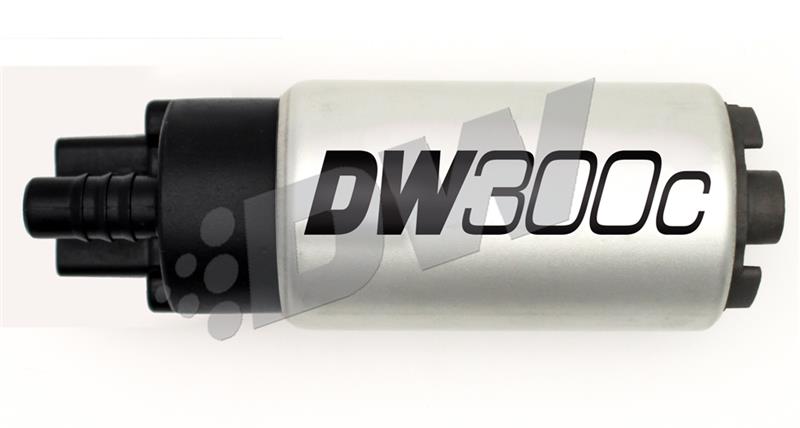

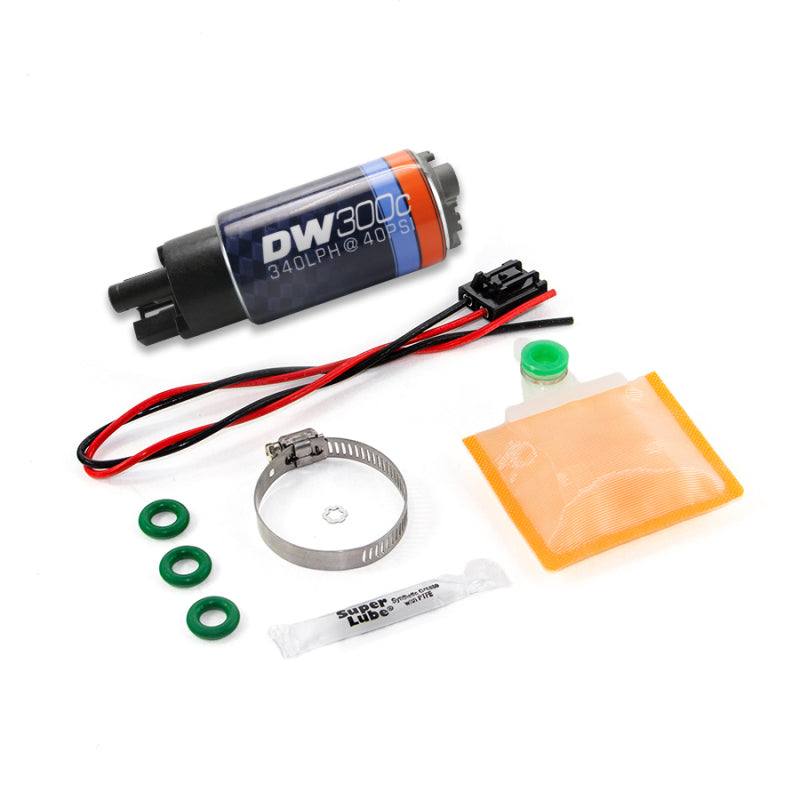

The DW300C is the DeatschWerks compact fitment in-tank fuel pump, rated at 340 LPH at 40 psi and 13.5 volts and still delivering 220 LPH at 100 psi, with an 11.7 amp draw at 40 psi and a pressure relief valve that opens at 100 psi. A single scroll composite turbine impeller keeps it quiet and pulse width modulation compatible, while carbon commutators and a fully encapsulated armature build in E85 compatibility. This listing pairs the pump with the DeatschWerks 1017 vehicle specific install kit. Mounting clips are not included with this 9-307 version of the pump; the 9-309 version is the one supplied with clips.
| Type | DW300C compact fitment in-tank fuel pump with vehicle specific install kit |
| Pump Included | Yes, DW300C pump supplied with the 1017 install kit |
| Flow | 340 LPH at 40 psi and 13.5 volts (360 LPH at 30 psi, 295 LPH at 60 psi, 220 LPH at 100 psi) |
| Current Draw | 11.7 amps at 40 psi and 13.5 volts |
| Operating Voltage | 6 to 18 volts |
| Pressure Relief Valve | 100 psi |
| Impeller | Single scroll composite turbine |
| Housing | Electroplated steel |
| Terminals | Spade positive and negative |
| Fuel Compatibility | E85 compatible via carbon commutators and a fully encapsulated armature |
| Weight | 10.2 oz (290 g) |
| Mounting Clips | Not included. 9-307 ships without clips, 9-309 ships with clips |

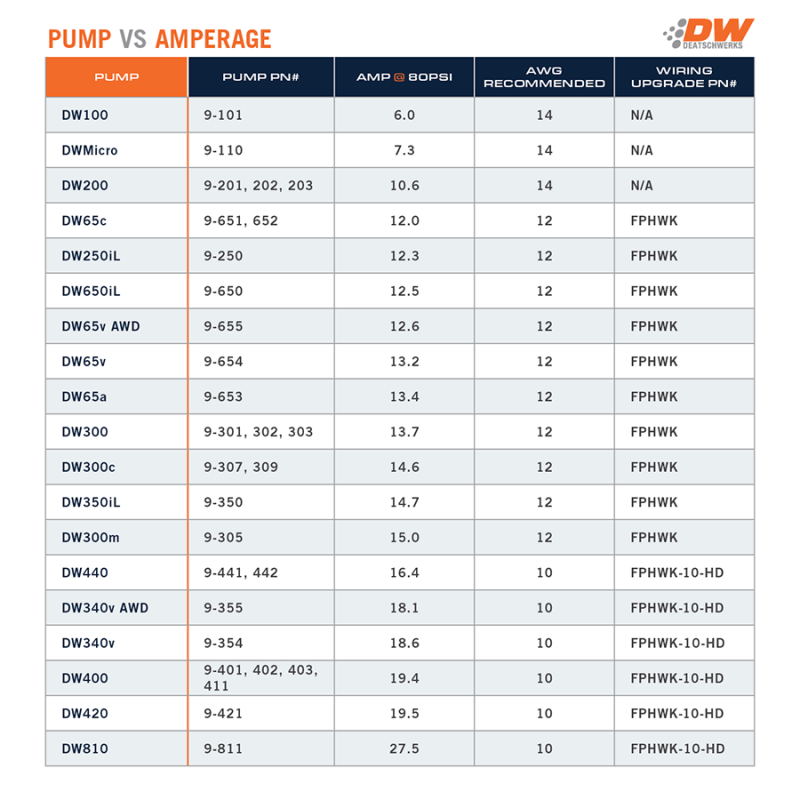

| Recommended | 12 gauge hardwire kit, sold separately |
| Quantity | 1 |
| Part Number | 9-307-1017 |
| Warranty | 3 year no fault warranty |
Documents: Technical Bulletin (PDF) | Product Specifications Sheet (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2010 | Ford | Focus | S |
| 2009-2010 | Ford | Focus | SE |
| 2009-2010 | Ford | Focus | SEL |
| 2009-2010 | Ford | Focus | SES |
