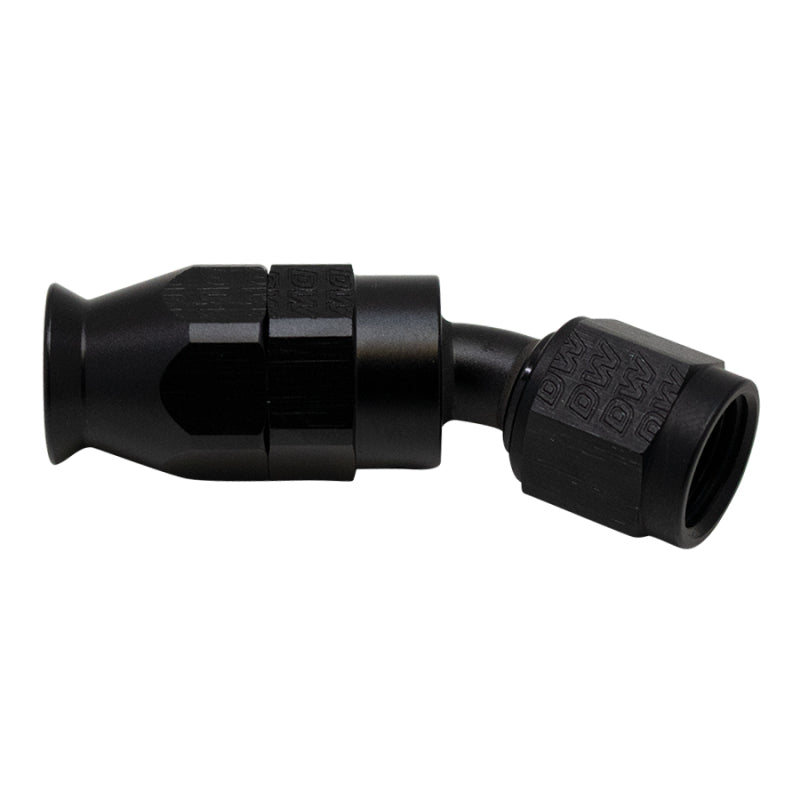

This 6AN female flare swivel hose end puts a shallow 30 degree bend into a PTFE fuel line, enough to ease the hose off a rail or regulator port without the packaging penalty of a 45 or 90 degree fitting. It is machined from T6061 aluminum and anodized matte black, the finish DeatschWerks marks with the -B suffix on the part number, while the same number without the suffix is the DW Titanium version. The ferrule, also called an olive, is included and compresses onto the PTFE liner to make the high pressure seal. PTFE hose ends are not interchangeable with CPE hose ends and must be run on DeatschWerks PTFE hose.
| Type | Swivel hose end for PTFE hose |
| Fitting Angle | 30 degree |
| Size | 6AN |
| Connection | 6AN female flare swivel |
| Hose Type | PTFE |
| Material | T6061 aluminum |
| Finish | Anodized matte black |
| Includes | Ferrule/olive insert |
| Fuel Compatibility | Ethanol compatible |
| Quantity | 1 |
| Part Number | 6-02-0870-B |
| Warranty | Limited lifetime |
Documents: Product Specifications Sheet (PDF)
