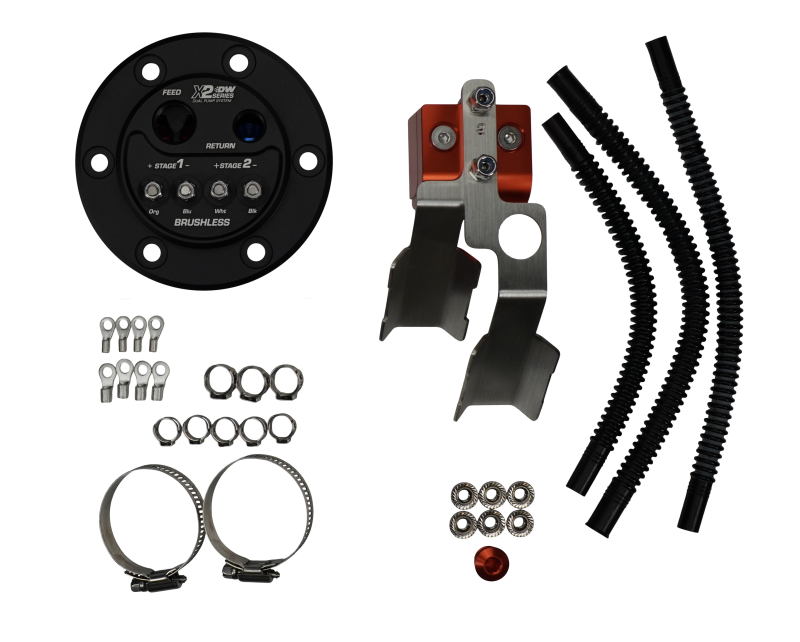

The X2 Series hanger replaces the factory fuel pump assembly with an anodized aluminum top hat, pump mount and hanger set that manages fuel delivery while preserving stock functionality. It accepts up to two DW100, DW200, DW300 or DW420 pumps in 39mm or 42mm bodies, or a single DW440 or DW810 brushless pump, and in full dual pump form flows 815 LPH (3.6 GPM) with a 35 amp draw at 43.5 psi, enough to support over 1400 wheel horsepower on forced induction pump gas. The feed port is -6AN ORB and the return port is -8AN ORB, and the hanger ships with its fuel tank gasket and four M5 stainless pump wiring terminals. Pumps are not included.
| Type | X2 Series dual pump in-tank fuel pump hanger |
| Material | Anodized aluminum |
| Pumps Included | No, hanger assembly only |
| Pump Capacity | Up to two DW100, DW200, DW300 or DW420 pumps, or one DW440 or DW810 brushless pump |
| Pump Size Fitment | 39mm or 42mm |
| Flow | 815 LPH (3.6 GPM) |
| Current Draw | 35 amps at 43.5 psi |
| Feed Fitting | -6AN ORB |
| Return Fitting | -8AN ORB |
| In the Box | Top hat, pump mount, hangers, hanger to fuel tank gasket, four M5 stainless pump wiring terminals |
| Recommended | 10 gauge hardwire kit (FPHWK-10-HD), sold separately |
| Quantity | 1 |
| Part Number | 9-000-7043 |
Documents: Product Specifications Sheet (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2001 | Acura | Integra | GS |
| 1994-2001 | Acura | Integra | GS-R |
| 1994-2001 | Acura | Integra | LS |
| 1994-1998 | Acura | Integra | RS |
| 1995-1996 | Acura | Integra | Special Edition |
| 1997-1998,2000-2001 | Acura | Integra | Type R |
| 1992-2000 | Honda | Civic | CX |
| 1992-2000 | Honda | Civic | DX |
| 1992-2000 | Honda | Civic | EX |
| 1998-2000 | Honda | Civic | GX |
| 1996-2000 | Honda | Civic | HX |
| 1992-2000 | Honda | Civic | LX |
| 1992-1995,1999-2000 | Honda | Civic | Si |
| 1999 | Honda | Civic | Value Package |
| 1992-1995 | Honda | Civic | VX |
