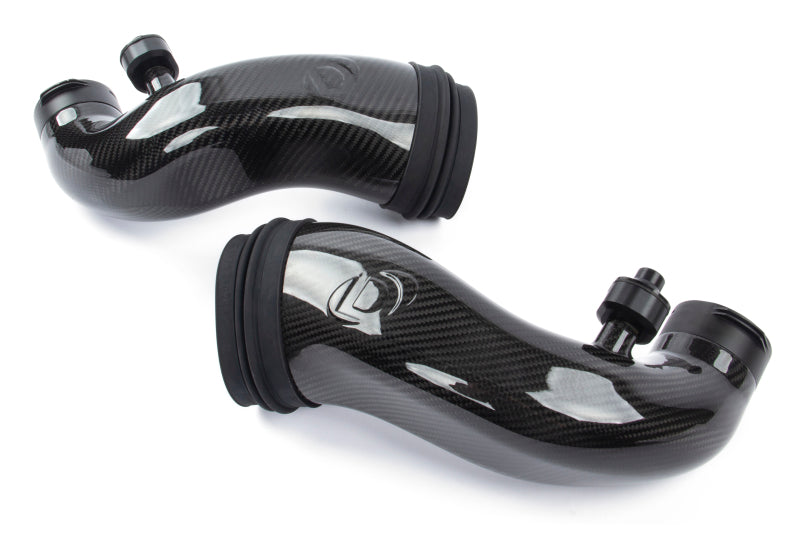

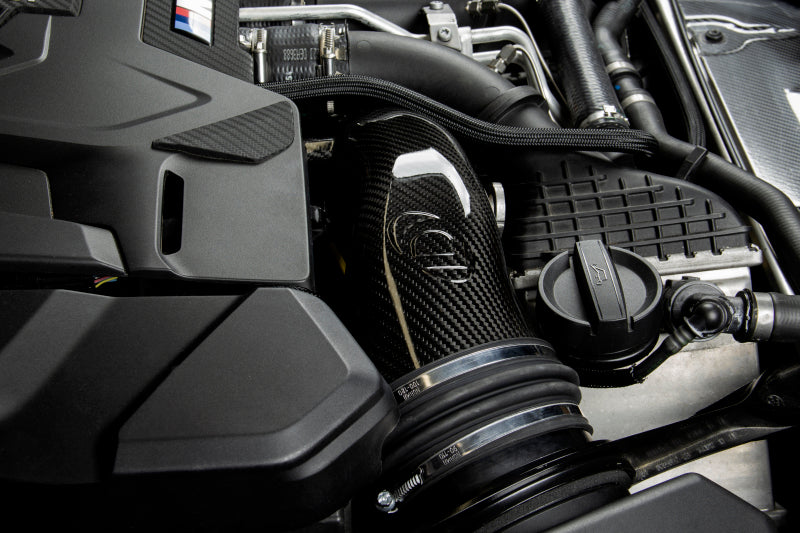

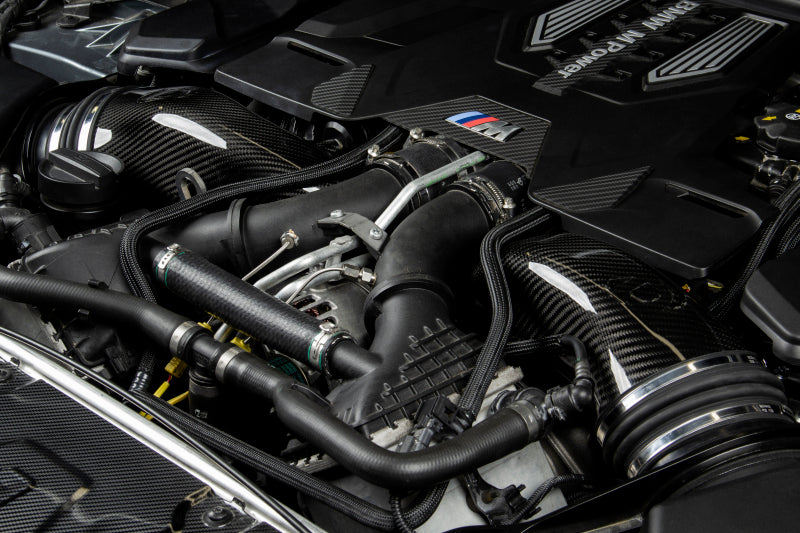

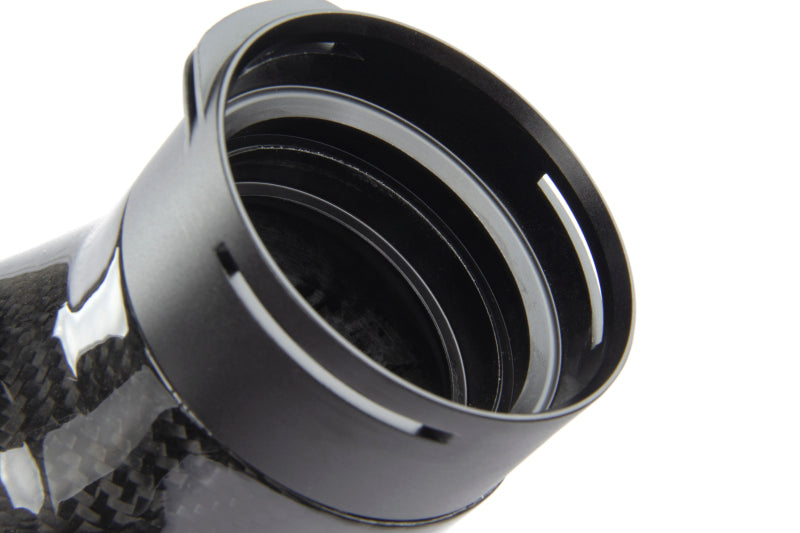

Dinan Turbo Inlet Pipes replace the restrictive plastic factory inlets on the S63-powered F90 M5 and F9x M8, opening the path to each turbocharger. Built from gloss UV-coated 2x2 carbon fiber with an aluminum adapter that reuses the factory locking connection, each pipe offers the largest possible cross-section from filter to turbo, a 200% increase in volume at 105 cubic inches per side versus 35 stock. On cars with factory airboxes they add an average of 11 WHP and 13 lb-ft from 2000 RPM to redline, up to 22 WHP and 18 lb-ft at 6500 RPM, and work with either the stock or Dinan intake.
Specifications
| Type | Carbon fiber turbo inlet pipes |
| Material | Gloss UV-coated 2x2 carbon fiber with aluminum turbo adapter |
| Volume | 105 cu in per side (200% over stock) |
| Power Gain | +11 WHP / +13 lb-ft average (up to +22 WHP / +18 lb-ft) |
| Quantity | Pair (2 inlet pipes) |
| Part Number | D760-0053 |
Documents: Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018-2023 | BMW | M5 | Base |
| 2019-2021 | BMW | M5 | Competition |
| 2022 | BMW | M5 | CS |
| 2020 | BMW | M8 | Base |
| 2020,2022-2025 | BMW | M8 | Competition |
| 2020-2021 | BMW | M8 Gran Coupe | Base |
| 2020-2025 | BMW | M8 Gran Coupe | Competition |
