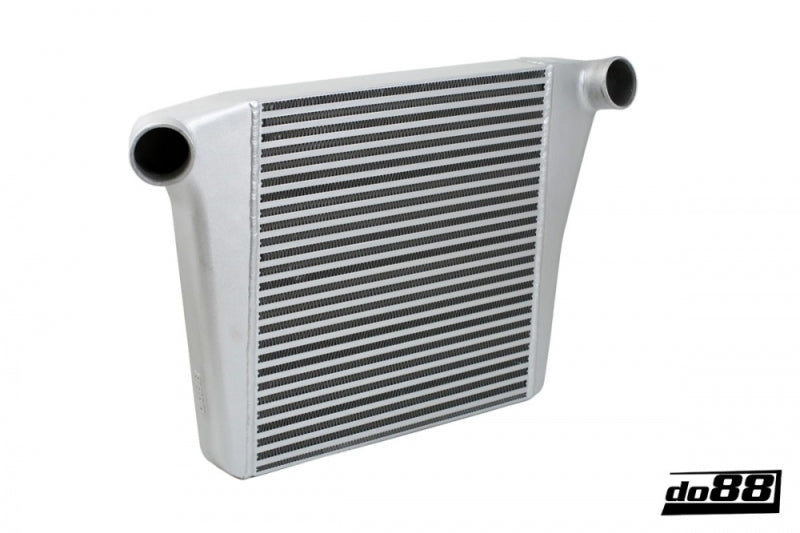

This do88 intercooler replaces the small factory unit on turbocharged Volvo 200, 700 and 900 series cars with a large all-aluminum core and cast end tanks. The 60mm-thick core holds 11,906 cm3, roughly 221 percent more volume than the original, and flows 405 CFM at 0.15 bar pressure drop. In do88's testing that drops post-intercooler air temperature to around 32 degrees C, some 34 degrees C cooler than the OEM unit under comparable conditions. It mounts in the original position with only minor trimming of the OEM rubber support brackets to clear the added thickness.
Specifications
| Type | All-aluminum performance intercooler (do88 ICM-140) |
| Core Thickness | 60mm |
| Core Volume | 11,906 cm3 (approx. 221% larger than OEM) |
| Airflow | 405 CFM at 0.15 bar pressure drop |
| OEM Replacement | 1317319 |
| Part Number | ICM-140 |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1981-1984 | Volvo | 240 | Turbo |
| 1985-1992 | Volvo | 740 | Turbo |
| 1984-1990 | Volvo | 760 | Turbo |
| 1986-1988 | Volvo | 780 | Turbo |
| 1991-1998 | Volvo | 940 | Turbo |
| 1991-1994 | Volvo | 960 | Turbo |
