do88 BigPack Black Y-Pipe Intercooler Kit - Porsche 911 Turbo / Turbo S (997.2) 2010-2012

do88 SKU: DOBBIG-130SV
Price
Only 1 Left – Order Soon
Shipping calculated at checkout.

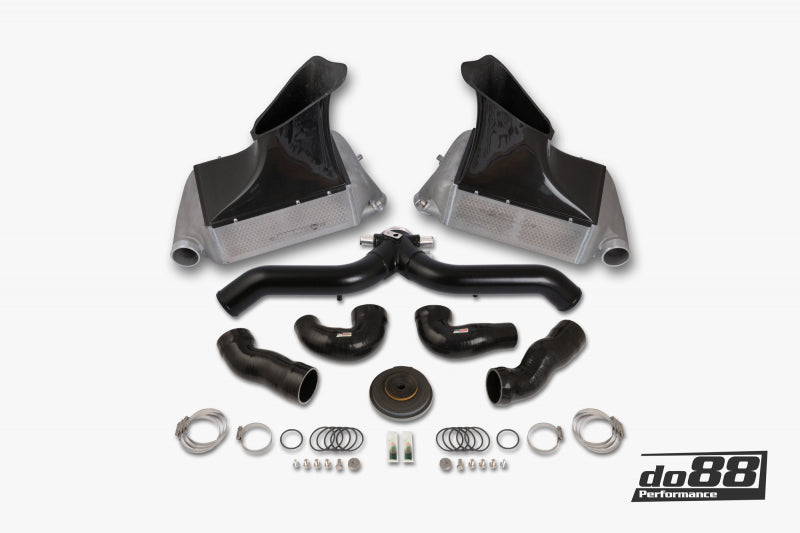

This do88 BigPack combines the MERA motorsport grade intercoolers with the do88 high flow Y-pipe and every hose needed to fit them. The cores are high density Garrett bar and plate units behind 3D freeform cast end tanks and custom carbon fiber ambient air guides that seal to the body so all cooling air passes through the core. do88 measured 771 CFM at 0.175 bar (2.54 psi) pressure drop against 564 CFM for the OE system, 37 percent higher, and inlet air temperature 18°C lower over five back to back full throttle runs on a Stage 1 car. The Y-pipe uses 2.75 inch (70 mm) mandrel bent aluminum around a cast collector with NC machined blow off valve and breather connections, finished in semi gloss black powder coat. Each intercooler weighs 8.45 kg against 3.30 kg for the OE unit, and all intercooler connections open up to 70 mm.

Specifications

Type Charge air intercooler pair and cast Y-pipe kit (do88 BigPack MERA)
Material Garrett bar and plate core, 3D freeform cast aluminum end tanks, carbon fiber ambient air guides
Air Flow 771 CFM at 0.175 bar / 2.54 psi pressure drop (OE 564 CFM), 37% higher
Intake Air Temperature 18°C lower than OE, peak delta over five consecutive full throttle runs
Inlet/Outlet 70 mm (2.75 in) intercooler connections
Y-Pipe 2.75 in (70 mm) mandrel bent aluminum with cast collector, 1.52 kg
Finish Semi gloss black powder coat Y-pipe
Weight 8.45 kg (18.10 lb) per intercooler, OE 3.30 kg (7.27 lb)
Hose Material Silicone, turbo outlet hoses rated to 240°C (464°F) continuous
Included 2 MERA intercoolers, Y-pipe, carbon fiber air guides, silicone hoses, clamps and fitting hardware
Configuration Without inlet hoses
Quantity 1 (complete kit)
OEM Replacement 99711063900, 99711064000, 99711063970, 99711064070, 99711064674, 99711064570, 99711064470
Part Number BIG-130SV

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2010 Porsche 911 Turbo, Turbo S (997.2)
2011 Porsche 911 Turbo, Turbo S (997.2)
2012 Porsche 911 Turbo, Turbo S (997.2)
