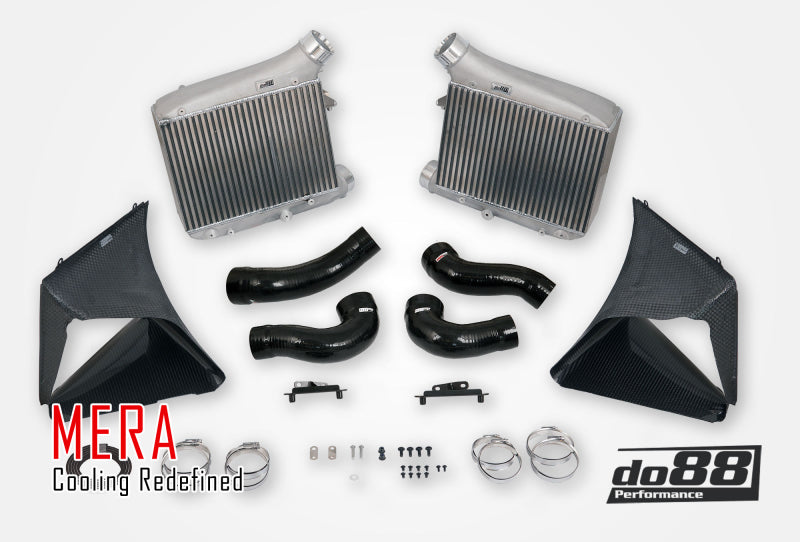

The do88 MERA intercooler is a direct OE replacement for the Audi RS6 and RS7 (C8) 4.0 V8 TFSI, engineered for maximum cooling within the factory space. MERA is do88's high-performance cooling line, built around a motorsport-grade Garrett bar-and-plate core with densely packed thin fins. Core volume rises 50 percent over OEM to 10,063 cm3 and active cooling area grows 29 percent to 958 cm2, while the 105mm-tall core flows 422 CFM at 0.125 bar, about 16 percent more than stock. In do88 testing it drops inlet air temperature by 27 degrees C under identical conditions. Vacuum-infused carbon fibre air guides, free-form cast end tanks and premium silicone hoses on the enlarged 70mm connections are included, with all welding done in-house in Sweden.
Specifications
| Type | MERA all-aluminum performance intercooler (do88 ICM-500) |
| Core | Garrett Motorsport bar-and-plate, 105mm height |
| Core Volume | 10,063 cm3 (approx. 50% larger than OEM) |
| Active Cooling Area | 958 cm2 (approx. 29% larger than OEM) |
| Airflow | 422 CFM at 0.125 bar pressure drop |
| Connections | 70mm, premium silicone hoses included |
| Part Number | ICM-500 |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2020-2026 | Audi | RS6 | 4.0 V8 TFSI (C8) |
| 2020-2026 | Audi | RS7 | 4.0 V8 TFSI (C8) |
