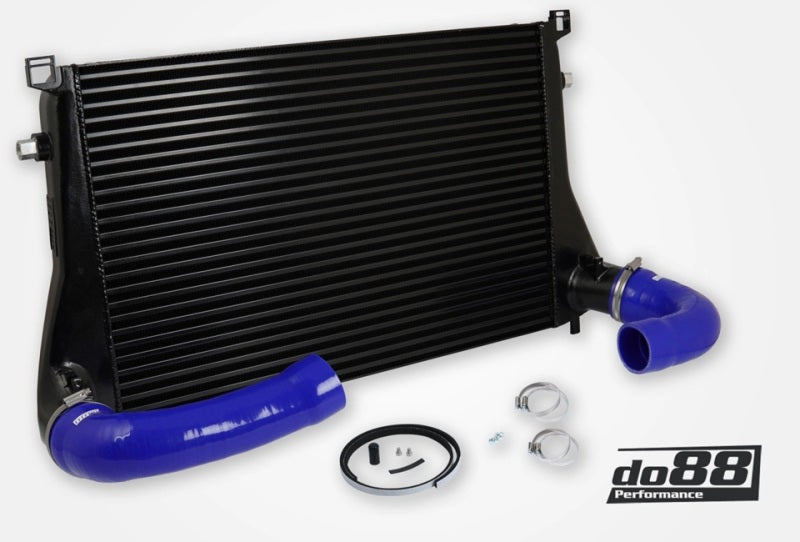

do88 built this drop-in intercooler around a core holding 15,347 cm³ against 7,719 cm³ for the standard unit, a 99% gain in core volume, with 2,692 cm² of active cooling area versus 2,573 cm². Airflow measures 455 CFM against 310 CFM at a 0.15 bar (2.18 psi) pressure drop, 47% higher, and post intercooler air temperature settles at 24°C where the OEM cooler reads 36°C under the same conditions. The core is aluminium with continuous welds and it mounts in the factory location using the supplied bolts, washers and instructions, so no pipework changes are needed.
| Type | Drop-in air-to-air performance intercooler |
| Material | Aluminium with continuous welds |
| Core Volume | 15,347 cm³ vs 7,719 cm³ OEM, 99% larger |
| Active Cooling Area | 2,692 cm² vs 2,573 cm² OEM, 5% larger |
| Airflow | 455 CFM vs 310 CFM OEM at 0.15 bar (2.18 psi) pressure drop, 47% higher |
| Charge Air Temperature | 24°C vs 36°C OEM under the same conditions, 12°C lower |
| Hose Color | Blue |
| Kit Contents | Intercooler, bolts, washers, mounting instructions |
| Fitment Notes | On the Audi A3/S3 8V, Audi TT/TTS 8S, SEAT León/Cupra MK3, SEAT Ateca/Cupra MK1 and Skoda Octavia/vRS MK3 the plastic radiator and intercooler support frame needs trimming. |
| Quantity | 1 |
| Part Number | ICM-300-B |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013+ | Volkswagen | Golf MK7 / MK7.5 | GTI / R / Clubsport / ED40 / Golf / Sportwagen, 1.8 TSI / 2.0 TSI |
| 2015+ | Volkswagen | Passat (3G) | 1.8 TSI / 2.0 TSI |
| 2016+ | Volkswagen | Tiguan MK2 | 2.0 TSI |
| 2017+ | Volkswagen | Arteon | 2.0 TSI |
| 2019+ | Volkswagen | Jetta GLI MK7 | 2.0 TSI |
| 2012+ | Audi | A3 / S3 (8V) | 1.8 TFSI / 2.0 TFSI |
| 2015+ | Audi | TT / TTS (8S) | 1.8 TFSI / 2.0 TFSI |
| 2013+ | SEAT | León / Cupra MK3 | 1.8 TSI / 2.0 TSI |
| 2016+ | SEAT | Ateca / Cupra MK1 | 1.8 TSI / 2.0 TSI |
| 2013+ | Skoda | Octavia / vRS MK3 | 1.8 TSI / 2.0 TSI |
| 2015+ | Skoda | Superb (B8) | 1.8 TSI / 2.0 TSI |
