do88 Pressure Pipe Kit - BMW N55 (F2x/F3x) 2010-2018 - Black Hose

do88 SKU: DOBTR-190S
Price
On Backorder – Order Now or Contact Us for Availability
Shipping calculated at checkout.

This kit replaces the factory charge pressure pipe between the turbocharger side of the intercooler and the throttle body with a 3 in mandrel-bent seamless aluminium pipe carrying a CNC machined sensor flange. do88 measured 680 CFM through it at 0.075 bar (1.09 psi) pressure drop against 460 CFM for the OEM pipe on their SuperFlow SF-1020 flow bench, 48 percent more air. Two 1/8 27 NPT ports are welded in for water/methanol injection and ship plugged. The custom silicone hose uses four layers of polyester and aramid reinforcement to hold boost pressure and charge air temperature.

Specifications

Type Mandrel-bent aluminium charge pressure pipe kit
Material 3 in mandrel-bent seamless aluminium with CNC machined sensor flange
Hose Material Silicone with four layers of polyester and aramid reinforcement
Colour Black hose
Air Flow 680 CFM at 0.075 bar (1.09 psi) pressure drop; OEM pipe 460 CFM, 48 percent higher
Connections Two 1/8 27 NPT water/methanol injection ports, supplied with blanking plugs

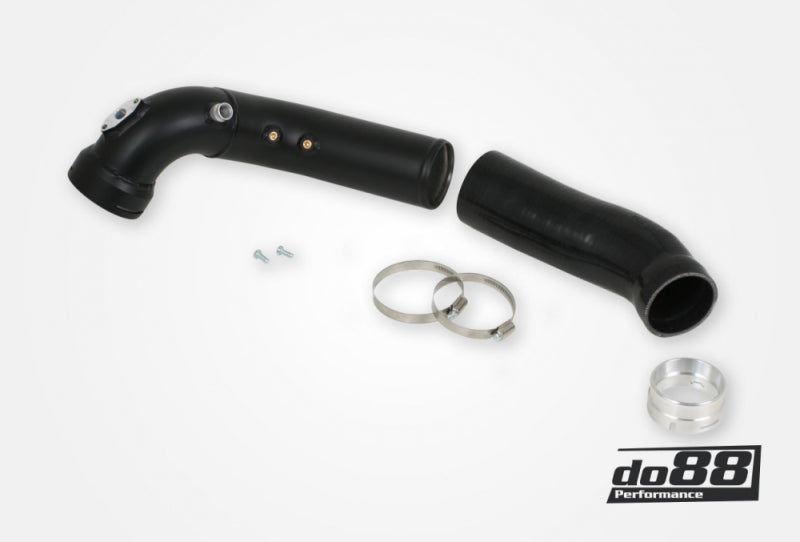

Included Aluminium pressure pipe, one silicone hose, two hose clamps, intercooler hose adapter, mounting hardware
OEM Replacement 13717604033
Finish Black
Quantity 1
Part Number TR-190S

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2010 BMW 1 Series M135i / M135iX (F20/F21)
2011 BMW 1 Series M135i / M135iX (F20/F21)
2012 BMW 1 Series M135i / M135iX (F20/F21)
2013 BMW 1 Series M135i / M135iX (F20/F21)
2014 BMW 1 Series M135i / M135iX (F20/F21)
2015 BMW 1 Series M135i / M135iX (F20/F21)
2016 BMW 1 Series M135i / M135iX (F20/F21)
2017 BMW 1 Series M135i / M135iX (F20/F21)
2018 BMW 1 Series M135i / M135iX (F20/F21)
2012 BMW 2 Series M235i / M235iX (F22/F23)
2013 BMW 2 Series M235i / M235iX (F22/F23)
2014 BMW 2 Series M235i / M235iX (F22/F23)
2015 BMW 2 Series M235i / M235iX (F22/F23)
2016 BMW 2 Series M235i / M235iX (F22/F23)
2017 BMW 2 Series M235i / M235iX (F22/F23)
2018 BMW 2 Series M235i / M235iX (F22/F23)
2015 BMW M2 Base (F87)
2016 BMW M2 Base (F87)
2017 BMW M2 Base (F87)
2018 BMW M2 Base (F87)
2011 BMW 3 Series 335i / 335iX (F30/F31/F34)
2012 BMW 3 Series 335i / 335iX (F30/F31/F34)
2013 BMW 3 Series 335i / 335iX (F30/F31/F34)
2014 BMW 3 Series 335i / 335iX (F30/F31/F34)
2015 BMW 3 Series 335i / 335iX (F30/F31/F34)
2016 BMW 3 Series 335i / 335iX (F30/F31/F34)
2017 BMW 3 Series 335i / 335iX (F30/F31/F34)
2018 BMW 3 Series 335i / 335iX (F30/F31/F34)
2012 BMW 4 Series 435i / 435iX (F32/F33/F36)
2013 BMW 4 Series 435i / 435iX (F32/F33/F36)
2014 BMW 4 Series 435i / 435iX (F32/F33/F36)
2015 BMW 4 Series 435i / 435iX (F32/F33/F36)
2016 BMW 4 Series 435i / 435iX (F32/F33/F36)
2017 BMW 4 Series 435i / 435iX (F32/F33/F36)
2018 BMW 4 Series 435i / 435iX (F32/F33/F36)
