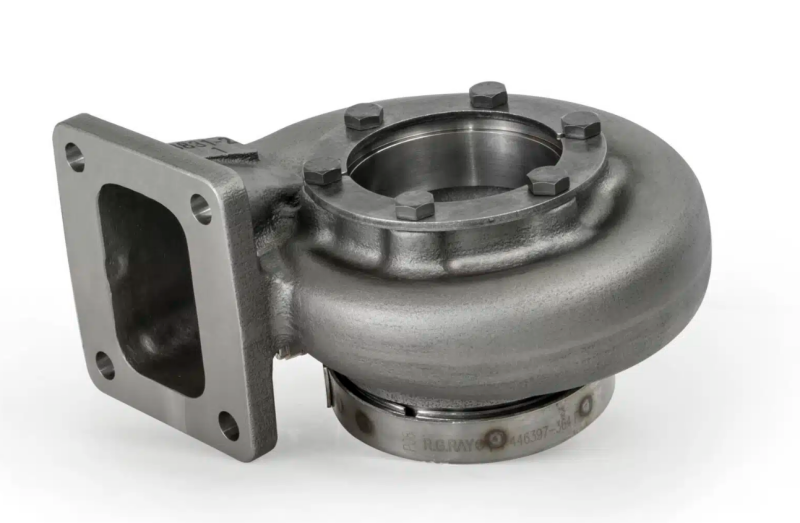

The Garrett GBC35 turbine housing kit fits the GBC35-700 ball-bearing turbocharger, configured with an open T4 turbine inlet and a 3.5in V-band turbine outlet in a 0.82 A/R. Cast from stainless steel for durability and high exhaust-gas temperatures, the housing connects to the center section with a V-band for 360° clockability and easy installation, and includes the required V-band clamp(s). Built for standard rotation.
| Series | GBC35-700 |
| Turbine Inlet | Open T4 |
| Turbine Outlet | V-Band, 3.5in (90mm) |
| A/R | 0.82 |
| Design | Free-float (non-wastegated) |
| Rotation | Standard |
| Material | Stainless steel |
| Included | Turbine housing + V-band clamp(s) |
| Part Number | 740902-0124 |
