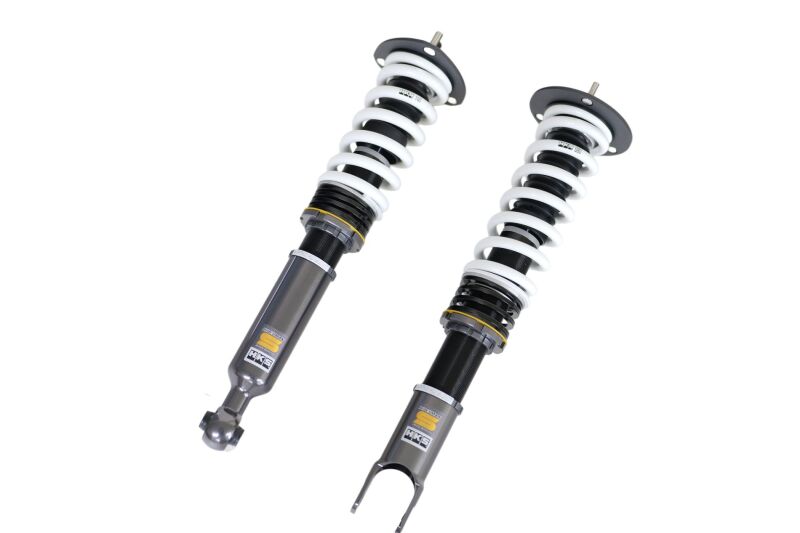

HKS Hipermax S Coilover Full Kit - Toyota Supra (JZA80) 1993-2002
HKS Hipermax S Coilover Full Kit - Toyota Supra (JZA80) 1993-2002, image 2
HKS Hipermax S Coilover Full Kit - Toyota Supra (JZA80) 1993-2002
HKS Hipermax S Coilover Full Kit - Toyota Supra (JZA80) 1993-2002, image 2

HKS Hipermax S Coilover Full Kit - Toyota Supra (JZA80) 1993-2002

HKS SKU: HKS80330-AT010
Price
Only 4 Left – Order Soon
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

Hipermax S is HKS's street and sport coilover line, and the full kit ships as a matched four corner set of dampers and springs. Damping adjusts through 30 levels front and rear and leaves the factory set at position 15, and both ends are full length adjustable so ride height changes without trading away damper stroke. Front springs are 137 N/mm (14.0 kgf/mm) on a 200 mm free length and rears are 78 N/mm (8.0 kgf/mm) on a 250 mm free length, both straight wound, with 19.8 N/mm helper springs fitted front and rear. Height range runs from stock down to 92 mm lower at the front and 77 mm lower at the rear. Damper bodies are upright rather than inverted, damper and spring form an integrated assembly, and the upper mounts are rubber rather than pillowball, which keeps road noise and harshness closer to standard. HKS quotes 1775 N rebound and 637 N bump at the front and 912 N and 422 N at the rear at 0.1 m/sec piston speed, and rates the revised internals at 3 years or 60,000 km.

Specifications

Type Hipermax S full kit coilovers, four corner damper and spring set
Position Front and rear (complete four corner kit)
Damping Adjustment 30 levels, front and rear, shipped at position 15
Ride Height Adjustment Full length adjustable front and rear; 0 to -92 mm front, 0 to -77 mm rear against stock
Spring Rates Front 137 N/mm (14.0 kgf/mm), rear 78 N/mm (8.0 kgf/mm), straight wound
Spring Free Length Front 200 mm, rear 250 mm
Helper Springs Included front and rear, 19.8 N/mm
Upper Mounts Rubber
Damper Construction Upright (non inverted), integrated damper and spring
Damping Force Front 1775 N rebound / 637 N bump, rear 912 N rebound / 422 N bump at 0.1 m/sec piston speed
Durability Rating 3 years or 60,000 km
Fitment Notes Not compatible with REAS equipped vehicles unless the hydraulic unit is removed
Quantity 1 kit (four corners)
Part Number 80330-AT010

This part fits:

Year Make Model Submodel
1993-2002 Toyota Supra All
