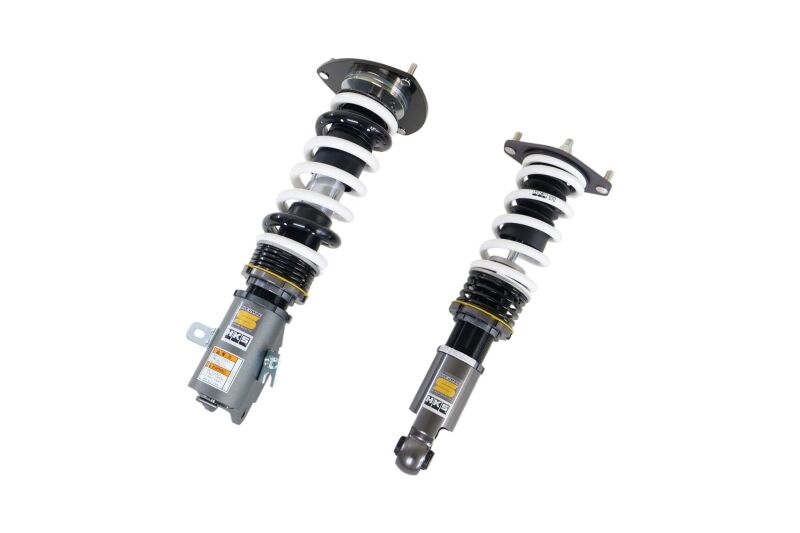

This version of the Hipermax S replaces the rubber front upper mounts with pillow-ball units, giving a direct steering feel and repeatable camber location under load while the reinforced rubber rear mounts stay in place. The damper is a monotube design with 30 steps of damping force adjustment at every corner, inverted at the front and upright at the rear. Spring rates are 9.0 kgf/mm front and 7.0 kgf/mm rear with helper springs, and full-length shock body adjustment covers stock ride height down to 31 mm lower in front and 62 mm lower at the rear. HKS Dual PVS valving, the WR Needle soft-range circuit, Advanced Bump Rubber and PNE corrosion-resistant plating are standard.
| Type | Hipermax S Full Coilover Kit with Front Pillow-Ball Upper Mounts |
| Position | Front and Rear (Full Kit) |
| Damper Type | Inverted monotube front, upright monotube rear |
| Damping Adjustment | 30 steps, front and rear |
| Spring Rate | 9.0 kgf/mm front (88 N/mm), 7.0 kgf/mm rear (69 N/mm) |
| Ride Height Adjustment | Full-length adjustable; stock to 31 mm lower front, stock to 62 mm lower rear |
| Upper Mounts | Pillow ball front, reinforced rubber rear |
| Quantity | 1 kit (4 dampers, 4 springs) |
| Part Number | 80330-AF009P |
| Warranty | 3 Years / 60,000 km (HKS) |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2020 | Subaru | WRX STI (VAB) | EJ20 Turbo |
| 2014-2021 | Subaru | WRX S4 (VAG) | FA20 Turbo |
