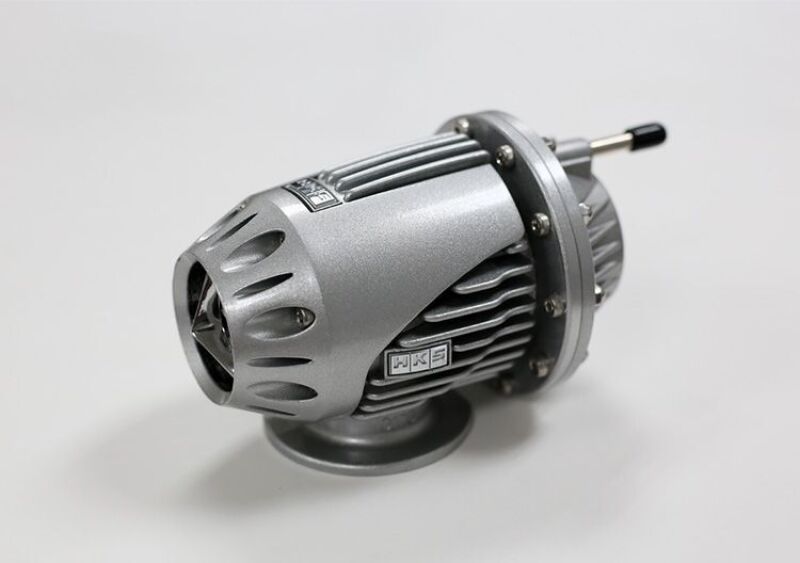

The HKS Super SQV4 is a pull-type blow off valve with a sequential dual valve design: the primary valve opens at low boost and the secondary adds capacity as boost rises, controlled by differential pressure rather than a spring the installer has to match to boost level. The body is die-cast aluminum, and triple fins in the funnel give the valve its release note. This is a vehicle specific kit rather than a universal valve, so it ships with the joint hoses, clamps, T-fitting, vacuum hose, air filter and mounting hardware the install needs. It is supplied venting to atmosphere; a recirculation fitting is in the box, but the suction pipe fitting, return hose and extra clamps a recirculating setup needs are not included.
| Type | Vehicle specific blow off valve kit (HKS Super SQV4), sequential pull-type |
| Material | Die-cast aluminum body |
| Venting | Vents to atmosphere as supplied; recirculation fitting included, suction pipe fitting and return hose not included |
| Engine | Hyundai G4KF 2.0L turbo |
| Included | SQV assembly, 70 mm joint hose, 60 to 50 mm joint hose, 4 hose clamps, T-fitting, 8 mm and 4 mm vacuum hose, 2 8 mm clamps, air filter, 2 4 mm rubber caps, 5 tie wraps, recirculation fitting and instruction manual |
| Quantity | 1 kit |
| Part Number | 71008-KB001 |
| Warranty | 1 year limited warranty to the original purchaser against defects (HKS) |
Documents: Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2012 | Hyundai | Genesis Coupe | 2.0T |
