MagnaFlow California Grade Right Direct-Fit Catalytic Converter - Cadillac Escalade / Chevrolet Silverado 1500 2004-2006

Magnaflow SKU: MAG4651649
Price
On Backorder – Order Now or Contact Us for Availability
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

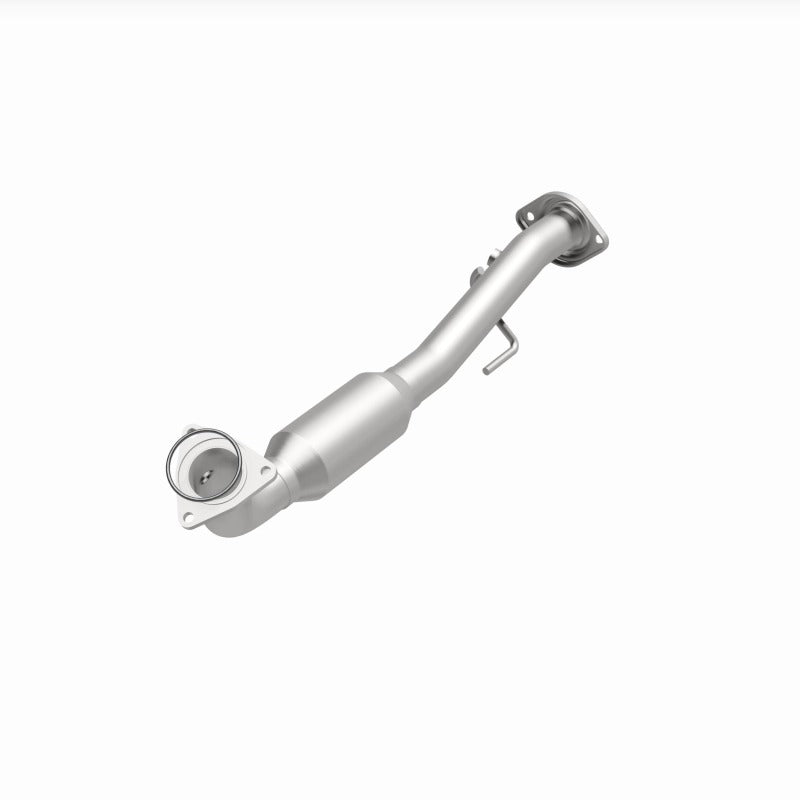

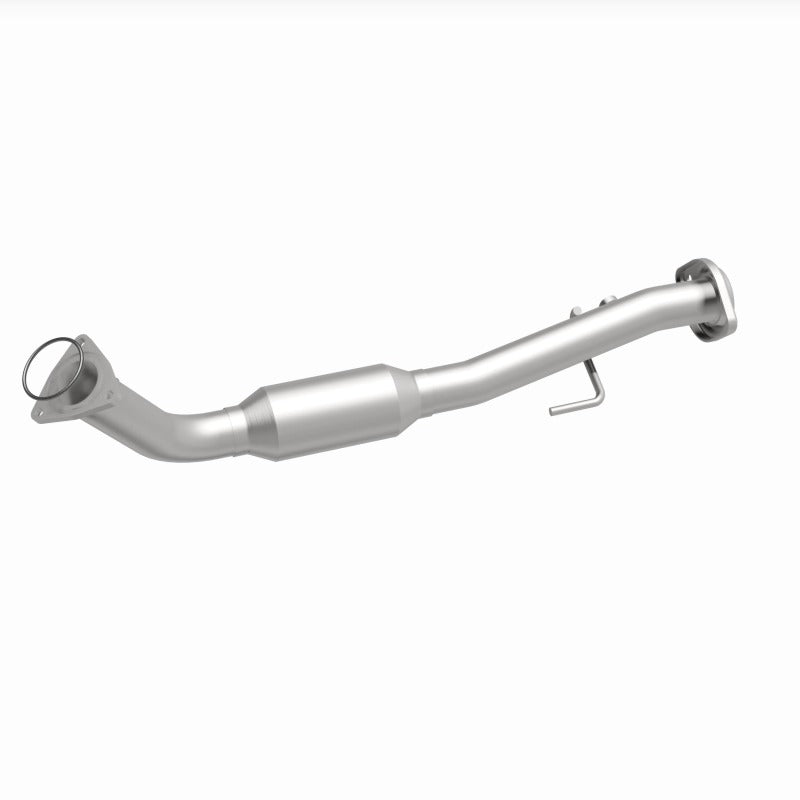

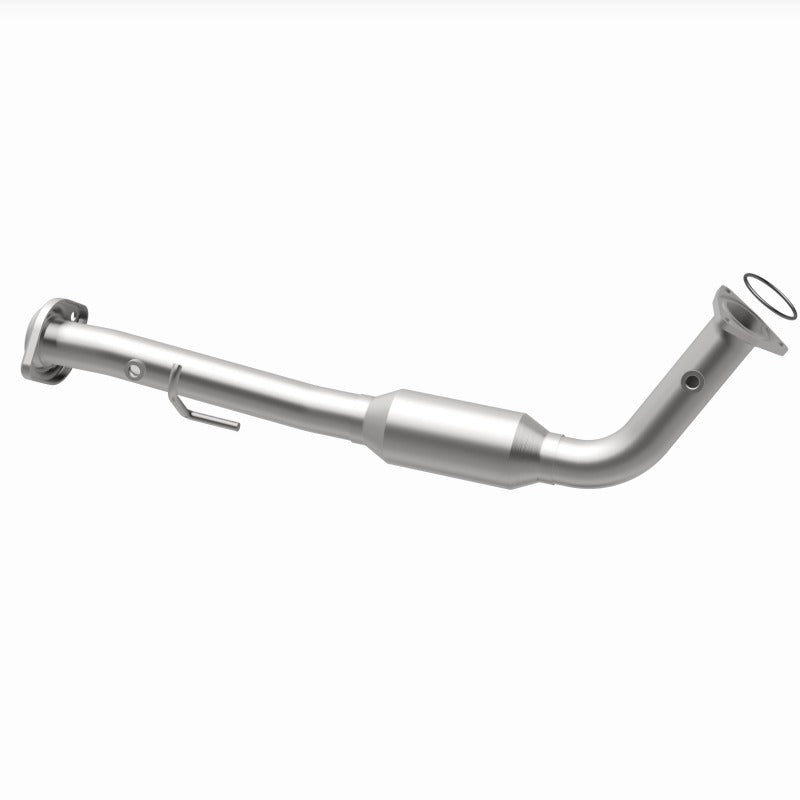

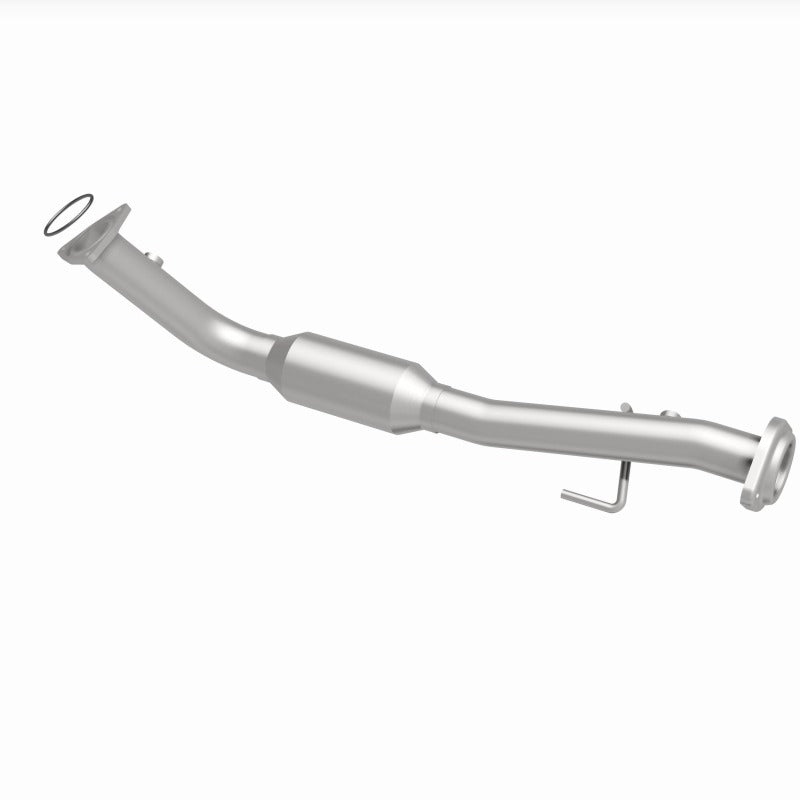

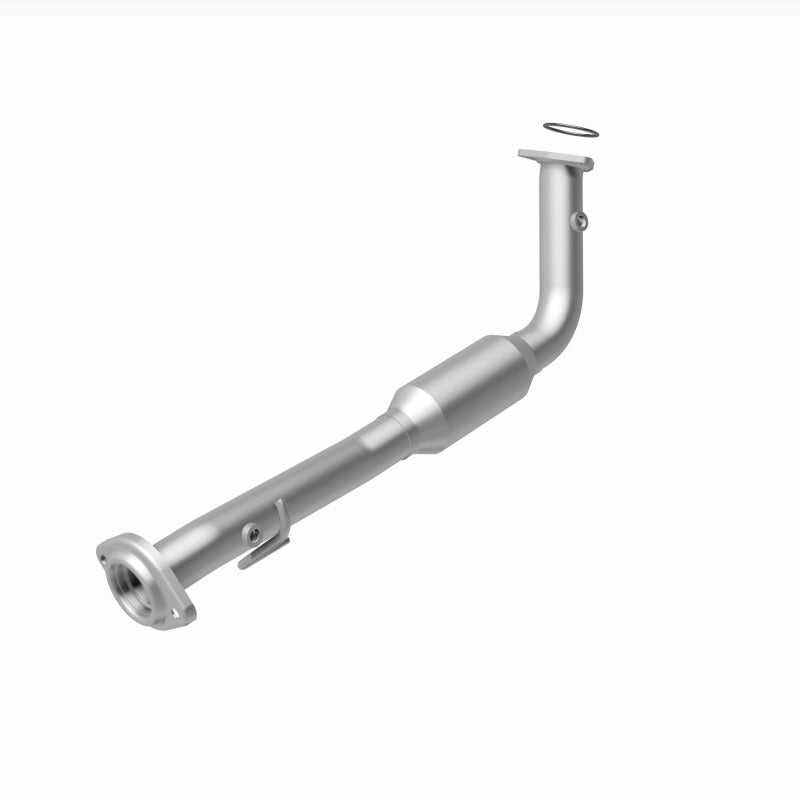

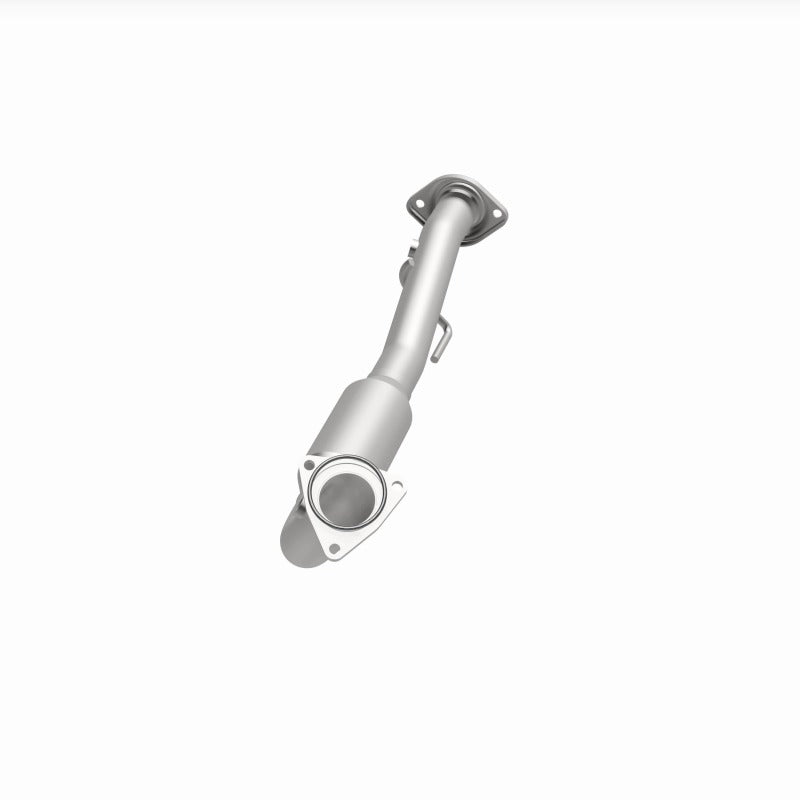

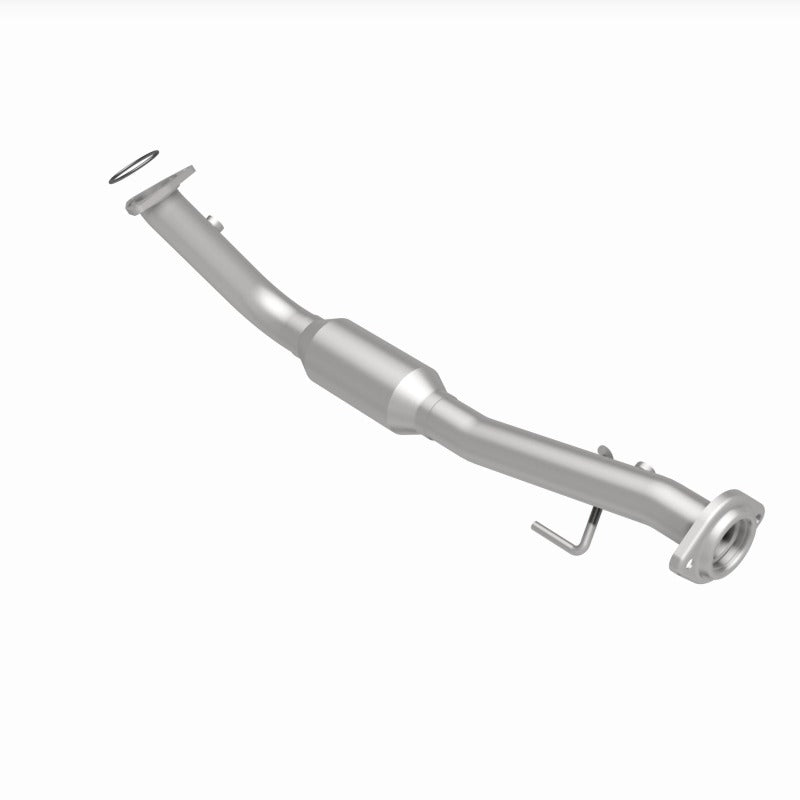

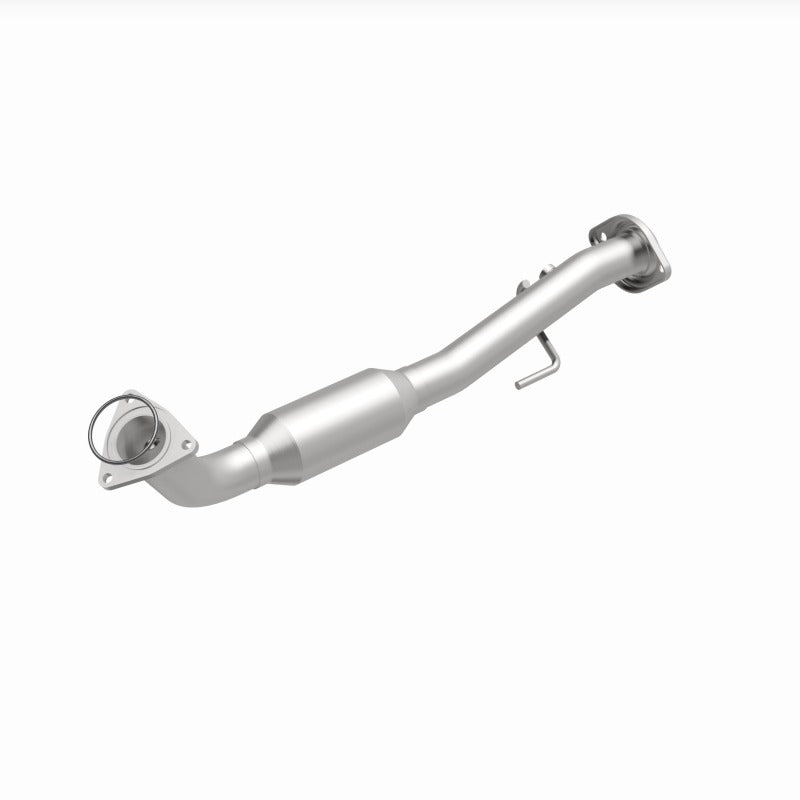

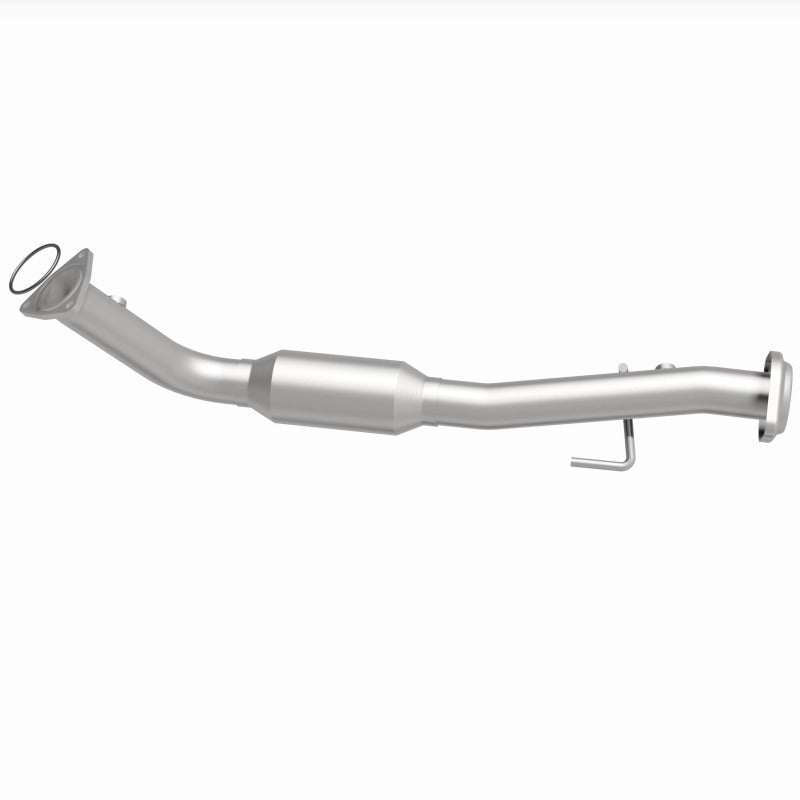

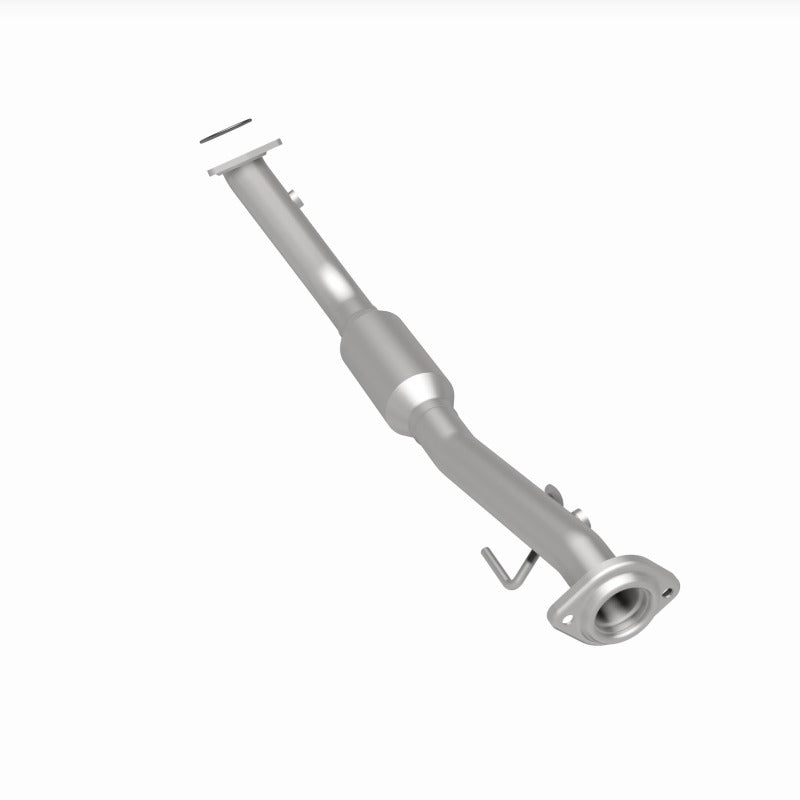

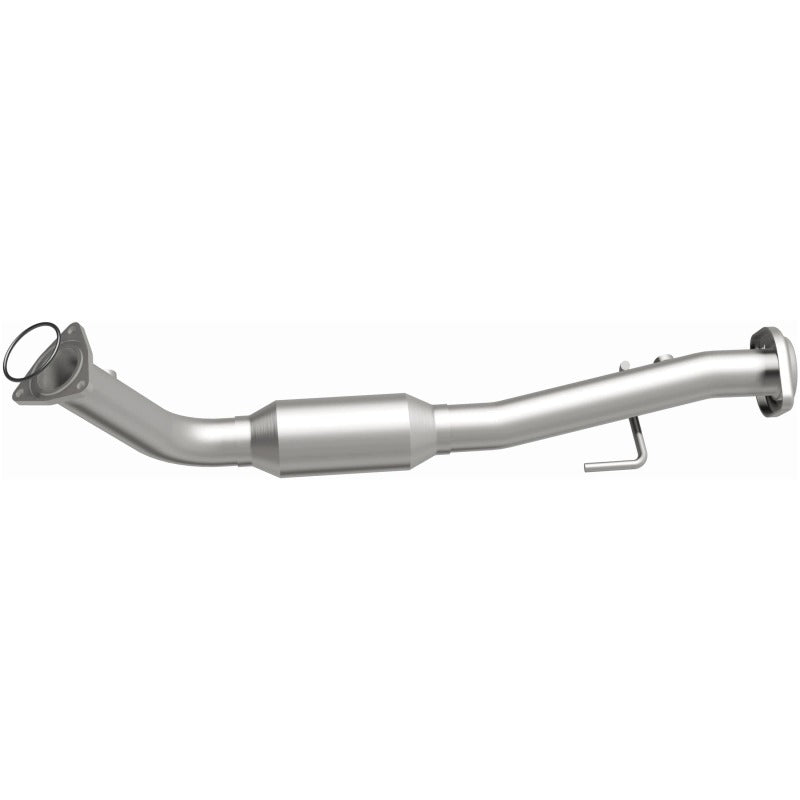

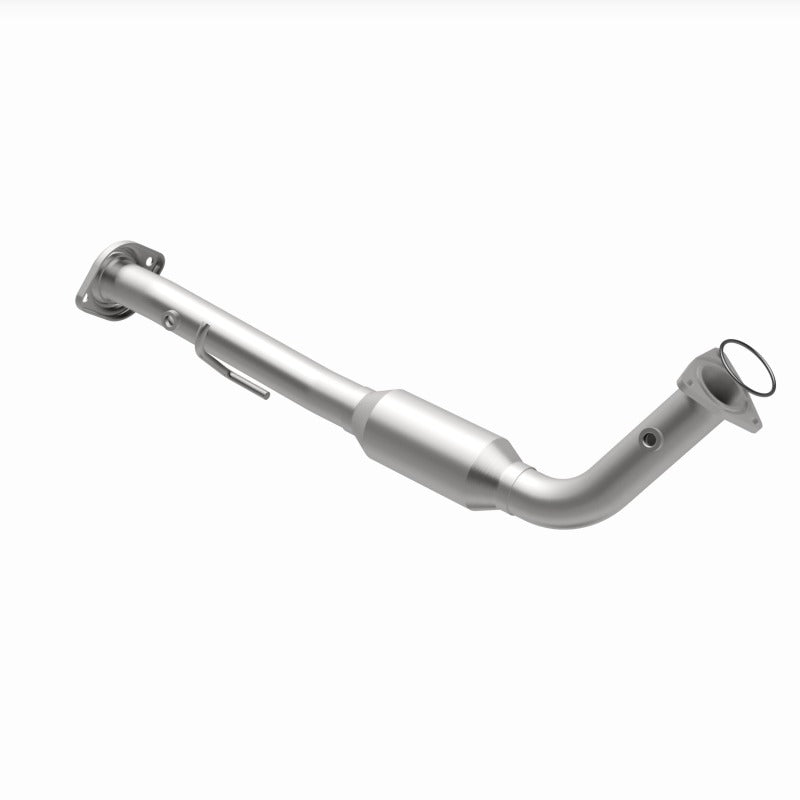

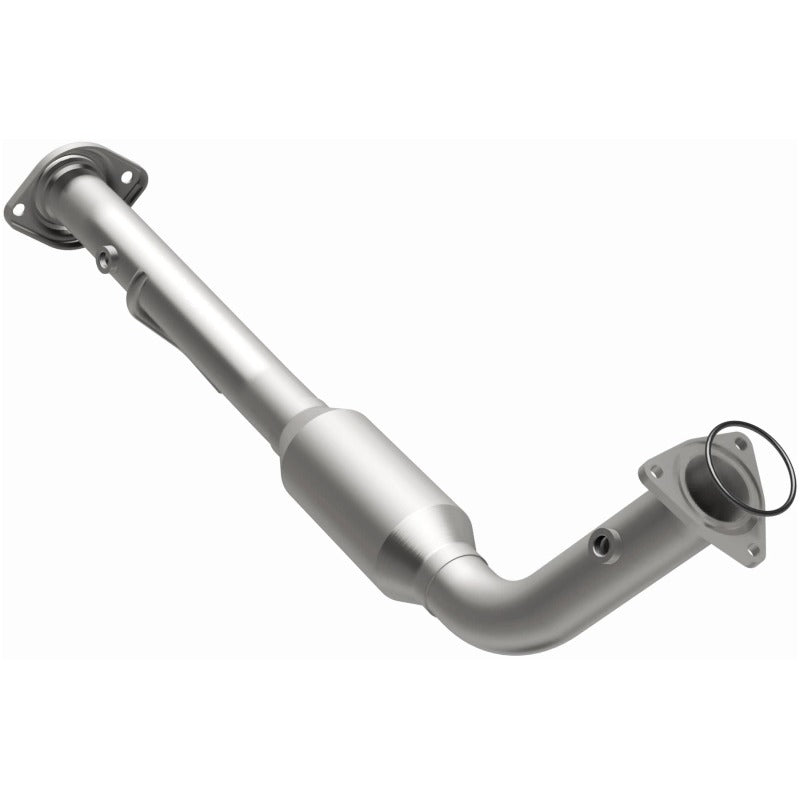

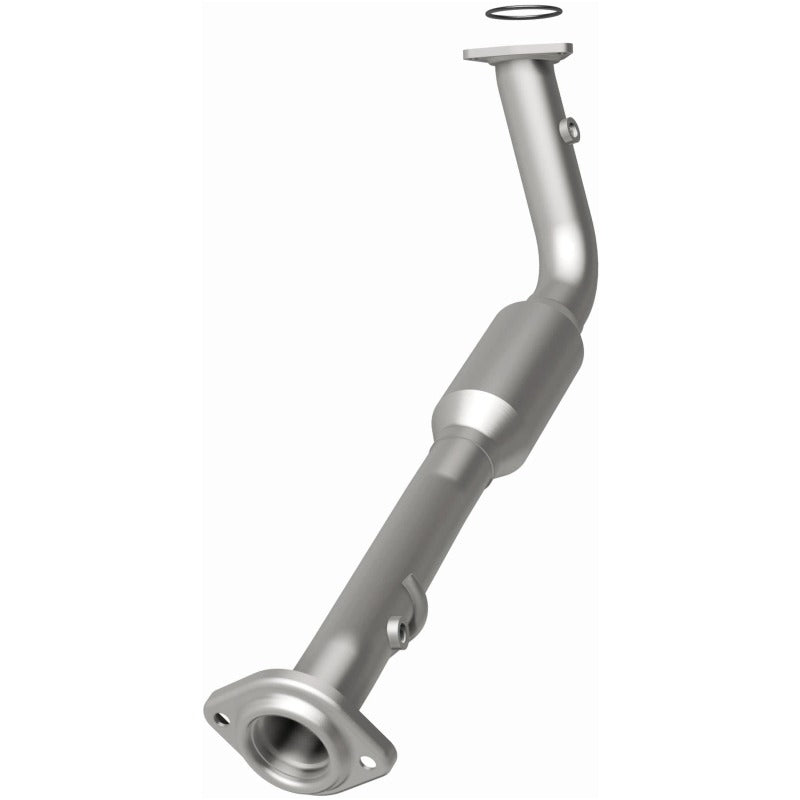

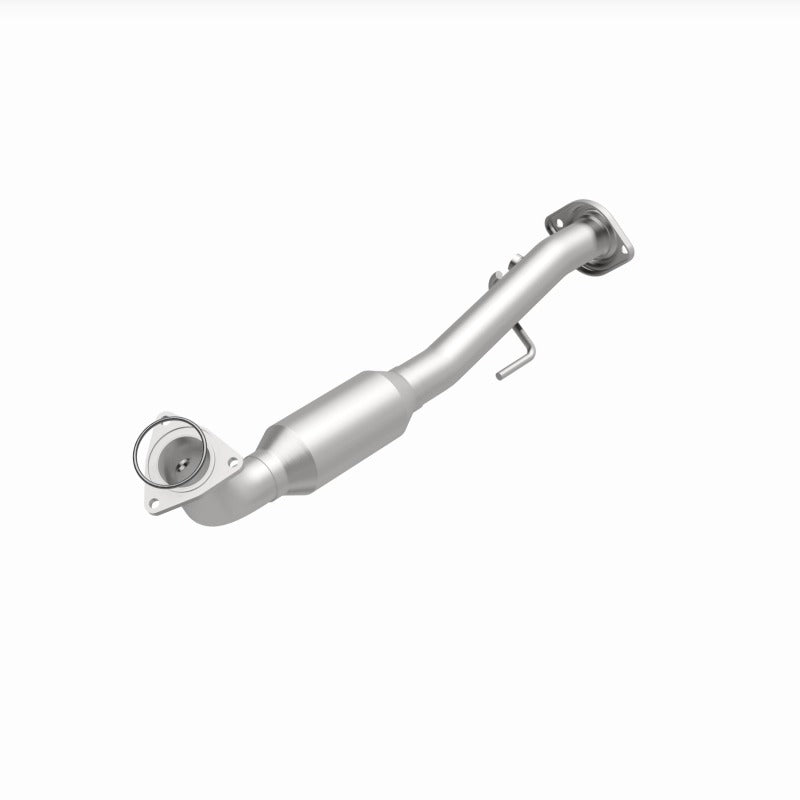

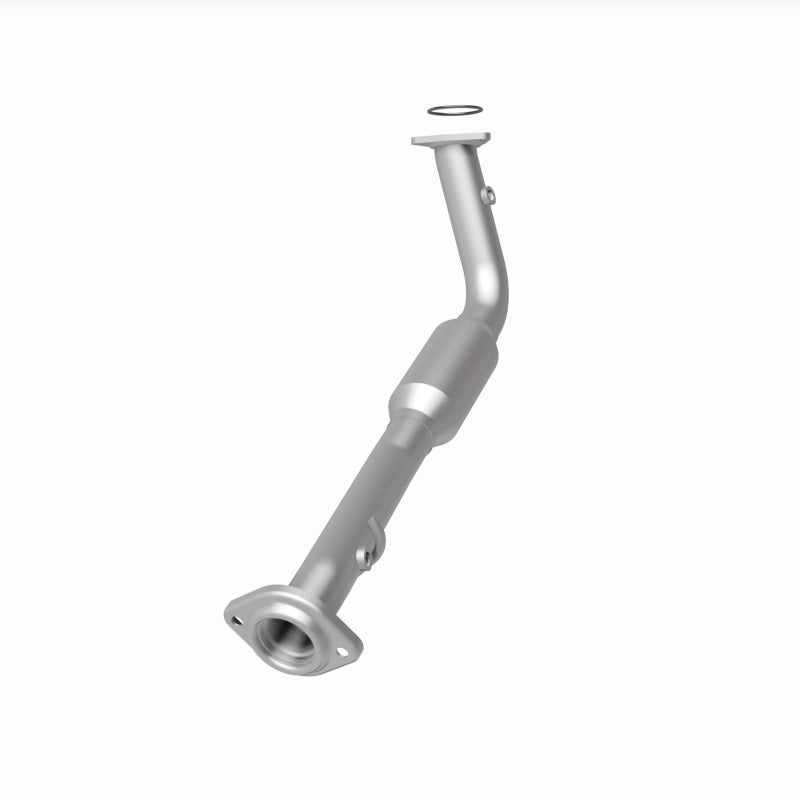

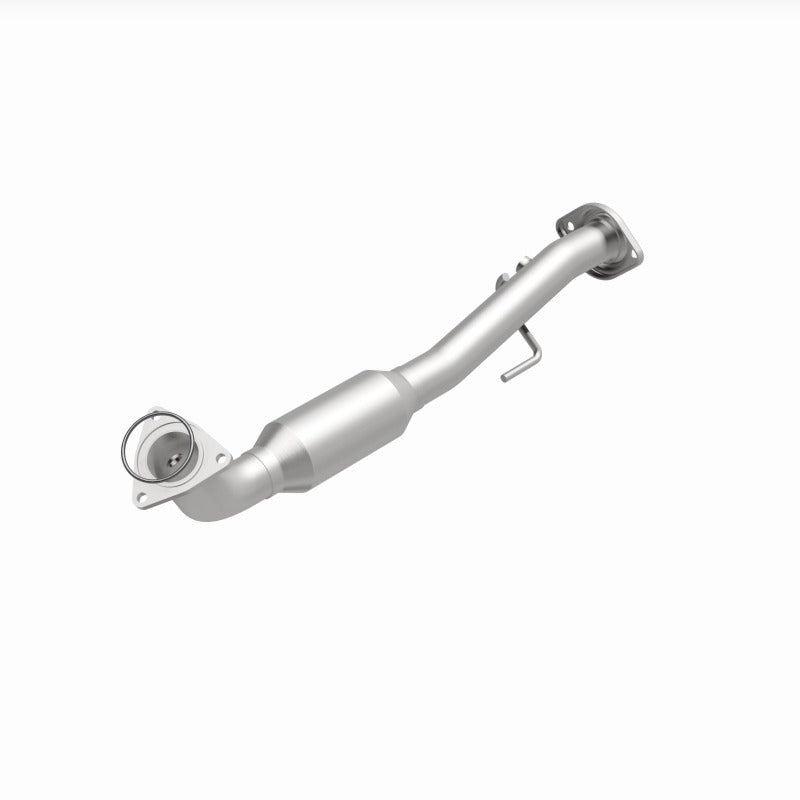

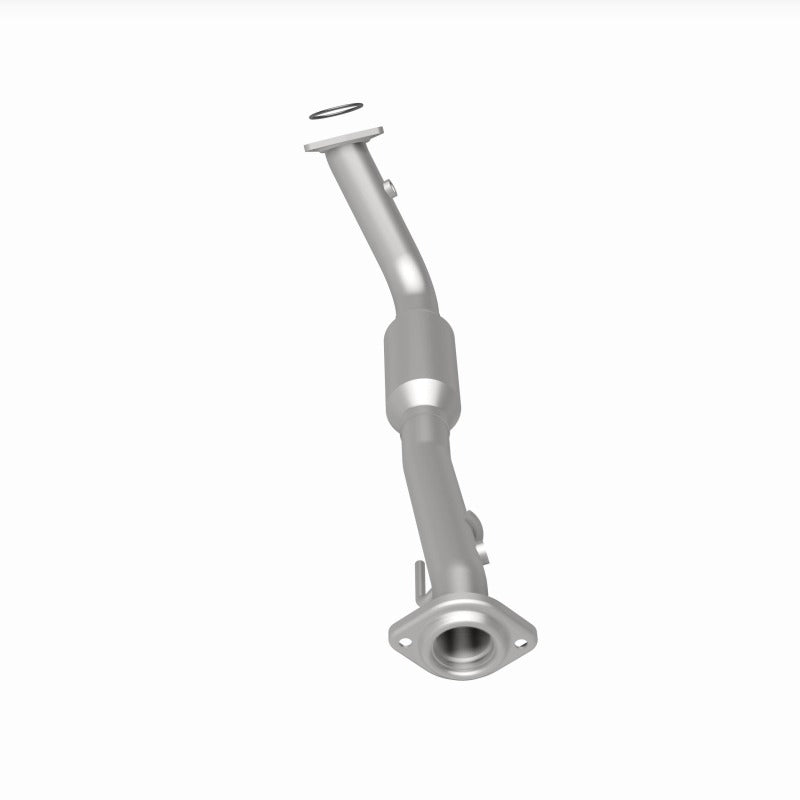

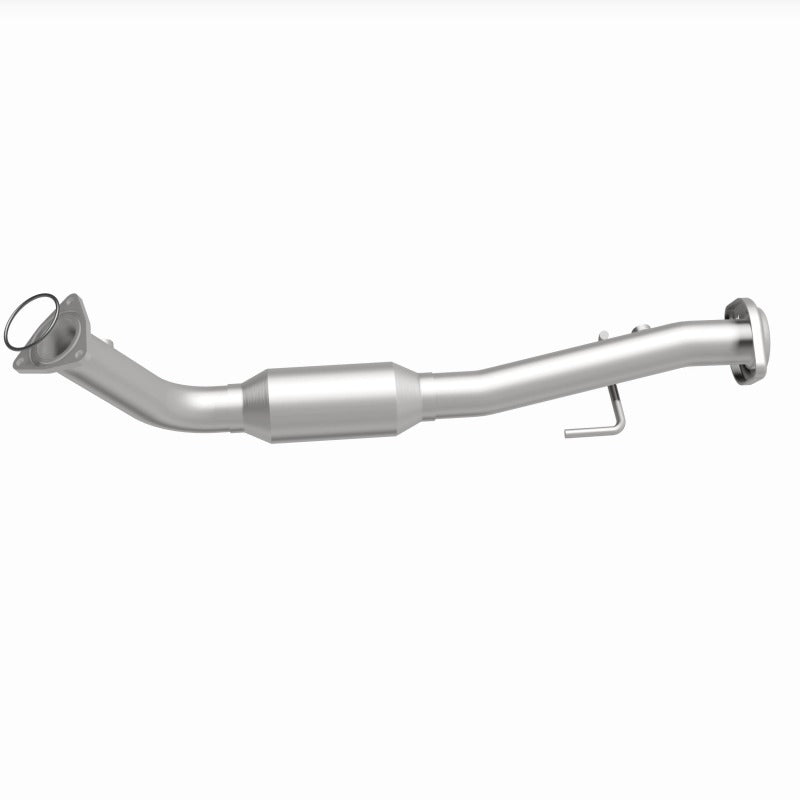

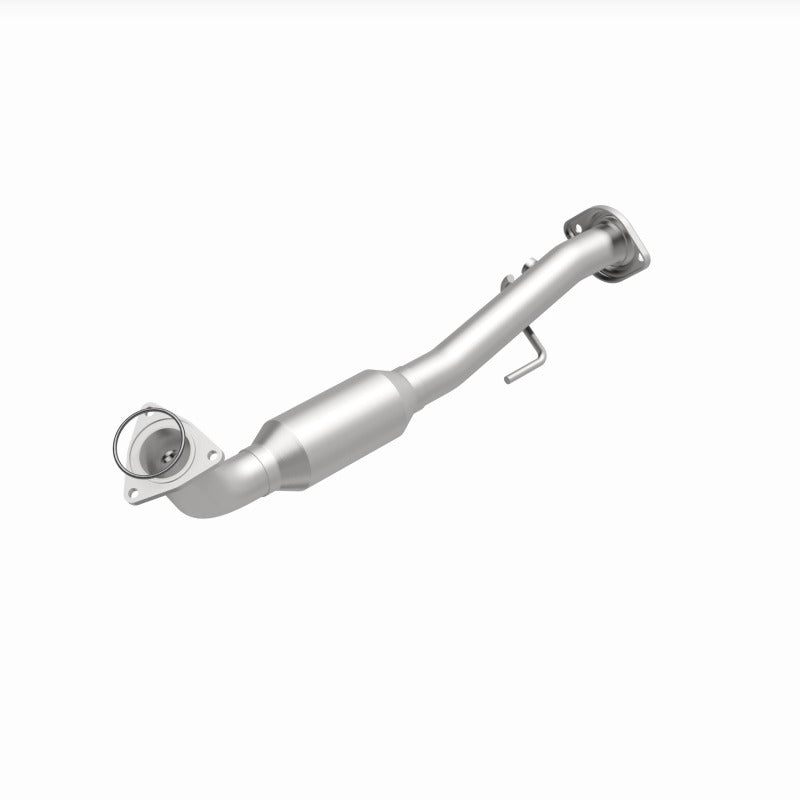

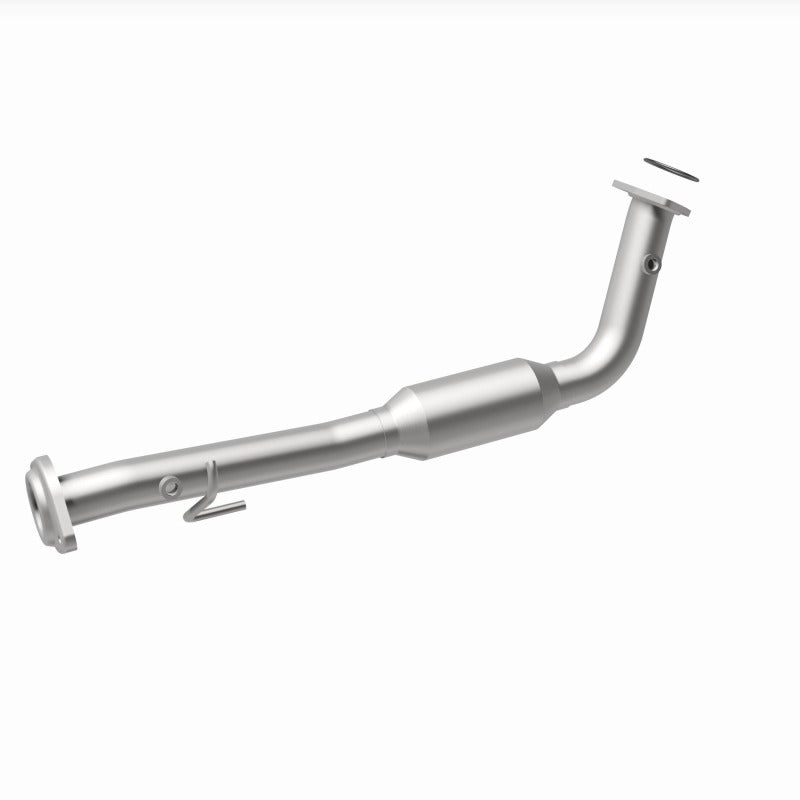

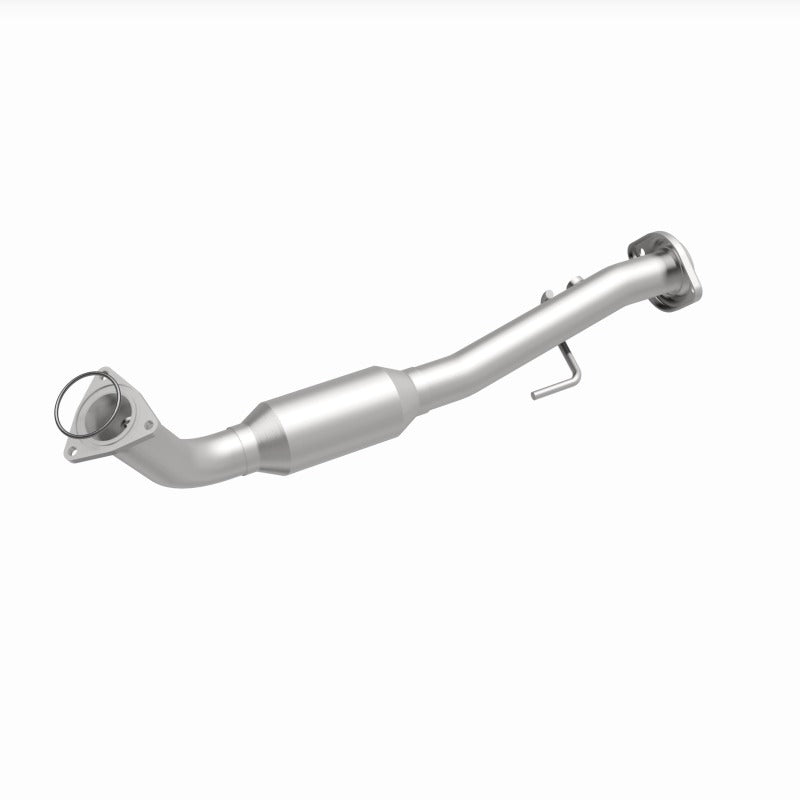

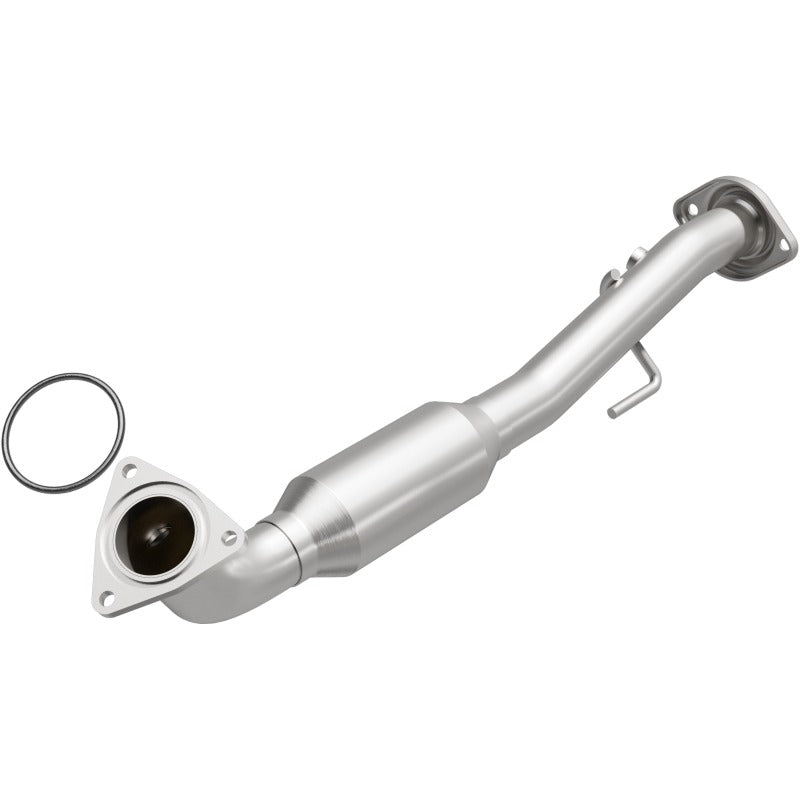

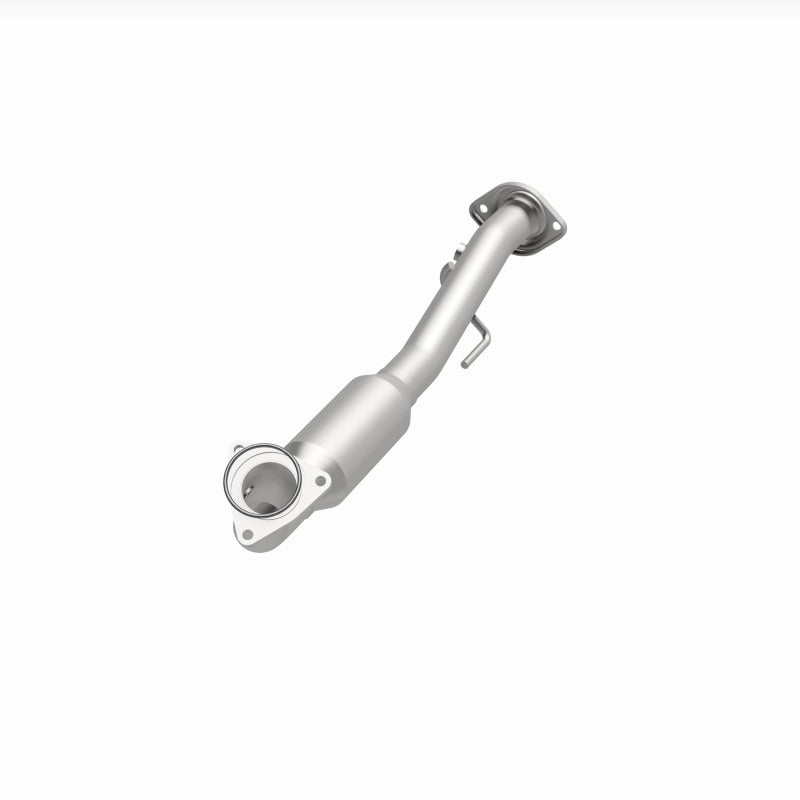

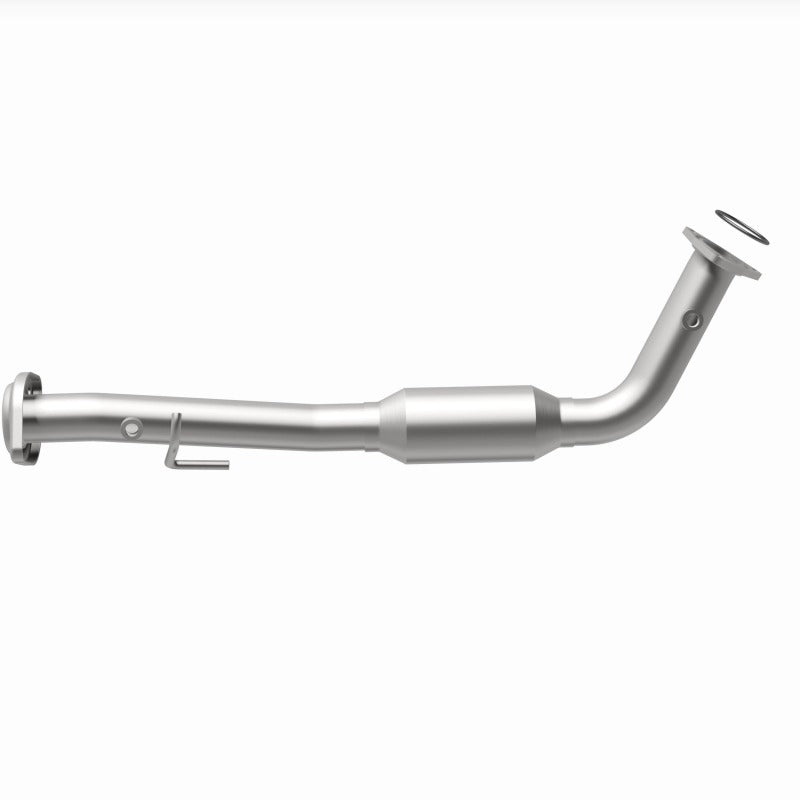

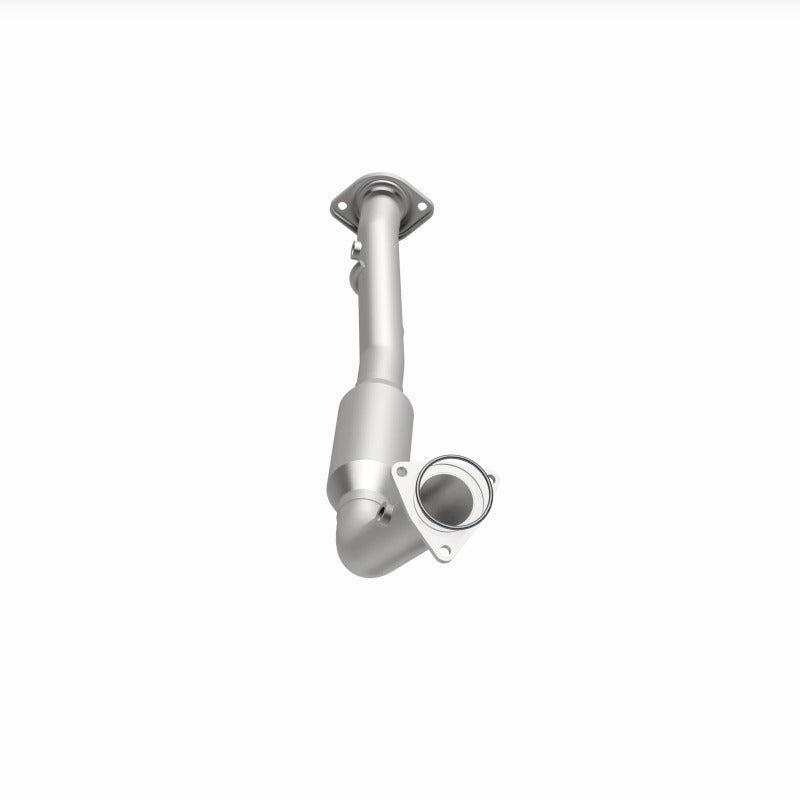

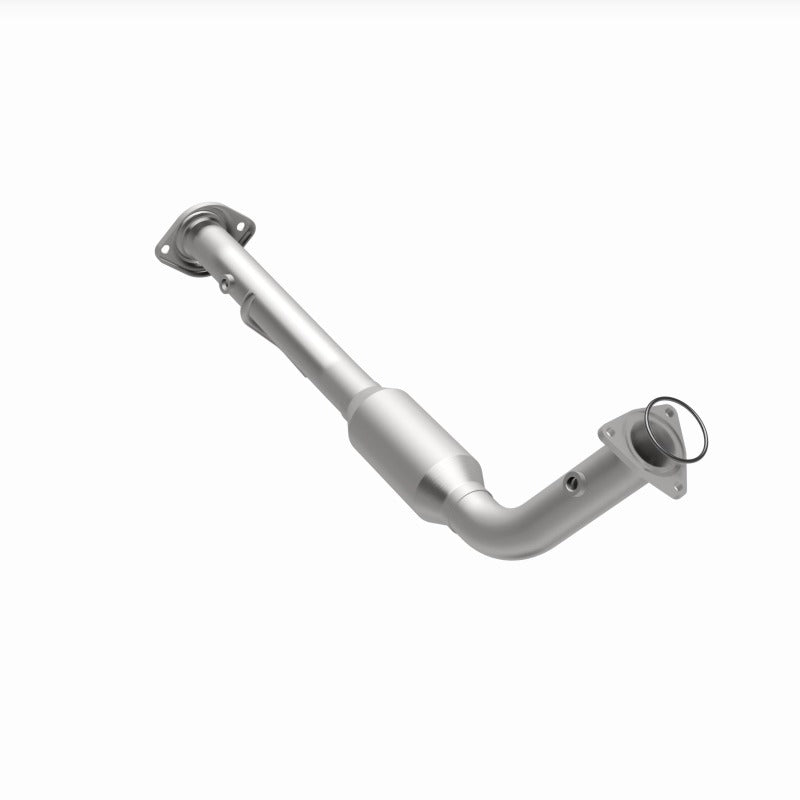

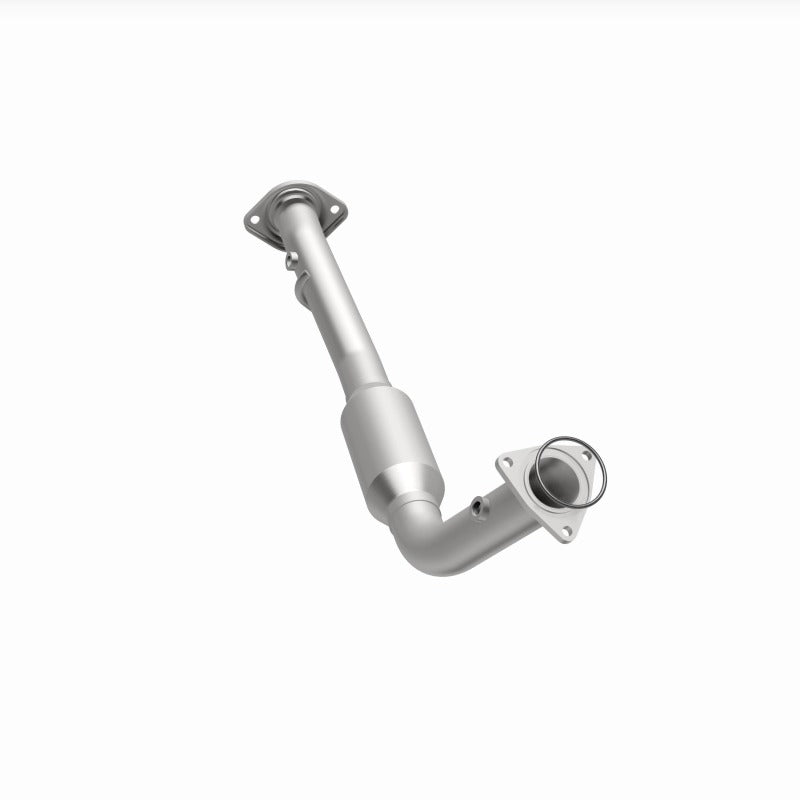

MagnaFlow 4651649 is the California Grade replacement for the passenger side converter pipe on the GM 6.0L trucks and SUVs, a spun body direct-fit assembly in 16 gauge 409 stainless steel with a ceramic substrate, mandrel-bent tubing and OE sized barbed hangers in 410 stainless. Overall length is 37.5 inches and the assembly carries two oxygen sensor ports, one ahead of the catalyst and one behind it, so the upstream and downstream sensors both return to factory locations. CARB Executive Order D-193-189 covers it for registered use in California and the other CARB states. An inlet gasket is supplied, and the flanged inlet and outlet mean no cutting or welding.

Specifications

Type Direct-fit catalytic converter, spun body (MagnaFlow California Grade)
Position Right (passenger side, Bank 2), converter in the exhaust manifold pipe
Emissions Standard CARB compliant, legal on California and CARB state registered vehicles
CARB EO Number D-193-189
Body Material 16 gauge 409 stainless steel
Substrate Ceramic
Overall Length 37.5 in
Inlet / Outlet Flange / Flange
Oxygen Sensor Ports 2 (pre and post converter)
Air Tube None
Hangers Included, 410 stainless steel barbed
Included Hardware 1 inlet gasket
OEM Replacement 19420124, 10395213
Quantity 1
Part Number 4651649
Warranty Limited 5 year / 50,000 mile construction and emissions

This part fits:

Year Make Model Submodel
2004-2006 Cadillac Escalade Base
2004-2006 Cadillac Escalade ESV Base
2004-2006 Cadillac Escalade EXT Base
2004-2005 Chevrolet Silverado 1500 LS
2004-2006 Chevrolet Silverado 1500 LT
2004-2006 Chevrolet Silverado 1500 SS
2005 Chevrolet Silverado 1500 Z71 Off-Road
2006 Chevrolet Suburban 1500 LTZ
2004 GMC Sierra 1500 Base
2004-2006 GMC Sierra 1500 Denali
2004-2006 GMC Sierra 1500 SLE
2004-2006 GMC Sierra 1500 SLT
2004 GMC Sierra 1500 WT
2004-2006 GMC Yukon Denali
2004-2006 GMC Yukon XL 1500 Denali
