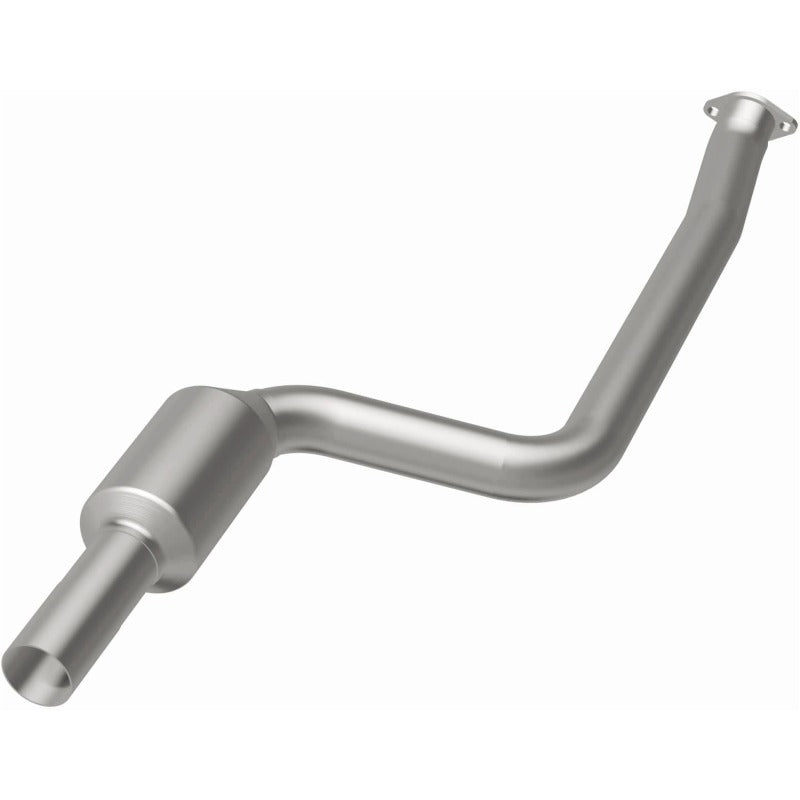

MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013

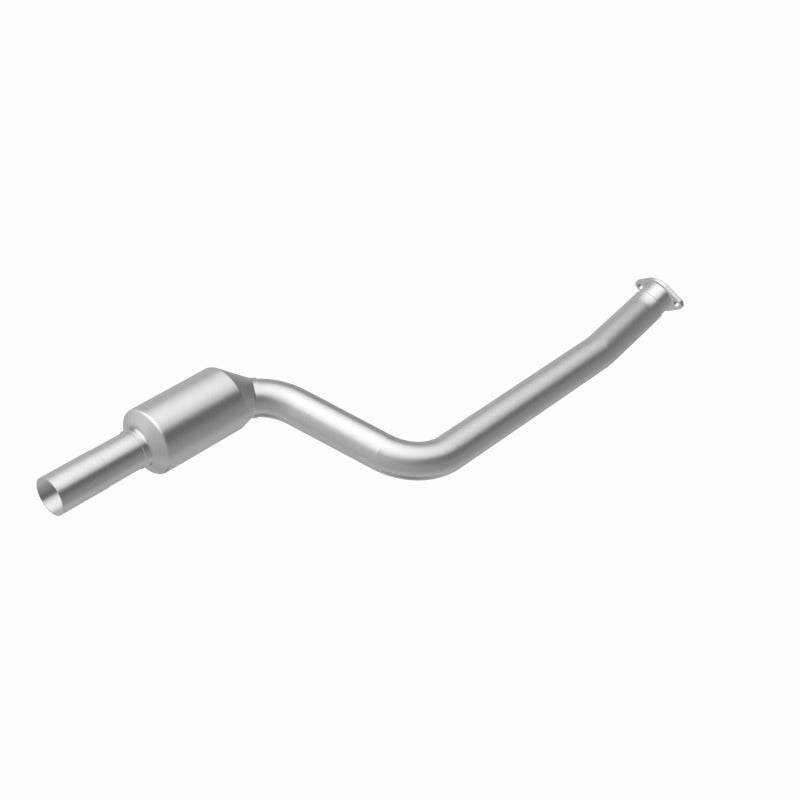

MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 2
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 3
Technical Bulletin
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 4

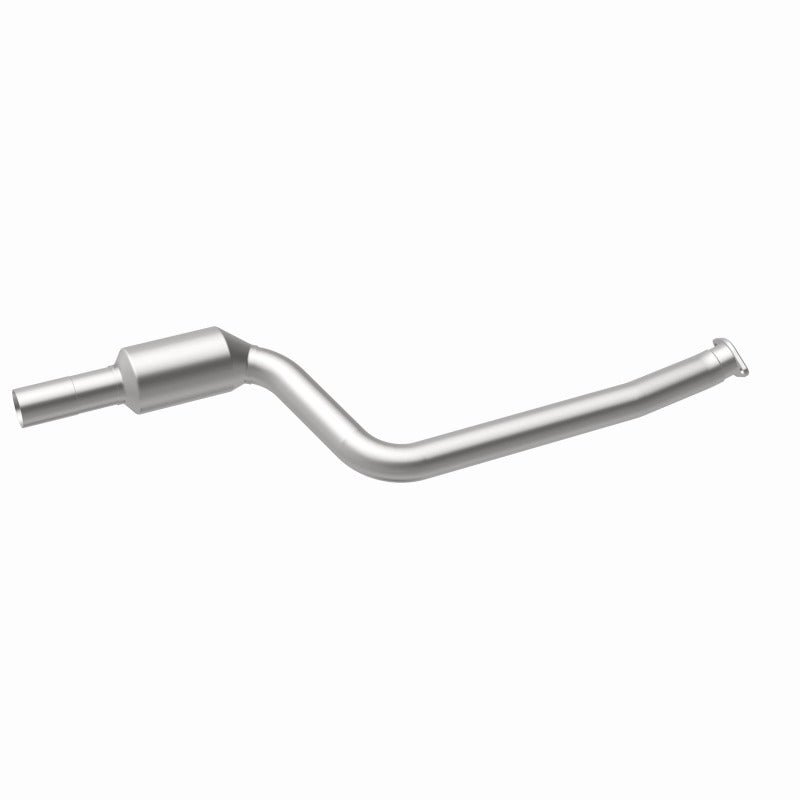

360 Degree Image Set
360 Degree Image Set
Technical Bulletin
360 Degree Image Set
Technical Bulletin
360 Degree Image Set

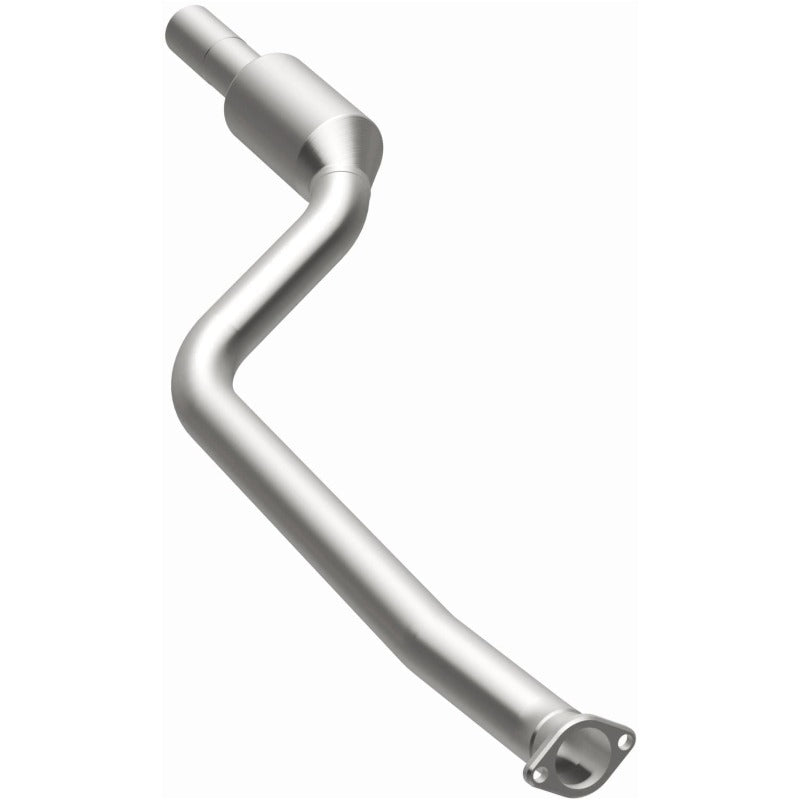

MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 5

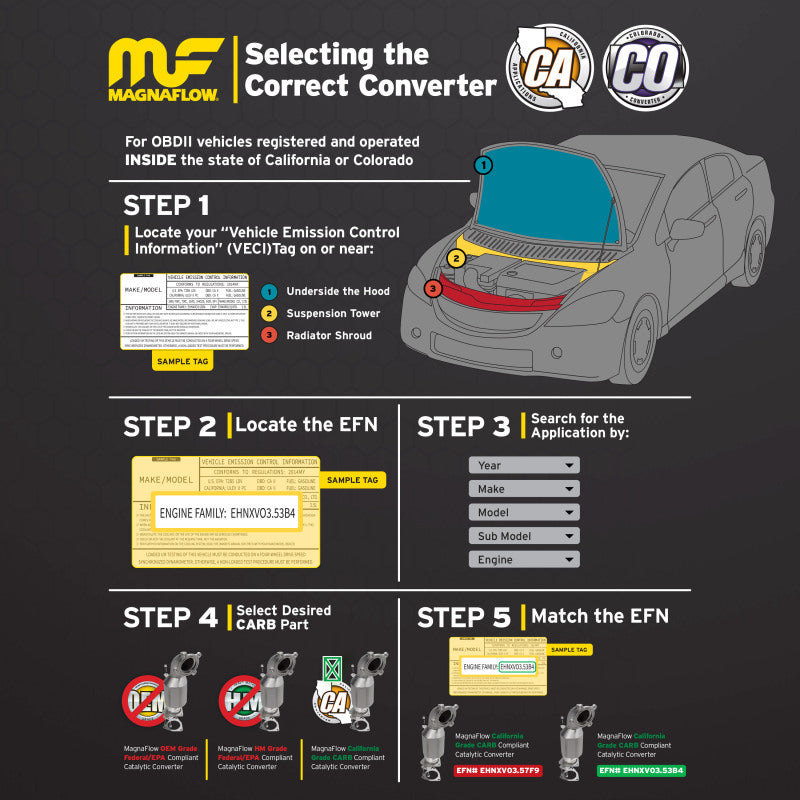

Product Brochure - a specific brochure describing a Product
360 Degree Image Set
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 6
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
Technical Bulletin
360 Degree Image Set
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 7
360 Degree Image Set
360 Degree Image Set
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 8
Features and Benefits
Technical Bulletin
360 Degree Image Set
Technical Bulletin
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 9
360 Degree Image Set
360 Degree Image Set
Technical Bulletin
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
Product Brochure - a specific brochure describing a Product
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
Brochure - A general brochure describing a brand, company, product line. If brochure in question is for a specific product, use code PDB.
Logo Image
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 2
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 3
Technical Bulletin
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 4
360 Degree Image Set
360 Degree Image Set
Technical Bulletin
360 Degree Image Set
Technical Bulletin
360 Degree Image Set
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 5
Product Brochure - a specific brochure describing a Product
360 Degree Image Set
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 6
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
Technical Bulletin
360 Degree Image Set
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 7
360 Degree Image Set
360 Degree Image Set
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 8
Features and Benefits
Technical Bulletin
360 Degree Image Set
Technical Bulletin
MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013, image 9
360 Degree Image Set
360 Degree Image Set
Technical Bulletin
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
Product Brochure - a specific brochure describing a Product
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
360 Degree Image Set
Brochure - A general brochure describing a brand, company, product line. If brochure in question is for a specific product, use code PDB.
Logo Image

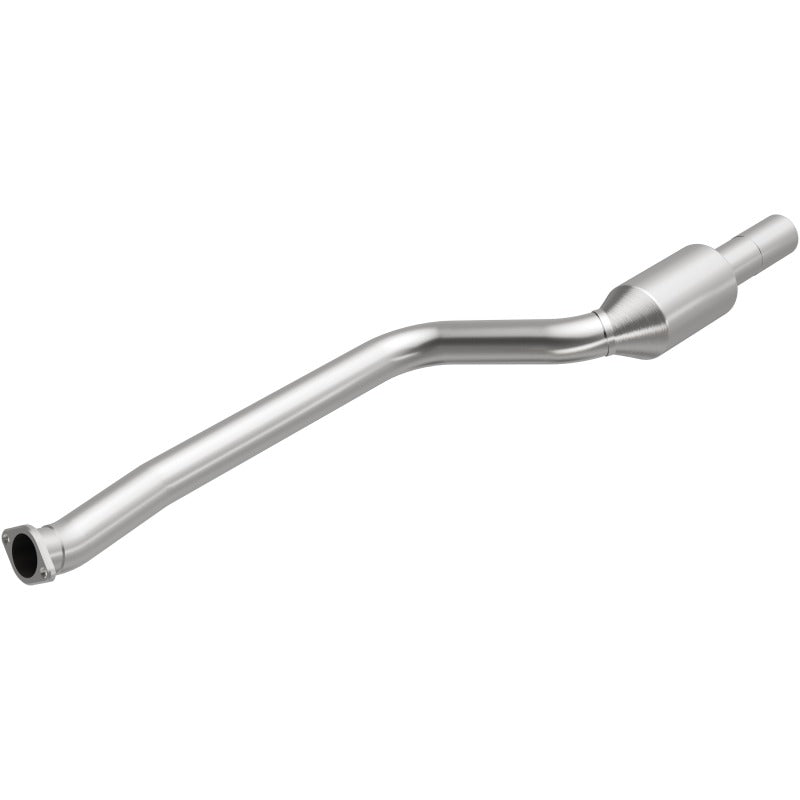

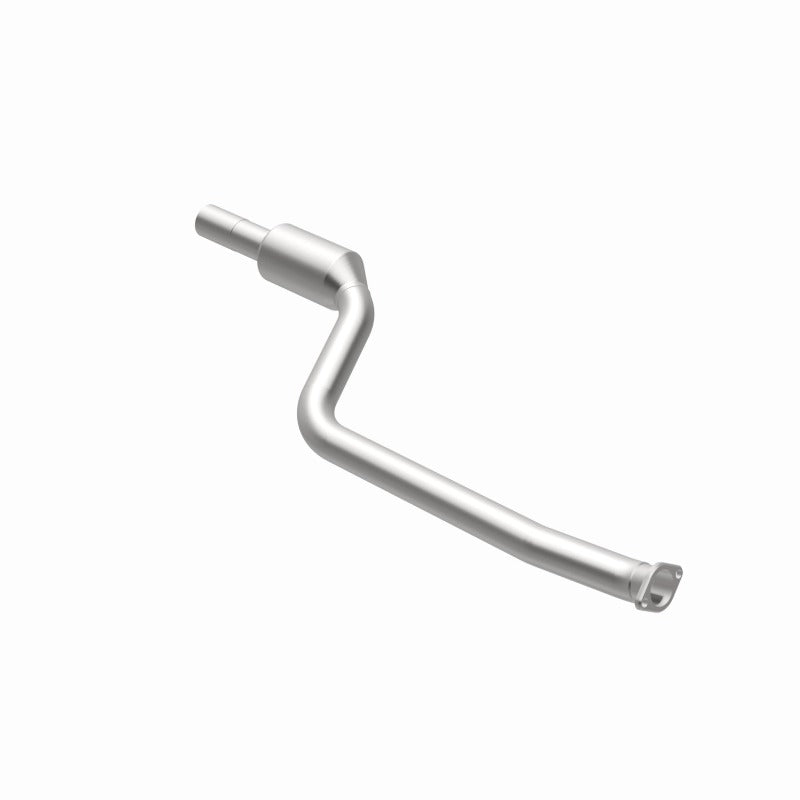

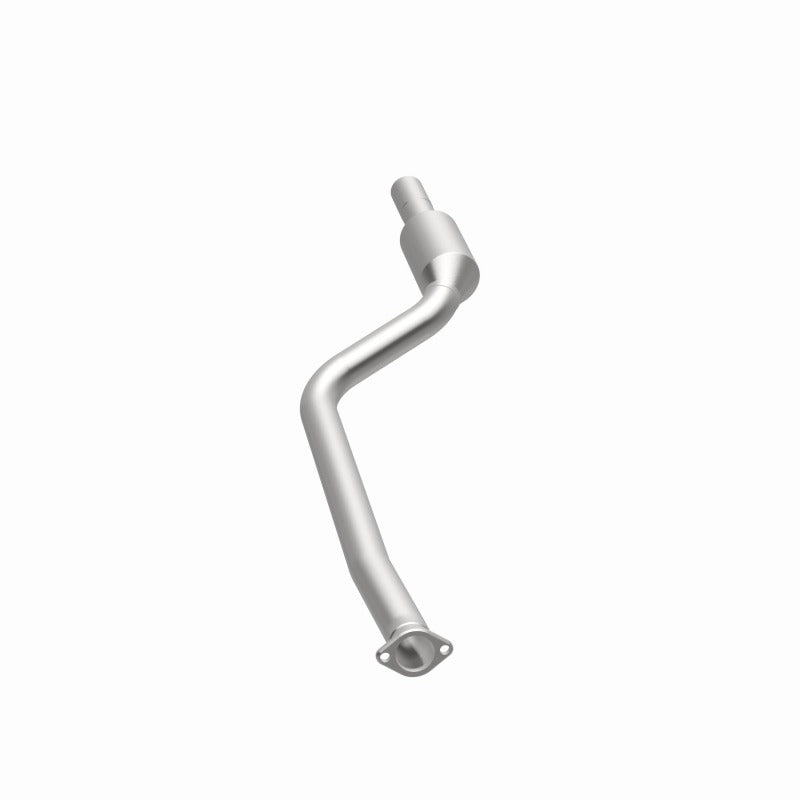

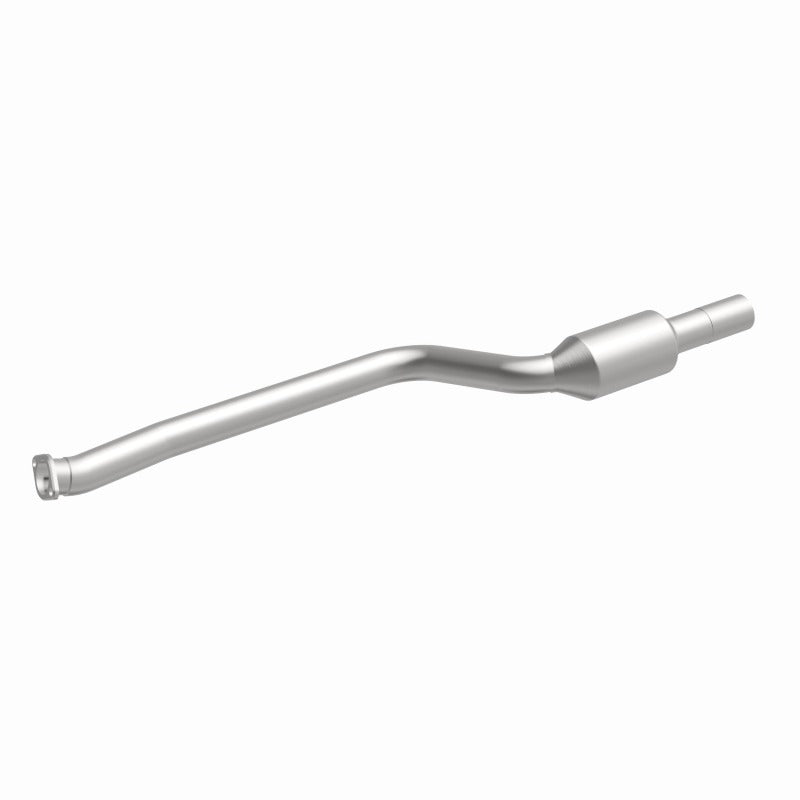

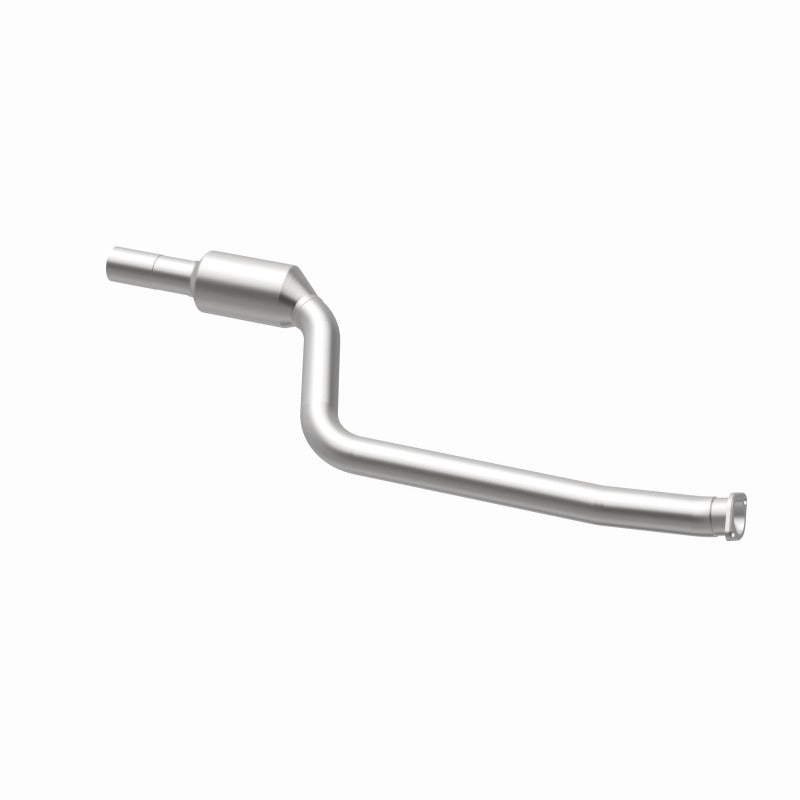

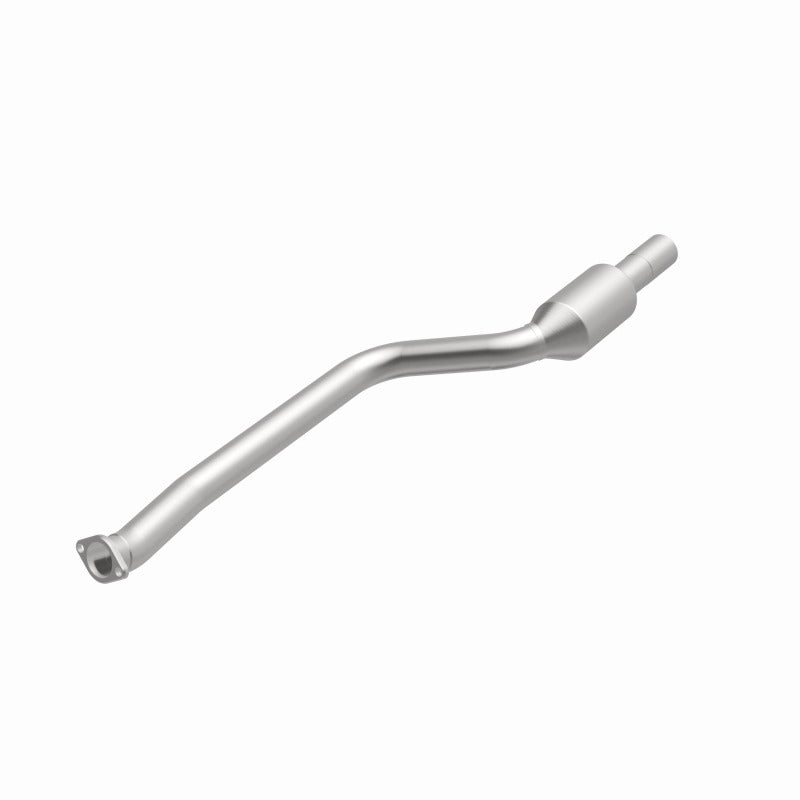

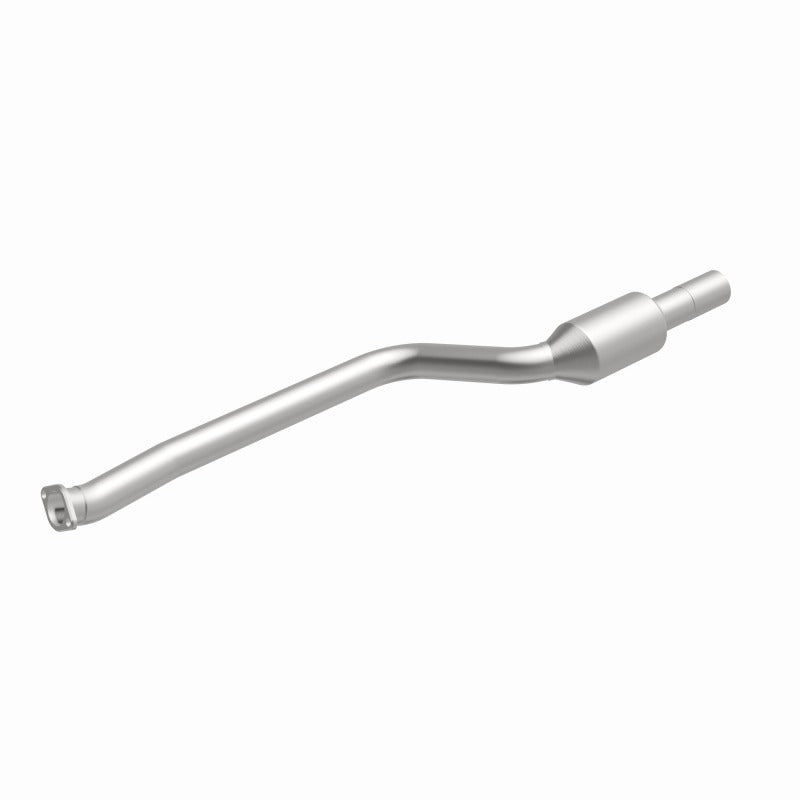

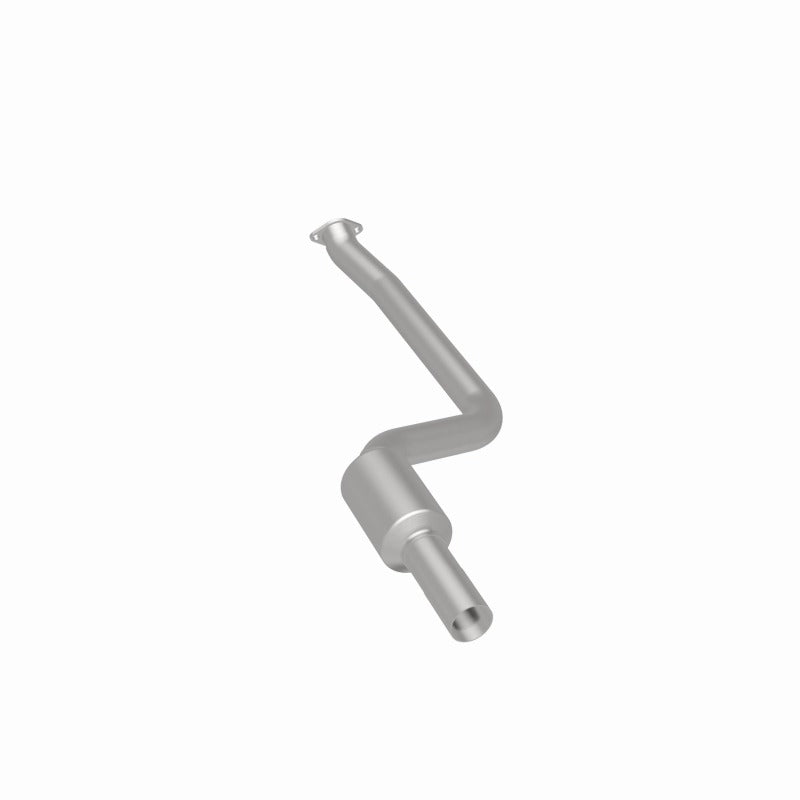

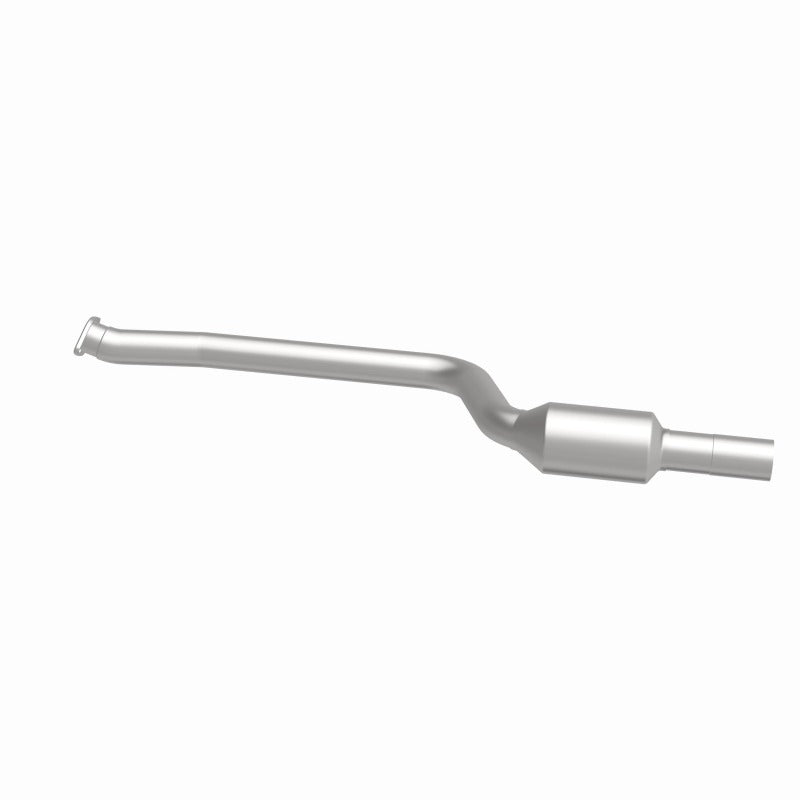

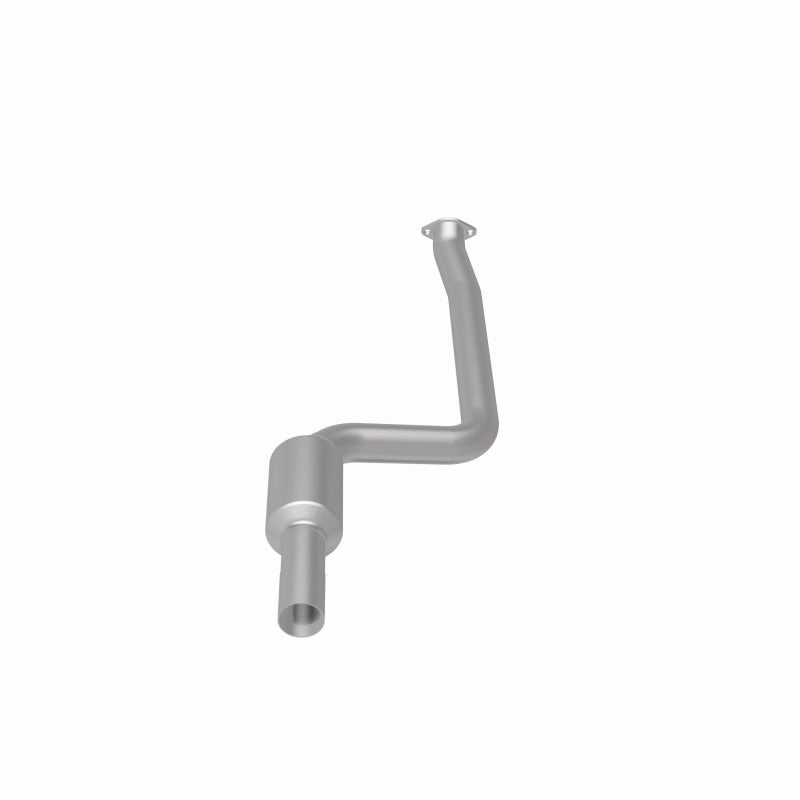

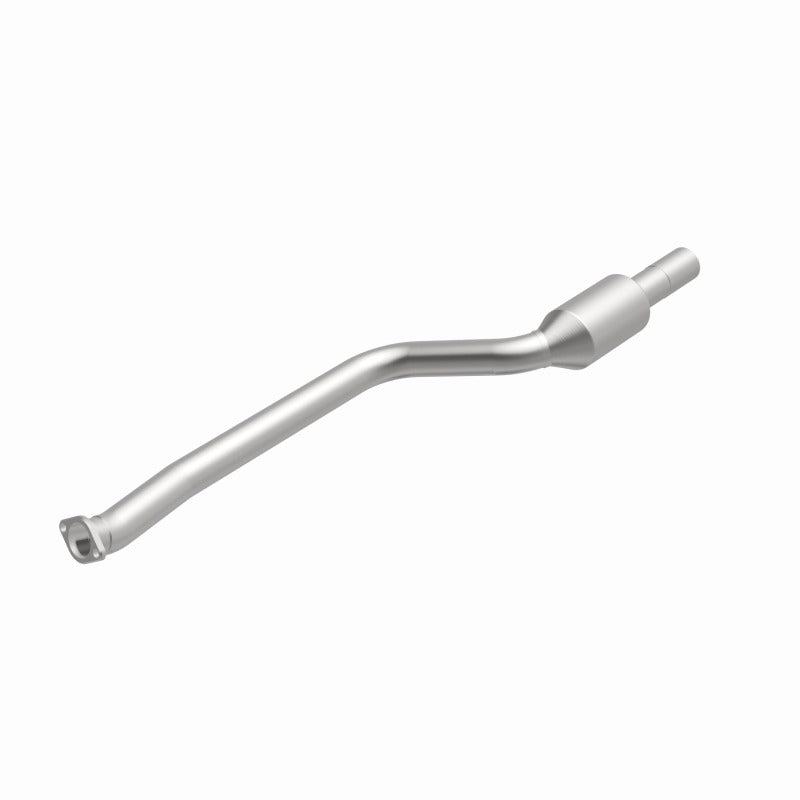

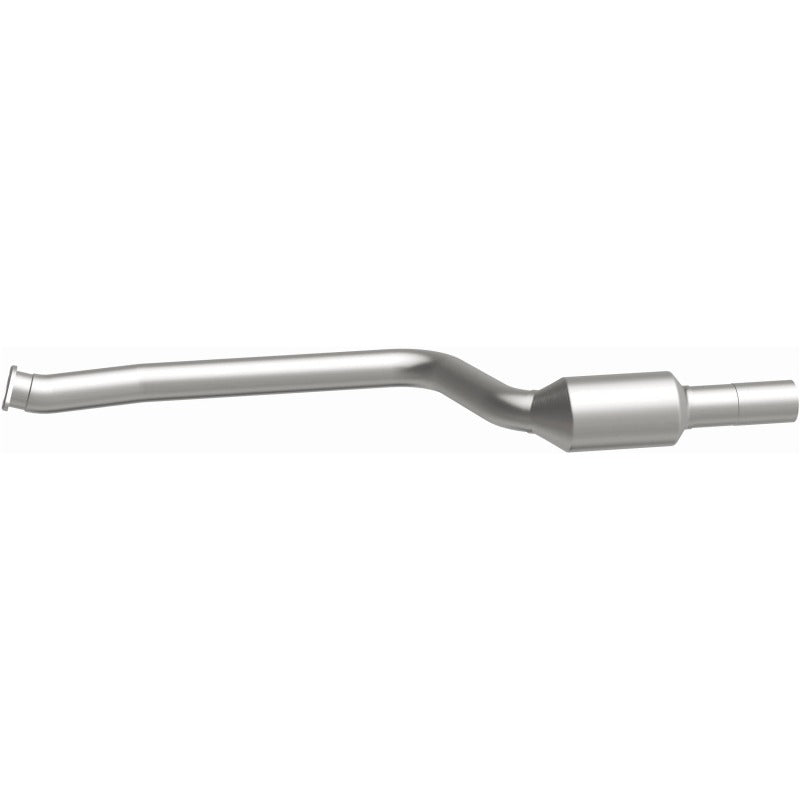

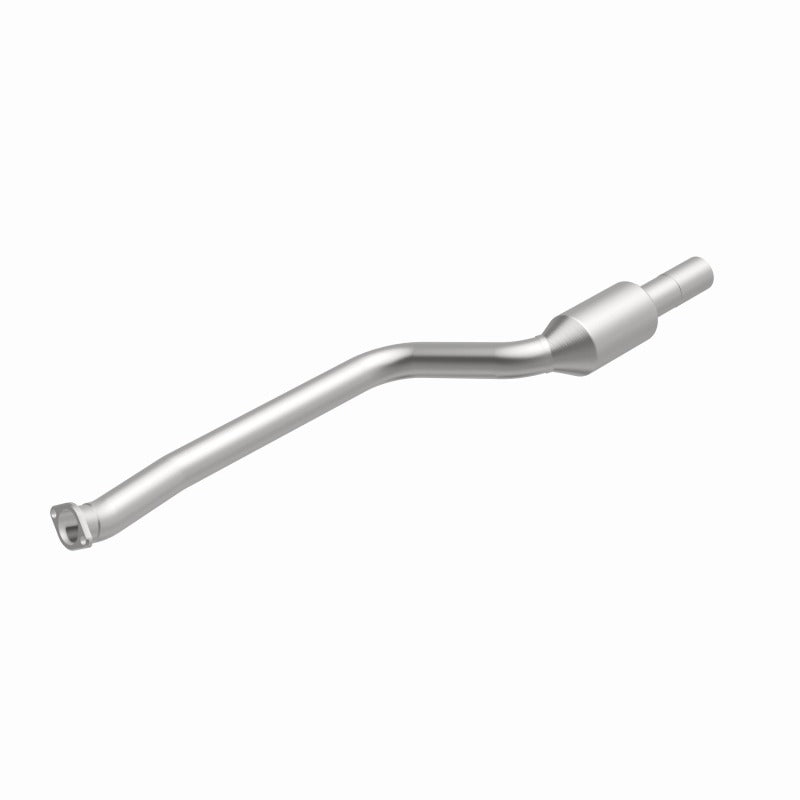

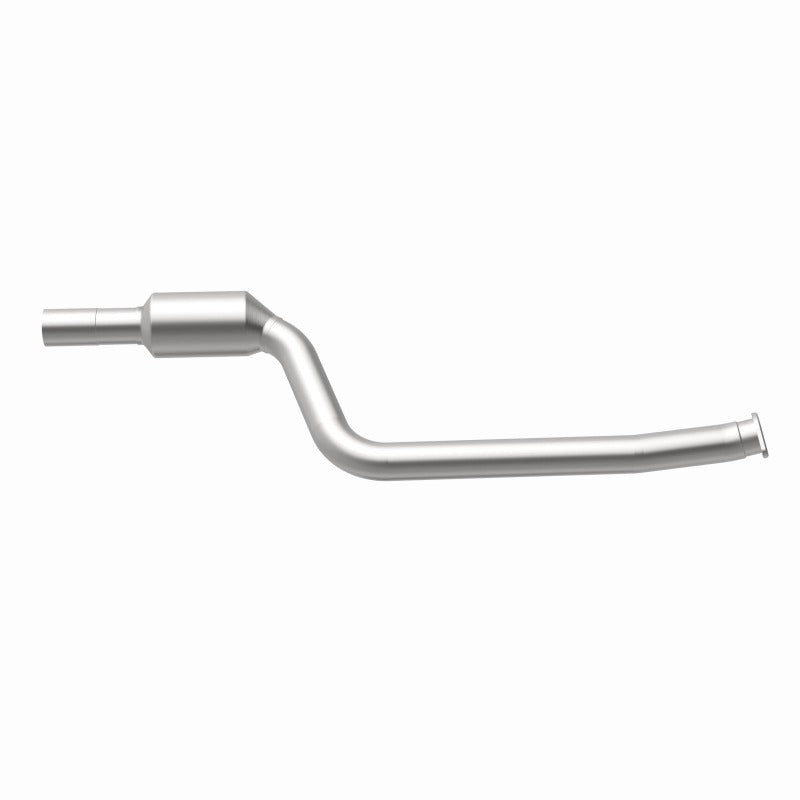

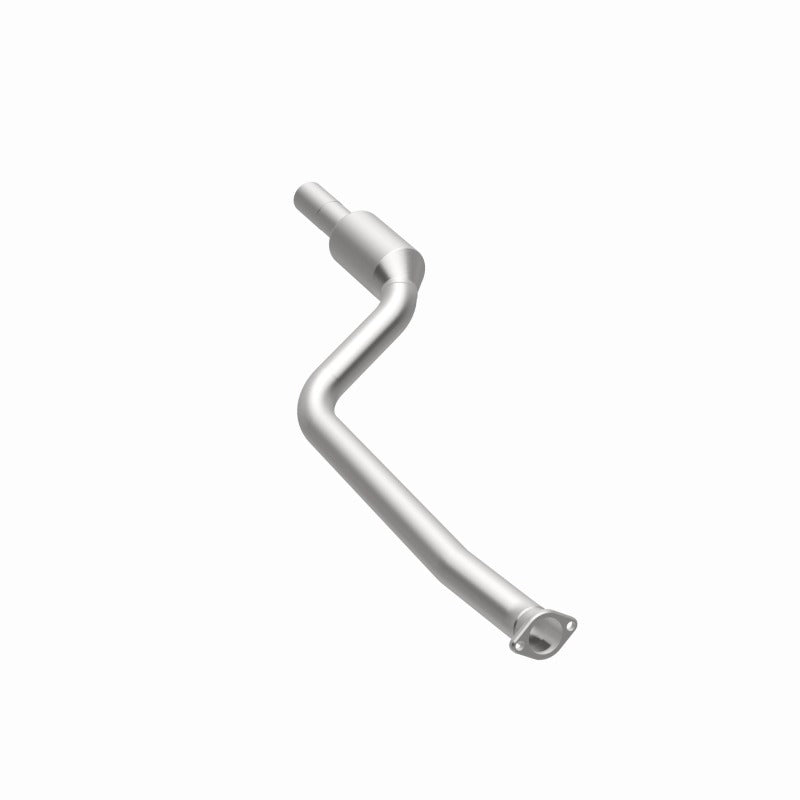

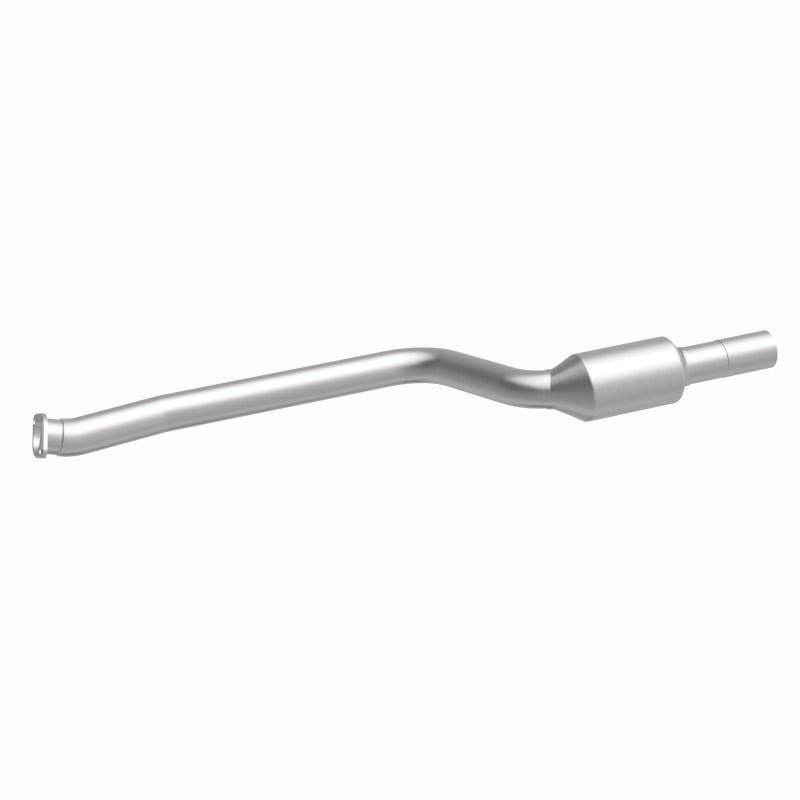

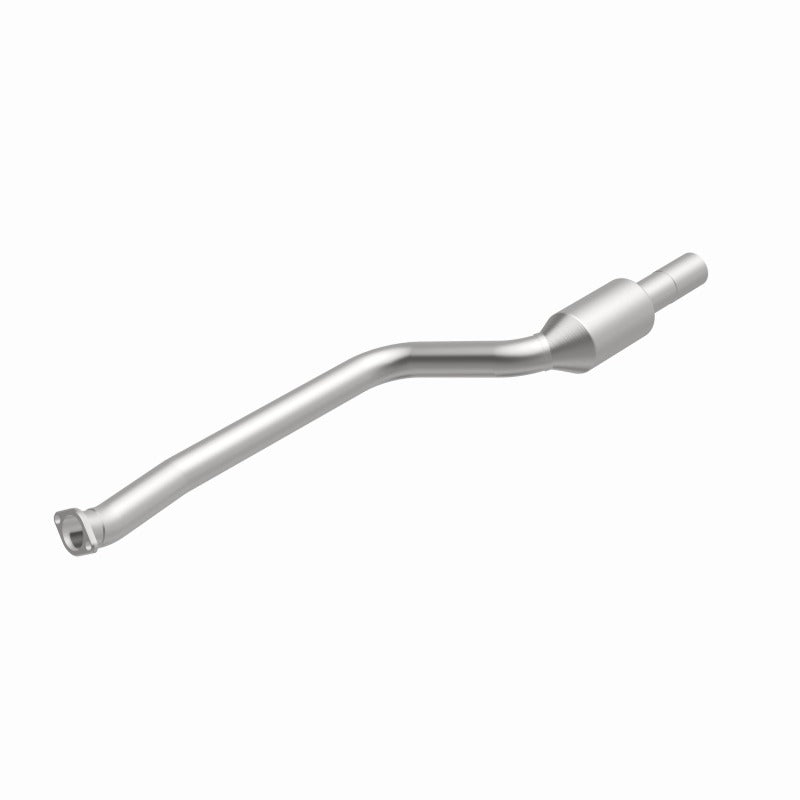

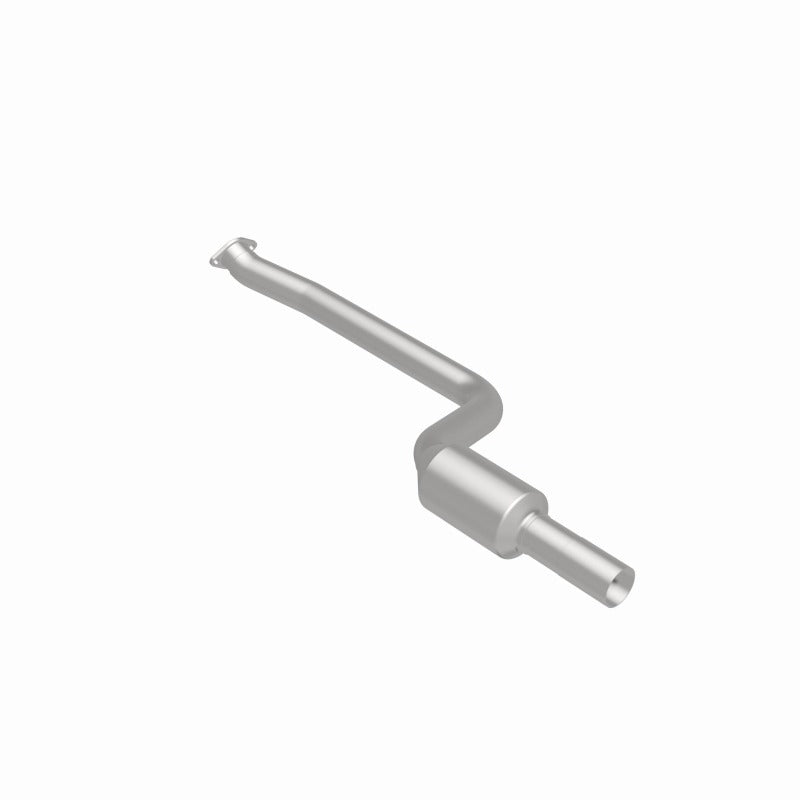

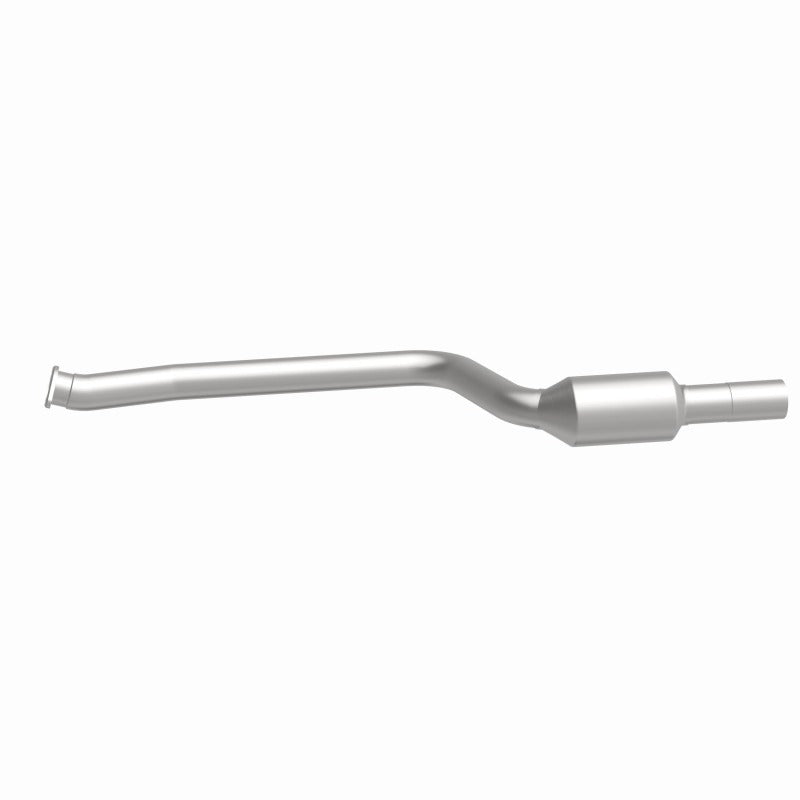

MagnaFlow CARB Direct-Fit Rear Passenger Side Catalytic Converter - BMW E90/E92 3.0L 2006-2013

Magnaflow SKU: MAG5571765
Price
Only 4 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

A spun body direct-fit converter for the rear passenger side underbody position, the downstream unit on a car that runs four converters in total. It bolts in at a flange inlet with a pipe connection at the outlet, so no cutting or welding is needed. Tubing is 16 gauge 409 stainless steel joined with 308 stainless MIG welds, with a single laser fusion weld replicating the OE spun body to cut down leak paths, and the mandrel bent tubing holds OEM geometry through the bend. The assembly runs 43.125 in overall on a ceramic substrate and interchanges with OE parts 18 30 7 547 840 and 18 30 7 566 937. It is certified under CARB Executive Order D-193-175 and legal for sale in all 50 states, provided the vehicle's engine family number appears in that order.

Specifications

Type Direct-fit catalytic converter, California Grade CARB compliant, spun body
Position Rear, passenger side (right) — secondary / downstream converter
Substrate Ceramic
Inlet Type Flange
Outlet Type Pipe connection
Overall Length 43.125 in
Material 16 gauge 409 stainless steel mandrel bent tubing, 410 stainless steel barbed hangers
Welds 308 stainless steel MIG, plus a single laser fusion body weld
Oxygen Sensor Ports 0
Air Tube None
CARB Executive Order D-193-175
Emissions Certification CARB certified and New York certified; legal for sale in all 50 states
Included Hardware Gaskets, clamps, hangers and heat shield are not included
Heat Shield Not attached
Part Number 5571765
OEM Replacement 18 30 7 547 840 and 18 30 7 566 937
Pairs With MagnaFlow 5571764, the rear driver side converter for the same applications
Quantity 1
Warranty Limited 5 year / 50,000 mile construction and 5 year / 50,000 mile emissions

This part fits:

Year Make Model Submodel
2006 BMW 325i Base
2006 BMW 325xi Base
2007-2013 BMW 328i Base
2009-2013 BMW 328i xDrive Base
2007-2008 BMW 328xi Base
2006 BMW 330i Base
2006 BMW 330xi Base
