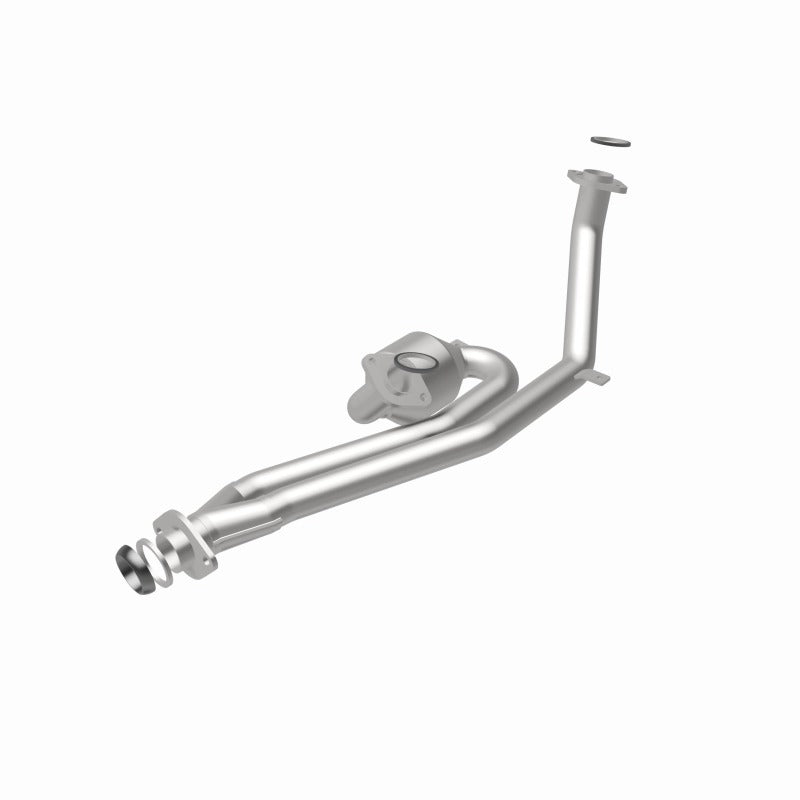

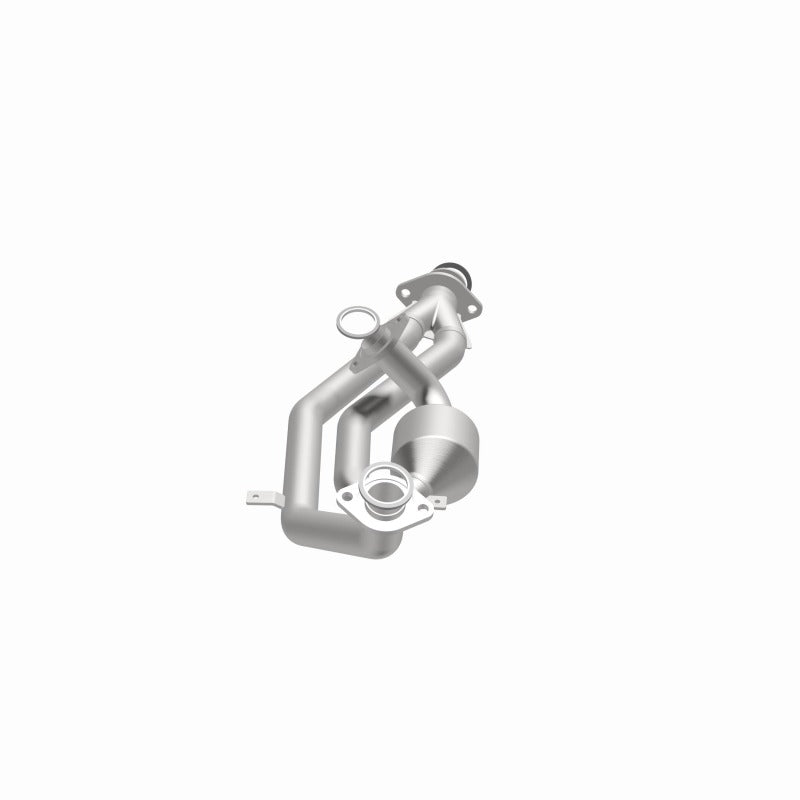

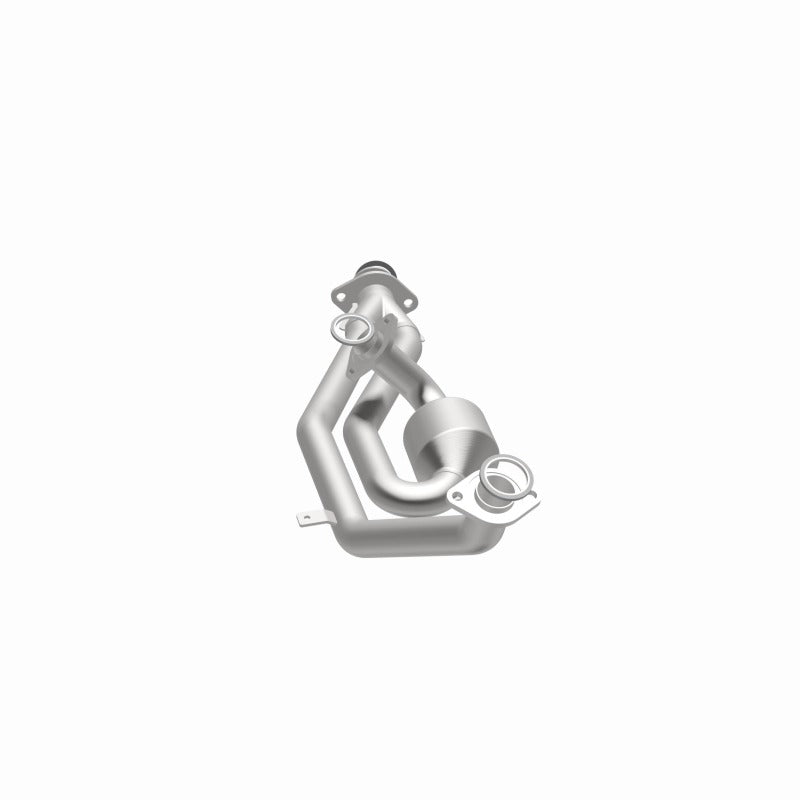

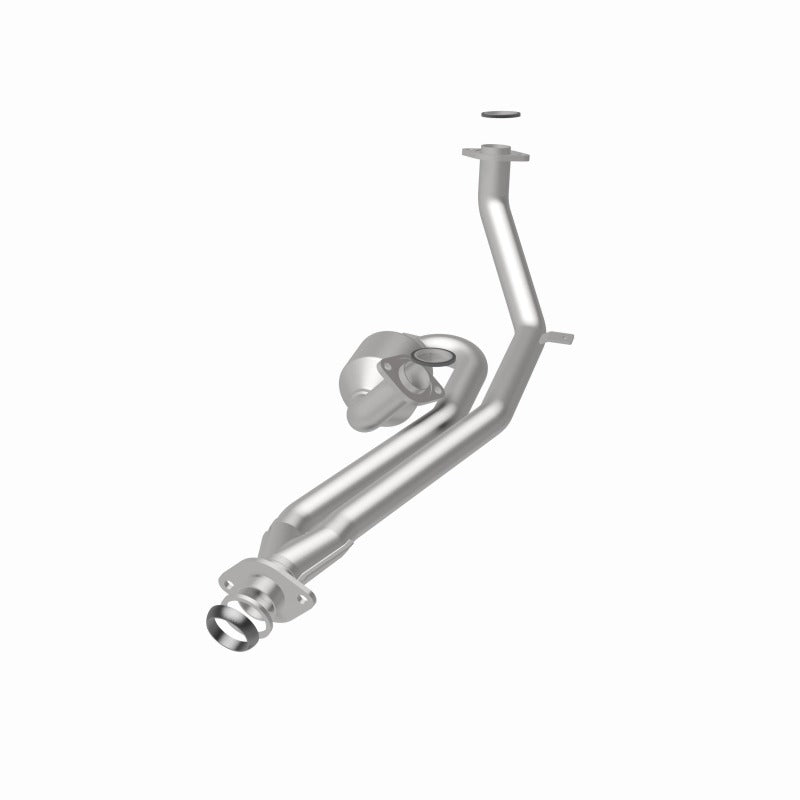

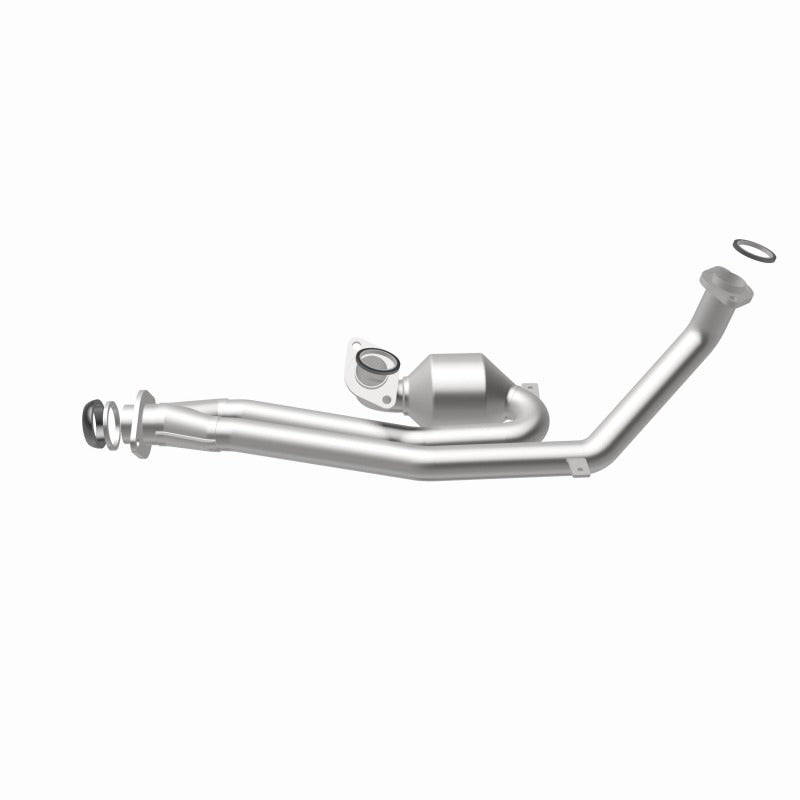

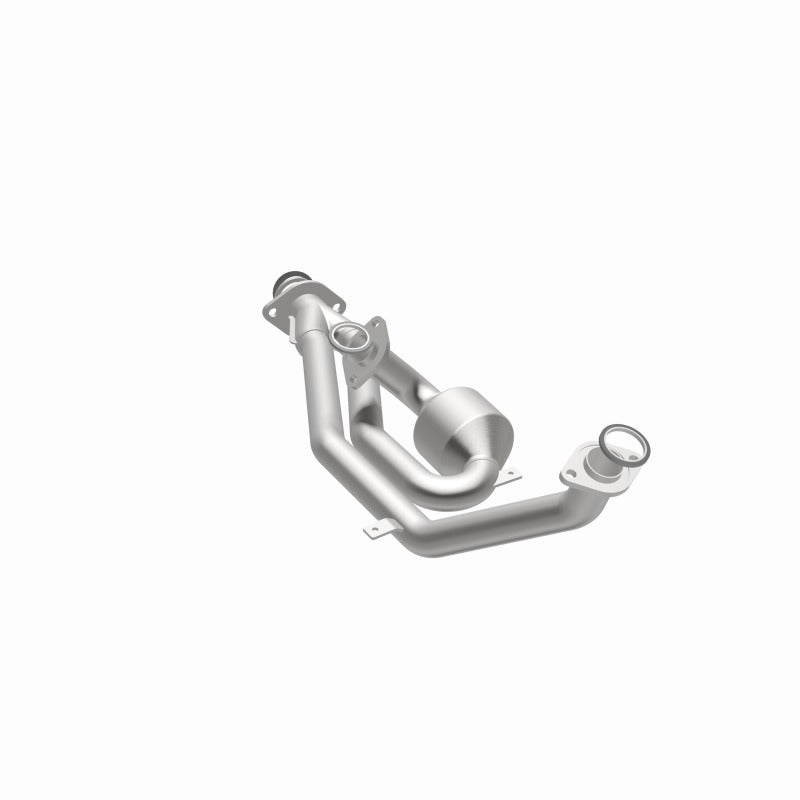

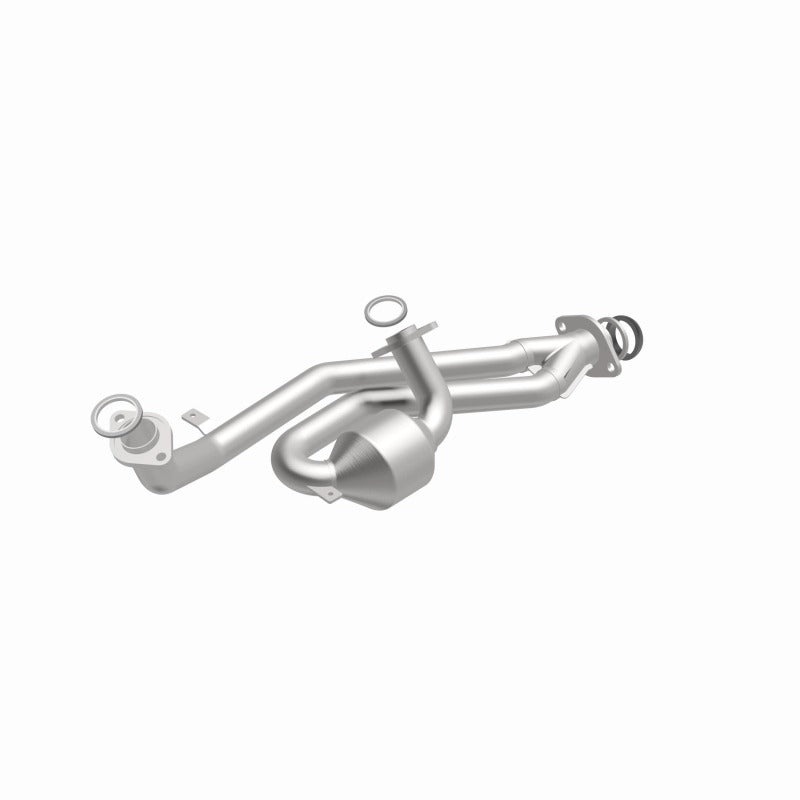

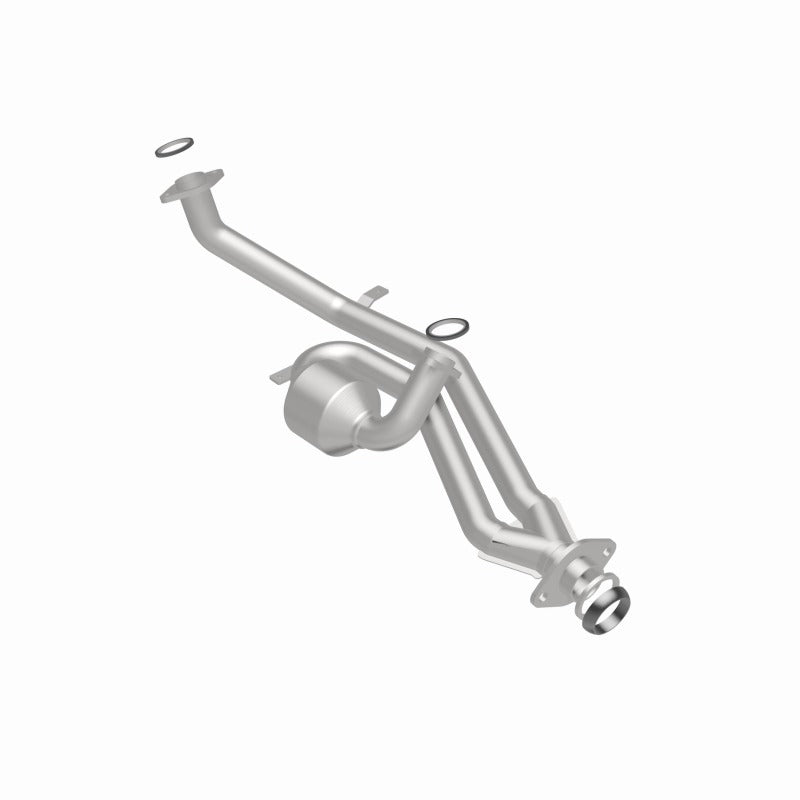

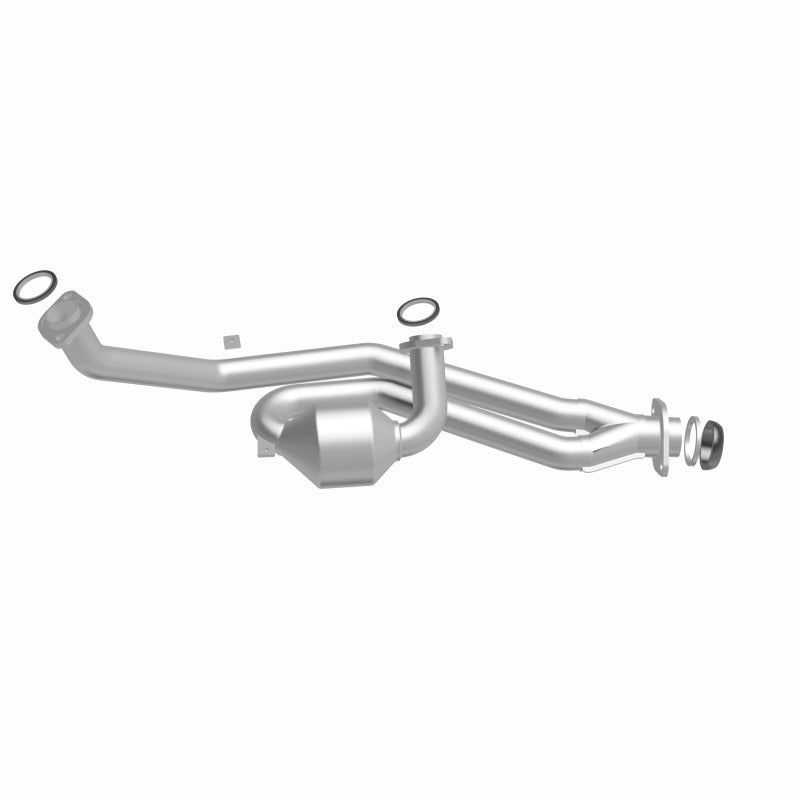

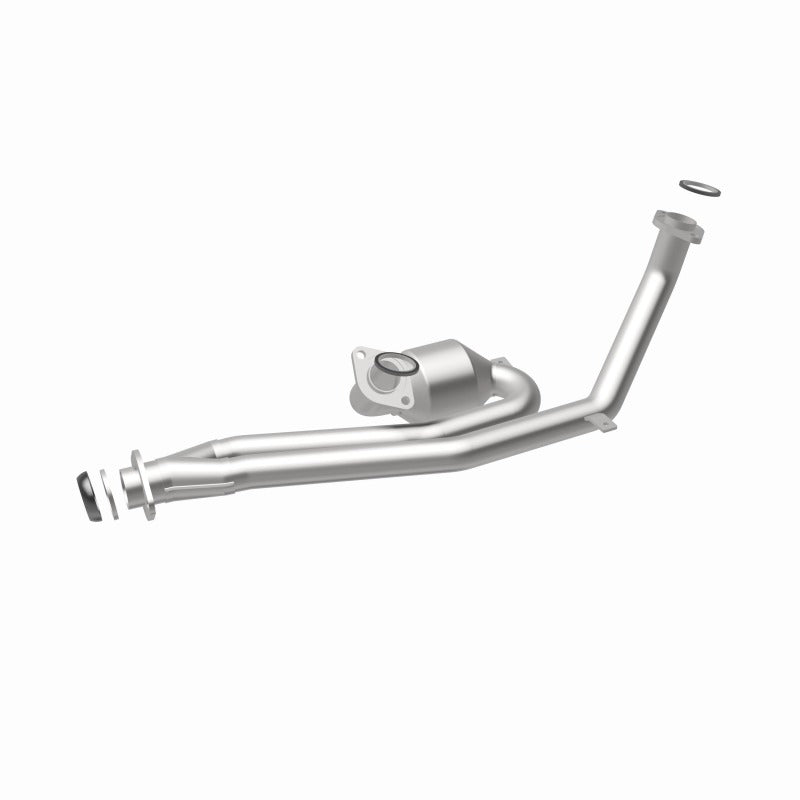

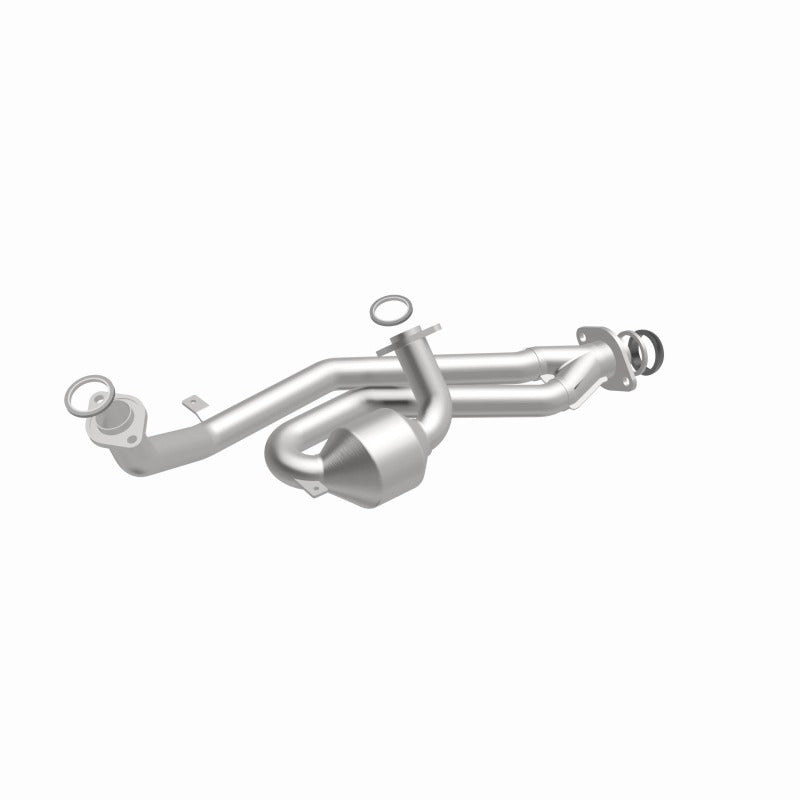

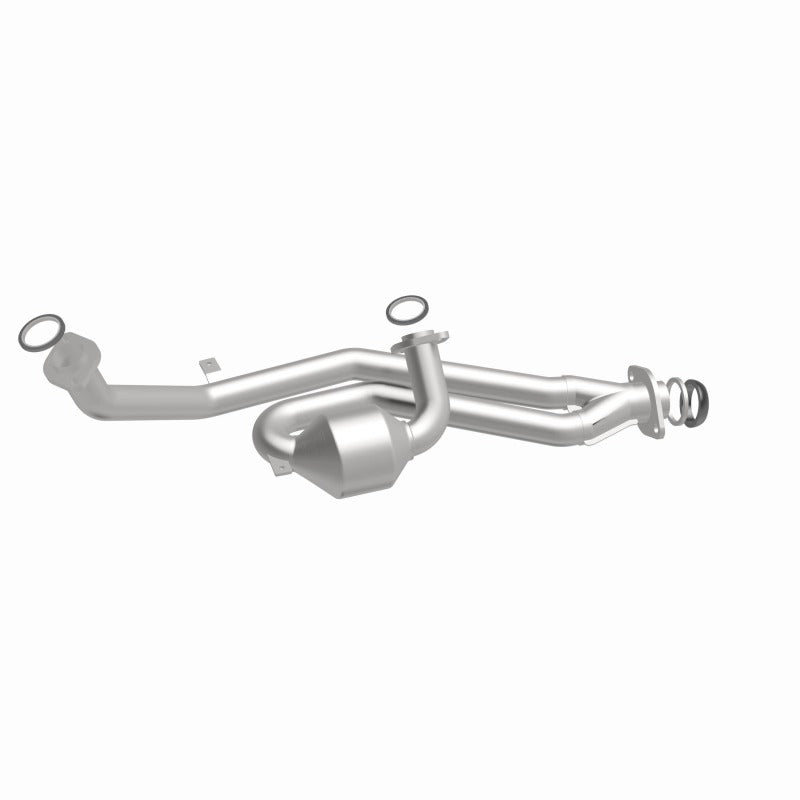

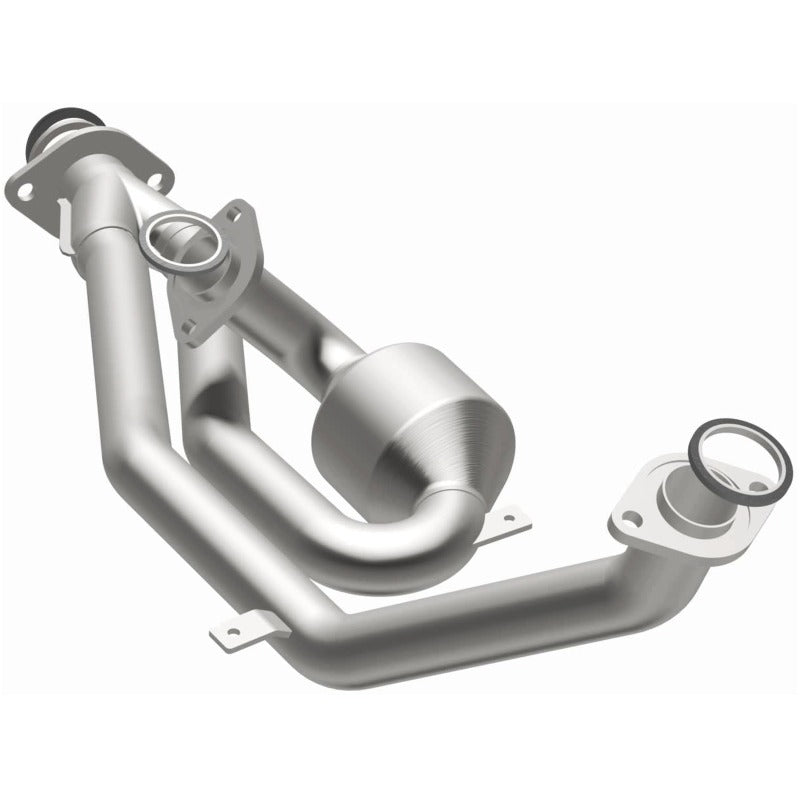

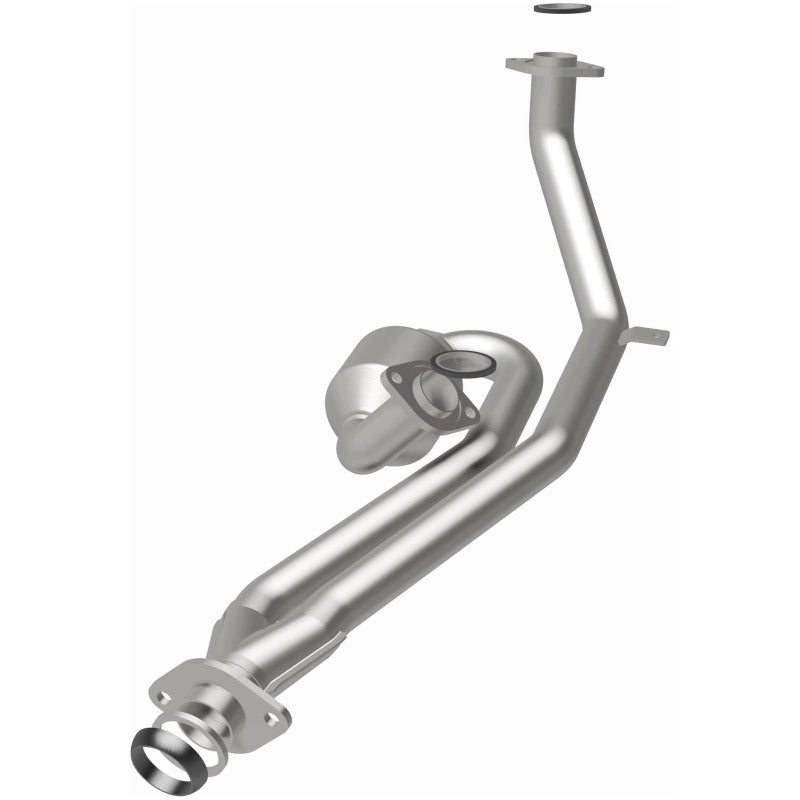

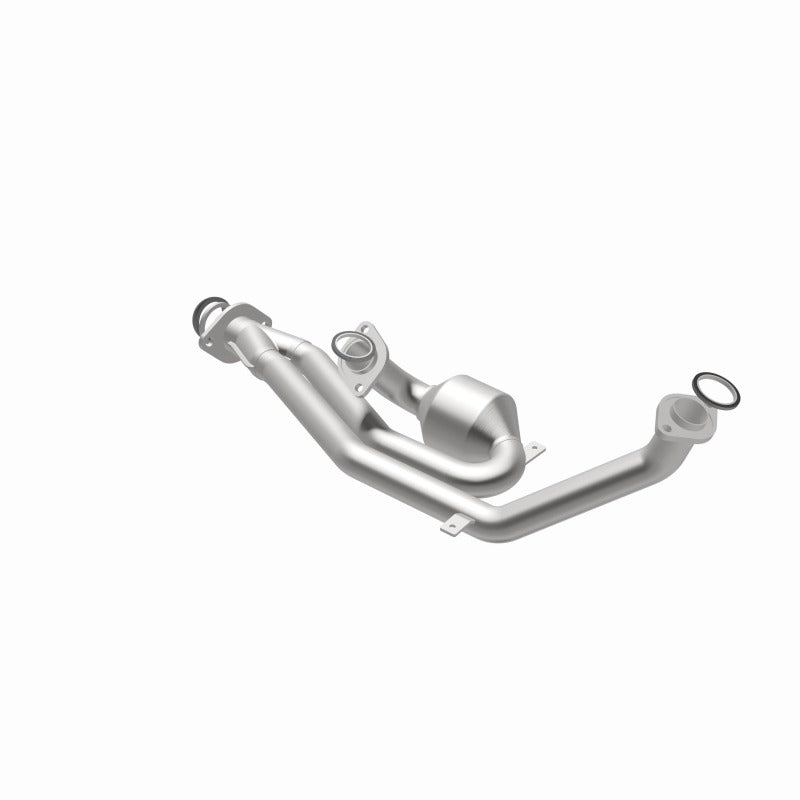

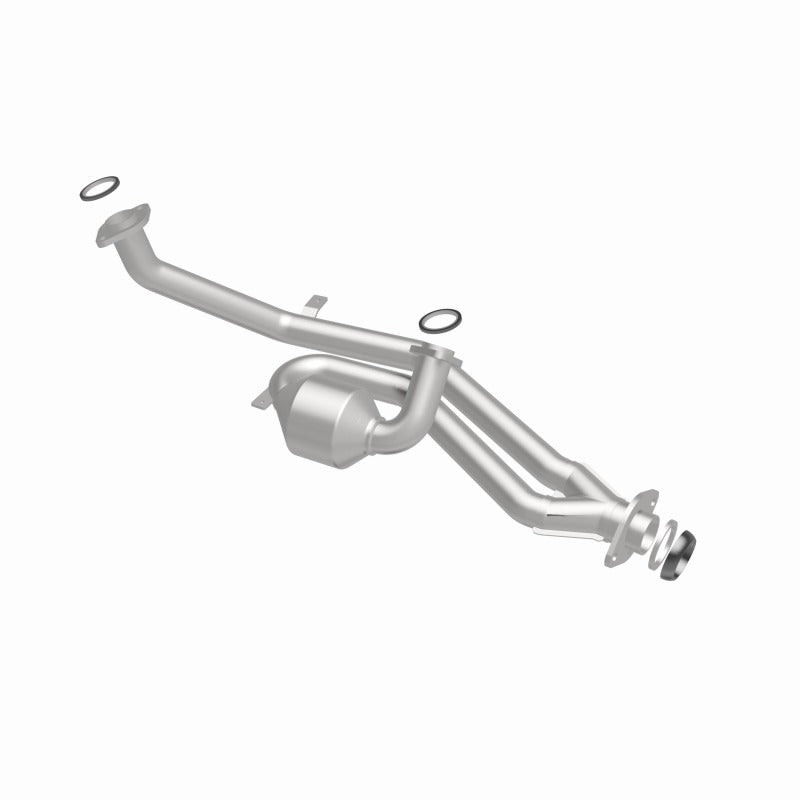

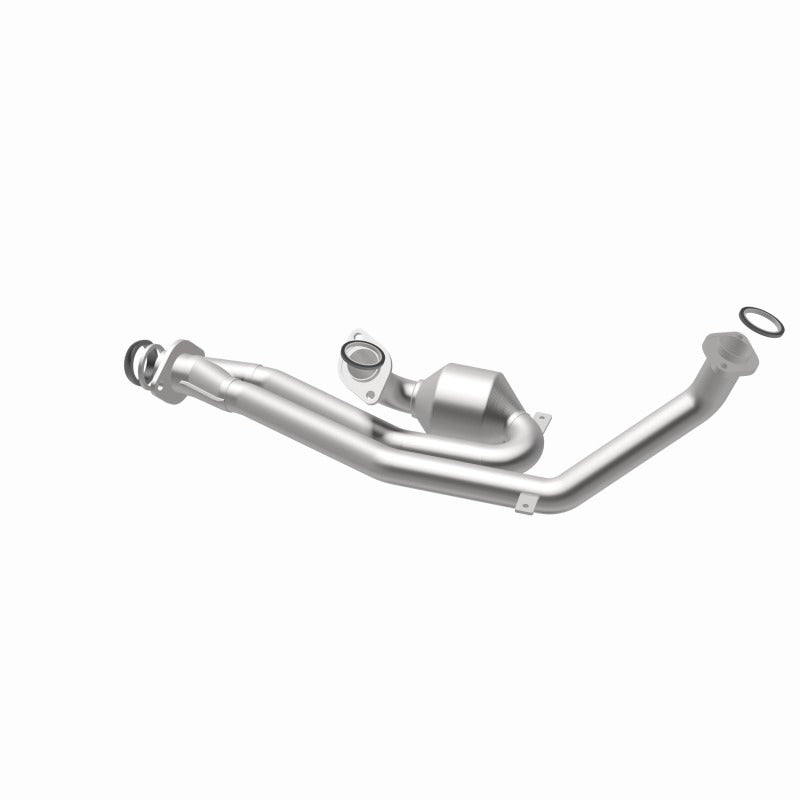

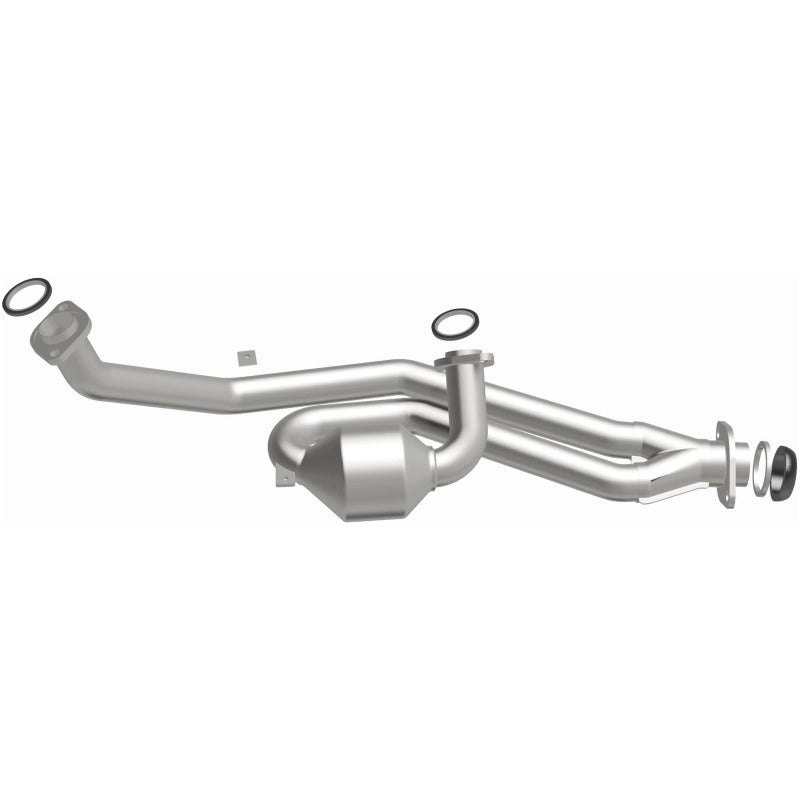

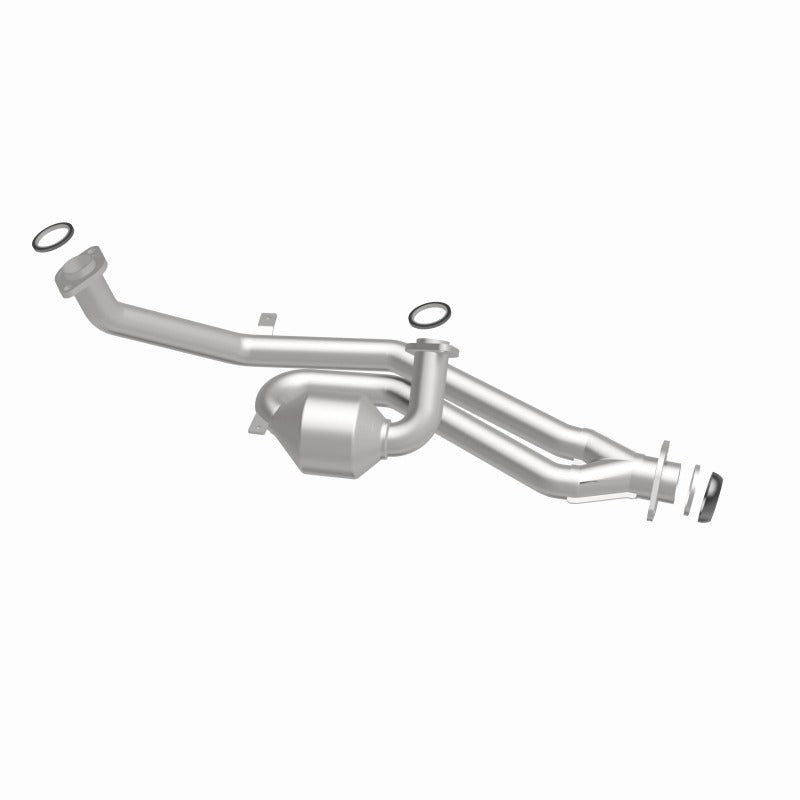

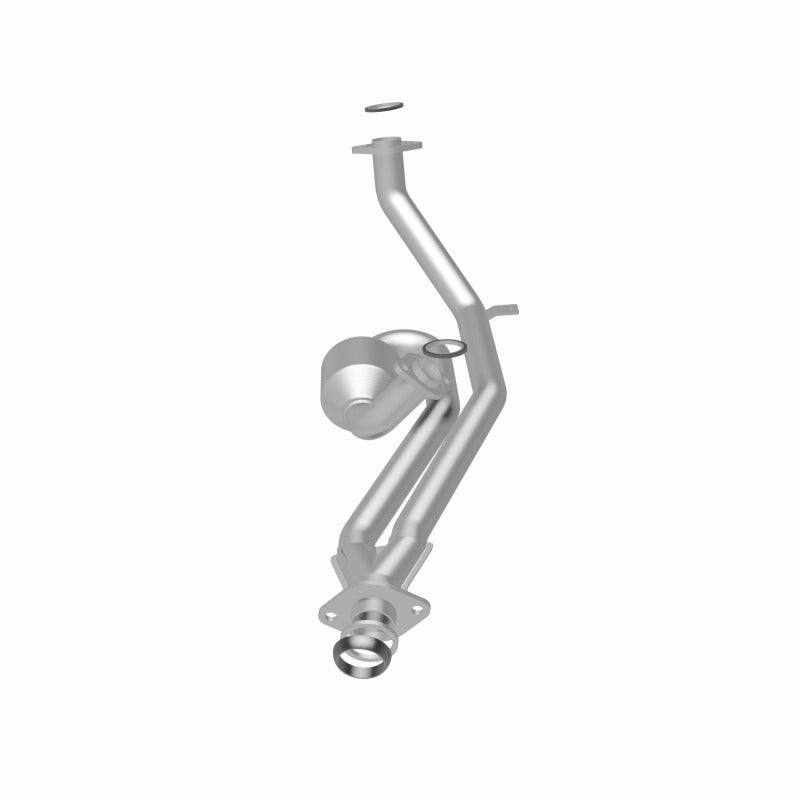

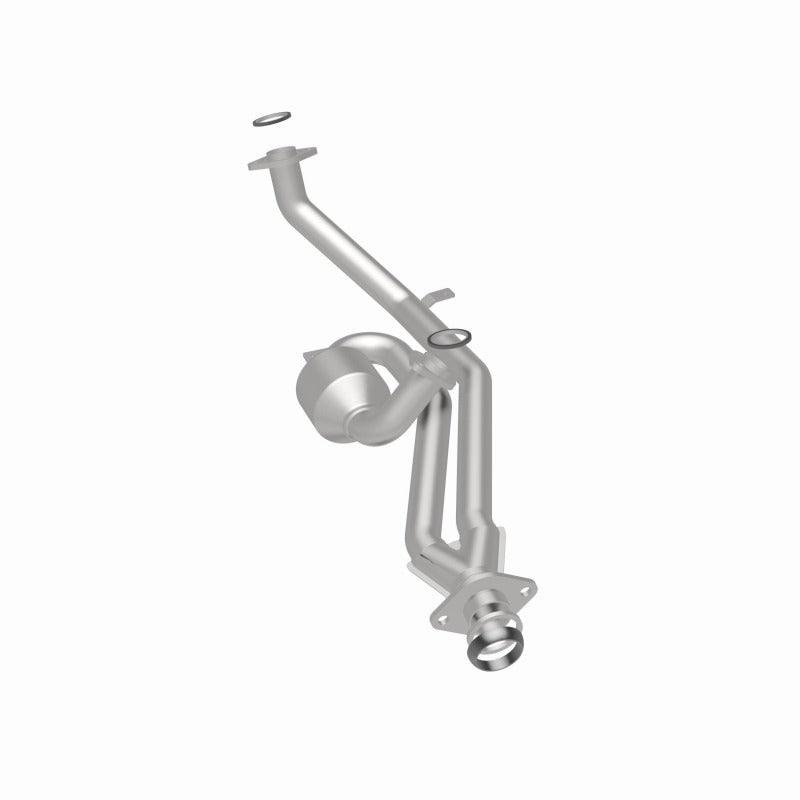

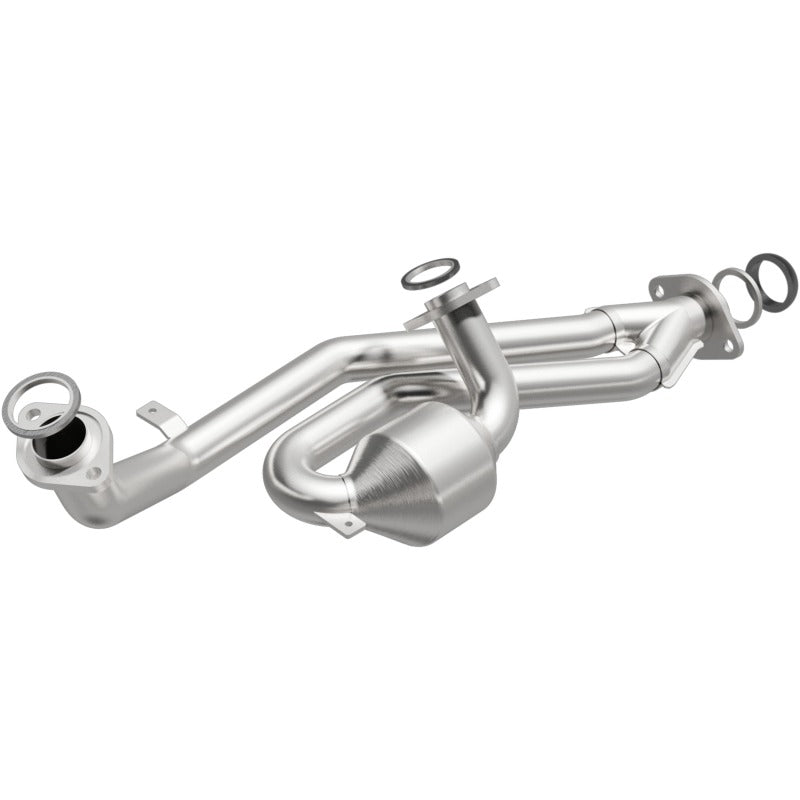

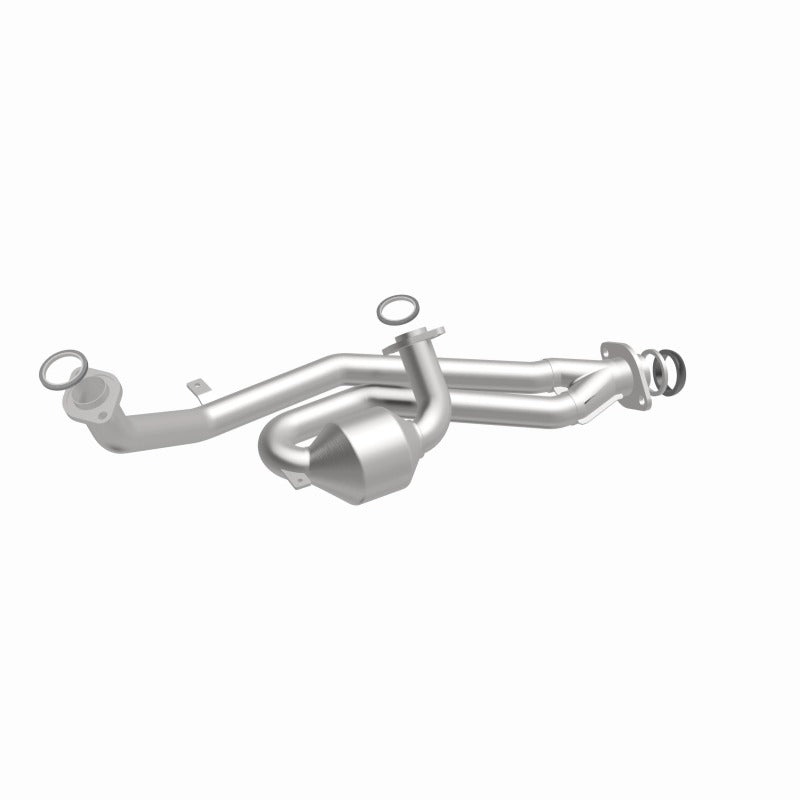

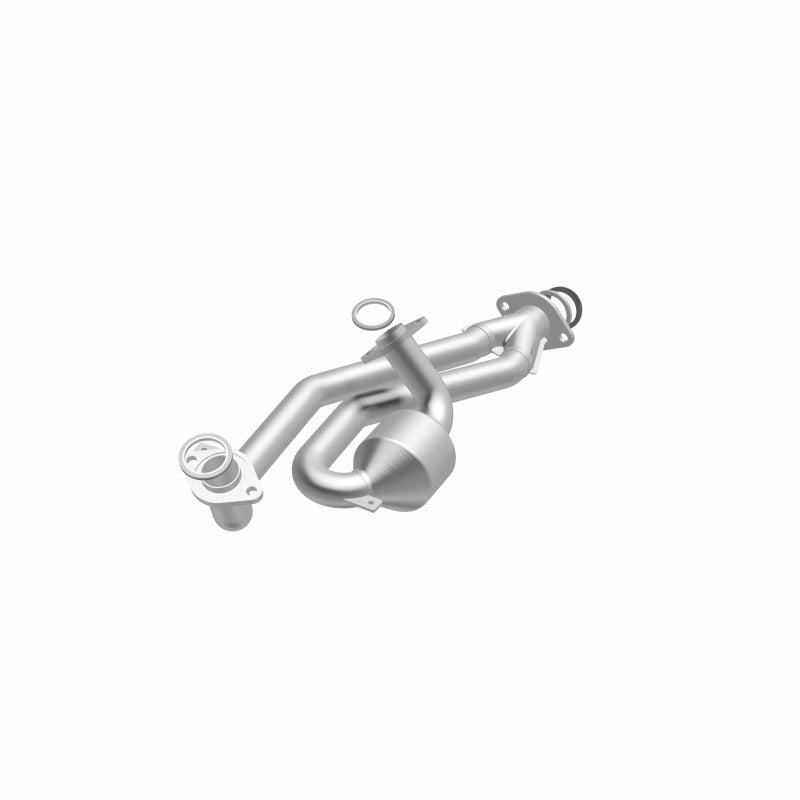

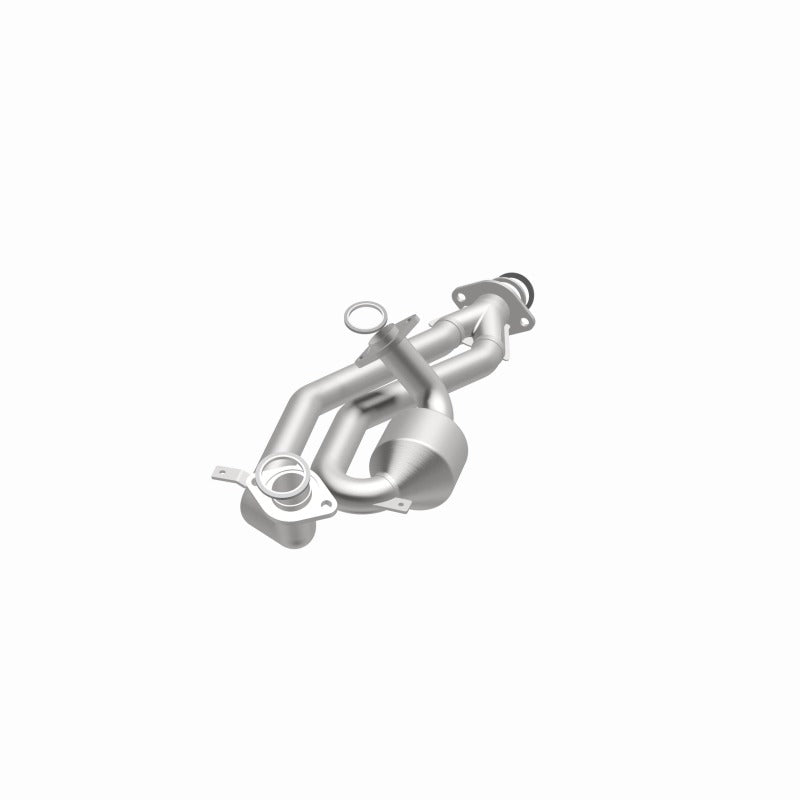

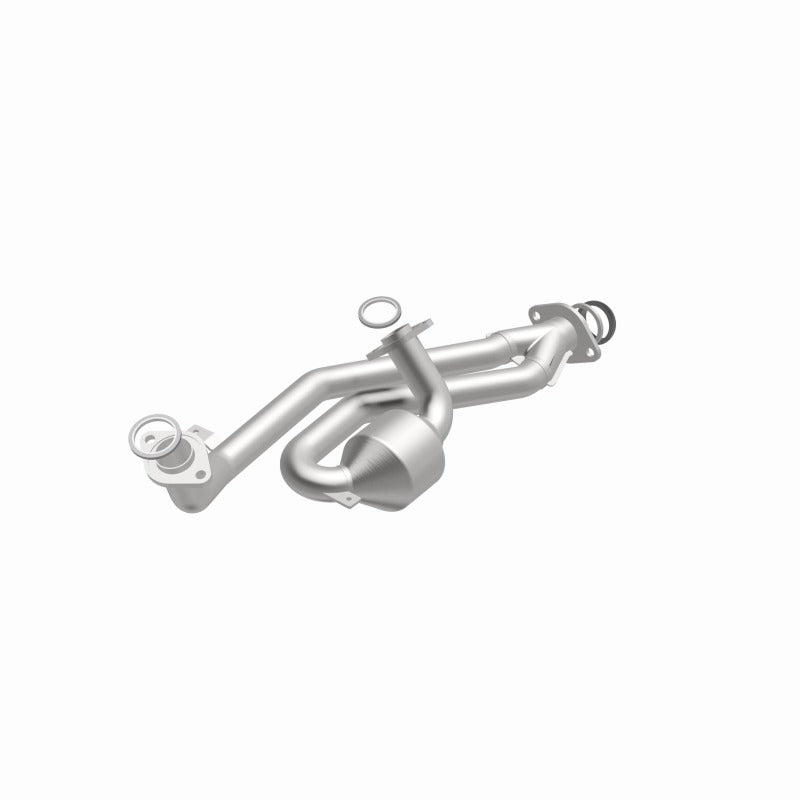

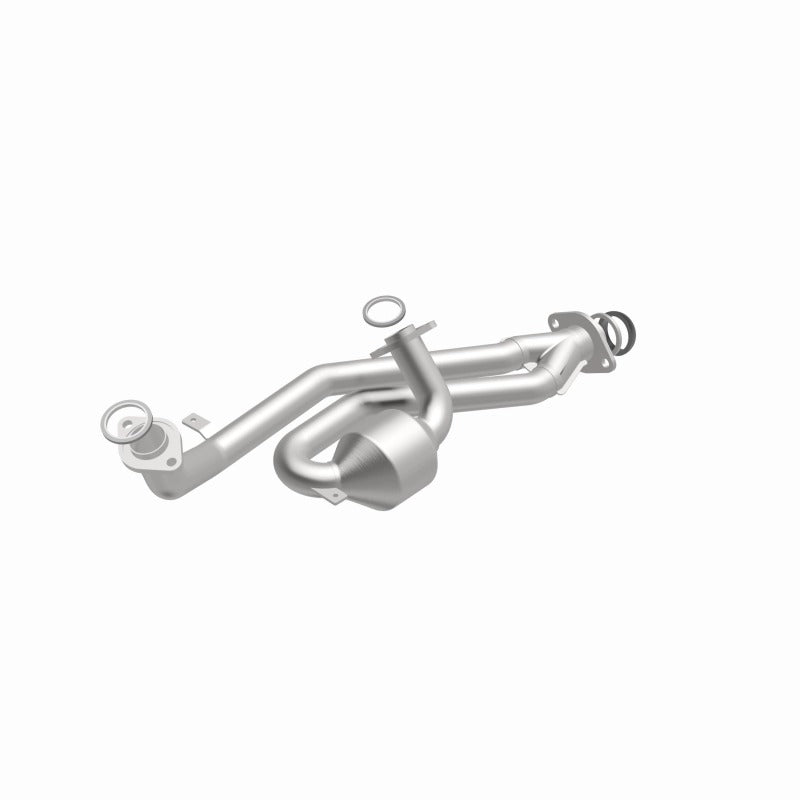

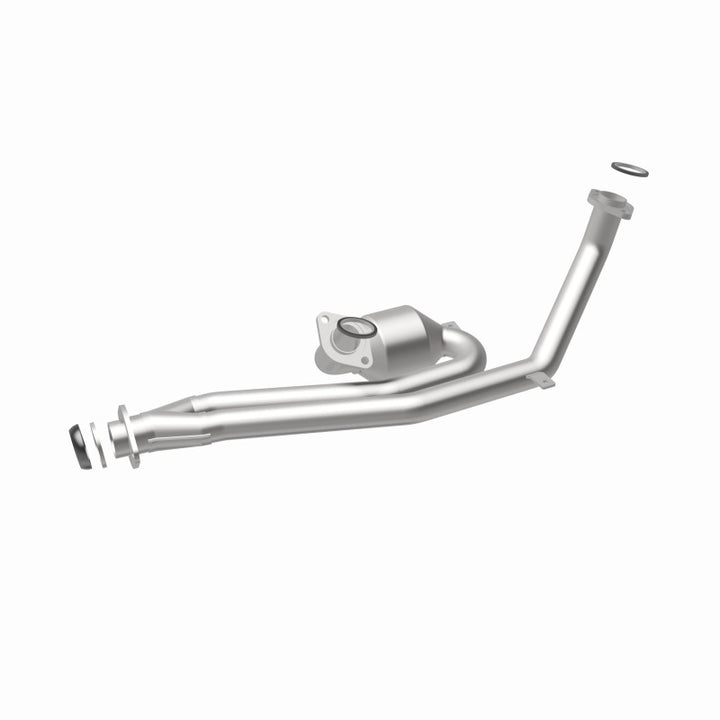

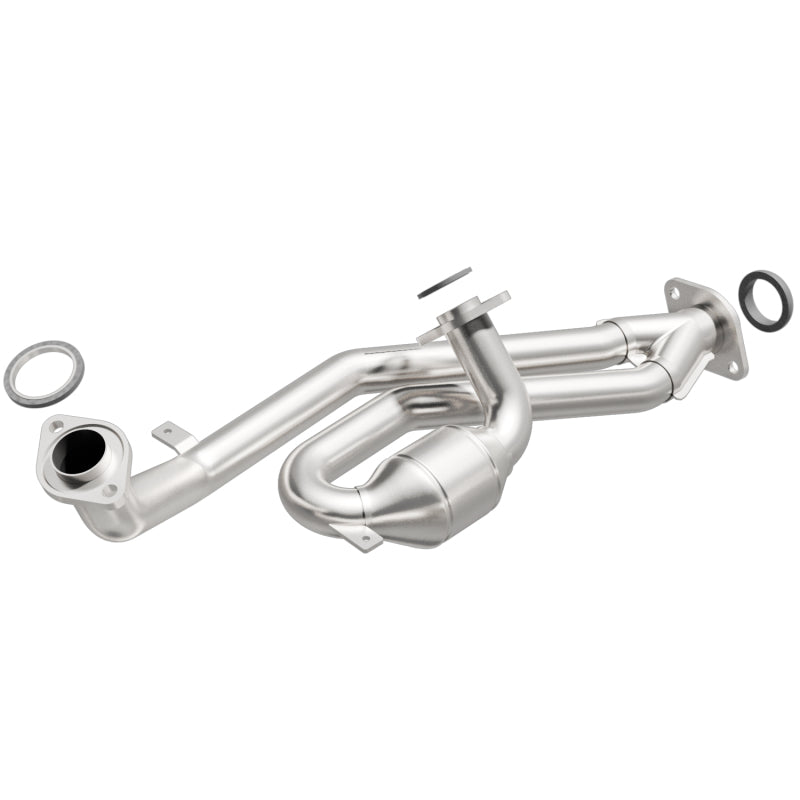

MagnaFlow 49986 is an OEM Grade Federal/EPA compliant direct-fit catalytic converter that replaces the front exhaust pipe and converter assembly sitting downstream of the 1MZ-FE manifold converters. Two 2.0 in flanged inlets collect both cylinder banks into a single 2.375 in flanged outlet across 36.75 in overall length, around a 6.625 in ceramic substrate converter body. It carries no oxygen sensor ports, because the sensors stay at the manifold converters upstream. Tubing is 16 gauge 409 stainless steel with 308 stainless MIG welds and 410 stainless barbed hangers, and two flat ring gaskets plus a donut gasket are supplied. This is a Federal/EPA 49-state part and is not CARB certified.
Specifications
| Type | OEM Grade Federal/EPA compliant direct-fit catalytic converter |
| Position | Front, secondary (downstream of the manifold converters); dual-inlet assembly collecting both banks |
| Material | 16 gauge 409 stainless steel tubing, 308 stainless MIG welds, 410 stainless barbed hangers |
| Substrate | Ceramic |
| Inlet | 2.0 in flange x 2 |
| Outlet | 2.375 in flange |
| Overall Length | 36.75 in |
| Converter Body | 6.625 in L x 5 in diameter, round spun body |
| Oxygen Sensor Ports | 0 |
| Air Tube | None; not air tube adaptable |
| Included Hardware | (2) flat ring gaskets, (1) donut gasket |
| Emissions Compliance | Federal/EPA 49-state. Not CARB certified; not legal for sale or installation in California, Colorado or New York |
| Quantity | 1 |
| Part Number | 49986 |
| OEM Replacement | 17410-0A220, 17410-0A310 |
| Warranty | 5 years / 50,000 miles construction; 25,000 miles emissions |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2000-2004 | Toyota | Avalon | XL |
| 2000-2004 | Toyota | Avalon | XLS |
| 2001-2003 | Toyota | Sienna | CE |
| 2001-2003 | Toyota | Sienna | LE |
| 2001-2003 | Toyota | Sienna | XLE |
