Radium Engineering Dual Pump Fuel Hanger for DeatschWerks DW400 - Subaru Impreza / WRX & STI 2008-2020

Radium Engineering SKU: RAD20-0781-00
Price
5% OFF
Only 4 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

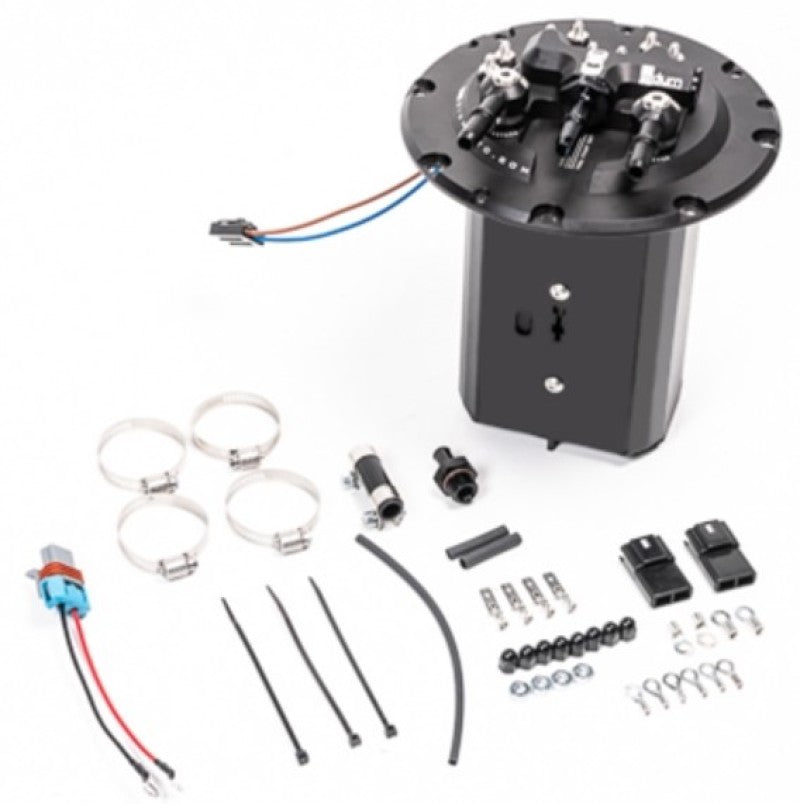

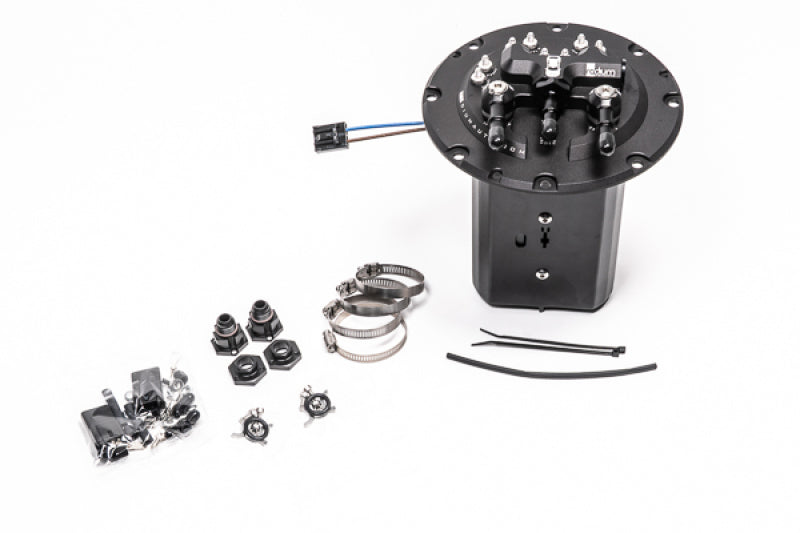

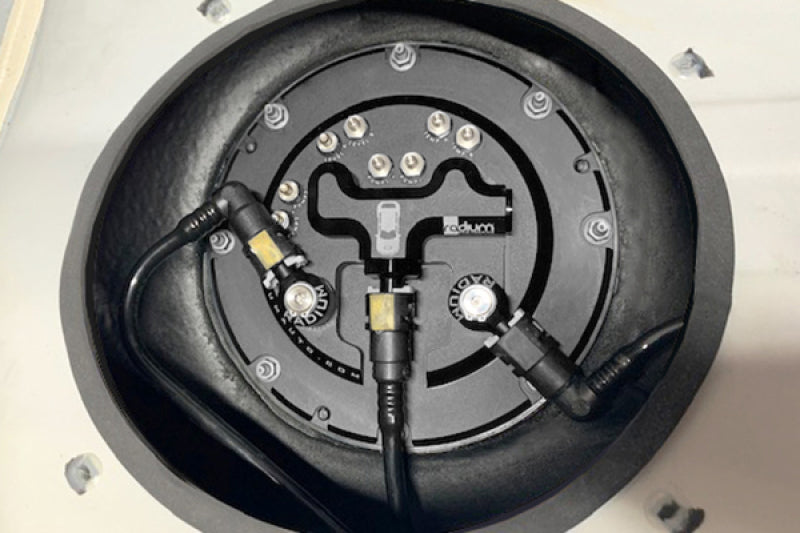

Radium Engineering's drop-in fuel pump hanger replaces the factory in-tank unit on late model Subaru vehicles and runs one or two DeatschWerks DW400 pumps. An anodized aluminum collector box with two one-way fill valves (355 LPH each) and a venturi jet pump with integrated pressure relief keeps the pumps fed, and a duckbill valve sits on the return path. Outlets are an 8AN ORB pump feed plus 6AN ORB return and crossover ports with SAE quick connect adapters preinstalled. It reuses the OEM gasket and factory fuel level sensor, and all components are safe with E85. Pumps are not included.

Specifications

Type In-tank fuel pump hanger (single or dual pump, single outlet)
Compatible Pumps DeatschWerks DW400 (not included)
Ports 8AN ORB pump out; 6AN ORB return; 6AN ORB crossover; SAE quick connect adapters preinstalled
Collector Anodized aluminum, two 355 LPH fill valves, venturi jet pump with pressure relief
Fuel Compatibility Gasoline and E85
Pairs With Radium fuel hanger plumbing kit (20-0629-03 or 20-0629-05)
Part Number 20-0781-00

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2009-2010 Subaru Impreza 2.5 GT
2008-2011 Subaru Impreza 2.5i
2010-2011 Subaru Impreza 2.5i Premium
2012-2019 Subaru Impreza Base
2012-2019 Subaru Impreza Limited
2008-2011 Subaru Impreza Outback Sport
2012-2019 Subaru Impreza Premium
2017-2019 Subaru Impreza Sport
2012-2016 Subaru Impreza Sport Limited
2012-2016 Subaru Impreza Sport Premium
2008-2014 Subaru Impreza WRX
2010-2014 Subaru Impreza WRX Limited
2009-2014 Subaru Impreza WRX Premium
2008-2014 Subaru Impreza WRX STI
2011-2014 Subaru Impreza WRX STI Limited
2010 Subaru Impreza WRX STI Special Edition
2015-2019 Subaru WRX Base
2015-2019 Subaru WRX Limited
2015-2019 Subaru WRX Premium
2015-2020 Subaru WRX STI Base
2015 Subaru WRX STI Launch Edition
2015-2020 Subaru WRX STI Limited
2016 Subaru WRX STI Series.HyperBlue
2018 Subaru WRX STI Type RA
