Radium Engineering Walbro F90000267/274/285 Fuel Pump Hanger - Chevrolet Corvette (C8) 2020-2027

Radium Engineering SKU: RAD20-1112
Price
5% OFF
Only 1 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

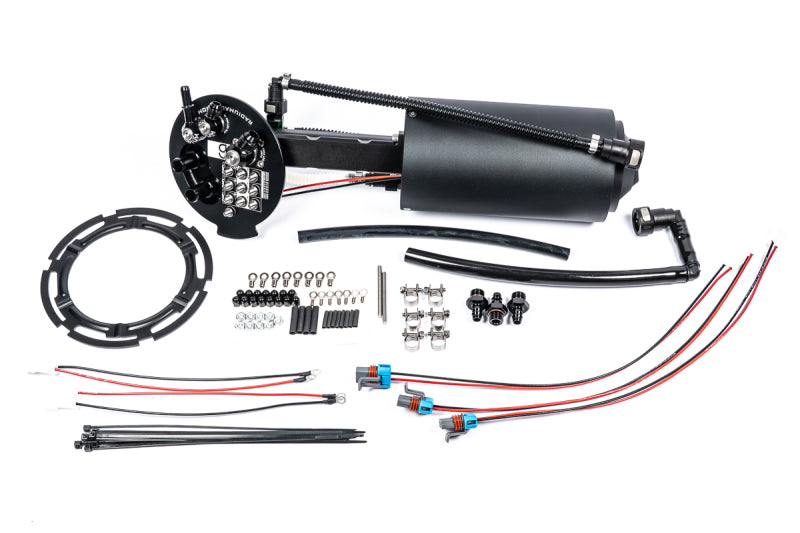

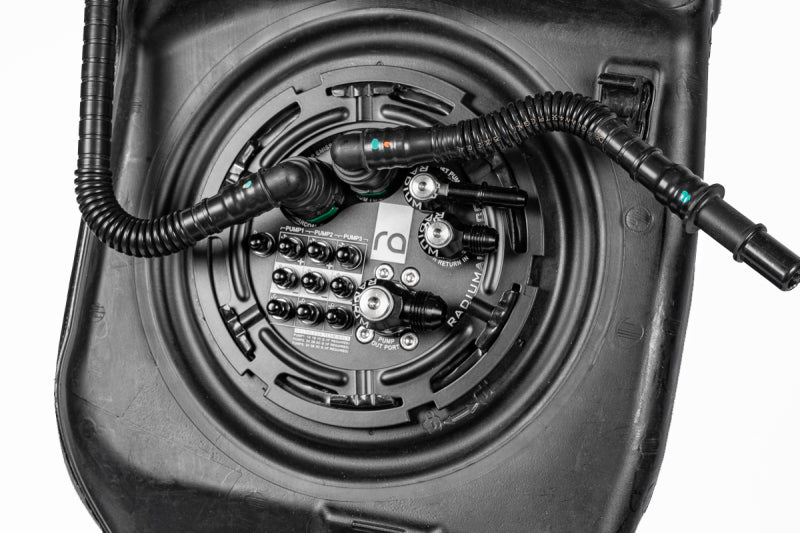

This Radium Engineering fuel pump hanger is a drop-in, in-tank surge tank that holds one to three aftermarket pumps (pumps not included) and is configured for Walbro F90000267, F90000274 and F90000285 pumps. A one-piece anodized aluminum collector box surrounds the pumps and is fed by an integrated venturi jet pump and three one-way fill valves to prevent fuel starvation under hard cornering and acceleration. It can run as a surge tank, in a merged hanger setup, or with isolated direct injection and port injection systems, has a 10AN ORB feed port with a low-profile 8AN fitting and a 6AN ORB lift pump port, and is E85 compatible. Walbro F90000295 pumps also fit but require a 20-1534 check valve per pump, and Protec 11928 or Fuelab 49614 pumps require the 13-1187 strainer base. The hanger installs on the side opposite the OEM pump module, which stays in place; installation requires removing the rear subframe and drivetrain to access the tanks.

Specifications

Type In-tank fuel pump hanger / surge tank (pumps not included)
Compatible Pumps Walbro F90000267, F90000274, F90000285
Also Compatible Walbro F90000295 (requires 20-1534 check valve per pump); Protec 11928, Fuelab 49614 (require 13-1187 strainer base)
Pump Capacity 1 to 3 pumps
Feed Port 10AN ORB (low-profile 8AN male fitting included)
Lift Pump Port 6AN ORB with quick-connect fitting (plug included)
Material One-piece anodized aluminum collector box and body; stainless studs and hardware
Fuel Compatibility E85 compatible
Includes Venturi siphon jet pump, ETFE-insulated wiring, fuel-resistant submersible tubing, pump inlet filtration, OEM return and vent barbs, OEM fuel sensor mount
Part Number 20-1112

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2024-2026 Chevrolet Corvette E-Ray
2020-2027 Chevrolet Corvette Stingray
2023-2027 Chevrolet Corvette Z06
2025-2027 Chevrolet Corvette ZR1
2026-2027 Chevrolet Corvette ZR1X
