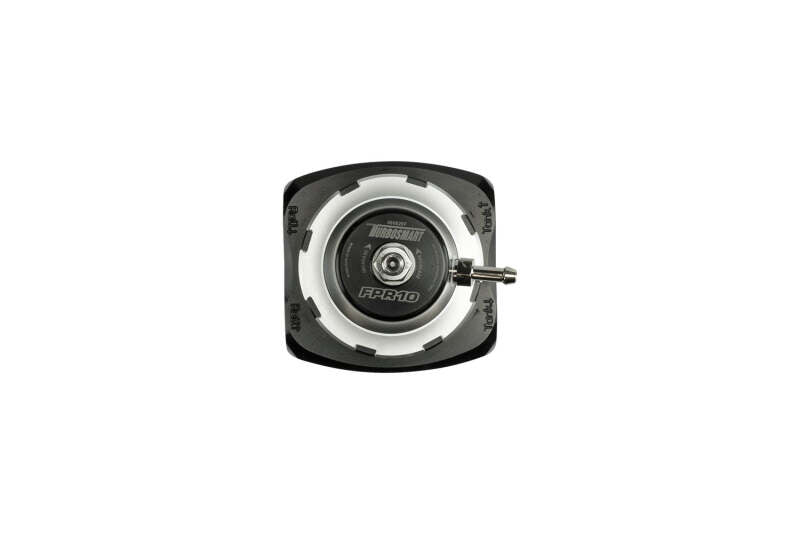

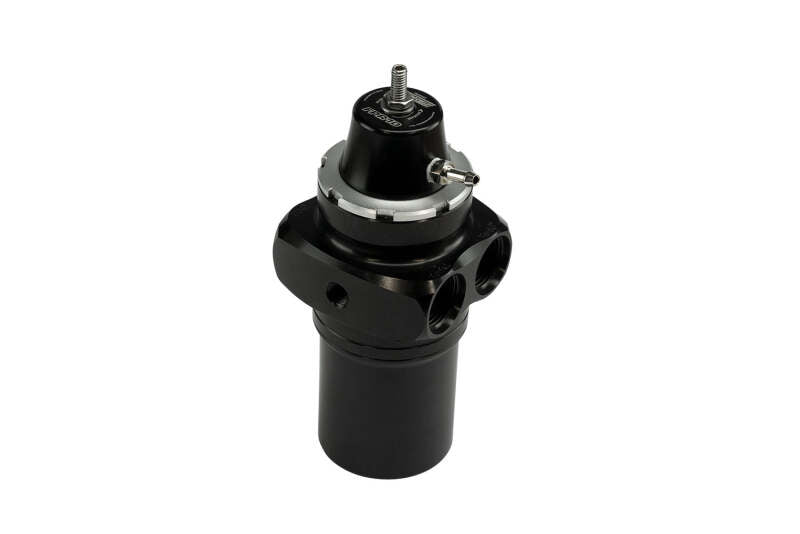

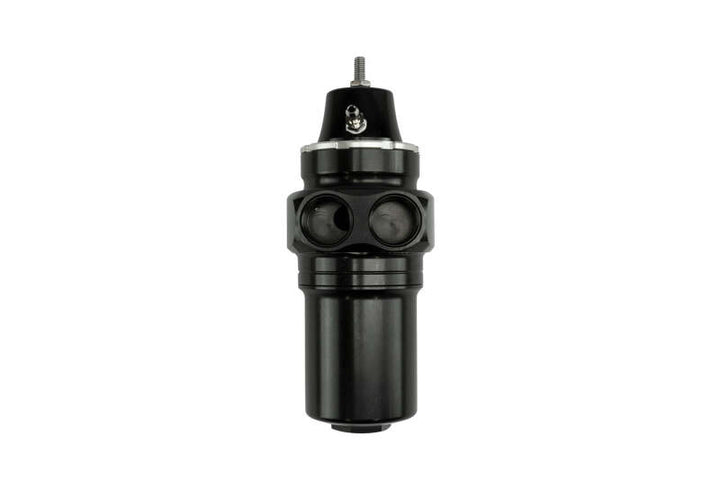

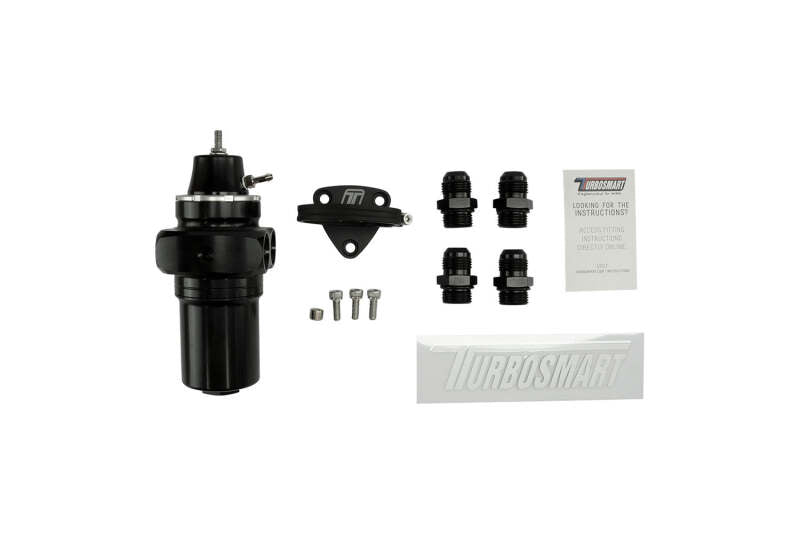

The FPRF puts a Turbosmart fuel pressure regulator and a 10-micron washable stainless steel mesh cartridge filter in a single billet housing, taking a separate filter, its mount and a run of line and fittings out of the fuel system. Base pressure adjusts from 35 psi to 80 psi on a true 1:1 reference ratio, and the unit is rated for fuel systems to 2000 hp, flowing 498 L/h at 35 psi and 1156 L/h at 80 psi. Construction is 6262-T6 anodized aluminium with a stainless steel valve and seat, 17-7 stainless springs, a proprietary Milspec diaphragm and Viton elastomers, so it handles pump gas, E85, race fuel and aggressive leaded fuels from -30°C to 200°C. The -10AN FPRF10 is aimed at ultra-high-flow motorsport and extreme horsepower builds, and the cartridge is washed and refitted rather than replaced.
| Type | Adjustable billet fuel pressure regulator with integrated 10 micron filter (FPRF Series) |
| Port Size | -10AN |
| Base Pressure | Adjustable, 35 psi to 80 psi |
| Boost Reference | True 1:1 ratio |
| Filter Element | 10 micron washable stainless steel mesh cartridge |
| Rated Flow | 498 L/h at 35 psi, 1156 L/h at 80 psi |
| Horsepower Rating | Up to 2000 hp |
| Body Material | 6262-T6 anodized aluminium |
| Valve & Seat | Stainless steel |
| Diaphragm | Proprietary Milspec |
| Springs | 17-7 stainless steel |
| Elastomers | Viton |
| Signal Ports | 2 x 1/16 NPT |
| Gauge Port | 1/8 NPT |
| Operating Temperature | -30°C to 200°C |
| Finish | Black |
| Part Number | TS-0404-1542 |
Documents: Installation Instructions | Data Sheet (PDF)
