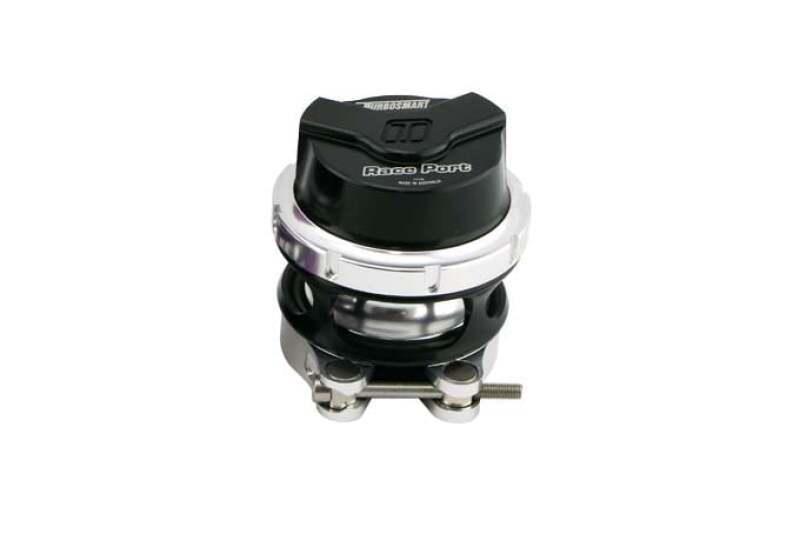

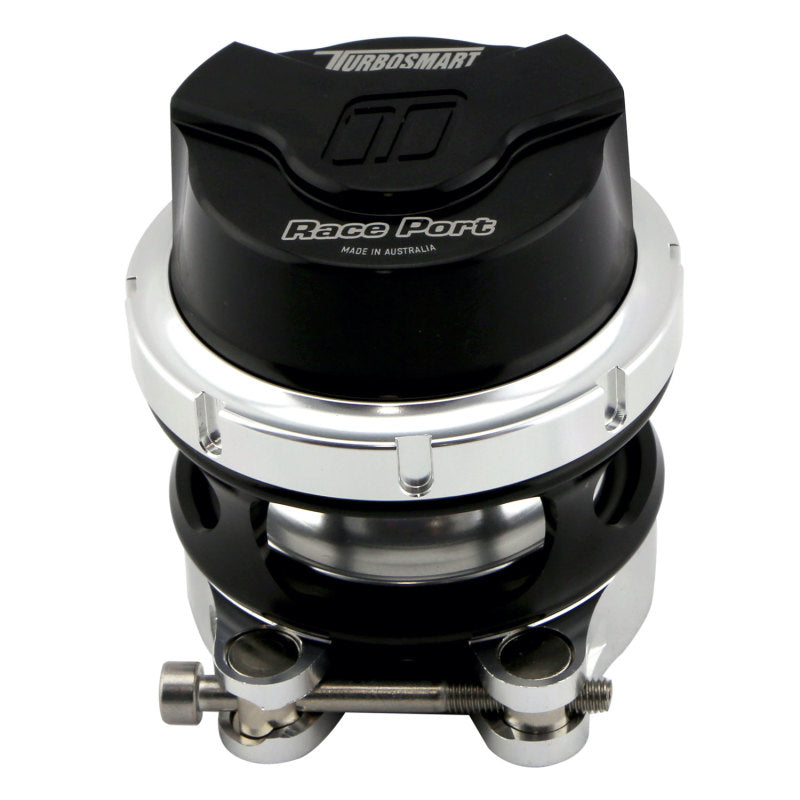

The Turbosmart GenV RacePort Female is a compact, lightweight blow-off valve for turbocharged competition engines, built with a female flange system that mounts to a matching weld-on flange for a clean, low-profile fit. Its billet 6000-series aluminum body and CFD-optimized internals make it 50 percent lighter and 25 percent smaller than comparable valves, while the 2.0 inch/50mm inlet flows over 330 CFM. A hi-temp silicon Nomex diaphragm, MILSPEC hard-anodized valve guide and stem, and Boost Balance Technology deliver a positive seal under sustained boost.
| Type | Atmospheric blow-off valve (RacePort GenV) |
| Flange | Female flange system |
| Inlet | 2.0 in / 50mm |
| Flow | Over 330 CFM |
| Body | Billet 6000-series aluminum |
| Diaphragm | Hi-temp silicon Nomex |
| Valve Guide & Stem | MILSPEC hard-anodized |
| Technology | Boost Balance Technology |
| Reference Ports | Twin 1/8" NPT |
| Collar | Quick-release aluminum V-band |
| Position Sensor | Optional upgrade |
| Color | Black |
| Part Number | TS-0204-1142 |
Documents: Installation Instructions (PDF)
