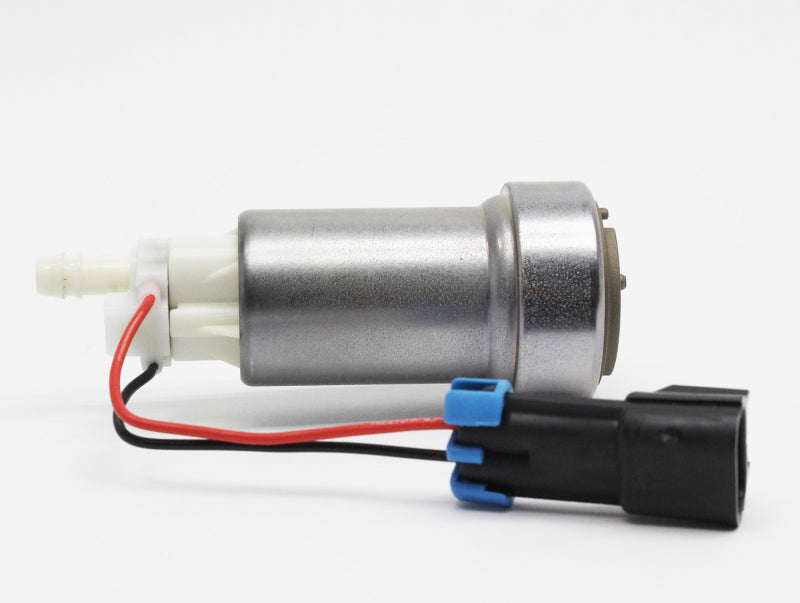

The Walbro (TI Automotive) F90000295 is the highest-flow in-tank brushed fuel pump in the TI Automotive lineup, flowing 535 LPH and supporting 900+ horsepower on E85 or gasoline. It is a universal in-tank pump built with DCSS technology and no internal check valve, making it well suited to forced-induction and racing builds that need to build fuel pressure prior to start-up. PWM-compatible and rated to 7.9 bar for supercharger and turbo applications.
| Type | Universal in-tank brushed fuel pump (Walbro / TI Automotive 535 LPH) |
| Flow Rate | 535 LPH @ 40 psi (456 LPH @ 44 psi, 336 LPH @ 73 psi) |
| Fuel | Gasoline and E85 ethanol compatible |
| Power Support | Supports 900+ HP |
| Check Valve | None (ideal for racing / pre-start pressure build) |
| Compatibility | PWM-compatible; max pressure 7.9 bar |

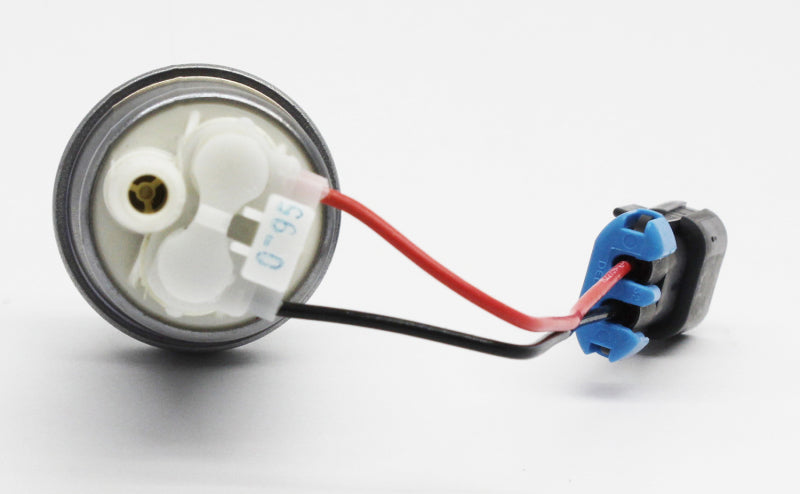

| Dimensions | 131mm length, 39mm main housing / 50mm lower housing; 11mm OD inlet & outlet |
