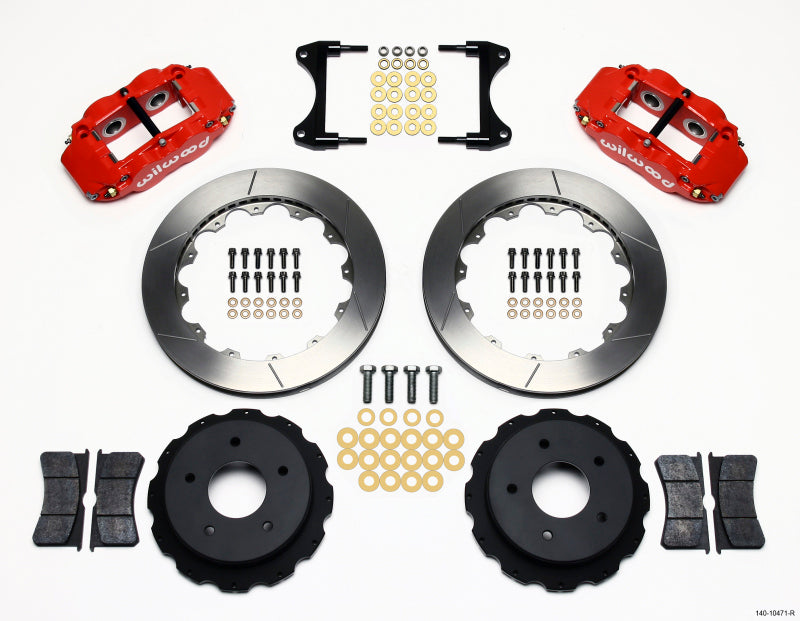

Wilwood Forged Narrow Superlite 4R 12.88in Red Rear Big Brake Kit - Chevrolet Corvette C3 1970-1982

The Wilwood Forged Narrow Superlite 4R rear big brake kit pairs forged billet aluminum four-piston calipers with 12.88 inch vented rotors and BP-10 street performance pads. It retains full use of the OE parking brake, master cylinder output, and ABS where equipped, making it a complementary rear upgrade for 13 inch and larger front brake systems. Optional drilled rotor faces and caliper finishes let builders match style and performance.

Specifications

Type	Rear big brake kit (Forged Narrow Superlite 4R)
Caliper	Forged billet aluminum Narrow Superlite 4R
Pistons	4
Rotor Diameter	12.88 in
Rotor Style	Vented, plain face
Pad Compound	Wilwood BP-10 street performance
Position	Rear
Finish	Red
Parking Brake	Retains OE parking brake
Part Number	140-10471-R

This part fits:

Year	Make	Model	Submodel
1970,1977-1982	Chevrolet	Corvette	Base
1982	Chevrolet	Corvette	Collector's Edition
1978	Chevrolet	Corvette	Indianapolis 500 Pace Car
1978	Chevrolet	Corvette	Silver Anniversary Edition
1975-1976	Chevrolet	Corvette	Stingray
