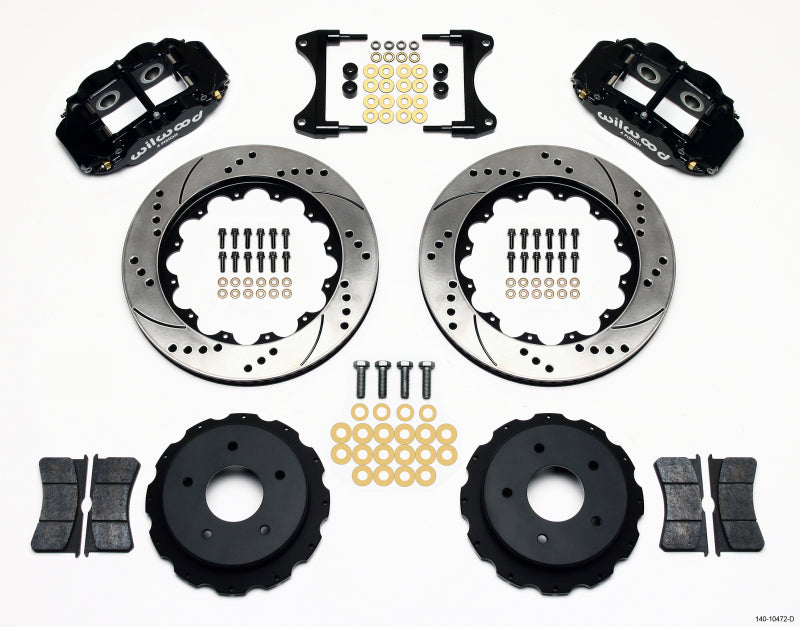

Forged Narrow Superlite 4R calipers run two 1.38 in stainless pistons per side for 3.00 sq in of piston area, clamping BP-10 pads on 14.00 in by 1.10 in Spec-37 iron rotors with a GT 72 curved vane core. An SRP drilled and slotted face vents gas and pad dust from the contact patch. A cast iron parking brake hat keeps the OE parking brake, master cylinder output, and ABS working. Calipers, rotors, hats, brackets, and hardware ship in the box with calipers in black powder coat, and an 18 in or larger wheel is required.
| Type | Forged Narrow Superlite 4R big brake kit |
| Position | Rear |
| Caliper | Forged Narrow Superlite 4R, 4 piston, two 1.38 in stainless bores per side, 3.00 sq in piston area, forged aluminum, radial mount |
| Rotor Diameter | 14.00 in |
| Rotor Construction | 1.10 in wide vented, Spec-37 iron, GT 72 curved vane, black electro coat |
| Rotor Face | SRP Drilled & Slotted |
| Pad Compound | BP-10 |
| Hat | Cast iron parking brake hat |
| Finish | Black Powder Coat |
| Wheel Clearance | 18 in minimum wheel diameter |
| Includes | Calipers, rotors, parking brake hats, mounting brackets, o-ring kit, bridge bolts, wear plates, bleed screws, hat bolts |
| Quantity | 1 kit (both rear wheels) |
| Part Number | 140-10472-D |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970,1977-1982 | Chevrolet | Corvette | Base |
| 1982 | Chevrolet | Corvette | Collector's Edition |
| 1978 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1978 | Chevrolet | Corvette | Silver Anniversary Edition |
| 1975-1976 | Chevrolet | Corvette | Stingray |
