Wilwood Narrow Superlite 6R Drilled Front Hub & One-Piece Rotor Big Brake Kit 12.88in - Ford / Mercury Full Size 1960-1968

Wilwood SKU: WIL140-13654-D
Price
11% OFF
In Stock – Ready to Ship
Shipping calculated at checkout.

Narrow Superlite 6R billet calipers run six pistons in 1.62 in, 1.12 in, and 1.12 in bores for 4.04 sq in of piston area, clamping BP-10 pads on 12.88 in by 1.10 in iron rotors with an SRP drilled and slotted face. Disc and hat are cast as one piece over a 32 straight vane core, cutting cost and part count against a separate rotor and aluminum hat, and the rotor bolts to forged aluminum hub 270-13636. Calipers, rotors, hubs, brackets, and hardware are included in black powder coat, and the kit needs a factory drum spindle and a 17 in or larger wheel.

Specifications

Type Forged Narrow Superlite 6R big brake kit (hub and one-piece rotor)
Position Front
Caliper Forged Narrow Superlite 6R, 6 piston, 1.62 in / 1.12 in / 1.12 in bores, 4.04 sq in piston area, forged billet aluminum, radial mount
Rotor Diameter 12.88 in
Rotor Construction 1.10 in wide vented one-piece iron rotor with integral hat, 32 straight vane, black electro coat
Rotor Face SRP Drilled & Slotted
Pad Compound BP-10
Hub Forged aluminum hat mount 270-13636, dual drilled 5x4.50 and 5x4.75
Spindle Factory drum spindle
Finish Black Powder Coat
Wheel Clearance 17 in minimum wheel diameter

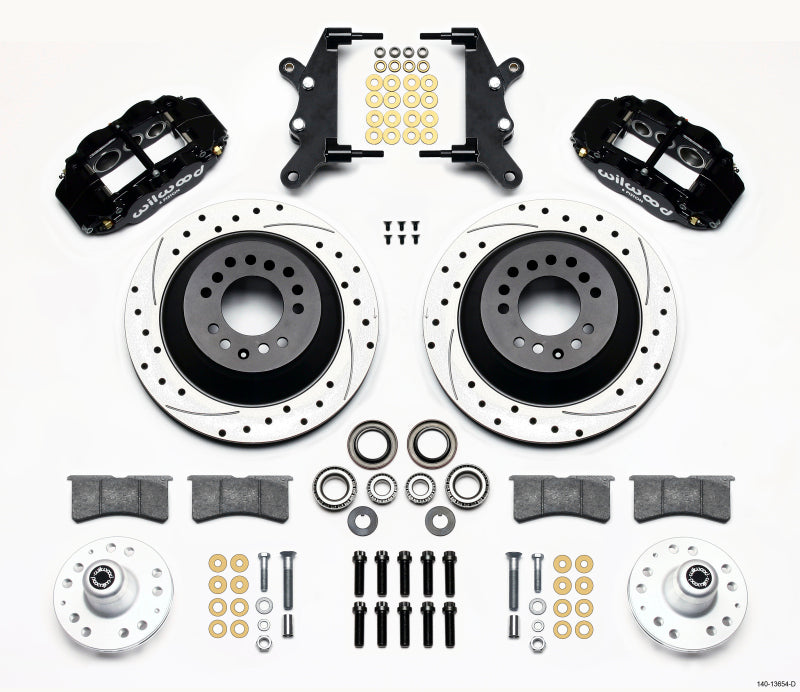

Includes Calipers, one-piece rotors, hub assemblies, mounting brackets, hardware
Quantity 1 kit (both front wheels)
Part Number 140-13654-D

This part fits:

Year Make Model Submodel
1964-1968 Ford Country Squire Base
1964-1968 Ford Custom 500 Base
1965-1968 Ford LTD Base
1967 Mercury Brougham Base
1964-1968 Mercury Colony Park Base
1966 Mercury Marauder Base
1967-1968 Mercury Marquis Base
