Wilwood Narrow Superlite 6R Slotted Front Hub Big Brake Kit 12.88in - Chevrolet Camaro / Pontiac Firebird 1982-1992

Wilwood Narrow Superlite 6R Slotted Front Hub Big Brake Kit 12.88in - Chevrolet Camaro / Pontiac Firebird 1982-1992

Wilwood SKU: WIL140-15278
Price
11% OFF
In Stock – Ready to Ship
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

Narrow Superlite 6R billet calipers use six pistons in 1.62 in, 1.12 in, and 1.12 in bores for 4.04 sq in of piston area, clamping BP-10 pads on 12.88 in by 1.10 in Spec-37 iron rotors with a GT 48 curved vane core and a GT slotted face. The kit bolts to both standard OEM single piston and 1LE dual piston caliper spindles, and its forged aluminum hub adds 0.25 in of outboard offset on a 5x4.75 bolt circle. Calipers, rotors, hats, hubs, a stainless flexline kit, and hardware ship in black powder coat, and 17 in wheels are the minimum.

Specifications

Type Forged Narrow Superlite 6R big brake kit (hub)
Position Front
Caliper Forged Narrow Superlite 6R, 6 piston, 1.62 in / 1.12 in / 1.12 in bores, 4.04 sq in piston area, forged billet aluminum, radial mount
Rotor Diameter 12.88 in
Rotor Construction 1.10 in wide vented, Spec-37 iron, GT 48 curved vane, black electro coat
Rotor Face GT Slotted
Pad Compound BP-10
Hub Forged aluminum hat mount, 5x4.75 bolt circle, 0.25 in outboard offset
Spindle OEM single piston caliper spindle or 1LE dual piston caliper spindle
Finish Black Powder Coat
Wheel Clearance 17 in minimum wheel diameter

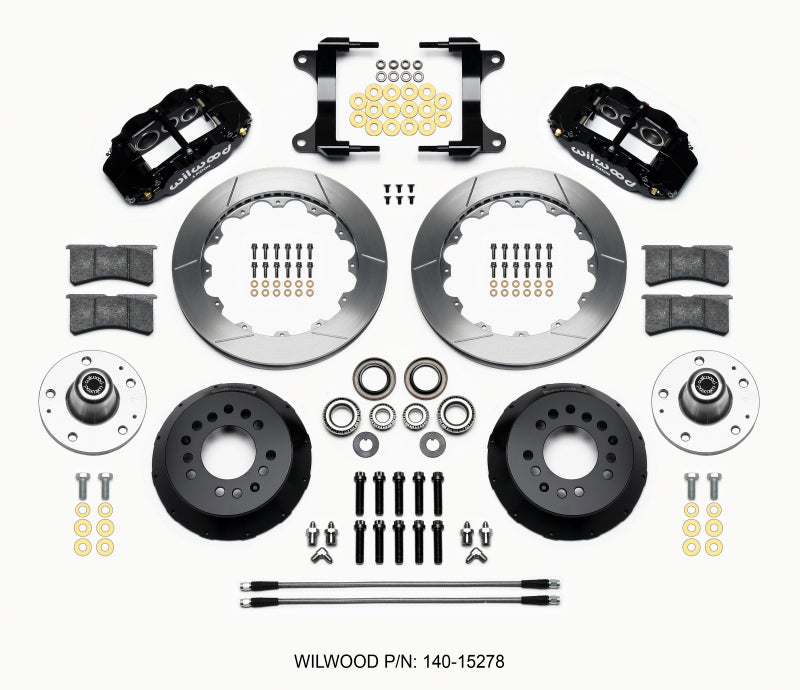

Includes Calipers, rotors, aluminum hats, hub assemblies, stainless flexline kit 220-6856, mounting brackets, hardware
Quantity 1 kit (both front wheels)
Part Number 140-15278

This part fits:

Year Make Model Submodel
1988 Chevrolet Camaro Base
1982-1986 Chevrolet Camaro Berlinetta
1985-1990 Chevrolet Camaro Iroc-Z
1987 Chevrolet Camaro LT
1989-1992 Chevrolet Camaro RS
1992 Chevrolet Camaro RS Heritage Edition
1982-1987 Chevrolet Camaro Sport
1982-1987,1991-1992 Chevrolet Camaro Z28
1992 Chevrolet Camaro Z28 Heritage Edition
1982 Chevrolet Camaro Z28 Indianapolis 500 Pace Car
1982-1992 Pontiac Firebird Base
1989-1992 Pontiac Firebird Formula
1982-1986 Pontiac Firebird S/E
1982-1992 Pontiac Firebird Trans Am
1989-1992 Pontiac Firebird Trans Am GTA
1989 Pontiac Firebird Trans Am GTA SE
