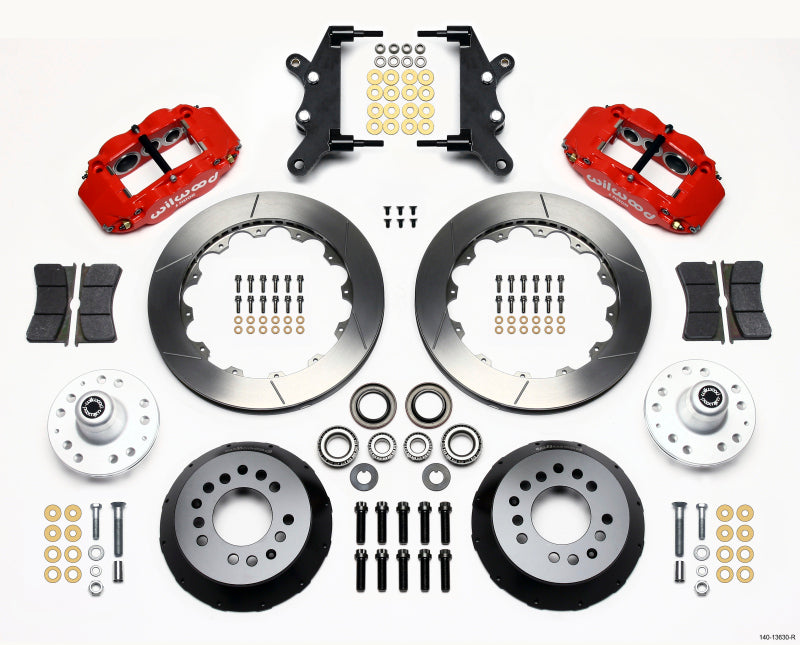

Narrow Superlite 6R billet calipers run six pistons in 1.62 in, 1.12 in, and 1.12 in bores for 4.04 sq in of piston area, clamping BP-10 pads on 12.88 in by 1.10 in Spec-37 iron rotors with a GT 48 curved vane core and a GT slotted face. The two piece rotor bolts to an aluminum hat on a forged aluminum hub dual drilled 5x4.50 and 5x4.75. Calipers, rotors, hats, hubs, brackets, and hardware are included in red powder coat, and the kit mounts to the factory drum spindle inside a 17 in or larger wheel.
| Type | Forged Narrow Superlite 6R big brake kit (hub) |
| Position | Front |
| Caliper | Forged Narrow Superlite 6R, 6 piston, 1.62 in / 1.12 in / 1.12 in bores, 4.04 sq in piston area, forged billet aluminum, radial mount |
| Rotor Diameter | 12.88 in |
| Rotor Construction | 1.10 in wide vented, Spec-37 iron, GT 48 curved vane, black electro coat, two piece with aluminum hat |
| Rotor Face | GT Slotted |
| Pad Compound | BP-10 |
| Hub | Forged aluminum hat mount, dual drilled 5x4.50 and 5x4.75, 0.03 in outboard offset |
| Spindle | Factory drum spindle |
| Finish | Red Powder Coat |
| Wheel Clearance | 17 in minimum wheel diameter |
| Includes | Calipers, rotors, aluminum hats, hub assemblies, mounting brackets, hardware |
| Quantity | 1 kit (both front wheels) |
| Part Number | 140-13630-R |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1964-1968 | Ford | Country Squire | Base |
| 1964-1968 | Ford | Custom 500 | Base |
| 1965-1968 | Ford | LTD | Base |
| 1967 | Mercury | Brougham | Base |
| 1964-1968 | Mercury | Colony Park | Base |
| 1966 | Mercury | Marauder | Base |
| 1967-1968 | Mercury | Marquis | Base |
