BMW Carbon Buildup: Why Every DI Engine Gets It and How to Fight Back

A 2009 335xi owner on E90Post pulled his intake manifold at about 45,000 miles and found sludge about 4 mm thick in the cylinder 5 intake port. The car had no codes. It just felt slower than it did new, and after walnut blasting he said it felt like it got 40 hp back. That is intake valve carbon buildup on a direct injection BMW: quiet, slow, and easy to blame on something else.

This guide covers why BMW carbon buildup happens on the N54, N55, N20, B58, S55 and S58, the symptoms in order, what walnut blasting costs owners, and what catch cans and cleaners really do. It also weighs the evidence that the B58 suffers less than the N54.

Facts come from BMW service bulletins filed with NHTSA, the makers' own product pages, our own product listings, and owner threads on E90Post, F30Post, Bimmerfest, SpoolStreet and SupraMKV.

Shop Oil Catch Cans

The Short Answer

Every direct injection BMW engine builds carbon on its intake valves because fuel never washes them and crankcase oil vapor bakes onto them. The N54 is worst; BMW issued a bulletin for it. Walnut blasting removes existing carbon, and owners report paying about $400 to $1,000. A baffled catch can slows new buildup but does not stop it. Fuel additives cannot reach the valves at all.

Why Direct Injection BMW Engines Get Carbon Buildup

Direct injection BMW engines get carbon buildup because the injector sprays fuel straight into the cylinder, so nothing ever rinses the backs of the intake valves. On a port injected engine, fuel sprayed onto the valve kept it clean. On an N54 or B58, the valve only sees air and whatever else is in the intake.

The "whatever else" is oil vapor. Combustion pressure leaks past the piston rings into the crankcase (blow-by), and emissions rules require the engine to burn those fumes instead of venting them. BMW's crankcase ventilation system, called CCV or PCV depending on the engine, separates most of the oil and sends the rest into the intake. That oily mist lands on intake valves running several hundred degrees Fahrenheit, and it cooks into a hard crust one layer at a time.

On the N54 the vapor has two exits. At idle and cruise, manifold vacuum pulls it through the valve cover into the intake manifold. Under boost, it goes through a hose to the turbo inlets instead. That split matters when you buy a catch can, because a single can on one path only sees part of the flow.

BMW has put this in writing. Its Service Information bulletin SI B12 02 12 says drivability complaints and misfires on N54 cars from the E82 135i to the E71 X6 "may be attributed to the formation of intake valve and port carbon deposits." The fix it gives dealers is the BMW Group Carbon Blaster tool.

Tuning adds to it, since more cylinder pressure means more blow-by. Short trips add to it too, because the engine rarely gets hot long enough to burn off fresh deposits.

The Symptoms of BMW Carbon Buildup, in Order

The first symptom of BMW carbon buildup is almost always a rough cold start that smooths out once the engine warms. The usual order owners describe:

• Rough cold idle. The first 30 to 60 seconds shake more than they used to.
• Cold start misfire codes. A stored misfire on one or two cylinders that never repeats warm.
• Softer power. Hesitation and a car that feels lazier, often noticed only after a cleaning.
• Fuel trims and economy drift. Small changes, easy to miss without logging.
• Warm misfires and a check engine light. By this point the deposits are heavy.

There is a catch on the N54. BMW bulletin SI B13 04 09 describes the same cold start rough running with misfire faults, and blames leaking high pressure injectors, not carbon. The tell in that bulletin is spark plugs "soaked" with fuel on the misfiring cylinders, and the fix is new injectors (part 13 53 8 616 079, index 11 or higher). Pull the plugs before you book a blast.

Mileage varies wildly. An F30Post owner called the buildup on his 2013 F30 335i (N55) "crazy" at about 35,000 miles, while another owner blasting an N55 at about 130,000 miles said it "wasn't that bad."

Which BMW Engines Get It Worst

The N54 has the most documented carbon buildup of any BMW engine, and the B58 has the least owner evidence of a problem so far. Here is what we found per engine, with the direct-fit catch cans we carry and their prices, which vary by dealer.

Does the B58 Really Get Less Carbon?

Owner reports suggest the B58 builds less carbon than the N54, but the evidence is thin and not unanimous. On F30Post, a tuned 340i owner running E98 and methanol found "just vapor" in his catch can after 12,000 miles, and a Stage 3 340i owner said his can was always empty apart from a drop or two. A well known B58 tuner added, secondhand, that a performance shop owner who replaced his B58 intake manifold at roughly 60,000 to 80,000 miles posted valves that were "basically spotless."

The other side is real. A Bimmerfest owner who borescoped his 2018 540i xDrive at 23,000 miles posted photos of carbon on one intake valve in every cylinder. On SupraMKV, a 2020 GR Supra owner found oil in his Mishimoto can within 1,000 miles and oil pooled in the turbo inlet pipe. Our read: the B58 is not immune, but we have not seen B58 valves that look like a 60,000 mile N54.

Walnut Blasting: The Fix for Carbon You Already Have

Walnut blasting is the standard fix for baked-on intake valve carbon, and it is the method BMW's own bulletins specify. The intake manifold comes off, the engine is turned so both intake valves on a cylinder are closed, and crushed walnut shell is blasted into the port while a vacuum pulls the media and carbon back out. Shell breaks carbon without marking the valve or head.

BMW's diesel version of the procedure, SI B11 03 14, specifies 0.45 to 0.80 mm walnut shell at 6 to 8 bar. Shops add picks and solvent on the worst ports.

What Owners Report Paying

Owner reports put walnut blasting at roughly $400 to $1,000 at a shop. On E90Post, owners reported quotes of $400 to $600 at independent shops and around $750 to $1,000 at dealers. An E84 X1 35i owner on SpoolStreet paid $800 for his N55. Expect prices near the top of that range, and ask for before and after photos.

Doing it yourself is possible, but the compressor is the hard part. An E92 335i owner on E90Post said his 21 gallon compressor could not keep up, and a rented 14 cfm gas compressor, about $50 a day, did the job.

How Often

The interval N54 shops and owners quote most is every 60,000 to 80,000 miles. One E90Post owner blasts his 2007 335i about every 30,000 miles. Some shop guides quote 50,000 to 70,000 miles for the B58 without showing data; we would inspect a B58 before paying for one on a schedule.

Catch Cans: What They Can and Can't Do

A baffled catch can traps part of the oil in the crankcase vapor before it reaches the intake, which slows carbon buildup but does not stop it. Vapor passes a baffle and a fine filter, drops some oil, and carries on to the intake. You empty the can at service time.

Mishimoto says its N54 kit is "designed and engineered to reduce carbon buildup," and it publishes no figure for how much. It also says to check the can every 1,000 miles until you know your car's rate and to keep the level below the baffle. Every kit we carry routes the air back into the intake, so the crankcase system stays closed the way BMW built it. None of the listings we checked show a CARB Executive Order number, so California owners should check before installing.

The honest owner data:

• It catches oil. A 2009 335xi owner on E90Post drains about 30 mL every 5,000 miles from his can.
• It does not end blasting. That same car still needed a second cleaning about 70,000 miles after the first, with cylinders 5 and 6 taking three hours by hand.
• One can covers one path. An N54 owner who blasted at 140,000 miles noted his single can "only functions when in boost," and recommends a dual setup.
• B58 cans often stay dry. That is not a failed part. It usually means the engine is not pushing much oil past its own separator.

For the N54, the Mishimoto N54 CCV side catch can kit at $223.95 is the least expensive direct-fit option we carry. For a tuned or tracked A90, the Mishimoto GR Supra B58 catch can kit at $259.95 sits on the CCV line, and we also carry Radium's dual PCV plus CCV kit at $484.45 for owners who want both paths covered. We are an authorized dealer for every brand we carry, and in stock hardware ships fast.

Fuel Additives, Throttle Body Cleaner and Intake Sprays: What Each One Cleans

A fuel additive cannot clean the intake valves on a direct injection BMW, because the fuel enters the cylinder after the intake valve. Here is what each product type actually reaches:

Fuel additives still have a job. Our listing for Liqui Moly Valve Clean ($102.35 for twelve 150 mL bottles) describes cleaning intake valves, injectors and the combustion chamber; on a direct injection engine, only the injector and chamber part applies.

Throttle body cleaner, such as Liqui Moly Pro-Line Throttle Valve Cleaner ($110.71 for six 400 mL cans), is for the throttle plate and for degreasing the manifold while it is off for a blast.

Induction sprays are the only chemicals that reach the valves. CRC's own testing claims a 23% cut in intake valve deposits on a 2013 MINI Cooper after the first hour, and "up to 46%" as a headline. A partial cut like that can help a lightly coated engine between cleanings. It will not clear a 4 mm crust.

What Owners Actually Say

Paraphrased from E90Post, SpoolStreet and Bimmerfest, with the car and the outcome:

2009 335xi, N54, about 45,000 miles. No codes, just a slower car. With the intake off, cylinders 4, 5 and 6 were the worst, and cylinder 5 had sludge about 4 mm thick. He blasted, soaked and scrubbed each cylinder about three times with a budget blaster kit, and his seat of the pants verdict afterward was that it felt like 40 hp came back. No dyno to confirm it.

• 2008 E92 335i, 62,000 miles, dealer blast (E90Post). Rough cold idle diagnosed as valve carbon. After the blast it was smoother, but the idle still shook every two to three seconds, so the owner began suspecting coils and injectors. Mixed.
• 2015 E84 X1 35i, N55, about 61,000 miles (SpoolStreet). Paid $800. Afterward his idle fuel trim rose from about 10% to 15 to 17%, and a 321C fuel tank vent code appeared; he suspected the purge line was not reconnected. Negative.
• 2018 540i xDrive, B58, 23,000 miles (Bimmerfest). Borescope photos showed carbon on one intake valve per cylinder, the other one dry. Early, but not zero.

Mistakes We See

The most expensive carbon mistake is paying for a walnut blast to fix a misfire that carbon did not cause.

• Blasting before diagnosing. On an N54, a cold start misfire with fuel-soaked plugs points to an injector, per BMW's own bulletin. Swap coils across cylinders and read the plugs first.
• Expecting the tank to fix it. No additive reaches a DI intake valve. Use one for injectors, not for valves.
• Buying an empty can. A can without a baffle and filter lets most of the mist straight through. Buy a direct-fit kit that matches your engine's vent routing.
• Never emptying it. A full can passes oil downstream. Check it every 1,000 miles until you know your rate, then at each oil change.
• Skipping the reassembly check. The X1 owner's vent code shows how easily a purge or vent line gets missed. Ask the shop to clear codes and check trims afterward.

Who This Is For (and Who Should Skip It)

A walnut blast is for N54 and N55 owners past roughly 60,000 miles with the cold start symptoms above and no record of a previous cleaning. A catch can suits those cars after the blast, and tuned cars that see track days.

Skip the blast if your symptoms point to injectors, coils or plugs, or the car was cleaned in the last 30,000 miles. Skip a scheduled blast on a healthy B58 under about 80,000 miles. Skip a catch can if you will never check it.

If It Were Our Car

• N54: blast it if it has never been done and is past 60,000 miles, then fit the Mishimoto CCV side kit and empty it at every oil change. Expect another blast down the road anyway.
• N55, E chassis: ask a shop for photos with the manifold off before committing. If the valves are coated, blast and add the Mishimoto N55 kit.
• B58: no blast on a schedule. Check the valves around 80,000 to 100,000 miles or when cold starts change. Stock car, no can needed; tuned Supra on track, a dual PCV and CCV setup.
• S55 and S58: we did not find enough owner inspection data to commit to an interval. Follow the symptoms and inspect before paying.

What Pairs With Clean Intake Valves

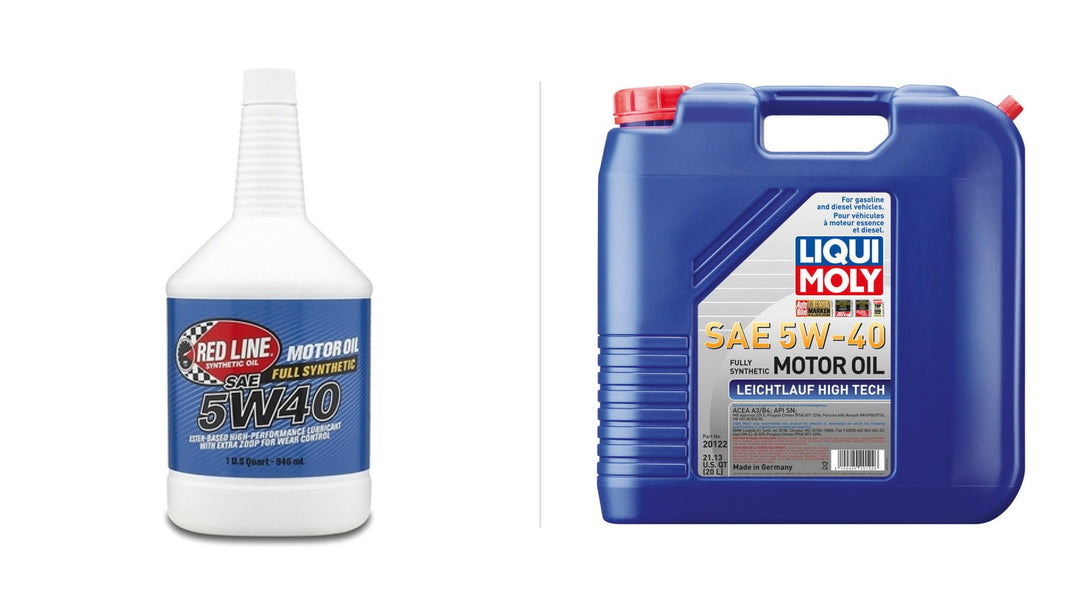

Oil choice and change interval affect how much vapor reaches the intake; our guide to the best oil for a tuned BMW covers all five engines. If you are deciding how far to tune, our B58 Stage 1 vs Stage 2 guide maps the hardware, and the B58 bolt-on build guide covers what to add in what order.

Shop Oil Catch Cans

The Bottom Line

Carbon on the intake valves is built into every direct injection BMW, from the N54 to the S58. The N54 gets it hardest, badly enough that BMW wrote a bulletin and specified a walnut blaster. The B58 looks better in owner reports, but the sample is small and one 540i showed deposits at 23,000 miles. Walnut blasting is the proven fix for carbon that is already there, at roughly $400 to $1,000 by owner reports. A baffled catch can buys time between cleanings, not freedom from them. Diagnose before you blast, and do not expect anything from a bottle in the tank.

Frequently Asked Questions

How do I know if my BMW has carbon buildup?

The usual signs are a rough idle for the first minute after a cold start, cold misfire codes that do not repeat warm, and slowly fading power. The only way to confirm it is to look at the valves with the intake manifold off or with a borescope.

Can fuel additives clean intake valves on a direct injection BMW?

No. On a direct injection engine, fuel enters the cylinder after the intake valve, so nothing in the tank touches the valve. Additives can still help keep injectors and combustion chambers clean.

How much does walnut blasting a BMW cost?

Owners report paying roughly $400 to $1,000 at a shop, with dealers at the top of that range. One N55 owner paid $800, and prices vary by shop and region.

How often does a BMW need walnut blasting?

Most N54 owners clean every 60,000 to 80,000 miles, and some do it as often as every 30,000. Owner reports so far suggest less buildup on the B58, so inspect before cleaning one on a schedule.

Does a catch can stop carbon buildup?

No. A baffled catch can traps part of the oil vapor and slows buildup, but owners with cans still report needing walnut blasting later. Empty it at every oil change.

Does the B58 get carbon buildup?

Yes, but owner reports suggest less than the N54. One 540i owner borescoped visible deposits at 23,000 miles, while two tuned 340i owners report nearly dry catch cans.
