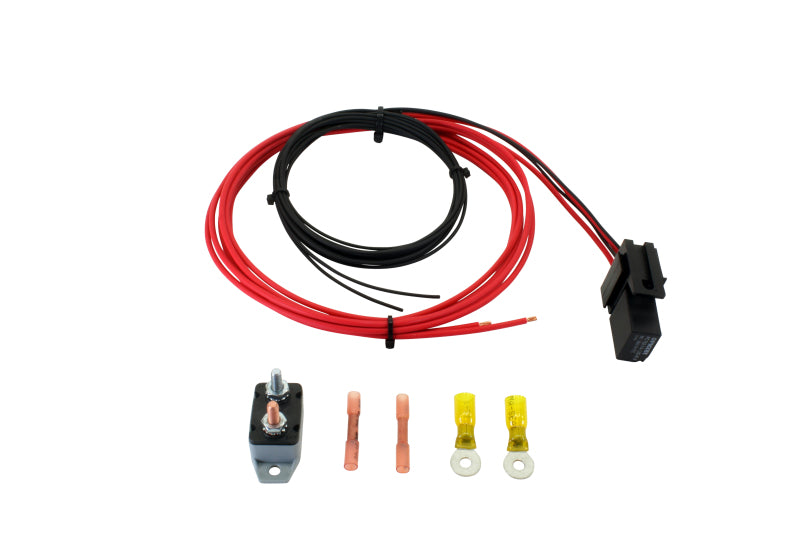

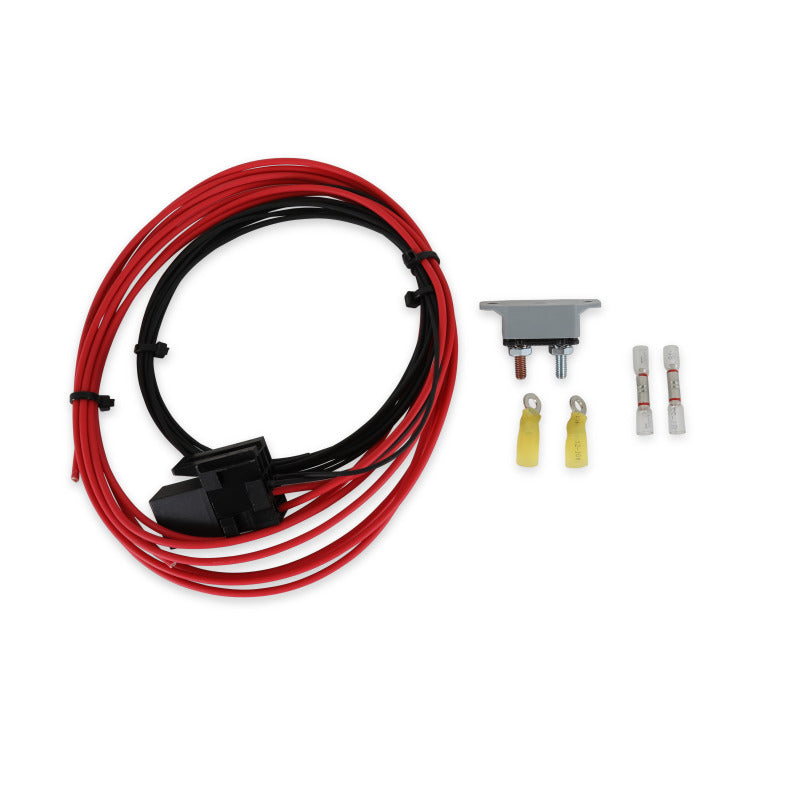

AEM 20 Amp Relay Wiring Kit for Fuel Pump

AEM 20 Amp Relay Wiring Kit for Fuel Pump provides a dedicated high-current power path to the fuel pump, ensuring consistent voltage delivery and stabilizing fuel pressure under loads up to 20A.

By bypassing undersized factory circuits, this kit reduces voltage drop that can cause lean conditions and pressure fluctuation. It routes clean, fused power directly to the pump through a controlled relay, enhancing reliability under sustained demand.

Features & Benefits

• Dedicated high-current supply path: Minimizes voltage loss versus factory wiring for steadier pump performance under load.
• Consistent voltage to the fuel pump: Supports stable fuel pressure delivery, improving fueling accuracy at wide-open throttle and high duty cycles.
• 20A relay control: Provides reliable switching capacity for pumps drawing up to 20 amps, reducing electrical stress on OE circuits.
• Addresses OEM voltage drop: Direct-to-pump routing mitigates common wiring bottlenecks that limit flow and raise current draw.
• Clean, controlled power: Segregates pump power from sensitive control circuits to improve electrical integrity and component longevity.

Technical Specifications

• Maximum supported current: 20A
• Application: Fuel pump relay wiring
• Power routing: Dedicated high-current feed to pump

Compatibility

Universal use for fuel pump circuits requiring a dedicated 20A relay-controlled power feed in performance or OEM-style electrical systems.

Closing

Engineered to maintain stable pump voltage and pressure, this solution enhances fueling reliability for fuel pump installations in both performance and OEM-style applications.
