AEM High Output Smart Inductive Ignition Coil

AEM SKU: AEM30-2853
Price
Regular price $92.95
Regular price $104.95 Sale price $92.95
11% OFF
Out of Stock – Order Now, Ships the Week of Nov 30
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandAEM
SKUAEM30-2853
GTIN / UPC840879021818
Manufacturer Part Number30-2853

Product Information

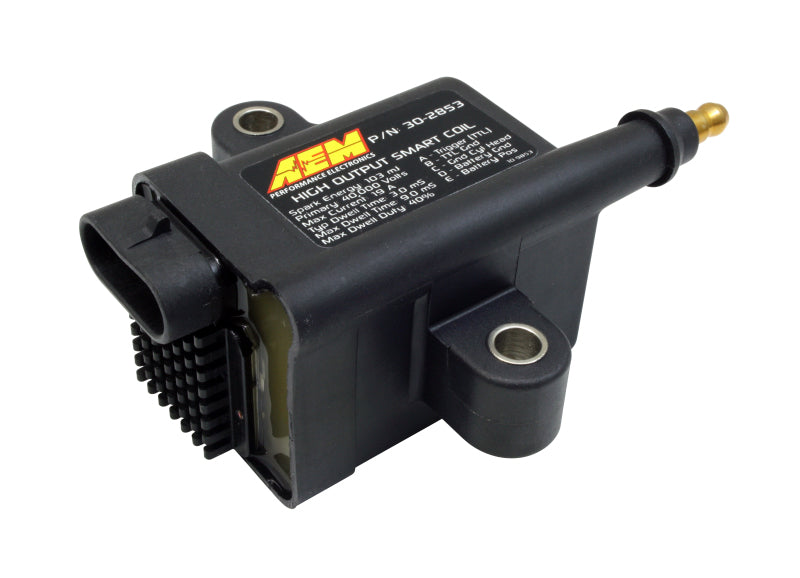

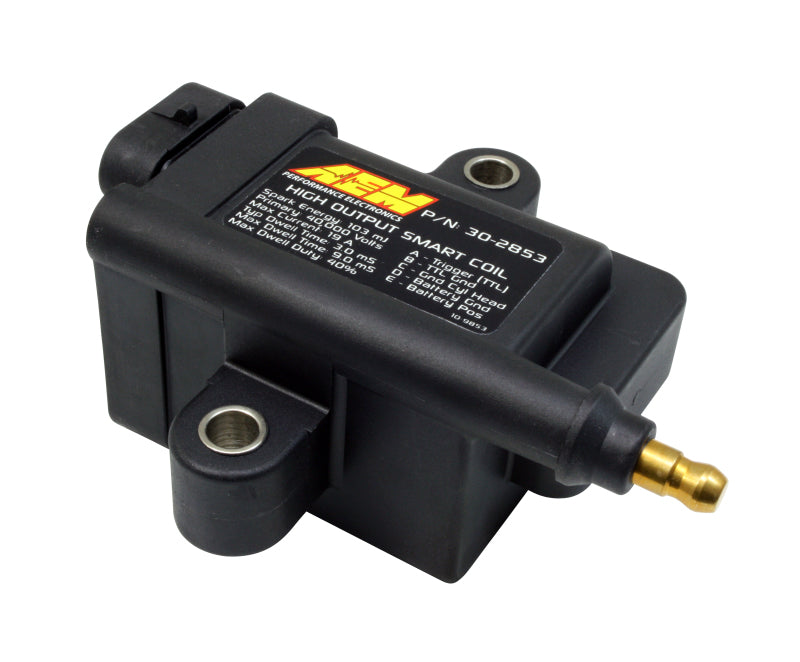

An inductive ignition coil built to give CDI-like spark energy while keeping the long spark of an inductive coil, for boosted, nitrous, high-compression or high-rpm engines. It is rated at 40 kV, 103 mJ of spark energy and a 2.9 ms arc, which is about what most CDI systems deliver, without a CDI box. The igniter (IGBT) is built in, so it fires straight from a 0-5 V ECU trigger and suits cars that have no external igniter.

Specifications

Type High-output inductive ignition coil, smart type with built-in IGBT igniter
Quantity 1

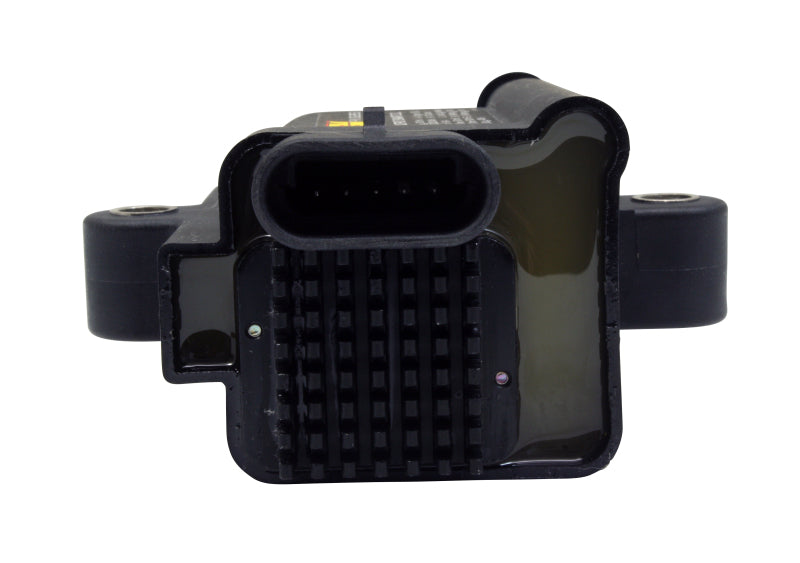

Connector Packard/Delphi 12162825 pull-to-seat 5-terminal mating connector (included); HEI spark plug top style high-tension terminal
What's in the Box
  • High output IGBT coil

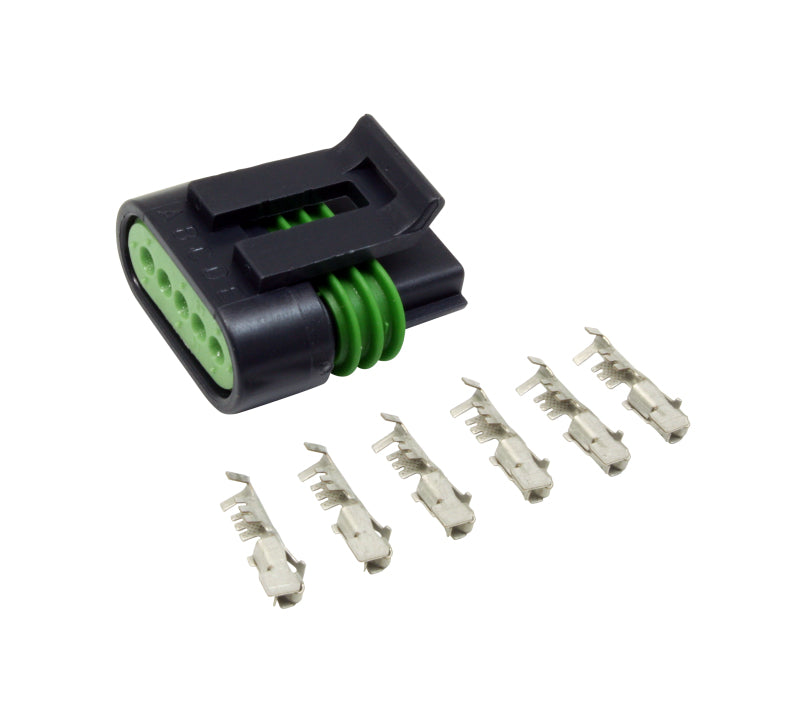

  • Mating connector and 6 contacts
Fitment Notes For coil-near-plug use only; not for distributor ignition systems
Warranty 1 year limited

Documents: Installation Instructions (PDF)

How is the coil wired?

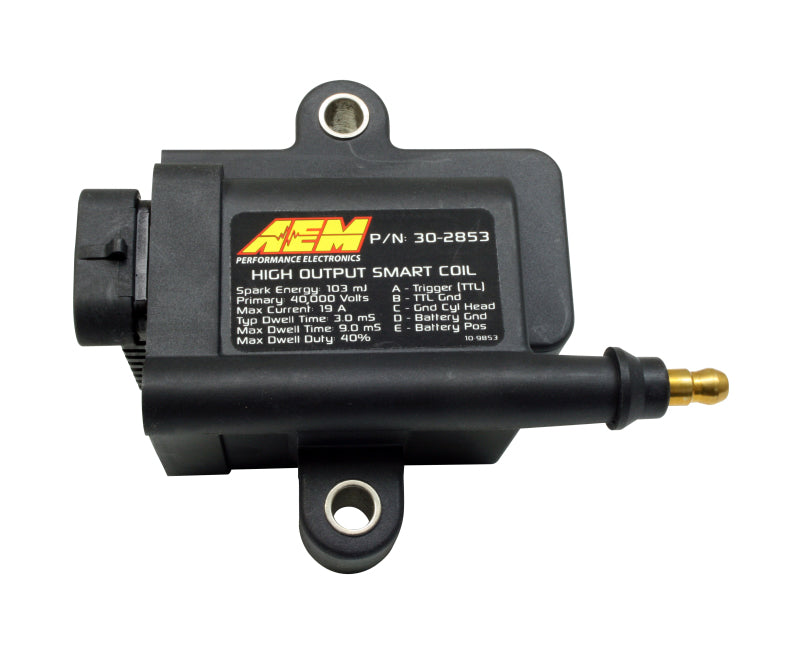

  • Pin A takes the 0-5 V coil trigger and pin B its reference ground. Pin C grounds to the cylinder head, pin D to battery ground, and pin E takes battery positive from a relay or switched ignition.

What dwell and supply limits apply?

  • Base dwell is 3.0 ms. Continuous dwell can go up to 9 ms but should stay under a 40% duty cycle; maximum current is 19 A and maximum battery voltage is 17 V.

Are a coil wire or mounting bracket included?

  • No. The coil wire, mounting bracket and mounting hardware are not included.
