AEM V3 Water/Methanol Injection Kit - Internal MAP 35 PSI, with Reservoir

AEM SKU: AEM30-3300
Price
Regular price $674.95 Sale price $538.95
20% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandAEM
SKUAEM30-3300
GTIN / UPC840879022600
Manufacturer Part Number30-3300

Product Information

A complete water/methanol injection system: it sprays a fine mist into the intake to cool the charge and hold off detonation, so a boosted gasoline engine can safely run more boost and ignition timing. The controller reads boost through its own built-in MAP sensor and raises flow progressively between the start and full-flow points you set on two dials. The reservoir has a built-in low-level sensor that lights the dash LED before the system runs dry; the water/methanol mix itself is not included.

Specifications

Type Water/methanol injection kit, boost-dependent standard controller

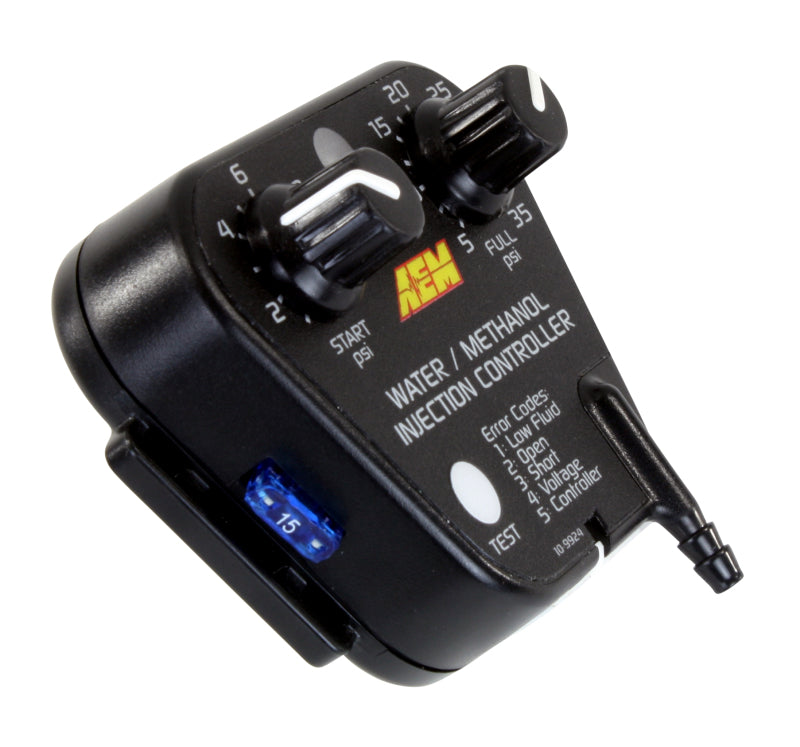

Operation Progressive; internal MAP sensor, 35 PSI max; Start dial 1-11 psi, Full dial 5-35 psi

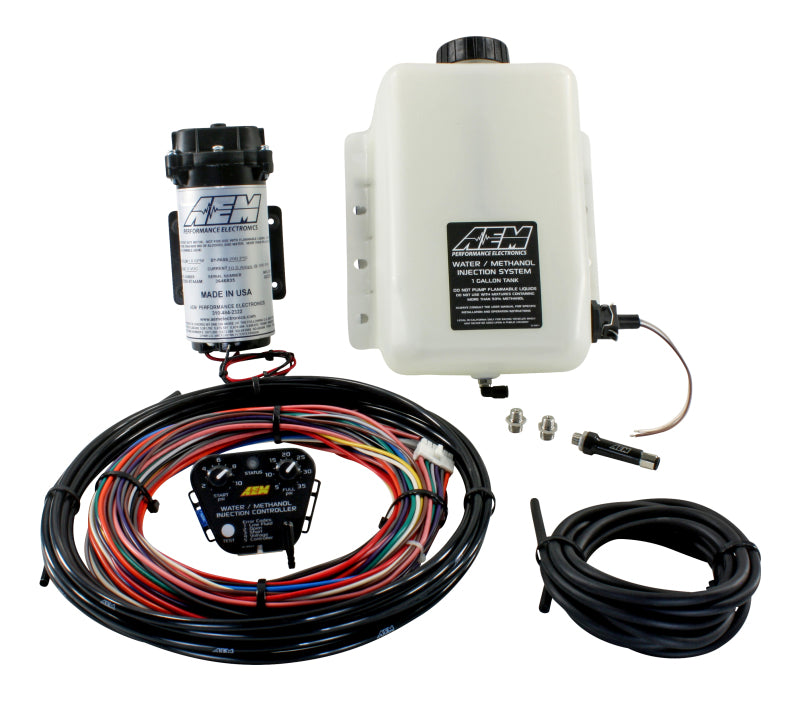

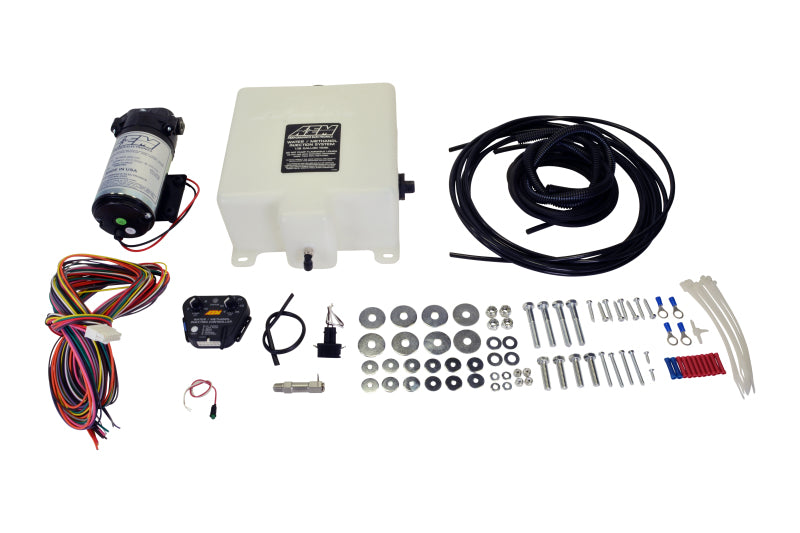

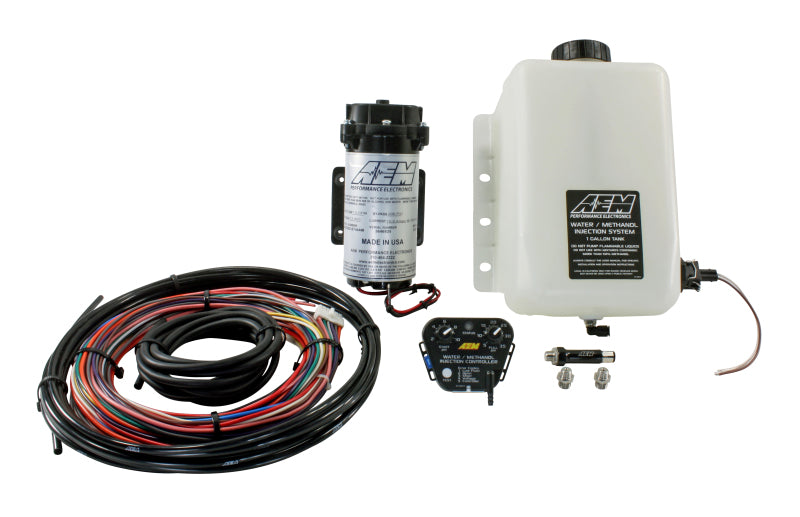

What's in the Box

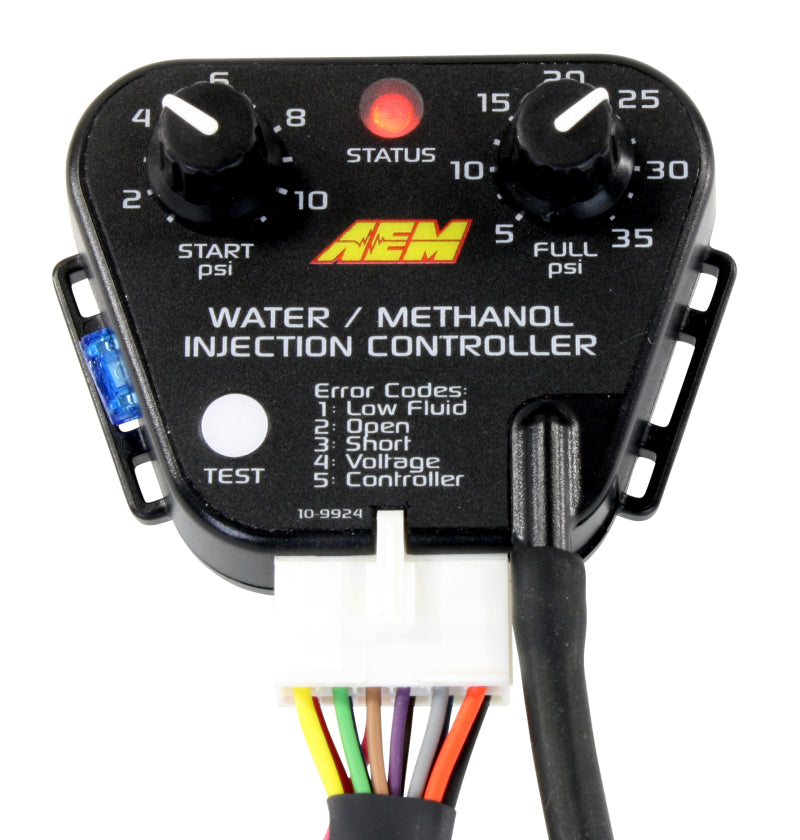

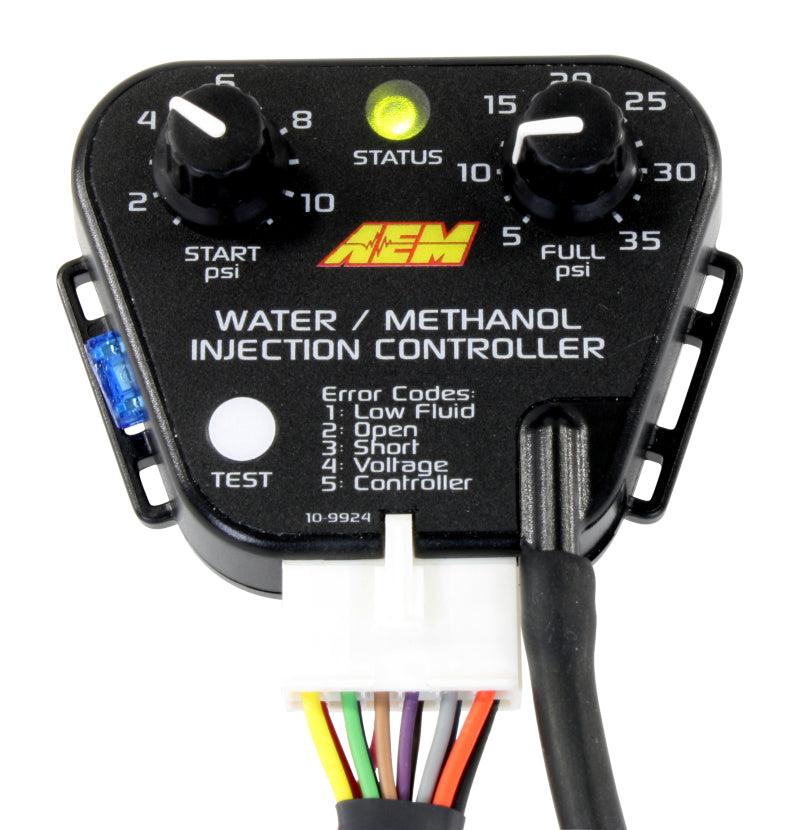

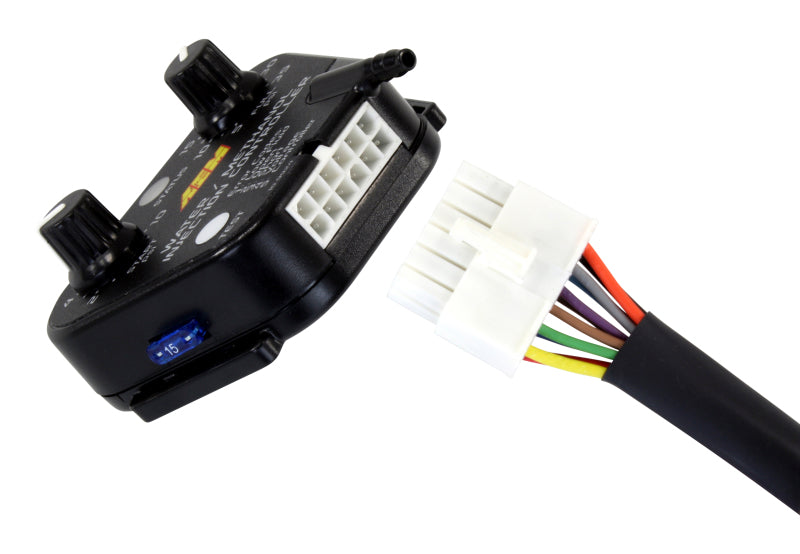

  • Progressive injection controller

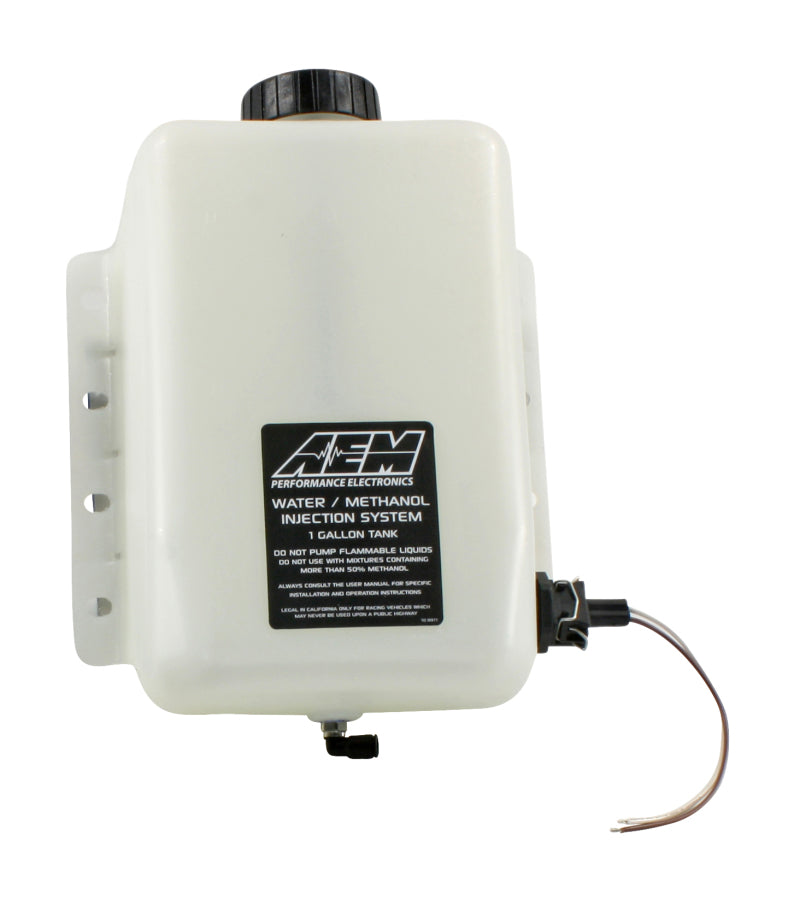

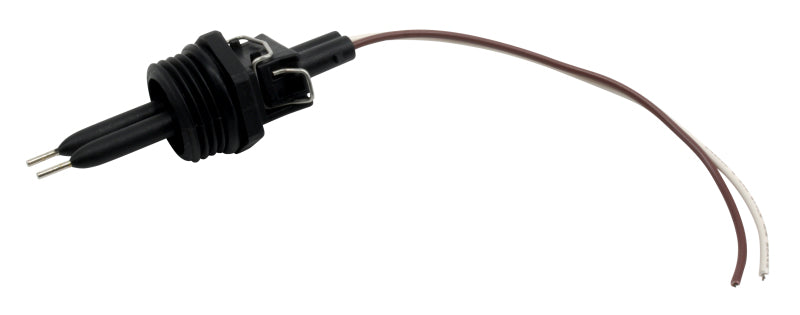

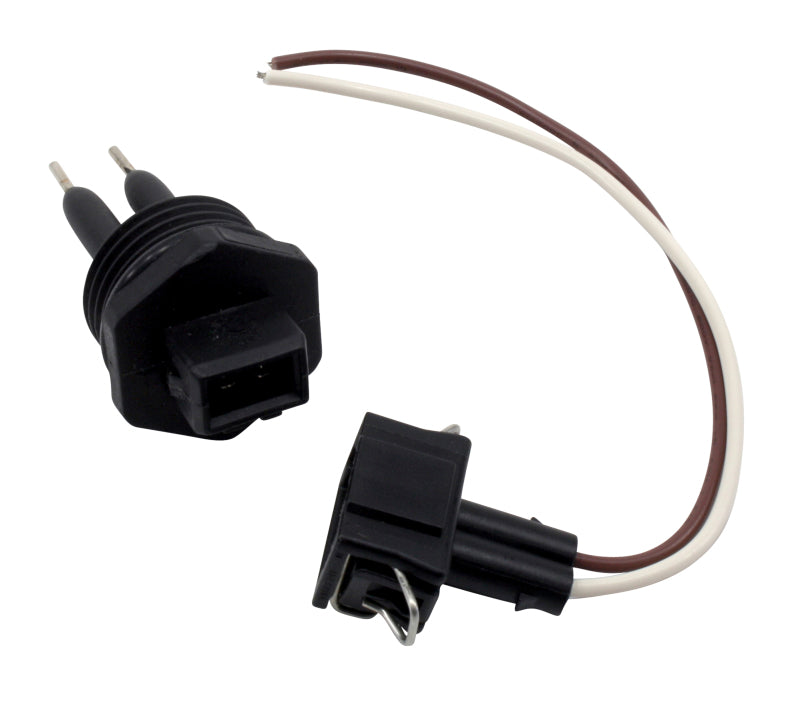

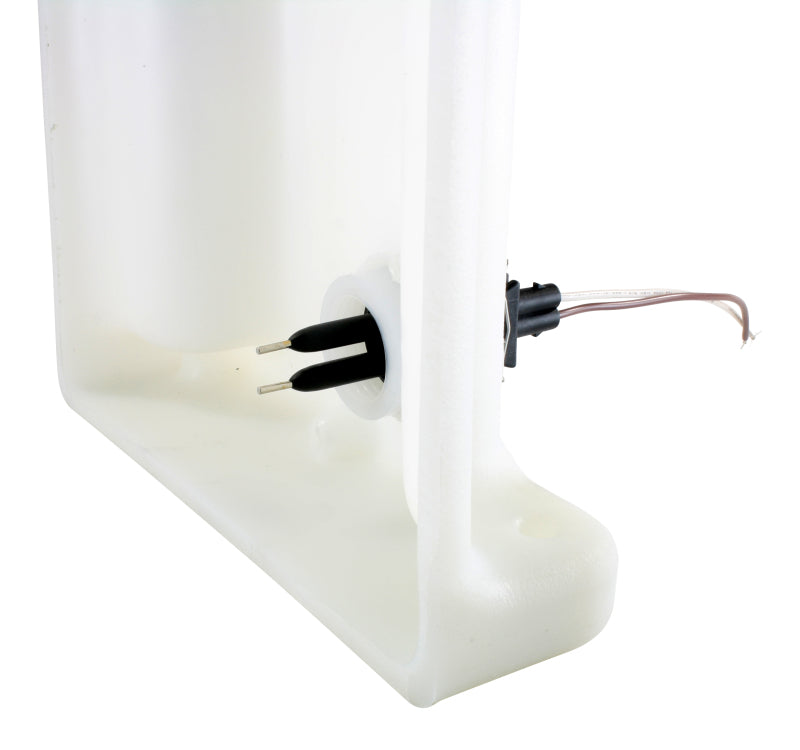

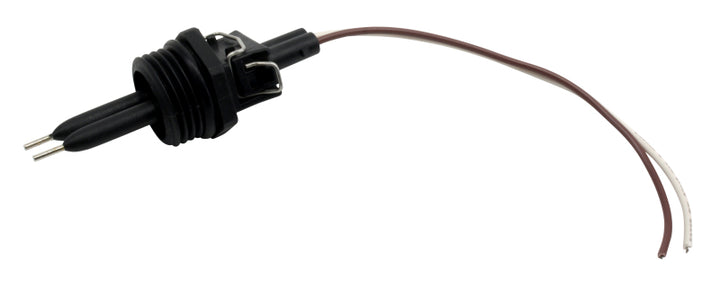

  • Reservoir with built-in fluid level sensor

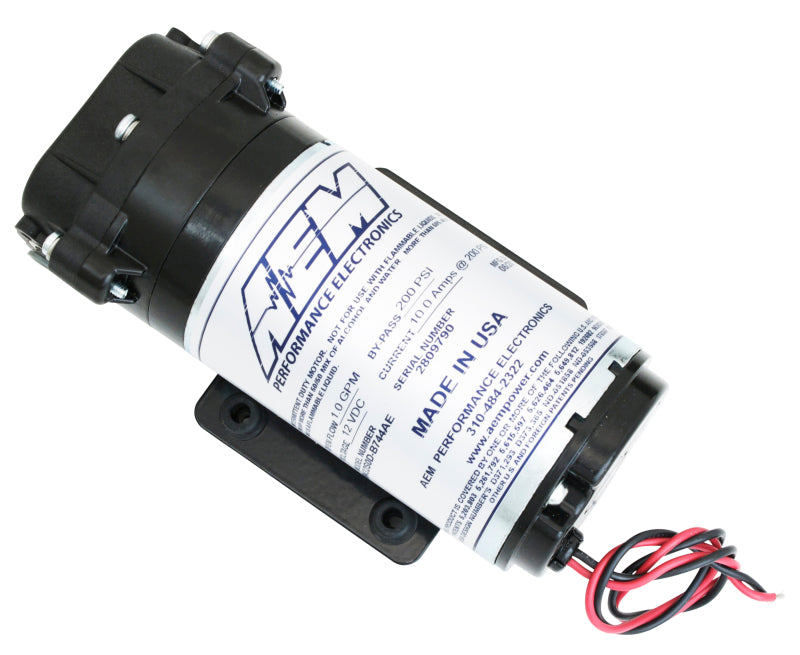

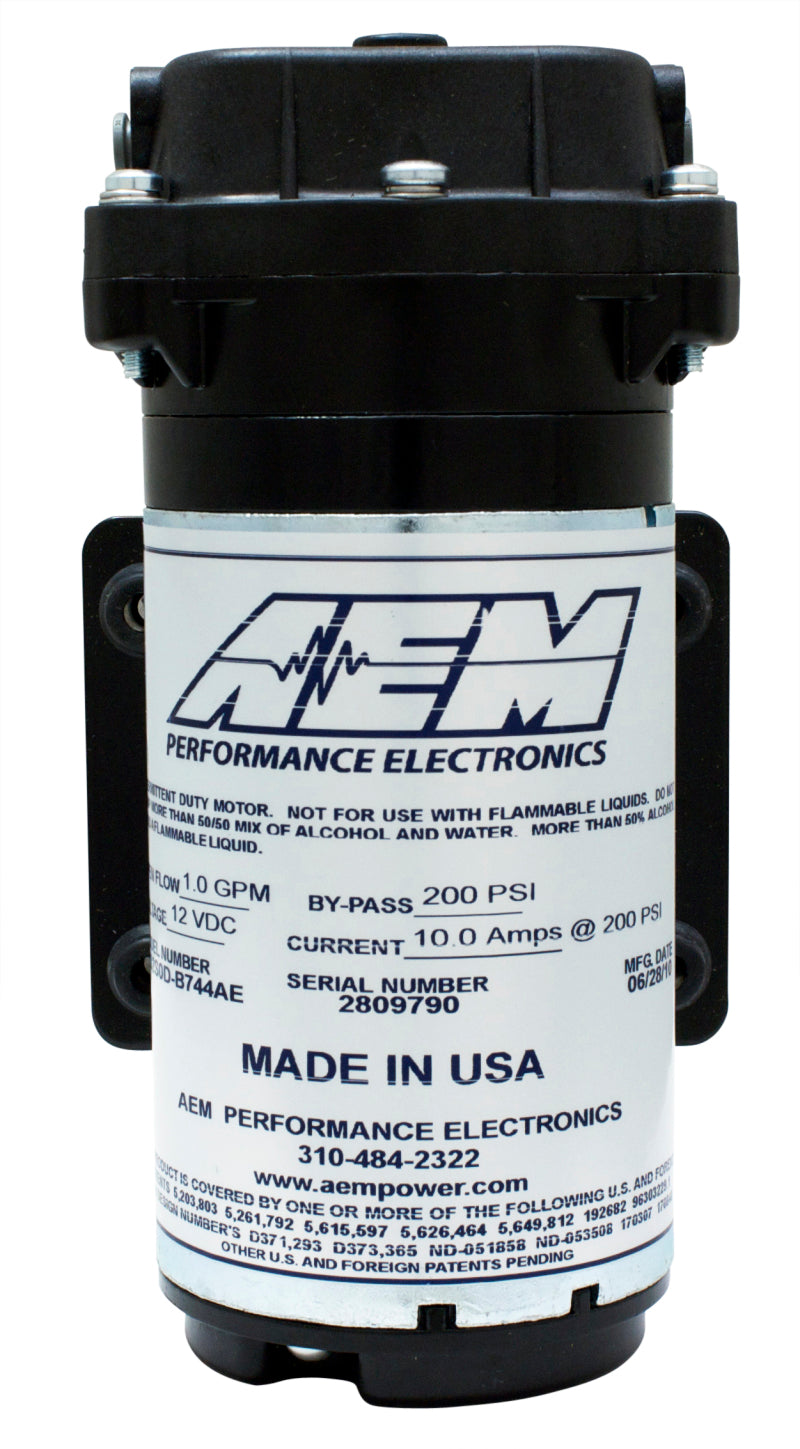

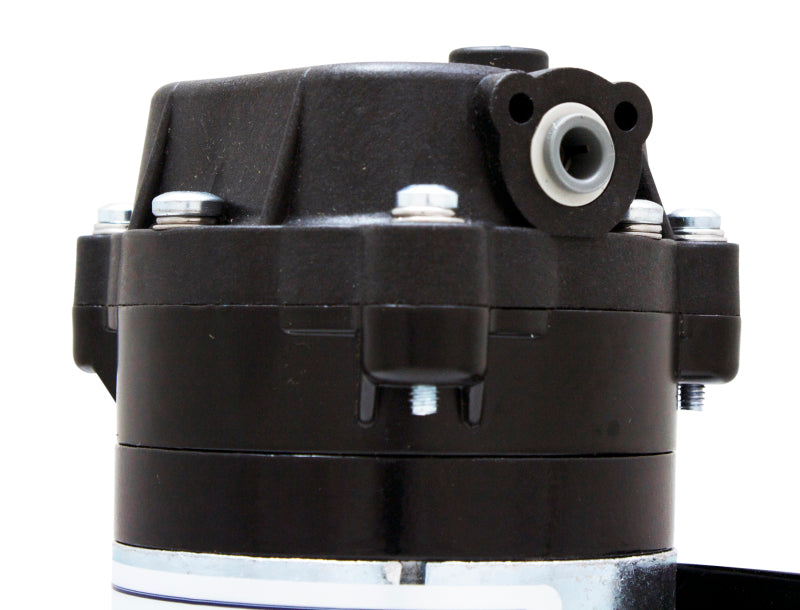

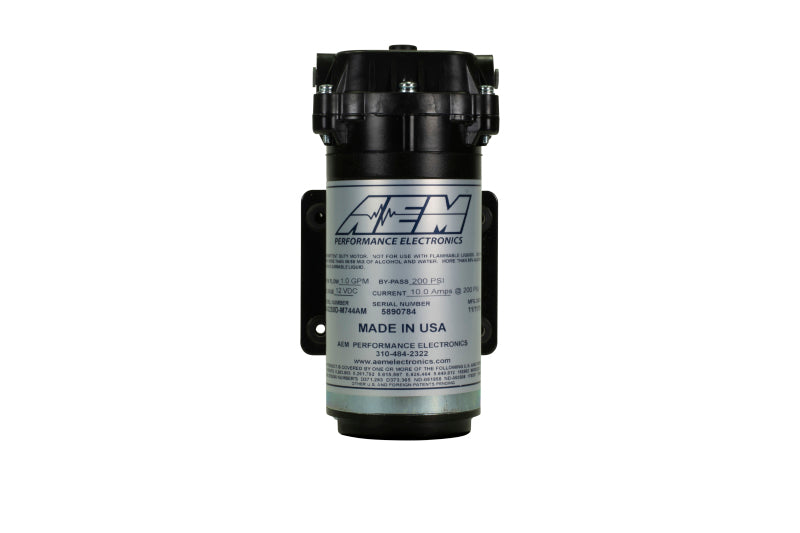

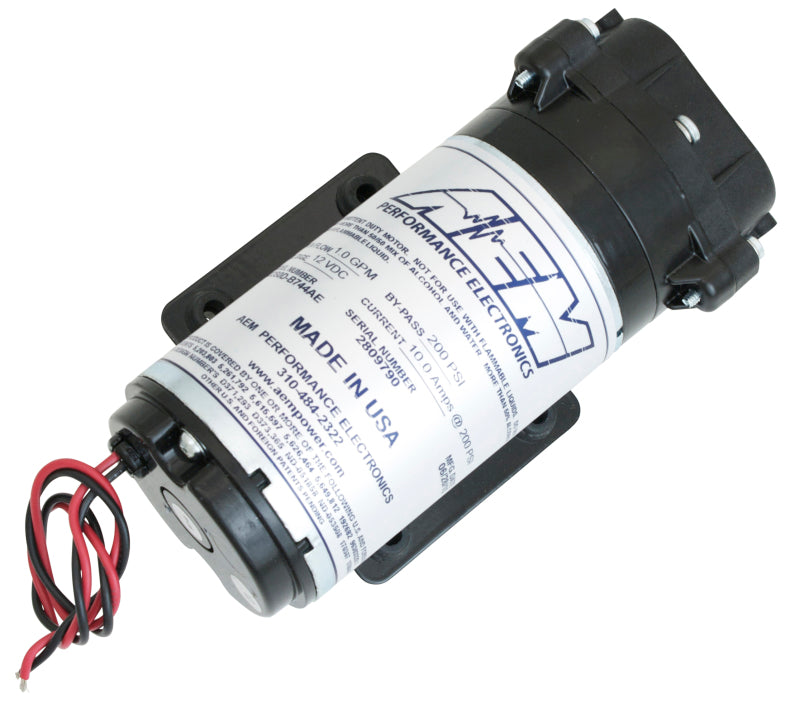

  • 200 PSI pump with integral fittings
  • Injector nozzle with check valve and 250, 500 and 1000 cc/min pintles

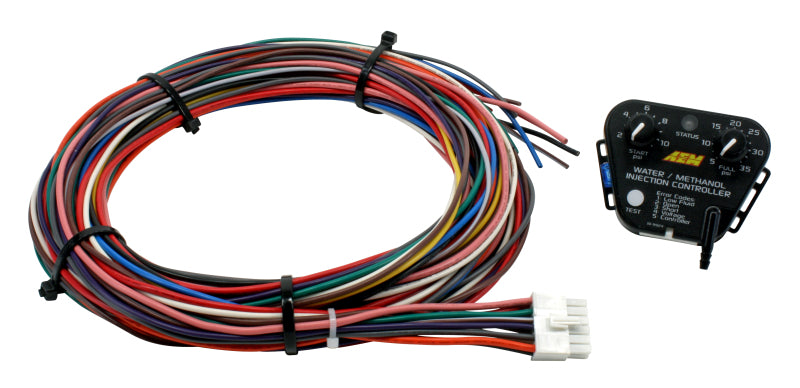

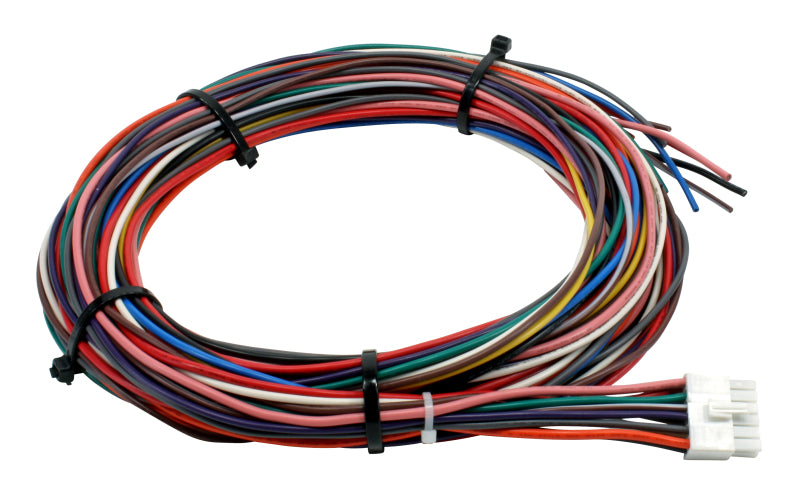

  • 12 ft wiring harness
  • 20 ft high-pressure 1/4 in nylon hose
  • Dash LED
  • Mounting hardware, vacuum hose, tee fitting, wire wrap and wiring connectors
Fitment Notes Forced induction gasoline engines up to 35 PSI boost
Warranty 1 year limited

Documents: Installation Instructions (PDF)

What does the Boost Safe output do?

  • It switches on when the controller sees a short, a broken connection, high or low voltage or low fluid. You can use it to light a warning lamp, pull boost or timing, or switch fuel maps on a standalone engine management system.

Which nozzle size should I start with?

  • The 500 cc/min pintle comes installed. The instructions include a chart that matches pintle size to engine horsepower and boost level, and suggest combining two nozzles at the highest power levels.

Can I add a shut-off solenoid?

  • Yes. The harness has a wire for an optional on/off solenoid that stops flow when the system is not injecting. AEM recommends its WMI solenoid 30-3326 when the pump and tank sit higher than the nozzle, and an inline WMI filter 30-3003 on every system.
