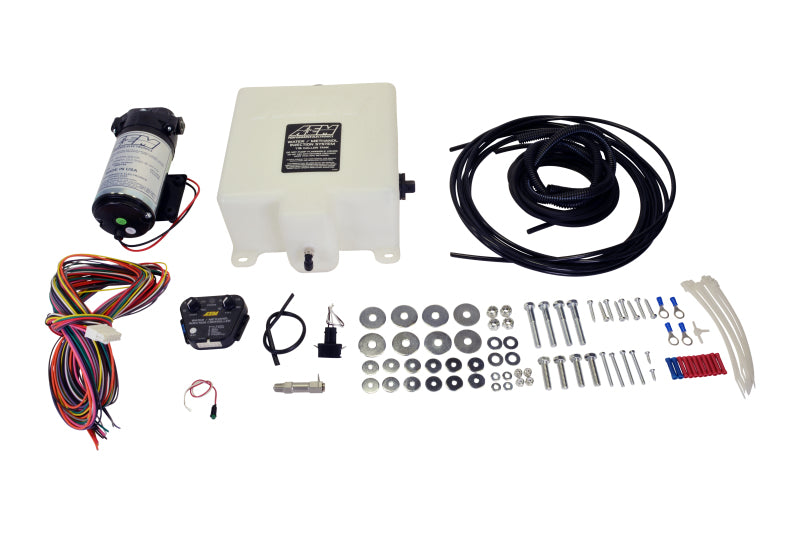

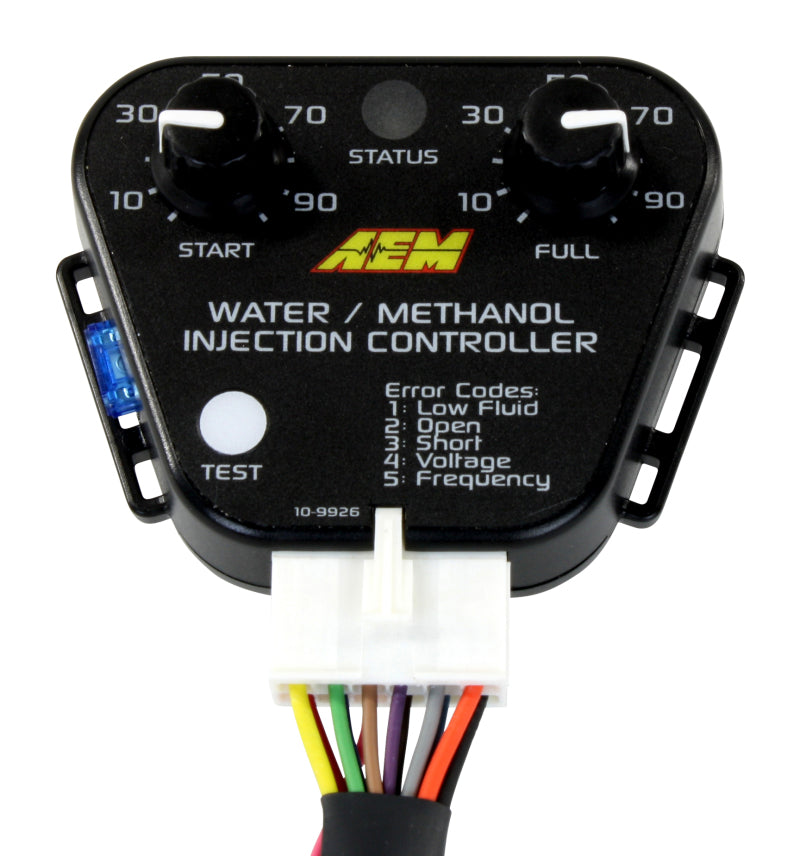

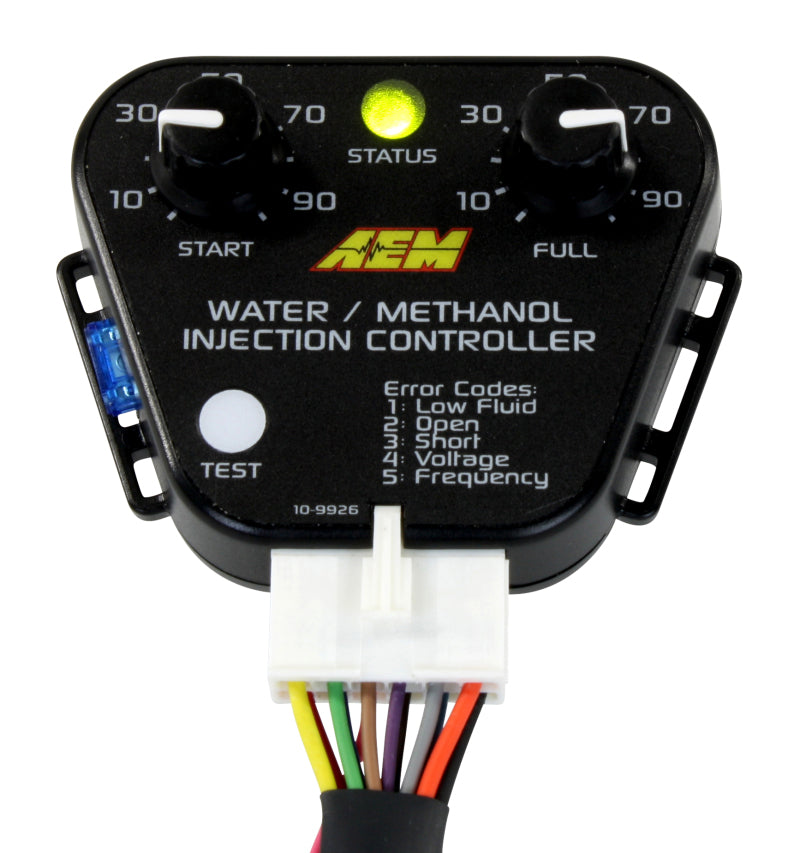

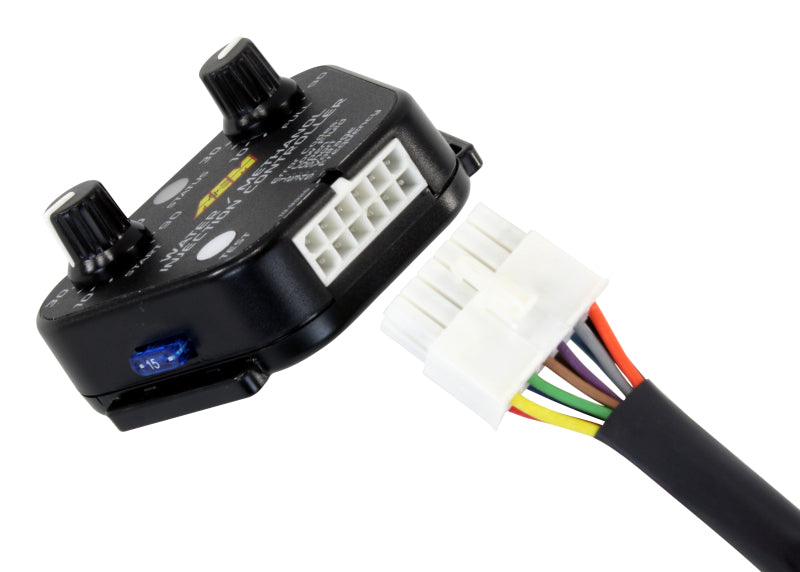

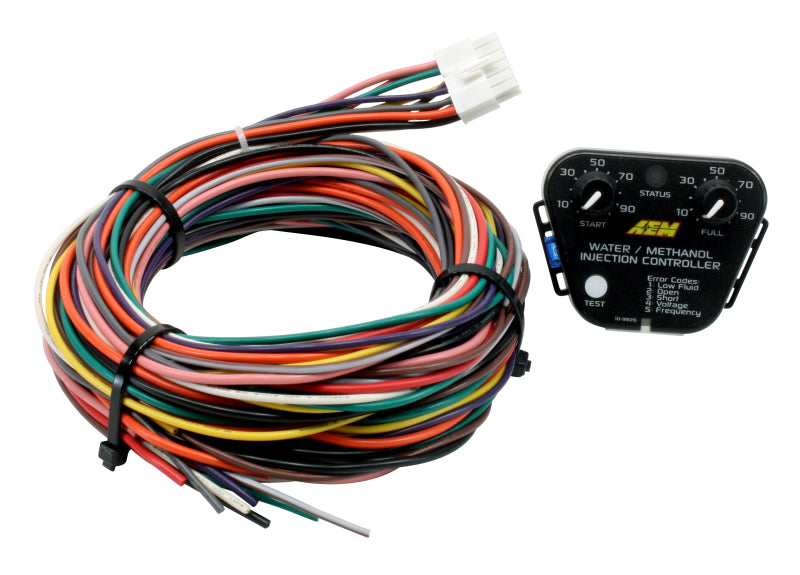

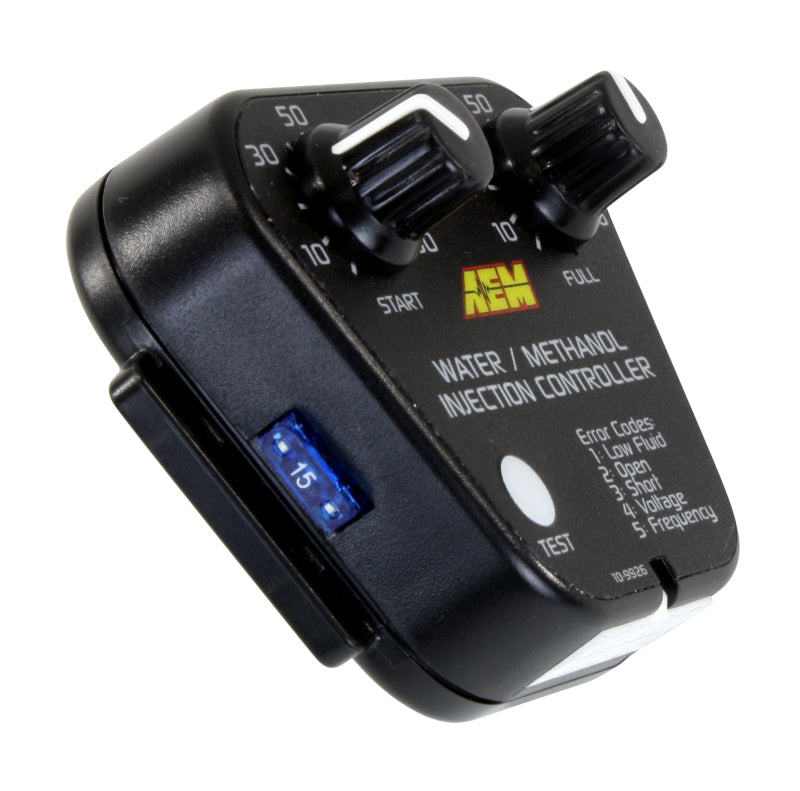

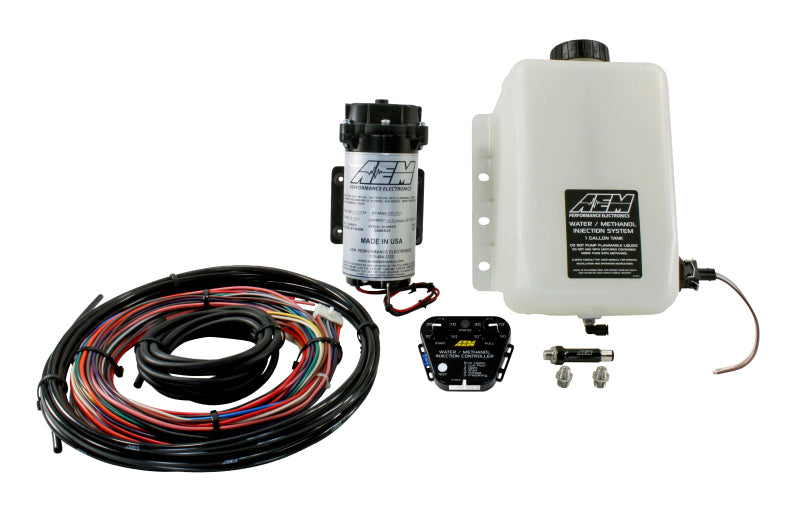

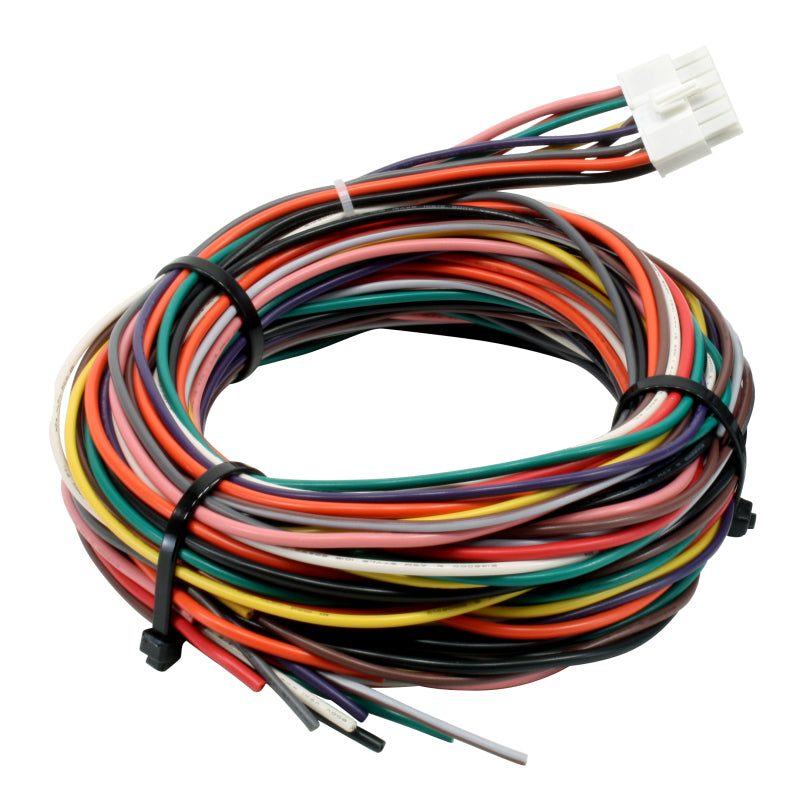

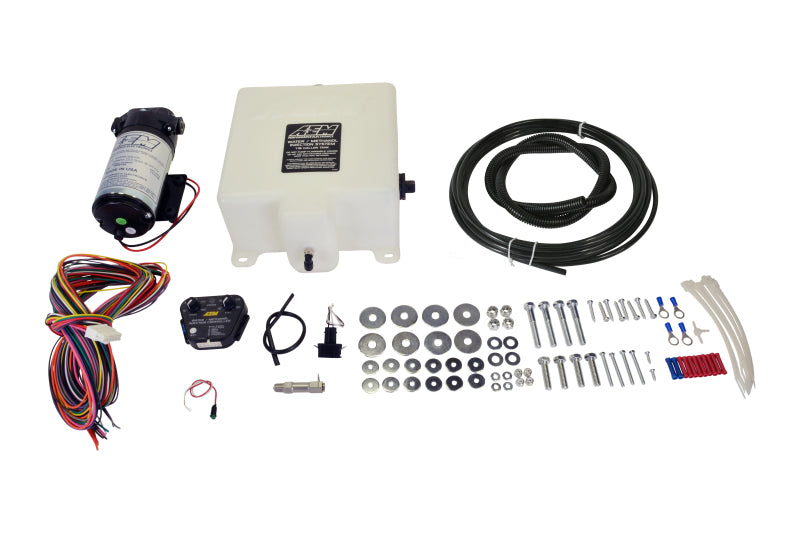

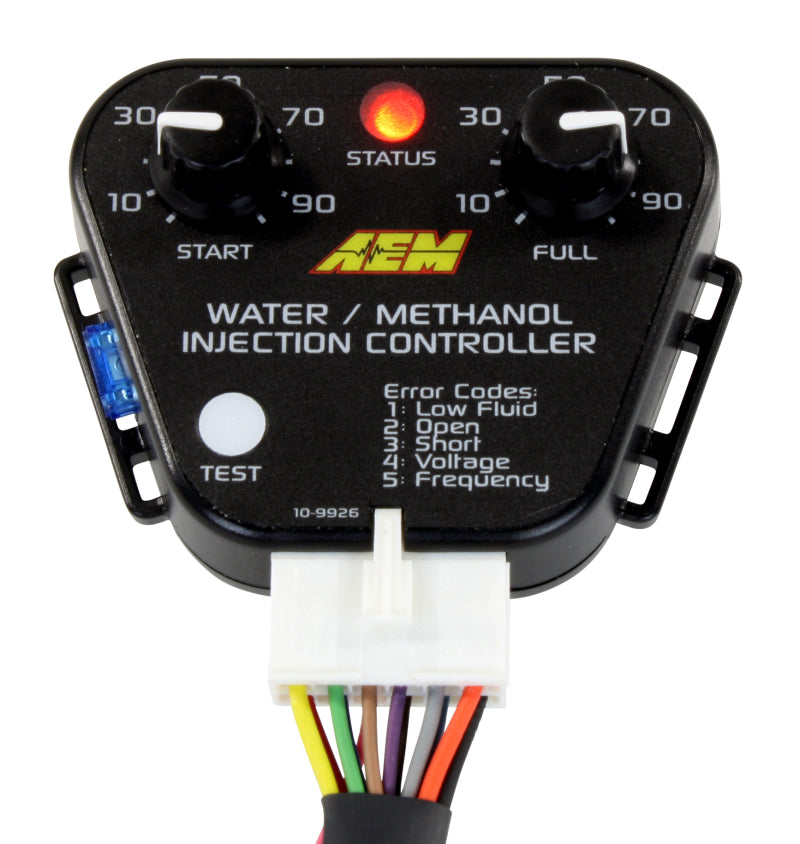

The AEM V3 multi-input water/methanol injection kit cools intake charge temperatures and suppresses detonation, letting you safely run more boost and timing. The multi-input controller lets you trigger flow from a 0-5V external MAP sensor, frequency or 0-5V MAF, or injector duty cycle (IDC), making it suitable for high-compression naturally aspirated engines as well as ultra-high-boost setups above 40 PSI. This version ships with a 1.15-gallon tank featuring an anti-starvation reservoir and integral conductive low-fluid sensor, plus a single billet injector. The progressive controller has large adjustment knobs, a covered status LED and test button, an integrated fuse, and a positive-lock wiring harness with integrated pump-ground circuit. "Boost Safe" failsafe output and three interchangeable nozzles (250, 500 and 1,000 cc/min) are included.
| Type | Water/methanol injection kit |
| Controller | V3 progressive, multi-input |

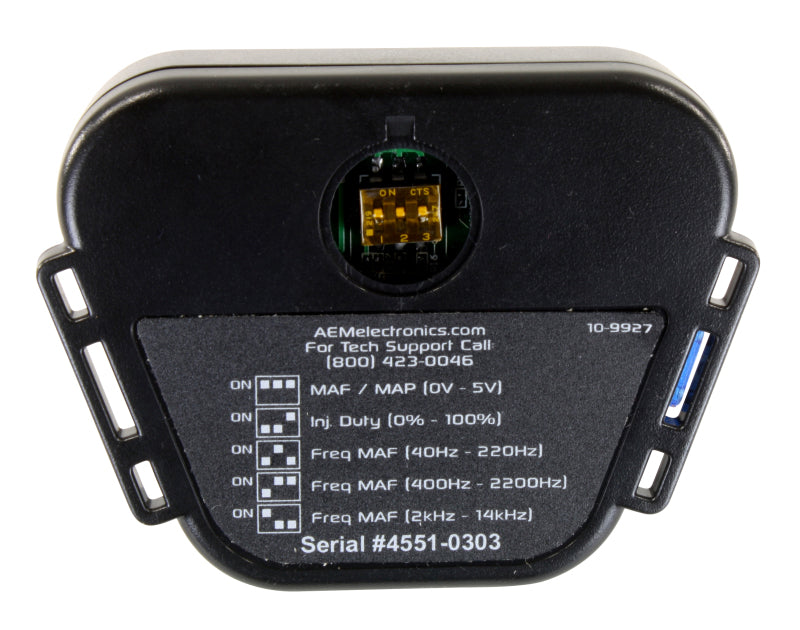

| Trigger inputs | 0-5V MAP, MAF (freq or 0-5V), or IDC |
| Applications | High-compression NA or boosted (40 PSI+) |

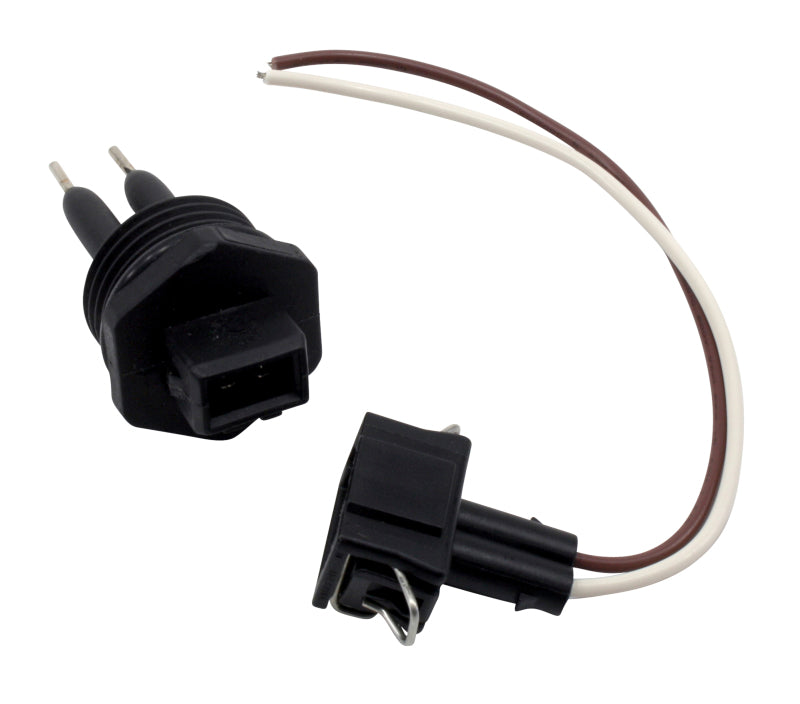

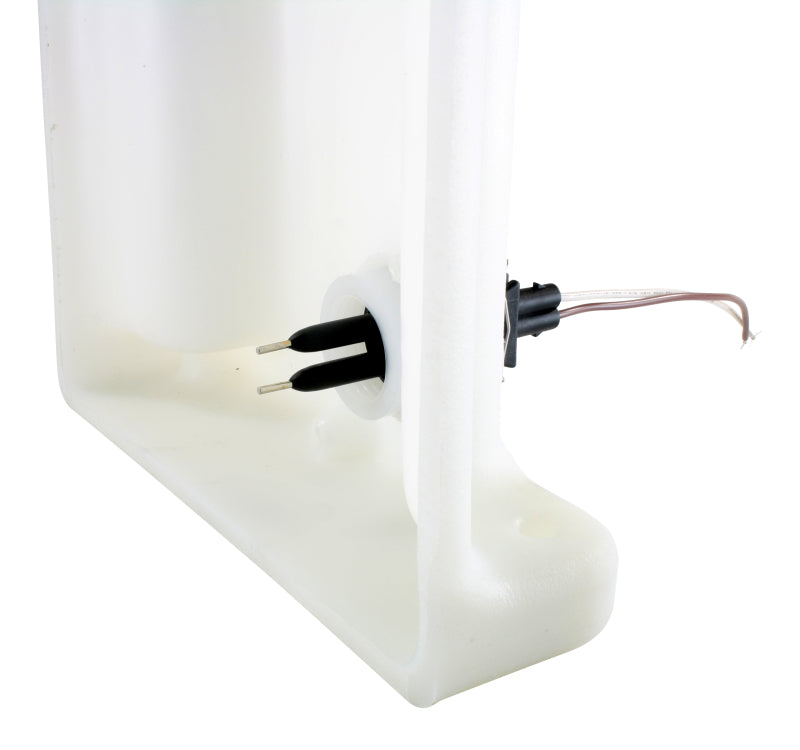

| Tank | 1.15 gallon, anti-starvation, low-fluid sensor |
| Injector / nozzles | 1 billet injector; 250 / 500 / 1,000 cc/min |
| Tubing | 20 ft high-pressure nylon |
| Failsafe | "Boost Safe" readiness output |
Documents: Warranty (PDF) | Installation Instructions (PDF)
