AEM X-Series Inline Wideband UEGO AFR Controller - Bosch LSU 4.9 Sensor

AEM SKU: AEM30-0310
Price
Regular price $221.95
Regular price $249.95 Sale price $221.95
11% OFF
Out of Stock – Order Now, Ships the Week of Dec 14
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandAEM
SKUAEM30-0310
GTIN / UPC840879024475
Manufacturer Part Number30-0310

Product Information

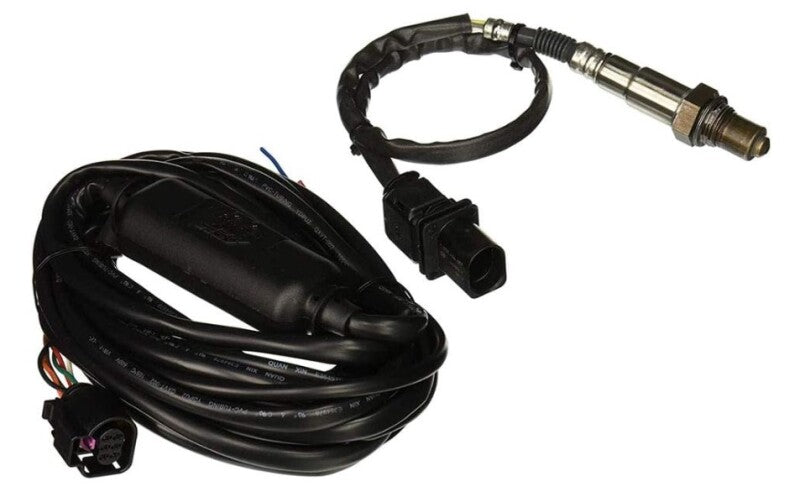

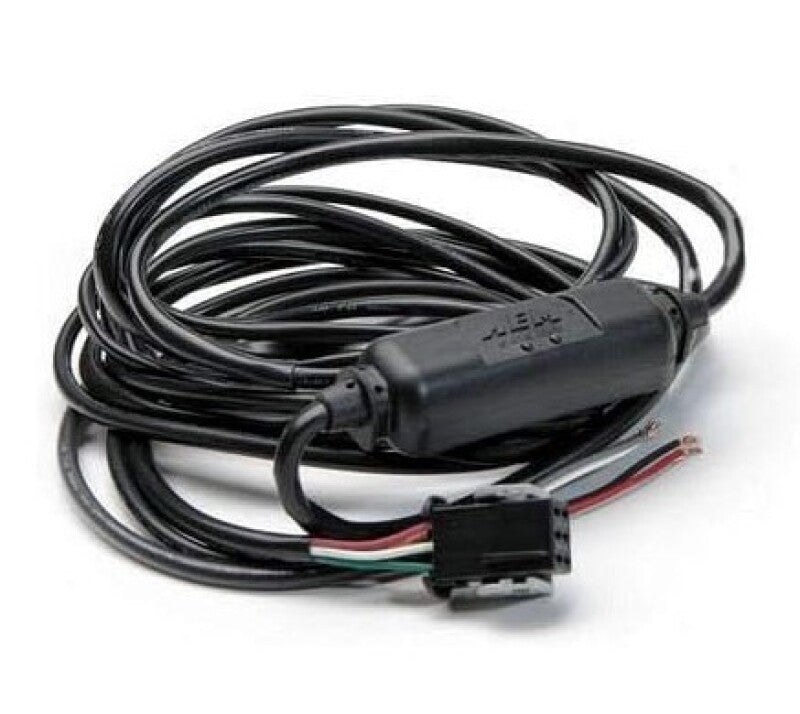

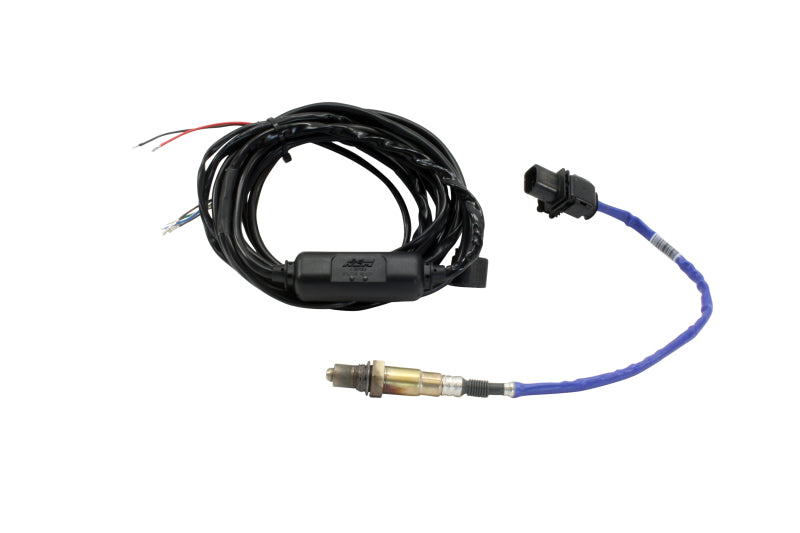

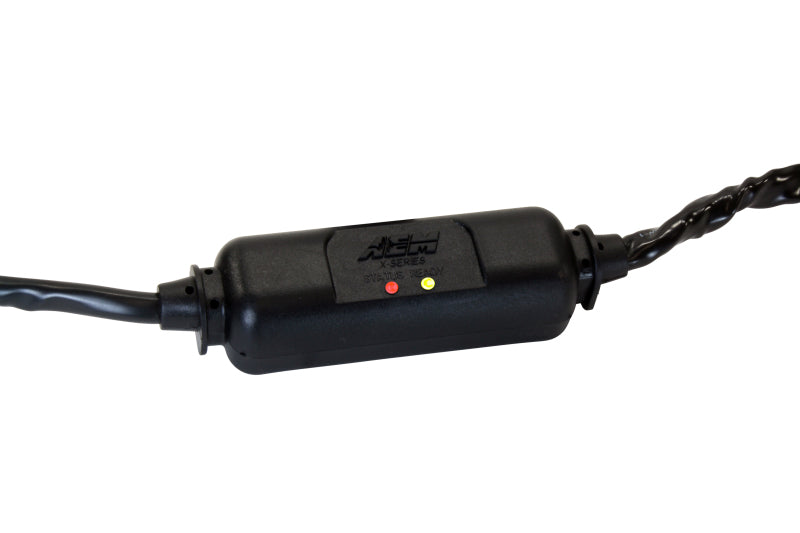

A wideband air/fuel ratio controller with no display, built into a low-profile, weather-resistant box with status LEDs, for logging AFR or feeding it to an engine management system. It sends the reading as a 0-5V signal, over RS232 serial and over AEMnet CAN, and several controllers can share one AEMnet line to watch up to 16 cylinders. The kit ships with a Bosch LSU 4.9 sensor and a mild steel bung that has to be welded into the exhaust.

Specifications

Type Inline wideband UEGO air/fuel ratio controller (no display)
Range 0-5V output: 8.5:1 to 18.0:1 AFR gasoline, 0.58 to 1.23 Lambda; AEMnet CAN: 8.0:1 to 20.0:1 AFR gasoline, 0.55 to 2.00 Lambda
Sensor Included Yes, Bosch LSU 4.9 wideband UEGO sensor

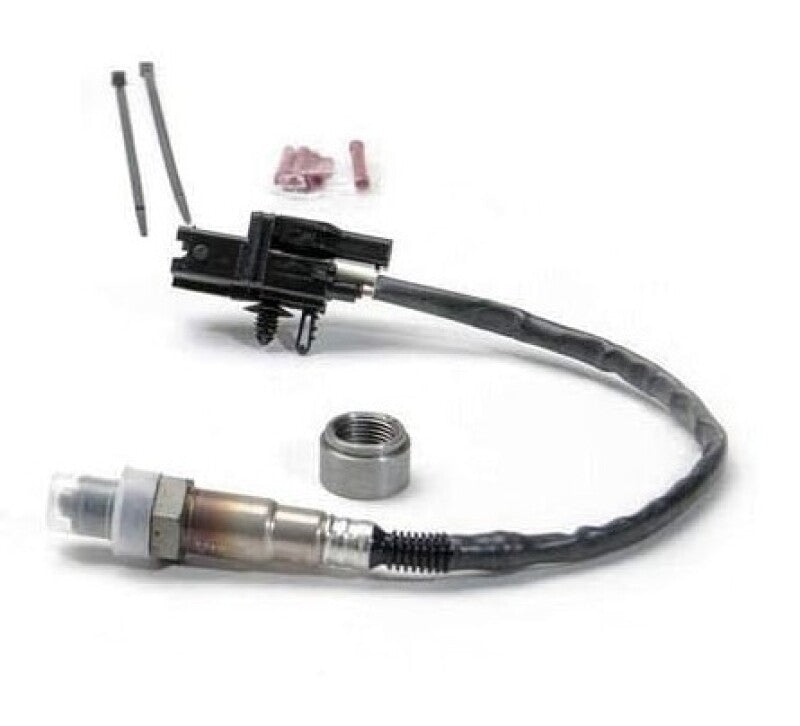

What's in the Box
  • X-Series inline wideband controller
  • Bosch LSU 4.9 wideband UEGO sensor
  • Weld-in O2 sensor bung (mild steel)
  • 4 red insulated butt connectors
  • Instructions
Warranty 1 year limited; O2 sensor excluded (wear item)

Documents: Installation Instructions (PDF)

Which fuels and engines can it be used on?

  • Gasoline, methanol, ethanol, diesel, propane and CNG, on EFI or carbureted engines, and on dynamometers.

Does the sensor need a free-air calibration before use?

  • No. The sensor connector carries a factory calibration resistor, so it reads correctly when new. A free-air calibration can be run later to correct drift as the sensor ages; the connector must not be cut or modified.

How should the sensor bung be welded in?

  • Weld the mild steel bung into the exhaust so the installed sensor sits more than ten degrees from horizontal, and avoid a fully vertical position.

What supply voltage does it run on?

  • It works on vehicle and system voltages up to 16V.
