aFe Track Series Carbon Fiber Pro 5R Cold Air Intake System - Ford F-150 / Expedition / Lincoln Navigator 3.5L 2021-2026

aFe SKU: AFE57-10031K
Price
Regular price $820.00
Regular price $1,025.00 Sale price $820.00
20% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandaFe
SKUAFE57-10031K
GTIN / UPC802959570661
Manufacturer Part Number57-10031K

Product Information

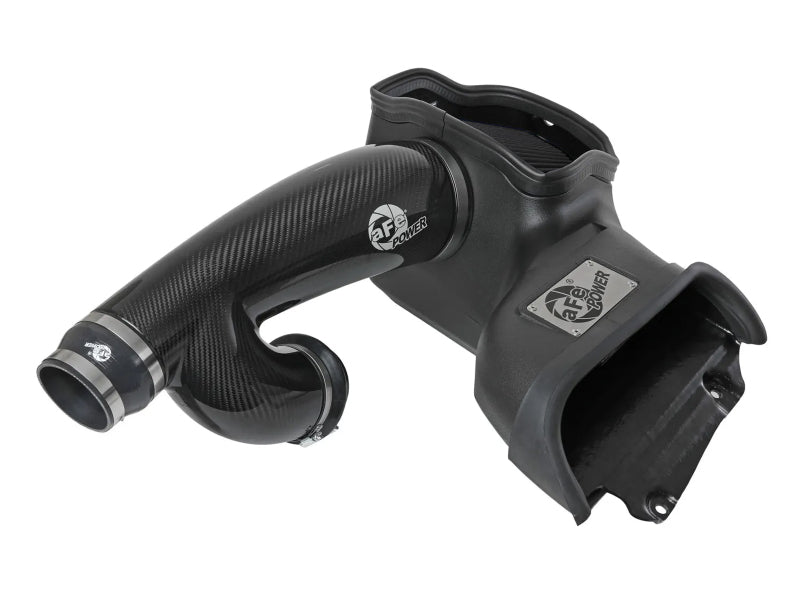

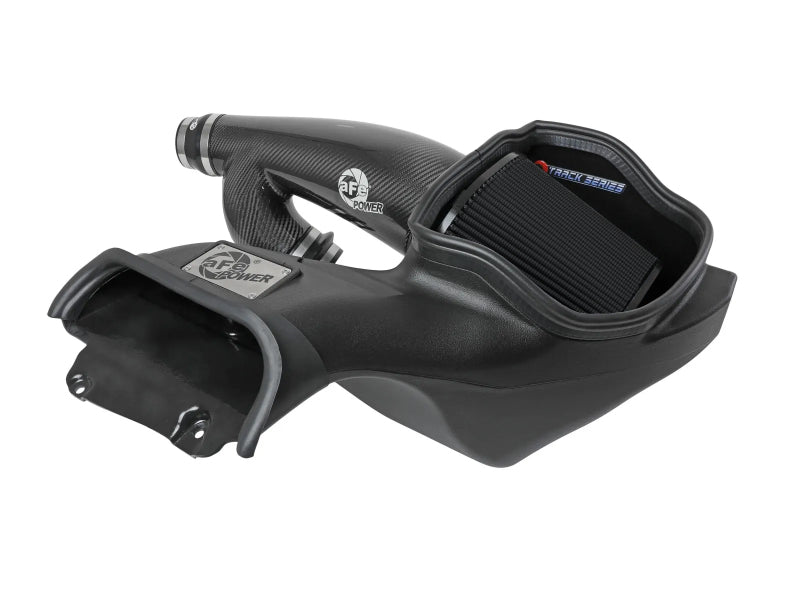

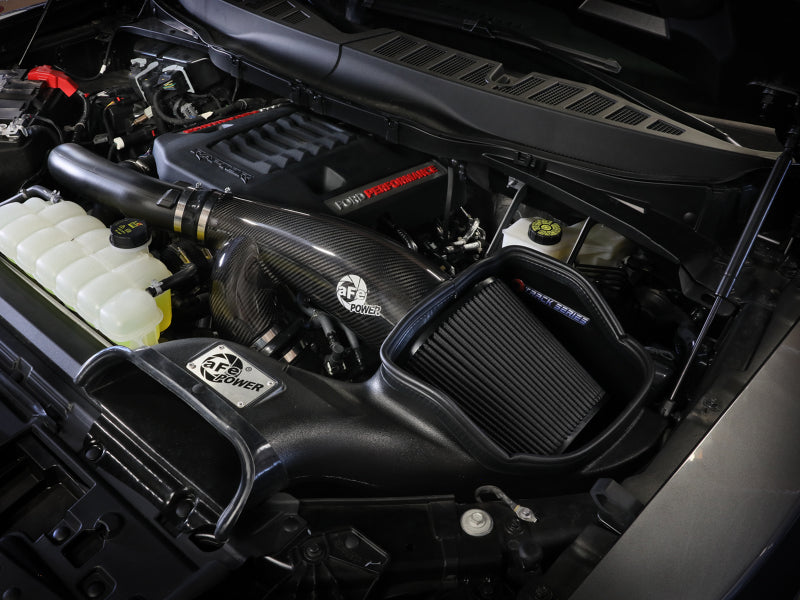

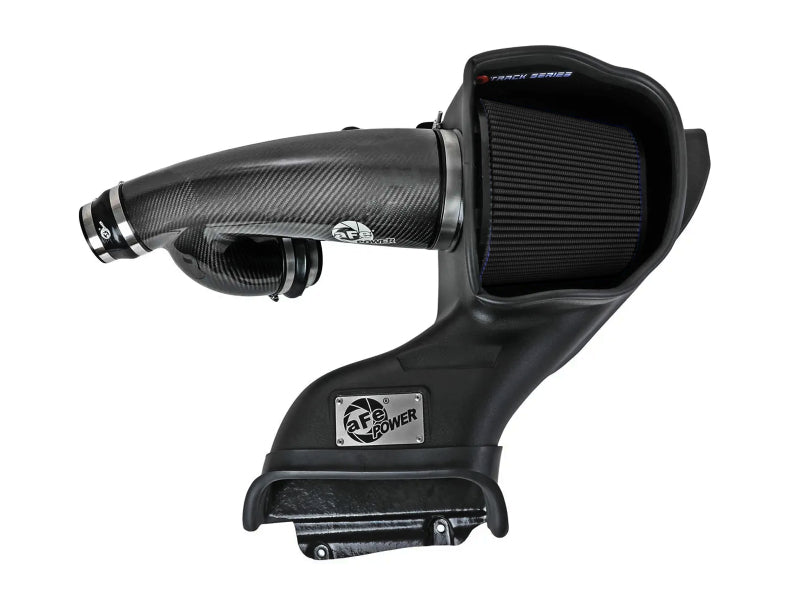

aFe Track Series cold air intake system with a 100% twill weave carbon fiber intake tube, clear coated and made with no fiberglass. An open-element XLPE housing surrounds the filter, shows it off and gives a deeper intake sound, and its built-in scoop draws cold air straight from the top of the radiator support. The 9 in tall 360 degree radial flow filter uses black Pro 5R five-layer oiled cotton media with an inverted top for more surface area. It flows 885 CFM at 7 in H2O, 70% more than the factory intake, and is rated at up to 18 hp and 17 lb-ft over stock. It bolts in at the factory mounting points with no cutting or drilling.

Specifications

Type Cold Air Intake System
Series Track Series
Filter Media Black Pro 5R, five-layer oiled cotton gauze, washable and reusable

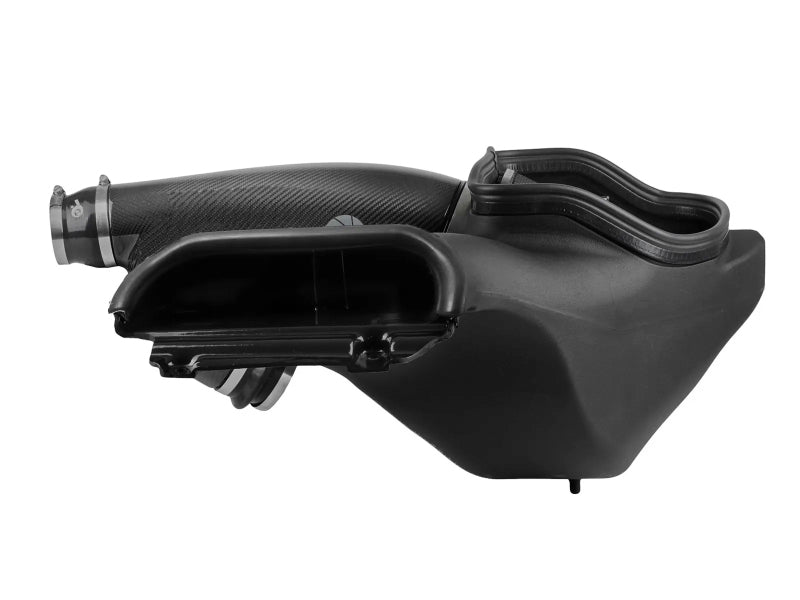

Housing One-piece open-element XLPE housing with built-in scoop that draws cold air from the top of the radiator support
Intake Tube 100% twill weave carbon fiber, clear coated, no fiberglass
Filter 9 in tall, 360 degree radial flow, 5-1/2 in flange, inverted top

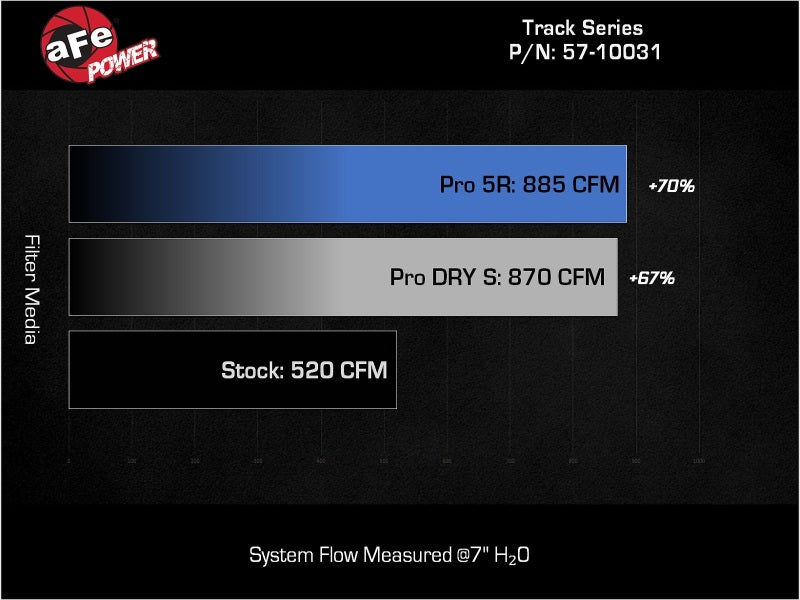

Gains +18 hp, +17 lb-ft; 885 CFM @ 7 in H2O, 70% more than the factory intake

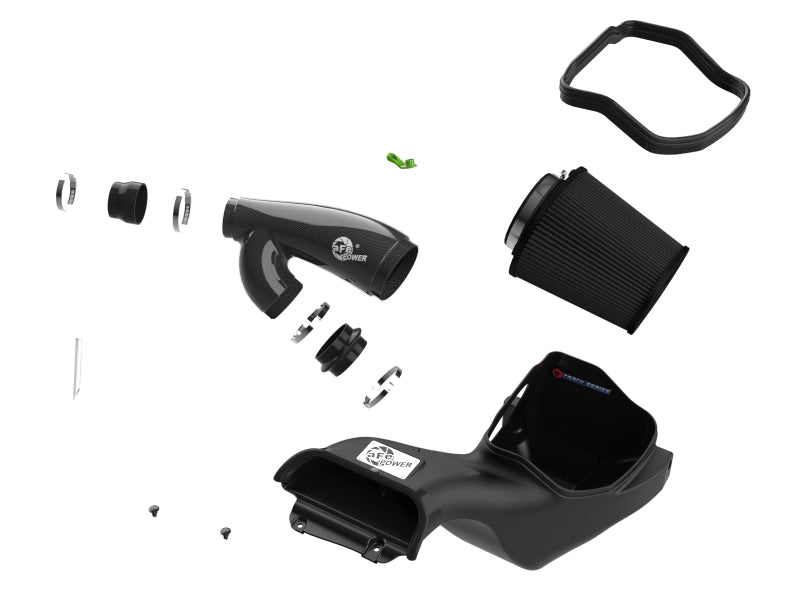

What's in the Box
  • Black Pro 5R filter (24-91149K)
  • Carbon fiber intake tube
  • Housing
  • Silicone reducer coupler
  • Silicone bellows coupler
  • Stainless clamps
  • Vent tube insert
  • Trim seal
  • Push-in retainer clips
  • 5/8 in quick disconnect tool
Fitment Notes 3.5L twin turbo V6 only, including the Raptor; will not fit the F-150 3.5L PowerBoost hybrid
Replacement Filter 24-91149K (Black Pro 5R)
Engine V6-3.5L (tt) EcoBoost
Filter Color Black
Hardware Included Yes
Air Flow Gain 70 Percent
Air Box Type Open
Heat Shield Included No
Tune Required No
Warranty 2 years on components (original owner)
Part Number 57-10031K

This part fits:

Year Make Model Submodel
2022-2024 Ford Expedition King Ranch
2022-2024 Ford Expedition Limited
2022-2024 Ford Expedition Max King Ranch
2022-2024 Ford Expedition Max Limited
2022-2024 Ford Expedition Max Platinum
2022-2024 Ford Expedition Max SSV
2022 Ford Expedition Max XL
2022-2024 Ford Expedition Max XLT
2022-2024 Ford Expedition Platinum
2022-2024 Ford Expedition SSV
2022-2024 Ford Expedition Timberline
2022 Ford Expedition XL
2023-2024 Ford Expedition XL STX
2022-2024 Ford Expedition XLT
2021-2026 Ford F-150 King Ranch
2021-2026 Ford F-150 Lariat
2021-2023 Ford F-150 Limited
2021-2026 Ford F-150 Platinum
2021-2026 Ford F-150 Police Responder
2021-2026 Ford F-150 Raptor
2021-2026 Ford F-150 SSV
2021-2026 Ford F-150 Tremor
2021-2026 Ford F-150 XL
2021-2026 Ford F-150 XLT
2022-2024 Lincoln Navigator Base
2022-2024 Lincoln Navigator Black Label
2022 Lincoln Navigator L Base
2022-2024 Lincoln Navigator L Black Label
2022-2024 Lincoln Navigator L Livery
2022-2024 Lincoln Navigator L Reserve
2022-2024 Lincoln Navigator Reserve

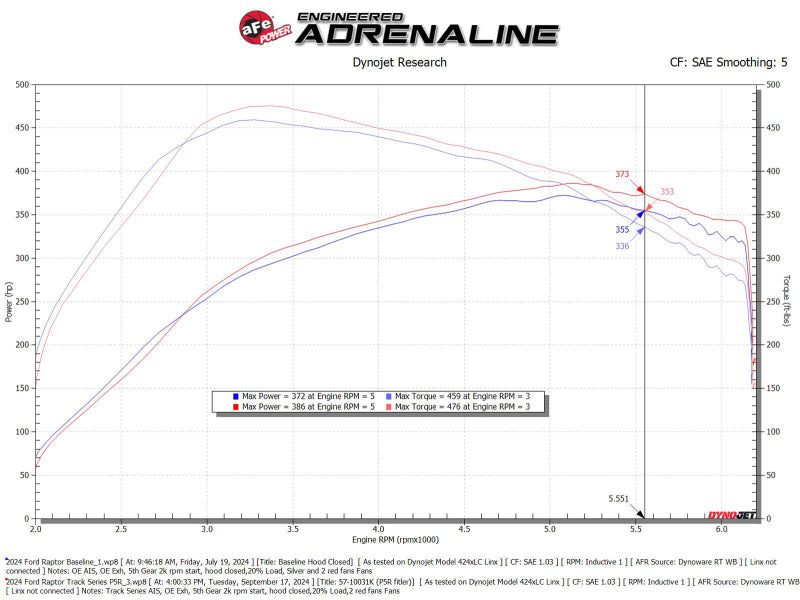

Documents: Installation Instructions (PDF) | Airflow Chart | Dyno Chart | Filter Cleaning Instructions

Will it fit my F-150 PowerBoost?

  • No. It fits the 2021-2024 F-150 and F-150 Raptor 3.5L twin turbo V6 and the 2022-2024 Expedition and Navigator 3.5L, but not the 3.5L PowerBoost hybrid.

What comes in the box?

  • The black Pro 5R filter (24-91149K), the carbon fiber tube, the housing, two silicone couplers, stainless clamps, a vent tube insert, trim seal, retainer clips and a 5/8 in quick disconnect tool.

How do I service the filter?

  • The black Pro 5R filter is washable and reusable; clean and re-oil it using the cleaning instructions linked under Documents. The replacement filter is part number 24-91149K.

Is there a Pro DRY S version?

  • Yes. The same intake with an oil-free Pro DRY S filter is part number 57-10031D, and a red Kevlar edition is 57-10031KR.
